2007 CHEVROLET COLORADO Owners Manual

Cleaning the Mirror
When cleaning the mirror, use a paper towel or
similar material dampened with glass cleaner.
Do not spray glass cleaner directly on the mirror
as that may cause the liquid cleaner to enter
the mirror housing.
Automatic Dimming Rearview
Mirror with Compass and
Temperature Display
Your vehicle may have this mirror. When on,
an automatic dimming mirror will dim to the
proper level to minimize glare from lights behind
you after dark.
The mirror also includes a dual display in the
upper right corner of the mirror with the compass
reading and the outside temperature.
Yb:Briey press this button to turn the display
on or off.
Temperature Display
The temperature can be displayed by pressing
the compass/temperature button. Pressing the
compass/temperature button once briey, will
toggle the display reading on and off. To alternate
the temperature reading between Fahrenheit and
Celsius, press and hold the compass/temperature
button for approximately three seconds until
the display blinks F and C. After approximately
ve seconds of inactivity, the display will stop
blinking and display the last selection made.
If an abnormal reading is displayed, see your
dealer/retailer.
Automatic Dimming Mirror Operation
O
:Press this button to turn the automatic
dimming feature on or off. The indicator light to
the left of the button will turn on to indicate when
the feature is on. Once the mirror is turned off,
it will remain off until it is turned back on, or until
the vehicle is restarted.
Compass Operation
Press the compass/temperature button once
briey to turn the display on or off.
145

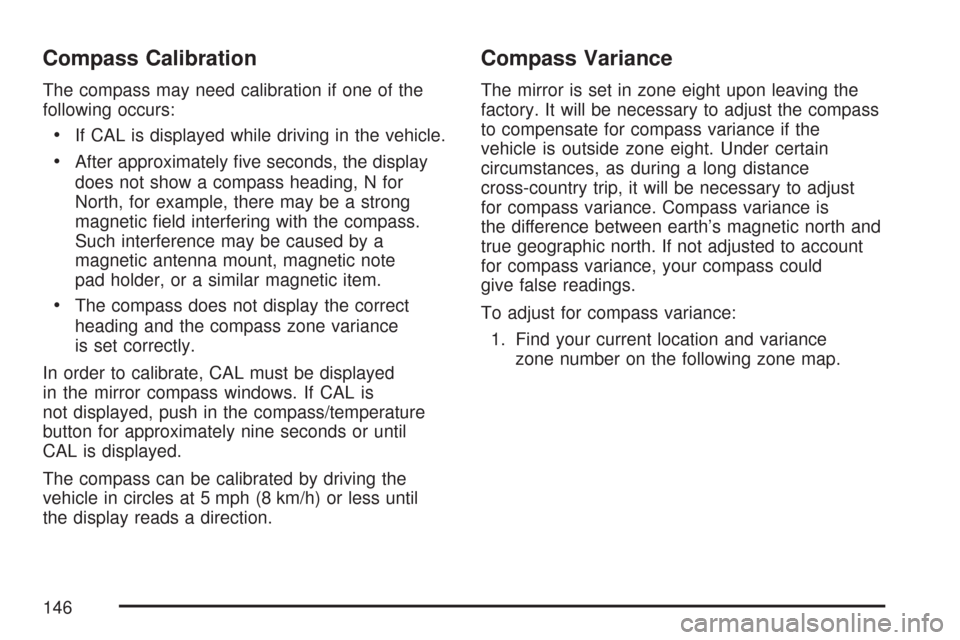

Compass Calibration
The compass may need calibration if one of the
following occurs:
If CAL is displayed while driving in the vehicle.
After approximately ve seconds, the display
does not show a compass heading, N for
North, for example, there may be a strong
magnetic eld interfering with the compass.
Such interference may be caused by a
magnetic antenna mount, magnetic note
pad holder, or a similar magnetic item.
The compass does not display the correct
heading and the compass zone variance
is set correctly.
In order to calibrate, CAL must be displayed
in the mirror compass windows. If CAL is
not displayed, push in the compass/temperature
button for approximately nine seconds or until
CAL is displayed.
The compass can be calibrated by driving the
vehicle in circles at 5 mph (8 km/h) or less until
the display reads a direction.
Compass Variance
The mirror is set in zone eight upon leaving the
factory. It will be necessary to adjust the compass
to compensate for compass variance if the
vehicle is outside zone eight. Under certain
circumstances, as during a long distance
cross-country trip, it will be necessary to adjust
for compass variance. Compass variance is
the difference between earth’s magnetic north and
true geographic north. If not adjusted to account
for compass variance, your compass could
give false readings.
To adjust for compass variance:
1. Find your current location and variance
zone number on the following zone map.
146

2. Press and hold the compass/temperature
button for six seconds until a zone number
appears in the display.
3. Press the compass/temperature button on the
bottom of the mirror until the new zone number
appears in the display. After you stop pressing
the button, the display will show a compass
direction within a few seconds.
Cleaning the Mirror
Use a paper towel or similar material dampened
with glass cleaner. Do not spray glass cleaner
directly on the mirror as that may cause the liquid
cleaner to enter the mirror housing.
Outside Manual Mirrors
If the vehicle has manual outside mirrors, adjust
them by hand so that the side of the vehicle can
be seen while you are sitting in a comfortable
driving position.
The mirrors can be folded inward to prevent
damage when going through an automatic car
wash. To fold, push the mirror toward the vehicle.
To return the mirror to its original position, push
outward. Return both mirrors to the unfolded
position before driving.
147

Outside Power Mirrors
If your vehicle has
this feature, the controls
are located on the
driver’s door armrest.
To adjust the power mirrors, do the following:
1. Move the selector switch to the L (left)
or R (right) to choose the driver’s or
passenger’s mirror.
2. Use the arrows located on the four-way
control pad to move the mirror in the
direction you want the mirror to go.
3. Return the selector switch to the center
position once the mirrors are adjusted.If the mirror begins making a ratcheting sound, the
mirror has reached the end of its travel and can go
no farther in that direction. To stop the sound,
reverse the mirror direction using the control pad.
The mirrors can be manually folded inward to
prevent damage when going through an automatic
car wash. To fold, push the mirror toward the
vehicle. To return the mirror to its original position,
push outward. Be sure to return both mirrors to
the unfolded position before driving.
Outside Convex Mirror
Your passenger’s outside rearview mirror is
convex. A convex mirror’s surface is curved so
you can see more from the driver’s seat.
{CAUTION:
A convex mirror can make things (like
other vehicles) look farther away than they
really are. If you cut too sharply into the
right lane, you could hit a vehicle on your
right. Check your inside mirror or glance
over your shoulder before changing lanes.
148

OnStar®System
OnStar®uses several innovative technologies and
live advisors to provide you with a wide range
of safety, security, information, and convenience
services. If your airbags deploy, the system is
designed to make an automatic call to OnStar
®
Emergency advisors who can request emergency
services be sent to your location. If you lock
your keys in the vehicle, call OnStar
®at
1-888-4-ONSTAR and they can send a signal
to unlock your doors. If you need roadside
assistance, press the OnStar
®button and
they can contact Roadside Service for you.OnStar
®service is provided to you subject
to the OnStar®Terms and Conditions. You
may cancel your OnStar®service at any time
by contacting OnStar®as provided below.
A complete OnStar®Owner’s Guide and the
OnStar®Terms and Conditions are included
in the vehicle’s OnStar®Subscriber glove box
literature. For more information, visit onstar.com
or onstar.ca, contact OnStar
®at 1-888-4-ONSTAR
(1-888-466-7827) or TTY 1-877-248-2080, or
press the OnStar
®button to speak with an
OnStar®advisor 24 hours a day, 7 days a week.
Not all OnStar
®features are available on all
vehicles. To check if your vehicle is equipped to
provide the services described below, or for a
full description of OnStar
®services and system
limitations, see the OnStar®Owner’s Guide in
your glove box or visit onstar.com.
149

OnStar®Services
For new vehicles equipped with OnStar®, the Safe
& Sound Plan, or the Directions & Connections®
Plan is included for one year from the date of
purchase. You can extend this plan beyond
the rst year, or upgrade to the Directions &
Connections
®Plan. For more information, press
the OnStar®button to speak with an advisor.
Some OnStar®services (such as Remote Door
Unlock or Stolen Vehicle Location Assistance) may
not be available until you register with OnStar
®.
Available Services with
Safe & Sound®Plan

Automatic Notication of Airbag Deployment
Advanced Automatic Crash Notication
(AACN) (If equipped)
Link to Emergency Services
Roadside Assistance
Stolen Vehicle Location Assistance
AccidentAssist
Remote Door Unlock/Vehicle Alert
OnStar®Vehicle Diagnostics
GM®Goodwrench®On Demand Diagnostics
OnStar®Hands-Free Calling with
30 complimentary minutes
OnStar®Virtual Advisor (U.S. Only)
Available Services included with
Directions & Connections®Plan

All Safe and Sound Plan Services
Driving Directions - Advisor delivered
or OnStar®Turn-by-Turn Navigation
(If equipped)
RideAssist
Information and Convenience Services
150

OnStar®Hands-Free Calling
OnStar®Hands-Free Calling allows eligible
OnStar®subscribers to make and receive calls
using voice commands. Hands-Free Calling is fully
integrated into the vehicle, and can be used with
OnStar
®Pre-Paid Minute Packages. Hands-Free
Calling may also be linked to a Verizon Wireless
service plan in the U.S. or a Bell Mobility service
plan in Canada, depending on eligibility. To nd
out more, refer to the OnStar
®Owner’s Guide
in the vehicle’s glove box, visit www.onstar.com
or www.onstar.ca, or speak with an OnStar
®
advisor by pressing the OnStar®button or
calling 1-888-4-ONSTAR (1-888-466-7827).
OnStar®Virtual Advisor
OnStar®Virtual Advisor is a feature of OnStar®
Hands-Free Calling that uses your minutes to
access location-based weather, local traffic reports,
and stock quotes. By pressing the phone button
and giving a few simple voice commands, you
can browse through the various topics. See the
OnStar
®Owner’s Guide for more information.
(Only available in the continental U.S.)
OnStar®Steering Wheel Controls
Your vehicle may be equipped with a Talk/Mute
button that can be used to interact with OnStar®
Hands-Free Calling.
On some vehicles, you may have to hold the
button for a few seconds and give the command
“ONSTAR” in order to activate the OnStar
®
Hands-Free Calling feature.
On some vehicles, the mute button can be
used to dial numbers into voicemail systems,
or to dial phone extensions. See the OnStar
®
Owner’s Guide for more information.
151

How OnStar®Service Works
In order to provide you with OnStar®services,
your vehicle’s OnStar®system has the capability
of recording and transmitting vehicle information.
This information is automatically sent to an
OnStar
®Call Center at the time of an OnStar®
button press, Emergency button press or if
your airbags or AACN system deploys. The vehicle
information usually includes your GPS location
and, in the event of a crash, additional information
regarding the accident that your vehicle has
been involved in (e.g. the direction from which
your vehicle was hit). When you use the
Virtual Advisor feature of OnStar
®Hands-Free
Calling, your vehicle also sends OnStar®your
GPS location so that we can provide you
with location-based services.OnStar
®service cannot work unless your vehicle
is in a place where OnStar®has an agreement
with a wireless service provider for service in that
area. OnStar
®service also cannot work unless
you are in a place where the wireless service
provider OnStar
®has hired for that area
has coverage, network capacity and reception
when the service is needed, and technology that
is compatible with the OnStar
®service. Not all
services are available everywhere, particularly in
remote or enclosed areas, or at all times.
OnStar
®service that involves location information
about your vehicle cannot work unless GPS
satellite signals are unobstructed and available
in that place as well.
152
