2007 CHEVROLET COLORADO Owners Manual

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if
you try to adjust a manual driver’s seat
while the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.Lift the bar located under the front of the seat to
unlock it. Slide the seat to where you want it
and release the bar. Try to move the seat with your
body to make sure the seat is locked into place.
9

Power Seats
If the vehicle has power
seats, the controls used
to operate them are
located on the outboard
side of the seats.
To adjust the seat, do any of the following:
Move the seat forward or rearward by sliding
the horizontal control forward or rearward.
Raise or lower the front part of the seat
cushion by moving the front of the horizontal
control up or down.
Raise or lower the rear part of the seat
cushion by moving the rear of the horizontal
control up or down.
Raise or lower the entire seat by moving the
entire horizontal control up or down.
Use the vertical control to recline the seatback.
See “Power Reclining Seatbacks” under
Reclining Seatbacks on page 12for more
information.
Manual Lumbar
If your vehicle has
this feature, there is
a knob located on
the outboard side
of the driver’s seat.
Turn the top of the knob toward the front of the
vehicle to increase lumbar support. Turn the
top of the knob toward the rear of the vehicle to
decrease lumbar support.
10

Power Lumbar
If your vehicle has this
feature, the control is
located on the outboard
side of the seat(s).
Press and hold the front of the control until you
have the desired lumbar support. To decrease
lumbar support, press and hold the rear of
the control.
Heated Seats
If your vehicle has
this feature, the
controls are located
on the outboard side
of the front seats.
This feature will heat the cushion and back of
the seats.
Press the top of the switch to turn the heat to
the high setting. Press the bottom of the switch
to turn the heat to the low setting. Put the switch
in the center position to turn the heat off.
The ignition must be on for the heated seat
feature to work. The seat will heat to the last
setting if the ignition has been turned off and
then turned back on.
The passenger’s safety belt must be fastened for the
heated seat feature to work on the passenger’s seat.
11

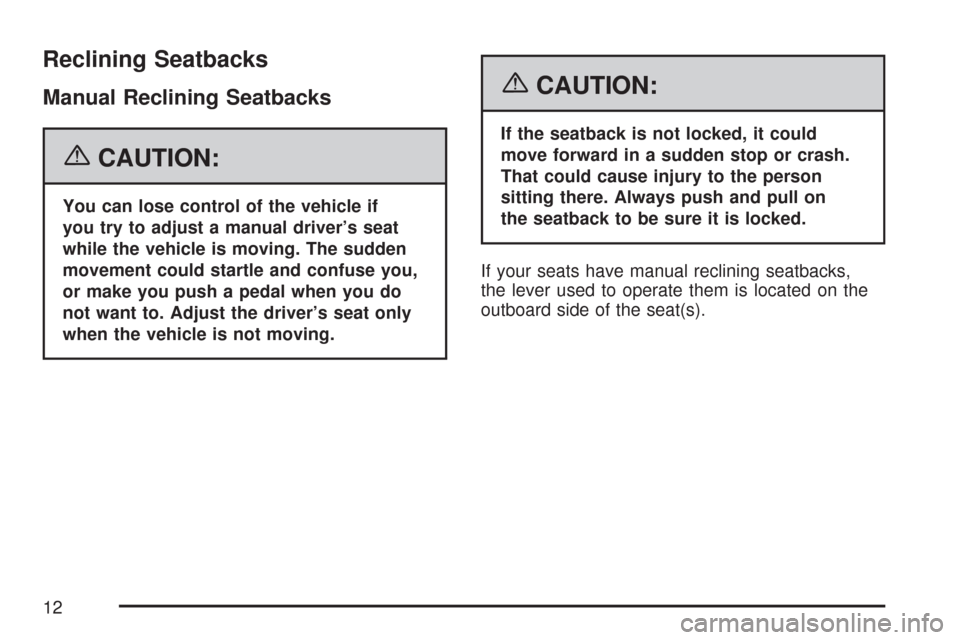

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if
you try to adjust a manual driver’s seat
while the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on
the seatback to be sure it is locked.
If your seats have manual reclining seatbacks,
the lever used to operate them is located on the
outboard side of the seat(s).
12

To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position,
then release the lever to lock the seatback
in place.
3. Push and pull on the seatback to make
sure it is locked.To return the seatback to an upright position,
do the following:
1. Lift the lever fully without applying pressure to
the seatback and the seatback will return to
the upright position.
2. Push and pull on the seatback to make sure it
is locked.
Power Reclining Seatbacks
If the seats have power
reclining seatbacks,
use the vertical power
seat control located
on the outboard side
of the seat.
To recline the seatback, press the control
toward the rear of the vehicle.
To raise the seatback, press the control
toward the front of the vehicle.
13

{CAUTION:
Sitting in a reclined position when your
vehicle is in motion can be dangerous.
Even if you buckle up, your safety belts
cannot do their job when you are
reclined like this.
CAUTION: (Continued)
CAUTION: (Continued)
The shoulder belt cannot do its job
because it will not be against your body.
Instead, it will be in front of you. In a
crash, you could go into it, receiving
neck or other injuries.
The lap belt cannot do its job either.
In a crash, the belt could go up over
your abdomen. The belt forces would be
there, not at your pelvic bones. This
could cause serious internal injuries.
For proper protection when the vehicle
is in motion, have the seatback upright.
Then sit well back in the seat and wear
your safety belt properly.
Do not have a seatback reclined if your vehicle
is moving.
14

Head Restraints
Your front seats may have adjustable head
restraints. If your vehicle has rear seats, they
may have adjustable head restraints.
Adjust the head restraint so that the top of the
restraint is at the same height as the top of
the occupant’s head. This position reduces the
chance of a neck injury in a crash.Pull up on the head
restraint to raise it.
To lower the head
restraint, press
the button located on
top of the seatback
and push down on
the head restraint.
15

Seatback Latches
Your vehicle may have front seatbacks that fold
forward for easy access to the rear seats or
the storage area behind the seats.
To fold the seatback
forward, push the lever
on the side of the
seat rearward and pull
the seatback forward.{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on
the seatback to be sure it is locked.
To return the seatback to the upright position,
push the seatback all the way back until it latches.
If the seatback was reclined before being folded
forward, it will return to the reclined position.
16
