2007 CHEVROLET COLORADO Owners Manual

The main components of your vehicle’s instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on
page 180.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 163.
C. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 182.
D. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 162.
E. Passenger Side Airbag. SeeAirbag System
on page 77.
F. Exterior Lamp Controls. SeeExterior Lamps
on page 170. Fog Lamps (If Equipped).
SeeFog Lamps on page 173. Exterior
Cargo Lamps. SeeExterior Cargo Lamps
on page 174.
G. Parking Brake Release. SeeParking Brake
on page 133.H. Horn. SeeHorn on page 162.
I. Traction Control Button or Four-Wheel Drive
Buttons. SeeTraction Control System (TCS) on
page 253andFour-Wheel Drive on page 129.
J. Audio System. SeeAudio System(s) on
page 206.
K. Cigarette Lighter (If Equipped). SeeAshtray(s)
and Cigarette Lighter on page 177.
L. Climate Control System. SeeClimate Control
System on page 177.
M. Accessory Power Outlet. SeeAccessory
Power Outlet(s) on page 176.
N. Passenger Air Bag Status Indicator.
SeePassenger Airbag Status Indicator
on page 186.
O. Glove Box. SeeGlove Box on page 153.
161

Hazard Warning Flashers
The hazard warning ashers let you warn the
police and others that you have a problem.
The front and rear turn signal lamps will ash
on and off.
The hazard warning
asher button is
located on the
instrument panel,
between the
two air vents in
the center.
The hazard warning ashers work no matter what
position the key is in, and even if the key is not
in the ignition.
Press the button to make the front and rear turn
signal lamps ash on and off. Press the button
again to turn the ashers off.
When the hazard warning ashers are on, the
turn signals will not work.
Other Warning Devices
If you carry reective triangles, you can set one up
at the side of the road about 300 feet (100 m)
behind your vehicle.
Horn
To sound the horn, press the horn symbol on the
steering wheel pad.
Tilt Wheel
A tilt wheel allows you to adjust the steering wheel
before you drive. The tilt steering wheel can be
raised to the highest level to allow more room for
the driver to enter and exit the vehicle.
162

The tilt lever is located on the left side of the
steering column, under the turn signal lever.
To tilt, hold the steering wheel and pull the tilt lever
toward you. Move the wheel to a comfortable
level, then release the tilt lever to lock the wheel
in place.
Do not adjust the steering wheel while driving.
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
GTurn and Lane Change Signals. SeeTurn
Signal/Multifunction Lever on page 163.
53Headlamp High/Low-Beam Changer.
SeeHeadlamp High/Low-Beam Changer on
page 165.
Flash-to-Pass. SeeFlash-to-Pass on page 165.
NWindshield Wipers. SeeWindshield Wipers
on page 165.
LWindshield Washer. SeeWindshield
Washer on page 166.
JCruise Control. SeeCruise Control on
page 166.
163

Turn and Lane-Change Signals
The turn signal has two upward (for right) and
two downward (for left) positions. These positions
allow you to signal a turn or a lane change.
To signal a turn, move the lever all the way up
or down. When the turn is nished, the lever will
automatically return to the off position.
To signal a lane change, raise or lower the lever
until the arrow starts to ash. Hold it there until
the change is completed. The lever will return by
itself when released.
An arrow on the
instrument panel
cluster will ash in
the direction of the
turn or lane change.As you signal a turn or a lane change, if the
arrows ash more quickly than normal, a signal
bulb may be burned out and other drivers will
not see your vehicle’s turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows do not go on at all when
signaling a turn, check for a burned-out bulb or a
blown fuse. For bulb replacement, seeTaillamps,
Turn Signal, Stoplamps and Back-up Lamps
on page 373. For a blown fuse or circuit breaker,
seeFuses and Circuit Breakers on page 433
Turn Signal On Chime
If a turn signal is left on for more than 3/4 of a
mile (1.2 km), a chime will sound at each ash of
the turn signal and the message TURN SIGNAL
will also appear in the DIC. To turn the chime and
message off, move the turn signal lever to the
off position.
See “TURN SIGNAL” underDIC Warnings and
Messages on page 202for more information.
164

Headlamp High/Low-Beam Changer
53(Headlamp High/Low Beam Changer):
To change the headlamps from low to high beam,
push the lever toward the instrument panel.
To return to low-beam headlamps, pull the
multifunction lever toward you. Then release it.
When the high beams
are on, this indicator
light on the instrument
panel cluster will also
be on.
Flash-to-Pass
This feature lets you use the high-beam headlamps
to signal a driver in front of you that you want to
pass. It works even if the headlamps are in the
automatic position.
To use it, pull the turn signal lever toward you,
then release it.If your headlamps are in the automatic position
or on low beam, your high-beam headlamps will
turn on. They will stay on as long as you hold the
lever toward you. The high-beam indicator on the
instrument panel cluster will come on. Release
the lever to return to normal operation.
Windshield Wipers
You control the windshield wipers by turning the
band with the wiper symbol on it.
The windshield wipers work in all ignition positions,
except off. This includes the Retained Access
Power mode. SeeRetained Accessory Power
(RAP) on page 121.
8(Mist):For a single wiping cycle, turn the band
to mist. Hold it there until the wipers start. Then let
go. The wipers will stop after one wipe. If you want
more wipes, hold the band on mist longer.
N(Delay):You can set the wiper speed for a
long or short delay between wipes. This can be very
useful in light rain or snow. Turn the band to choose
the delay time. The closer to the top of the lever,
the shorter the delay.
165

6(Low Speed):For steady wiping at low
speed, turn the band away from you to the
rst solid position past the delay settings.
1(High Speed):For high-speed wiping,
turn the band to the second solid position past
the delay settings.
9(Off):To stop the wipers, move the band to off.
Be sure to clear ice and snow from the wiper
blades before using them. If they’re frozen to
the windshield, carefully loosen or thaw them.
If your blades do become worn or damaged,
get new blades or blade inserts.
Windshield Washer
{CAUTION:
In freezing weather, do not use your
washer until the windshield is warmed.
Otherwise the washer uid can form ice
on the windshield, blocking your vision.
QL(Washer Fluid):There is a paddle marked
with the windshield washer symbol at the top
of the multifunction lever. To spray washer uid on
the windshield, push the paddle. The wipers will
clear the window and then either stop or return to
your preset speed.
Cruise Control
The cruise control
set button is located
at the end of the
multifunction lever.
9(Off):Move the lever to this position to turn
the system off.
R(On):Move the lever to this position to turn the
system on.
166

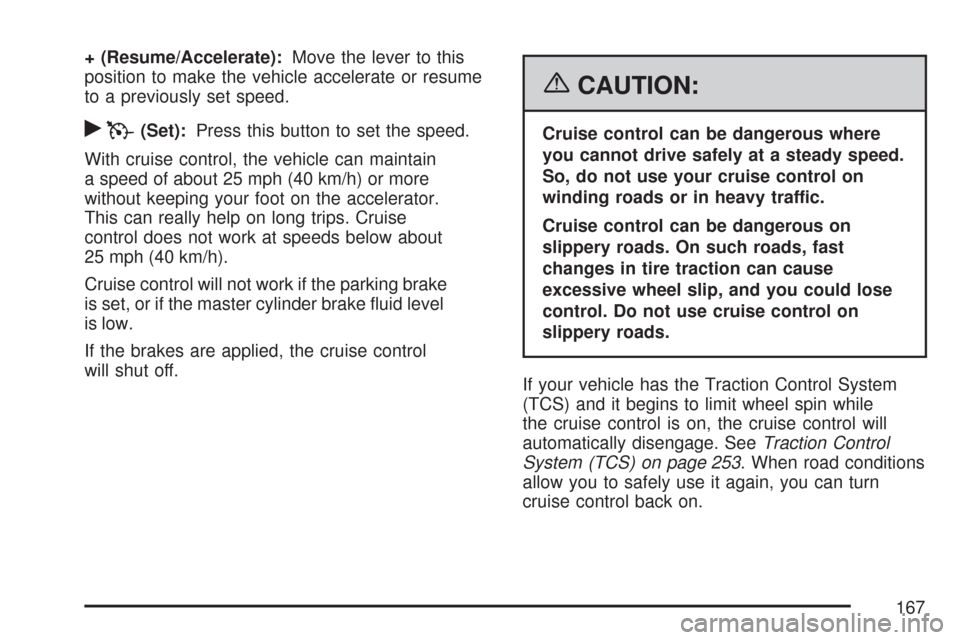

+ (Resume/Accelerate):Move the lever to this
position to make the vehicle accelerate or resume
to a previously set speed.
rT(Set):Press this button to set the speed.
With cruise control, the vehicle can maintain
a speed of about 25 mph (40 km/h) or more
without keeping your foot on the accelerator.
This can really help on long trips. Cruise
control does not work at speeds below about
25 mph (40 km/h).
Cruise control will not work if the parking brake
is set, or if the master cylinder brake uid level
is low.
If the brakes are applied, the cruise control
will shut off.
{CAUTION:
Cruise control can be dangerous where
you cannot drive safely at a steady speed.
So, do not use your cruise control on
winding roads or in heavy traffic.
Cruise control can be dangerous on
slippery roads. On such roads, fast
changes in tire traction can cause
excessive wheel slip, and you could lose
control. Do not use cruise control on
slippery roads.
If your vehicle has the Traction Control System
(TCS) and it begins to limit wheel spin while
the cruise control is on, the cruise control will
automatically disengage. SeeTraction Control
System (TCS) on page 253. When road conditions
allow you to safely use it again, you can turn
cruise control back on.
167

Setting Cruise Control
{CAUTION:
If you leave your cruise control on when
you are not using cruise, you might hit a
button and go into cruise when you do not
want to. You could be startled and even
lose control. Keep the cruise control switch
off until you want to use cruise control.
1. Move the cruise control lever to the on position.
2. Get up to the speed you want.
3. Press the set button at the end of the
lever and release it.
4. Take your foot off the accelerator pedal.
The cruise symbol on
the instrument panel will
be lit when the cruise
control is engaged.
Resuming a Set Speed
Suppose you set the cruise control to a desired
speed and then you apply the brake. This turns off
the cruise control. But it does not need to be reset.
Once you are going about 25 mph (40 km/h) or
more, you can move the cruise control switch
briey from on to resume/accelerate.
The vehicle will go right back up to your chosen
speed and stay there.
If you hold the lever at resume/accelerate the
vehicle will keep going faster until you release the
lever or apply the brake. Do not hold the lever
at resume/accelerate if you do not want the vehicle
to go faster.
Increasing Speed While Using
Cruise Control
There are two ways to go to a higher speed:
Use the accelerator pedal to get to the higher
speed. Press the set button at the end of
the lever, then release the button and the
accelerator pedal. You will now cruise at the
higher speed. If the accelerator pedal is held
longer than 60 seconds, cruise control will
turn off.
