2007 CHEVROLET AVEO Owners Manual

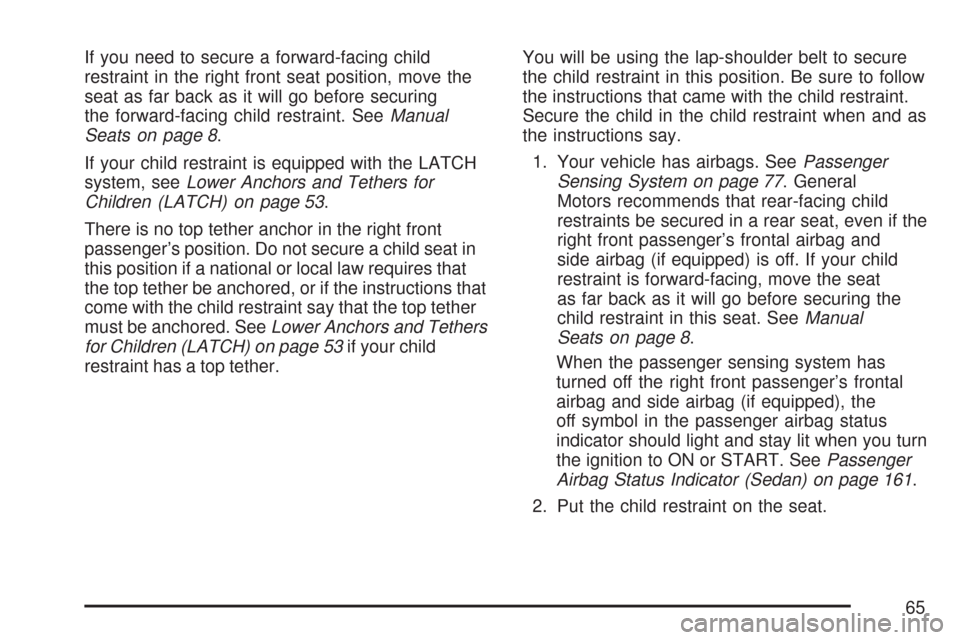

If you need to secure a forward-facing child
restraint in the right front seat position, move the
seat as far back as it will go before securing
the forward-facing child restraint. SeeManual
Seats on page 8.
If your child restraint is equipped with the LATCH
system, seeLower Anchors and Tethers for
Children (LATCH) on page 53.
There is no top tether anchor in the right front
passenger’s position. Do not secure a child seat in
this position if a national or local law requires that
the top tether be anchored, or if the instructions that
come with the child restraint say that the top tether
must be anchored. SeeLower Anchors and Tethers
for Children (LATCH) on page 53if your child
restraint has a top tether.You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Your vehicle has airbags. SeePassenger
Sensing System on page 77. General
Motors recommends that rear-facing child
restraints be secured in a rear seat, even if the
right front passenger’s frontal airbag and
side airbag (if equipped) is off. If your child
restraint is forward-facing, move the seat
as far back as it will go before securing the
child restraint in this seat. SeeManual
Seats on page 8.
When the passenger sensing system has
turned off the right front passenger’s frontal
airbag and side airbag (if equipped), the
off symbol in the passenger airbag status
indicator should light and stay lit when you turn
the ignition to ON or START. SeePassenger
Airbag Status Indicator (Sedan) on page 161.
2. Put the child restraint on the seat.
65

3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
Tilt the latch plate to adjust the belt if needed.4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
66

5. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may find it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.
67

8. If the airbag or airbags are off, the off symbol
on the instrument panel near the clock will be
lit and stay lit when the key is turned to
ON or START.
If a child restraint has been installed and the off
symbol is not lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint.
If after reinstalling the child restraint and restarting
the vehicle, the off symbol is still not lit, check
to make sure that the vehicle’s seatback is
not pressing the child restraint into the seat
cushion. If this happens, slightly recline the
vehicle’s seatback and adjust the seat cushion if
possible. Also make sure the child restraint is
not trapped under the vehicle head restraint. If this
happens, adjust the head restraint.
A thick layer of additional material such as a
blanket, or aftermarket equipment such as seat
covers heaters or massagers, located between the
seat cushion and the child restraint or small
occupant, can affect how the passenger sensing
system operates. Remove any additional material
from the seat cushion before reinstalling/securing
the child restraint or small occupant.If the off symbol is still not lit, secure the child in
the child restraint in a rear seat position in
the vehicle and check with your dealer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger.
Airbag System
Your vehicle has a frontal airbag for the driver and
a frontal airbag for the right front passenger.
Your vehicle may also have side impact airbags.
Side impact airbags are available for the driver and
right front passenger.
If your vehicle has a side impact airbag for the
driver and/or the right front passenger, the word
AIRBAG will appear on the airbag covering on the
side of the seatback closest to the door.
Airbags are designed to supplement the protection
provided by safety belts. Even though today’s
airbags are also designed to help reduce the risk
of injury from the force of an inflating bag, all
airbags must inflate very quickly to do their job.
68

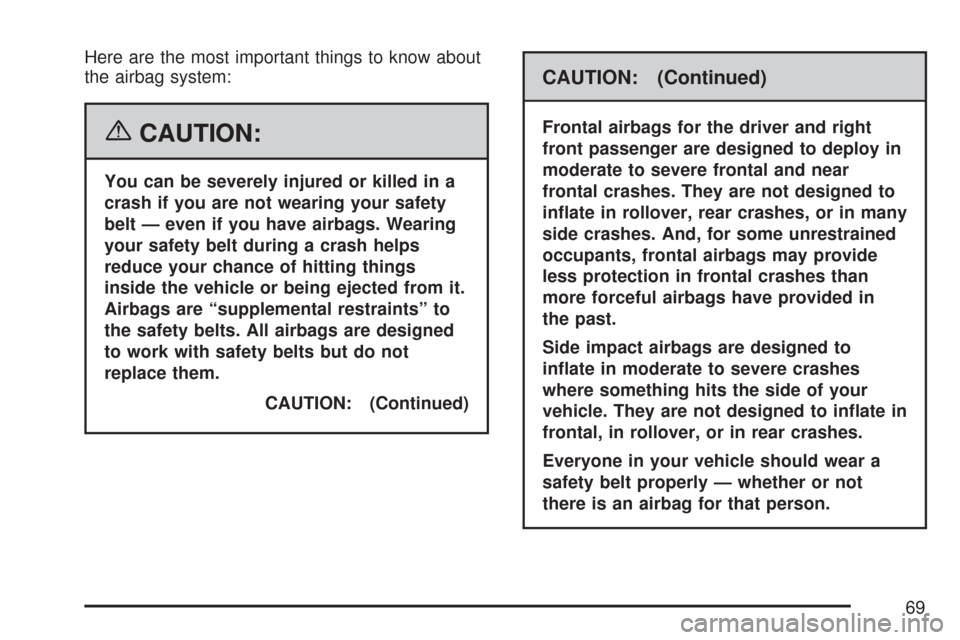

Here are the most important things to know about
the airbag system:
{CAUTION:
You can be severely injured or killed in a
crash if you are not wearing your safety
belt — even if you have airbags. Wearing
your safety belt during a crash helps
reduce your chance of hitting things
inside the vehicle or being ejected from it.
Airbags are “supplemental restraints” to
the safety belts. All airbags are designed
to work with safety belts but do not
replace them.
CAUTION: (Continued)
CAUTION: (Continued)
Frontal airbags for the driver and right
front passenger are designed to deploy in
moderate to severe frontal and near
frontal crashes. They are not designed to
inate in rollover, rear crashes, or in many
side crashes. And, for some unrestrained
occupants, frontal airbags may provide
less protection in frontal crashes than
more forceful airbags have provided in
the past.
Side impact airbags are designed to
inate in moderate to severe crashes
where something hits the side of your
vehicle. They are not designed to inate in
frontal, in rollover, or in rear crashes.
Everyone in your vehicle should wear a
safety belt properly — whether or not
there is an airbag for that person.
69

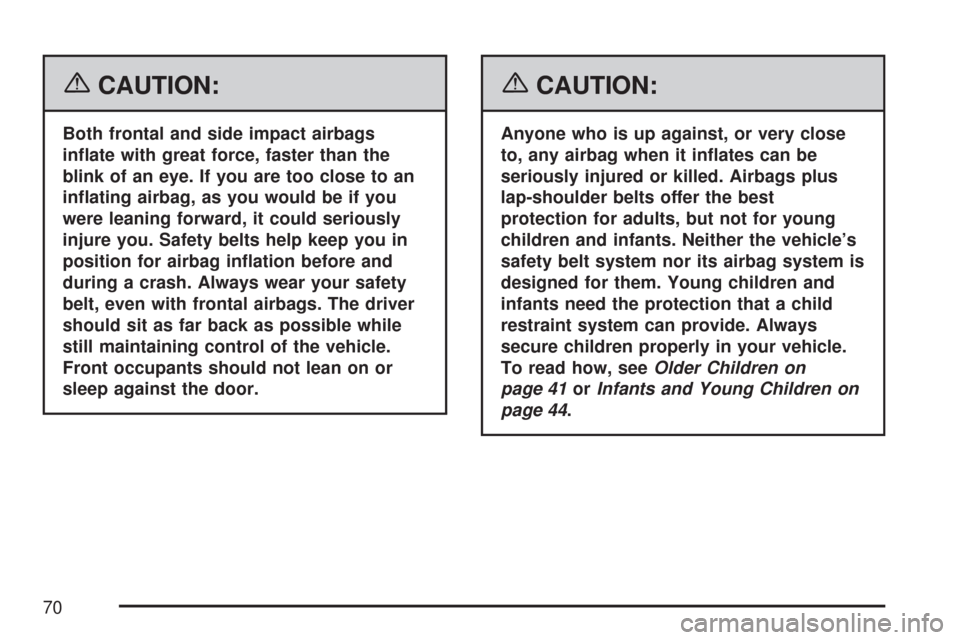

{CAUTION:
Both frontal and side impact airbags
inate with great force, faster than the
blink of an eye. If you are too close to an
inating airbag, as you would be if you
were leaning forward, it could seriously
injure you. Safety belts help keep you in
position for airbag ination before and
during a crash. Always wear your safety
belt, even with frontal airbags. The driver
should sit as far back as possible while
still maintaining control of the vehicle.
Front occupants should not lean on or
sleep against the door.
{CAUTION:
Anyone who is up against, or very close
to, any airbag when it inates can be
seriously injured or killed. Airbags plus
lap-shoulder belts offer the best
protection for adults, but not for young
children and infants. Neither the vehicle’s
safety belt system nor its airbag system is
designed for them. Young children and
infants need the protection that a child
restraint system can provide. Always
secure children properly in your vehicle.
To read how, seeOlder Children on
page 41orInfants and Young Children on
page 44.
70

There is an airbag
readiness light on the
instrument panel cluster
or the Secondary
Information Center
(SIC), which shows the
airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an
electrical problem. SeeAirbag Readiness Light on
page 160orAirbag Readiness Light on page 176
for more information.Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
71

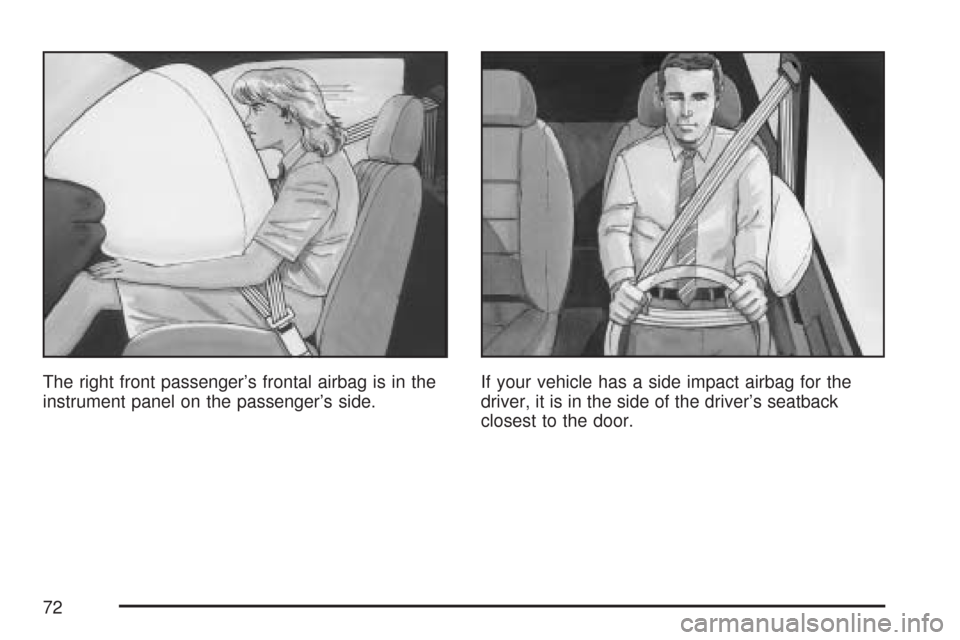

The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.If your vehicle has a side impact airbag for the
driver, it is in the side of the driver’s seatback
closest to the door.
72
