2007 CHEVROLET AVEO Owners Manual

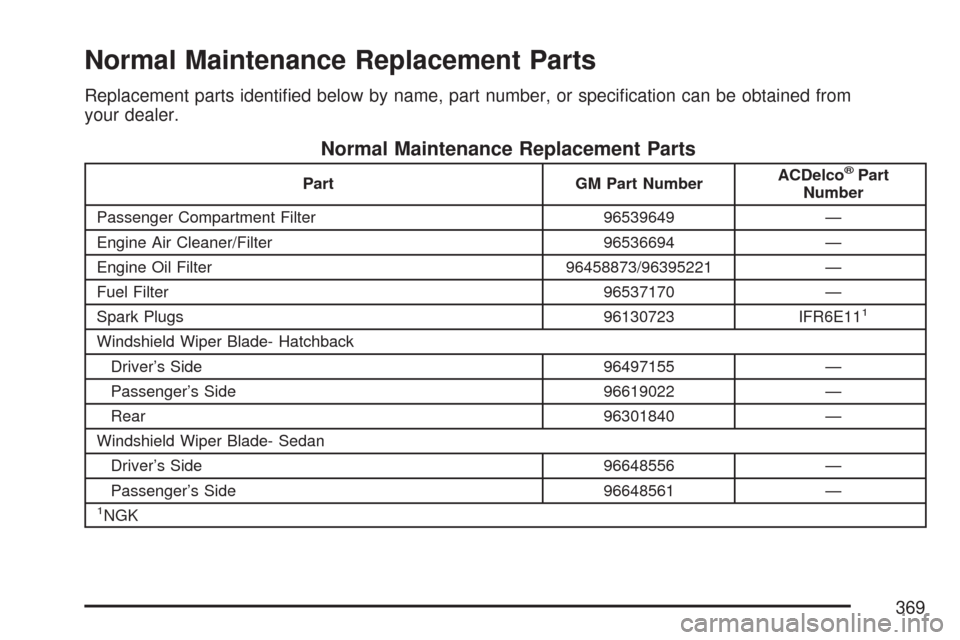

Normal Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from
your dealer.
Normal Maintenance Replacement Parts
Part GM Part NumberACDelco®Part
Number
Passenger Compartment Filter 96539649 —
Engine Air Cleaner/Filter 96536694 —
Engine Oil Filter 96458873/96395221 —
Fuel Filter 96537170 —
Spark Plugs 96130723 IFR6E11
1
Windshield Wiper Blade- Hatchback
Driver’s Side 96497155 —
Passenger’s Side 96619022 —
Rear 96301840 —
Windshield Wiper Blade- Sedan
Driver’s Side 96648556 —
Passenger’s Side 96648561 —
1NGK
369

Engine Drive Belt Routing
370

Maintenance Schedule................................ 372
Introduction............................................... 372
Maintenance Requirements........................ 372
Your Vehicle and the Environment............ 372
How This Section is Organized................. 373
Part A: Scheduled Maintenance Services.... 374
Using the Maintenance Schedule............... 374
Selecting the Right Schedule..................... 375
Short Trip/City Scheduled Maintenance..... 376
Long Trip/Highway Scheduled
Maintenance.......................................... 384
Part B: Owner Checks and Services......... 389
At Each Fuel Fill....................................... 389At Least Once a Month............................. 389
At Least Twice a Year.............................. 389
At Least Once a Year............................... 390
Part C: Periodic Maintenance Inspections.... 394
Steering, Suspension and Front Drive
Axle Boot and Seal Inspection............... 394
Exhaust System Inspection........................ 394
Fuel System Inspection............................. 395
Engine Cooling System Inspection............. 395
Brake System Inspection........................... 395
Part D: Recommended Fluids and
Lubricants.............................................. 396
Part E: Maintenance Record...................... 398
Section 6 Maintenance Schedule
371

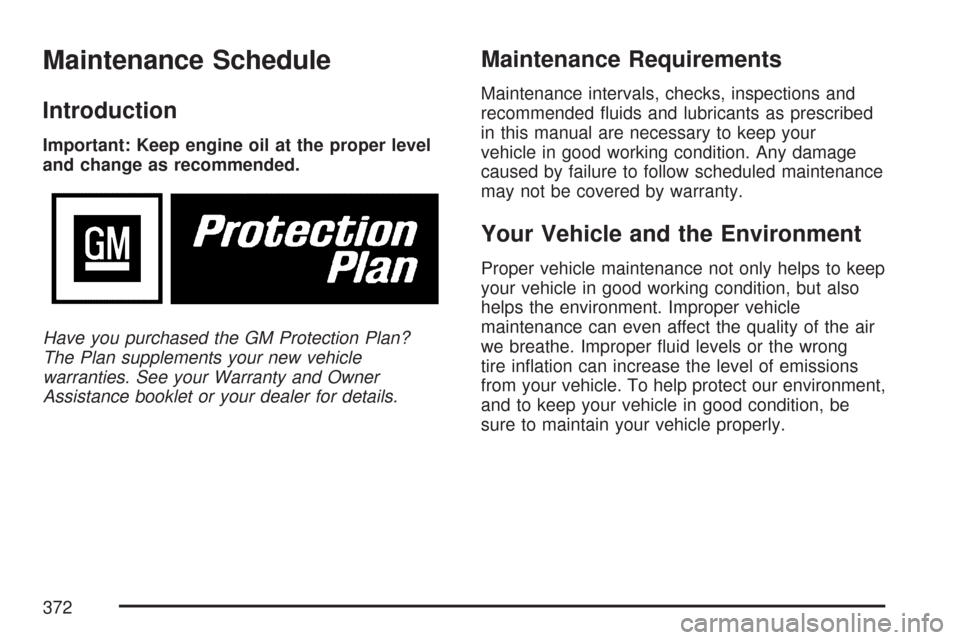

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan?
The Plan supplements your new vehicle
warranties. See your Warranty and Owner
Assistance booklet or your dealer for details.
Maintenance Requirements
Maintenance intervals, checks, inspections and
recommended fluids and lubricants as prescribed
in this manual are necessary to keep your
vehicle in good working condition. Any damage
caused by failure to follow scheduled maintenance
may not be covered by warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep
your vehicle in good working condition, but also
helps the environment. Improper vehicle
maintenance can even affect the quality of the air
we breathe. Improper fluid levels or the wrong
tire inflation can increase the level of emissions
from your vehicle. To help protect our environment,
and to keep your vehicle in good condition, be
sure to maintain your vehicle properly.
372

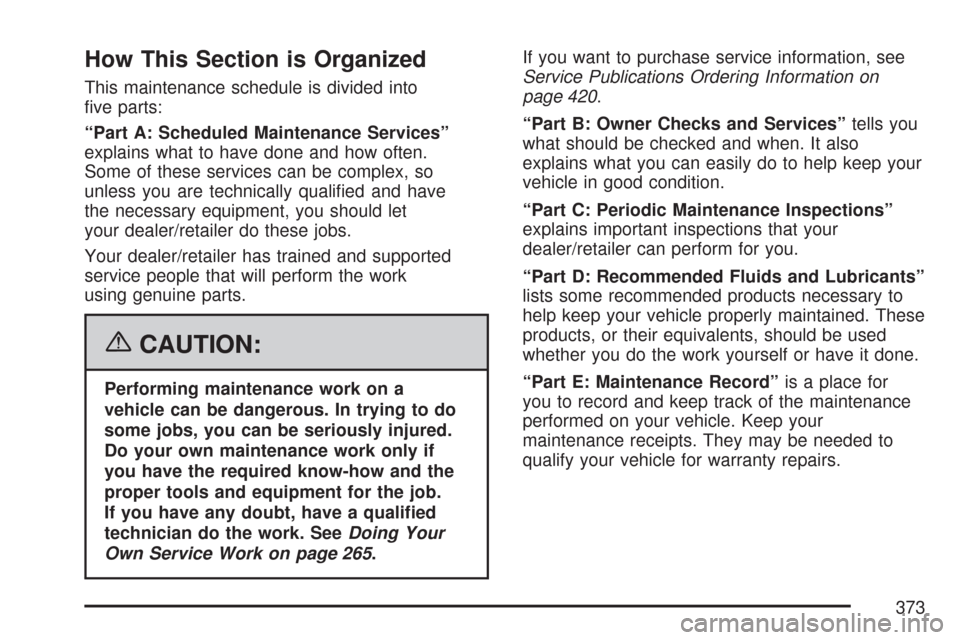

How This Section is Organized
This maintenance schedule is divided into
five parts:
“Part A: Scheduled Maintenance Services”
explains what to have done and how often.
Some of these services can be complex, so
unless you are technically qualified and have
the necessary equipment, you should let
your dealer/retailer do these jobs.
Your dealer/retailer has trained and supported
service people that will perform the work
using genuine parts.
{CAUTION:
Performing maintenance work on a
vehicle can be dangerous. In trying to do
some jobs, you can be seriously injured.
Do your own maintenance work only if
you have the required know-how and the
proper tools and equipment for the job.
If you have any doubt, have a qualied
technician do the work. SeeDoing Your
Own Service Work on page 265.If you want to purchase service information, see
Service Publications Ordering Information on
page 420.
“Part B: Owner Checks and Services”tells you
what should be checked and when. It also
explains what you can easily do to help keep your
vehicle in good condition.
“Part C: Periodic Maintenance Inspections”
explains important inspections that your
dealer/retailer can perform for you.
“Part D: Recommended Fluids and Lubricants”
lists some recommended products necessary to
help keep your vehicle properly maintained. These
products, or their equivalents, should be used
whether you do the work yourself or have it done.
“Part E: Maintenance Record”is a place for
you to record and keep track of the maintenance
performed on your vehicle. Keep your
maintenance receipts. They may be needed to
qualify your vehicle for warranty repairs.
373

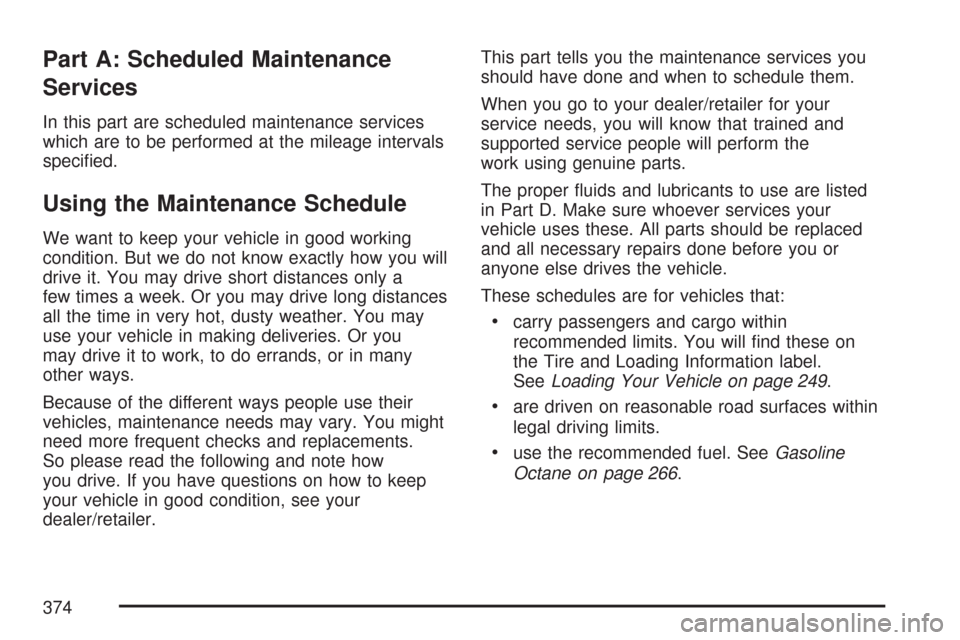

Part A: Scheduled Maintenance
Services
In this part are scheduled maintenance services
which are to be performed at the mileage intervals
specified.
Using the Maintenance Schedule
We want to keep your vehicle in good working
condition. But we do not know exactly how you will
drive it. You may drive short distances only a
few times a week. Or you may drive long distances
all the time in very hot, dusty weather. You may
use your vehicle in making deliveries. Or you
may drive it to work, to do errands, or in many
other ways.
Because of the different ways people use their
vehicles, maintenance needs may vary. You might
need more frequent checks and replacements.
So please read the following and note how
you drive. If you have questions on how to keep
your vehicle in good condition, see your
dealer/retailer.This part tells you the maintenance services you
should have done and when to schedule them.
When you go to your dealer/retailer for your
service needs, you will know that trained and
supported service people will perform the
work using genuine parts.
The proper fluids and lubricants to use are listed
in Part D. Make sure whoever services your
vehicle uses these. All parts should be replaced
and all necessary repairs done before you or
anyone else drives the vehicle.
These schedules are for vehicles that:
•carry passengers and cargo within
recommended limits. You will find these on
the Tire and Loading Information label.
SeeLoading Your Vehicle on page 249.
•are driven on reasonable road surfaces within
legal driving limits.
•use the recommended fuel. SeeGasoline
Octane on page 266.
374

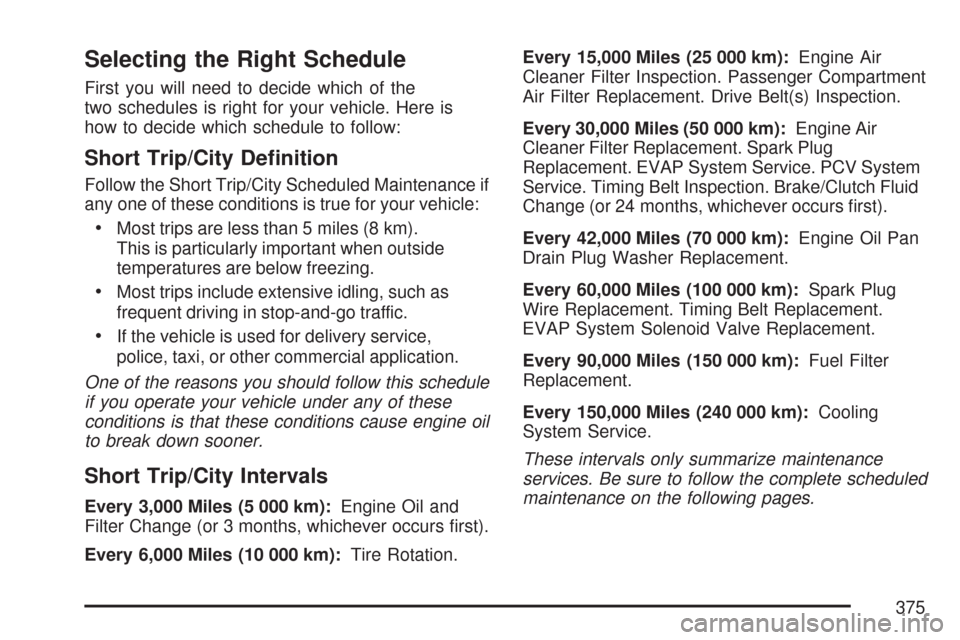

Selecting the Right Schedule
First you will need to decide which of the
two schedules is right for your vehicle. Here is
how to decide which schedule to follow:
Short Trip/City Denition
Follow the Short Trip/City Scheduled Maintenance if
any one of these conditions is true for your vehicle:
•Most trips are less than 5 miles (8 km).
This is particularly important when outside
temperatures are below freezing.
•Most trips include extensive idling, such as
frequent driving in stop-and-go traffic.
•If the vehicle is used for delivery service,
police, taxi, or other commercial application.
One of the reasons you should follow this schedule
if you operate your vehicle under any of these
conditions is that these conditions cause engine oil
to break down sooner.
Short Trip/City Intervals
Every 3,000 Miles (5 000 km):Engine Oil and
Filter Change (or 3 months, whichever occurs first).
Every 6,000 Miles (10 000 km):Tire Rotation.Every 15,000 Miles (25 000 km):Engine Air
Cleaner Filter Inspection. Passenger Compartment
Air Filter Replacement. Drive Belt(s) Inspection.
Every 30,000 Miles (50 000 km):Engine Air
Cleaner Filter Replacement. Spark Plug
Replacement. EVAP System Service. PCV System
Service. Timing Belt Inspection. Brake/Clutch Fluid
Change (or 24 months, whichever occurs first).
Every 42,000 Miles (70 000 km):Engine Oil Pan
Drain Plug Washer Replacement.
Every 60,000 Miles (100 000 km):Spark Plug
Wire Replacement. Timing Belt Replacement.
EVAP System Solenoid Valve Replacement.
Every 90,000 Miles (150 000 km):Fuel Filter
Replacement.
Every 150,000 Miles (240 000 km):Cooling
System Service.
These intervals only summarize maintenance
services. Be sure to follow the complete scheduled
maintenance on the following pages.
375

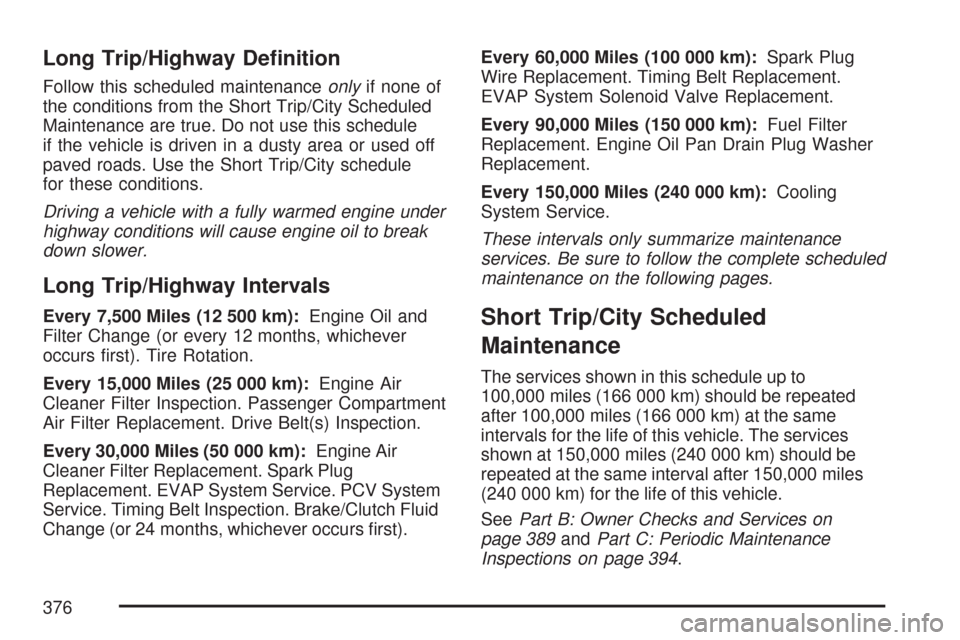

Long Trip/Highway Denition
Follow this scheduled maintenanceonlyif none of
the conditions from the Short Trip/City Scheduled
Maintenance are true. Do not use this schedule
if the vehicle is driven in a dusty area or used off
paved roads. Use the Short Trip/City schedule
for these conditions.
Driving a vehicle with a fully warmed engine under
highway conditions will cause engine oil to break
down slower.
Long Trip/Highway Intervals
Every 7,500 Miles (12 500 km):Engine Oil and
Filter Change (or every 12 months, whichever
occurs first). Tire Rotation.
Every 15,000 Miles (25 000 km):Engine Air
Cleaner Filter Inspection. Passenger Compartment
Air Filter Replacement. Drive Belt(s) Inspection.
Every 30,000 Miles (50 000 km):Engine Air
Cleaner Filter Replacement. Spark Plug
Replacement. EVAP System Service. PCV System
Service. Timing Belt Inspection. Brake/Clutch Fluid
Change (or 24 months, whichever occurs first).Every 60,000 Miles (100 000 km):Spark Plug
Wire Replacement. Timing Belt Replacement.
EVAP System Solenoid Valve Replacement.
Every 90,000 Miles (150 000 km):Fuel Filter
Replacement. Engine Oil Pan Drain Plug Washer
Replacement.
Every 150,000 Miles (240 000 km):Cooling
System Service.
These intervals only summarize maintenance
services. Be sure to follow the complete scheduled
maintenance on the following pages.Short Trip/City Scheduled
Maintenance
The services shown in this schedule up to
100,000 miles (166 000 km) should be repeated
after 100,000 miles (166 000 km) at the same
intervals for the life of this vehicle. The services
shown at 150,000 miles (240 000 km) should be
repeated at the same interval after 150,000 miles
(240 000 km) for the life of this vehicle.
SeePart B: Owner Checks and Services on
page 389andPart C: Periodic Maintenance
Inspections on page 394.
376
