Brakes . . . . . .................. 67
Handlebars . . ................. 67
Mirrors . . . . . . ................. 68
Spring preload . . ............. 68
Damping . . . . ................. 69
Electronic Suspension Ad-
justment ESA
OE
............. 69
Tyres . ........................ 72
Headlight . . . . ................. 72
Front and rear seats . . . . ...... 73
Helmet holder . . . ............. 76
5 Riding . . . . ................ 77
Safety instructions . . . . . ...... 78
Checklist . . . . ................. 80
Starting . . . . . . ................. 80
Running in . . ................. 83
Brakes . . . . . . ................. 84
Parking your motorcycle . . . . . 85
Refuelling . . . ................. 87 6 Engineering details . . . . . 89
Brake system with BMW Mo-
torrad Integral ABS . . . . .
...... 90
Electronic engine manage-
ment with BMW Motorrad
ASC
OE
....................... 92
Tyre pressure monitoring
RDC
OE
....................... 94
7 Accessories . . . . . . . . . . . . . 97
General instructions . . . . ...... 98
Power socket . . . ............. 98
Luggage . . . . ................. 99
Case . ...................... 100
TopcaseOA
................. 102
8 Maintenance . . . . . . . . . . . 105
General instructions . . . . .... 106
Toolkit ...................... 106
Engine oil . . . ............... 107
Brake system, general . . .... 109
Brake pads . . ............... 109
Brake fluid . . . ............... 111
Clutch ...................... 113
Tyres . ...................... 113
Rims . ...................... 114
Wheels . . . . . . ............... 114 Front-wheel stand . . . . . .
.... 121
Bulbs . ...................... 123
Jump starting . . . ........... 131
Battery . . . . . . ............... 132
9 Care . . . . . . . . . . . . . . . . . . . . . 137
Care products . . . ........... 138
Washing motorcycle . . . . .... 138
Cleaning easily damaged
components . ............... 138
Paint care . . . ............... 139
Protective wax coating . .... 140
Laying up the motor-
cycle . ...................... 140
Restoring motorcycle to
use......................... 140
10 Technical data . . . . . . . 141
Troubleshooting chart . . .... 142
Threaded fasteners . . . . .... 143
Engine . . . . . . ............... 145
Fuel . . ...................... 146
Engine oil . . . ............... 146
Clutch ...................... 147
Transmission ............... 147
Rear-wheel drive ........... 148
Running gear ............... 148

situations, particularly if you at-
tempt to overtake other road
users.
Engine power level might be
lower than normal: adapt your
style of riding accordingly.
The engine control unit has dia-
gnosed a fault. In exceptional
cases, the engine stops and re-
fuses to start. Otherwise, the en-
gine runs in emergency operating
mode.You can continue to ride, but
bear in mind that the usual en-
gine power might not be avail-
able.
Have the fault rectified as
quickly as possible by a
specialist workshop, preferably
an authorised BMW Motorrad
dealer. Insufficient engine oil
pressure
General warning light
flashes red.
Oil-can symbol appears on
the display.
The oil pressure in the lube-oil
system is too low. Stop immedi-
ately and switch off the engine. The insufficient oil pres-
sure warning does not fulfil
the function of an oil gauge. The
only way of checking whether the
oil level is correct is to check the
oil sight glass.
A low oil level is one reason why
a warning indicating insufficient
oil pressure is issued.
Check the engine oil level
( 107)
If the oil level is too low: Top up the engine oil ( 109) If the engine oil level is correct:
Riding when engine-oil
pressure is low can result
in engine damage.
Do not continue your journey.
Have the fault rectified as
quickly as possible by a
specialist workshop, preferably
an authorised BMW Motorrad
dealer.
Insufficient battery charge
current General warning light shows
red.
Battery symbol appears on
the display.
A discharged battery can
cause the engine to die
suddenly, and this could result in
a dangerous situation in traffic.
Have faults rectified as soon as
possible.
328zStatus indicators

Engine-oil level too lowOil !
appears on the display.
Oil-level symbol appears on
the display.
The electronic oil-level sensor
has registered an excessively low
oil level.
Dipping the oil with the dipstick
is the only way of ascertaining
the exact engine-oil level. The
next time you stop for fuel: Check the engine oil level
( 107)
If the oil level is too low: Top up the engine oil ( 109)
The oil sensor might be defective
if the "Check oil level" message
appears even though a check
with the dipstick reveals that the
oil level is correct. Seek the advice of a specialist
workshop, preferably an author-
ised BMW Motorrad dealer. Ice warning
The ambient-temperature read-
ing flashes.
Ice-crystal symbol flashes.
The air temperature measured
at the motorcycle is lower than
3°C. The ice warning does not
mean that there is no risk
of black ice forming at measured
temperatures above 3 °C.
Always take extra care and think
well ahead when temperatures
are low; remember that the
danger of black ice is particularly
high on bridges and where the
road is in the shade.
Ride carefully and think well
ahead.
ABS warningsMode of presentation
ABS warnings are indicated by
ABS warning light 1.
The way in which the ABS warn-
ing light indicates status can dif-
fer in some countries.
Possible national variant.
The detailed descriptions relating
to BMW Motorrad Integral ABS
start on page ( 90), and you
will find an overview listing the
possible warnings on the next
page.
332zStatus indicators

Oil levelOil-level indicator1gives you
an indication of the engine oil
level. You can call up this read-
ing only when the motorcycle is
at a standstill.
The preconditions for the oil level
check are as follows:
Engine at operating temperat-
ure.
Engine idling for at least 30
seconds.
Side stand retracted.
Make sure the motorcycle is
upright. The readings mean:
Oil level is correct
Check the oil level with the
dipstick the next time you
stop for fuel. If you call up anoth-
er reading on the on-board com-
puter, this symbol remains visible
until the sensor again registers a
correct oil level.
Oil level cannot be meas-
ured (conditions as stated
above not satisfied).
The most recently measured
level is displayed for 5 seconds
when you next switch on the ig-
nition.
The oil sensor might be
defective if the "Check
oil level" message reappears
even though the oil level in the
oil sight glass is correct. In this
case, consult your authorised
BMW Motorrad dealer.
Tyre pressure
monitoring RDC
OE
Viewing tyre-pressure
readingsSwitch on the ignition.
Repeatedly press button 1un-
til the tyre pressures appear
in the odometer panel of the
display.
454zOperation

ChecklistUse the following checklist to
check important functions, set-
tings and wear limits before you
ride off.Brakes
Brake-fluid levels, front and rear
Clutch
Clutch fluid level
Shock absorber setting and
spring preload
Tyre-tread depth and tyre
pressures
Cases correctly installed and
luggage secured
At regular intervals: Engine oil level (every refuelling
stop)
Brake-pad wear (every third
refuelling stop)
StartingSide standYou cannot start the motorcycle
with the side stand extended and
a gear engaged. The engine will
switch itself off if you start it with
the gearbox in neutral and then
engage a gear before retracting
the side stand.GearboxYou can start the engine when
the gearbox is in neutral or if you
pull the clutch with a gear en-
gaged. Do not pull the clutch un-
til after you have switched on the
ignition, as otherwise the engine
will refuse to start. When the
gearbox is in neutral, the green
neutral telltale light is on and the
gear indicator in the multifunction
display shows N.
Starting engine.Kill switch 1in run position A.
Switch on the ignition.
Pre-ride check is performed.
( 81)
ABS self-diagnosis is
performed. ( 82)
with OE ASC: Switch on the ignition.
Pre-ride check is performed.
( 81)
ABS self-diagnosis is
performed. ( 82)
580zRiding

Oil or grease on brakes
Oil and grease on the brake
discs and pads considerably
diminish braking efficiency.
Especially after repair and main-
tenance work, make sure that the
brake discs and brake pads are
free of oil and grease.
Dirt or mud on brakes
When riding on loose sur-
faces or muddy roads, the
brakes may fail to take effect
immediately because of dirt or
moisture on the discs or brake
pads.
Apply the brakes in good time
until the brakes have been
cleaned.
Parking your
motorcyclePlacing motorcycle on
side stand
If the ground is soft or un-
even, there is no guaran-
tee that the motorcycle will rest
firmly on the stand.
Always check that the ground
under the stand is level and
firm.
Switch off the engine.
Pull the handbrake lever.
Hold the motorcycle upright
and balanced.
Use your left foot to extend the
side stand fully. The side stand is designed
to support only the weight
of the motorcycle.
Do not lean or sit on the
motorcycle with the side stand
extended. Slowly lean the motorcycle to
the side until its weight is taken
by the stand and dismount to
the left.
If the motorcycle is on the
side stand, the surface of
the ground will determine wheth-
er it is better to turn the handle-
bars to the left or right. However,
the motorcycle is more stable on
a level surface with the handle-
bars turned to the left than with
the handlebars turned to the
right.
On level ground, always turn the
handlebars to the left to set the
steering lock.
Turn the handlebars to full left
or right lock.
Check that the motorcycle is
standing firmly. On a gradient, the motor-
cycle should always face
uphill; select 1st gear.
Lock the steering lock.
585zRiding

1 Extending tool holderAdapters to accommodate all
tools
2 1/4" bits 5x Torx, for example for remov-
ing and installing rear wheel
2x cross-head bits
1x plain screwdriver bit
3 3/8" adapter for socket-
head screws, w/f 22 Removing and installing front
axle 4 Electric torch
LED bulb
5 Socket 3x open-ended spanners, vari-
ous sizes
6 Bit adapter Adapter for 1/4" bits
9x12 mm and 3/8" swivel ad-
apters

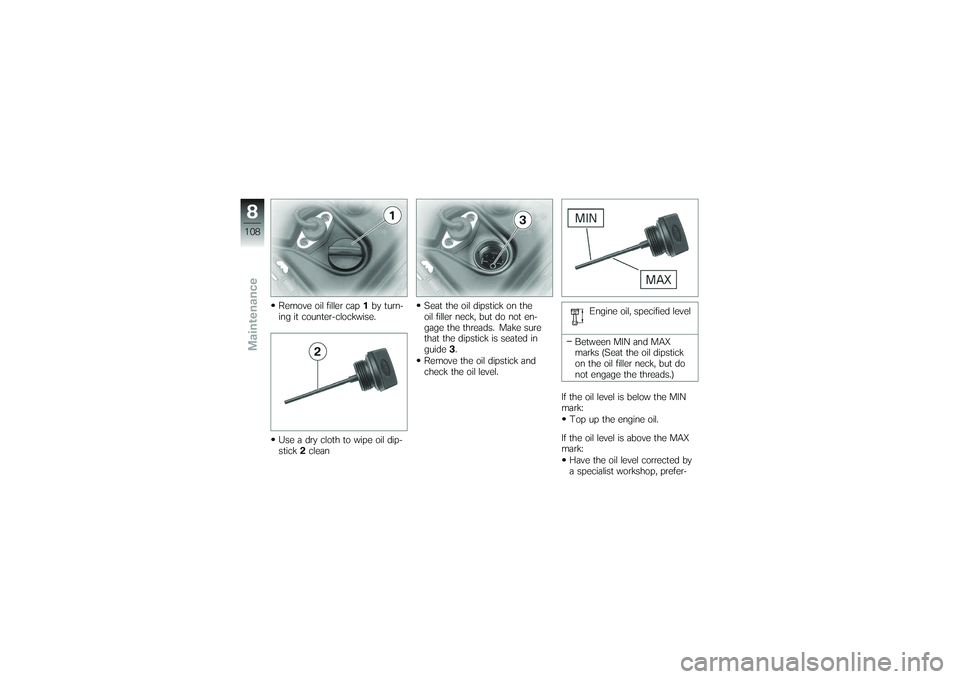

Engine oilChecking engine oil level
The engine can seize if the
oil level is low, and this can
lead to accidents.
Always make sure that the oil
level is correct.
Oil can collect in the sump
if the motorcycle is out of
use for an extended period of
time; this oil has to be pumped
into the oil tank before the level
is read. The engine oil must be at operating temperature to do
this. Checking the oil level with
the engine cold or after no more
than a short ride will lead to mis-
interpretation; this in turn, means
that the engine will be operated
with the incorrect quantity of oil.
In order to ensure that the en-
gine oil level is read correctly,
check the oil level only after a
lengthy trip.
Check that the engine is at op-
erating temperature, make sure
the ground is level and firm
and place the motorcycle on its
centre stand.
Allow the engine to idle for one
minute.
Switch off the ignition
Remove the front seat ( 74)
Wipe the area around the oil
filler neck clean.
8107zMaintenance

Remove oil filler cap1by turn-
ing it counter-clockwise.
Use a dry cloth to wipe oil dip-
stick 2clean Seat the oil dipstick on the
oil filler neck, but do not en-
gage the threads. Make sure
that the dipstick is seated in
guide
3.
Remove the oil dipstick and
check the oil level. Engine oil, specified level
Between MIN and MAX
marks (Seat the oil dipstick
on the oil filler neck, but do
not engage the threads.)
If the oil level is below the MIN
mark: Top up the engine oil.
If the oil level is above the MAX
mark: Have the oil level corrected by
a specialist workshop, prefer-
8108zMaintenance
