If any of the following conditions
occurs, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion.
The light remains on when the
“READY” light is on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
Either of the following conditions may
occur, but does not indicate the mal-
function:
The light may stay on for about 60
seconds after the hybrid system is
started. It is normal if it turns off after
a whi l e.
Depressing the brake pedal repeatedly
may turn on the light. It is normal if it
turns off after a few seconds.
CAUTION
If the “ABS” warning light remains on
together with the red brake system
warning light, stop your vehicle im-
mediately in a safe place and contact
your Toyota dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
(i) Open Door Warning Light
This light remains on until all the side
doors and back door are completely
closed.
Doors left open are shown on the multi −
information display. (j) Electric Power Steering System
Warning Light
This light comes on when the power
steering control system fails.
CAUTION
If this light comes on, take your ve-
hicle to the Toyota dealer as soon as
possible. In this case, you may feel
the heavy steering wheel maneuver-
ing. Drive your vehicle while gripping
the steering wheel firmly.

’06 HIGHLANDER HB_U (L/O 0503)
150
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
(k) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ON” position.
After about 6 seconds, the light will go
off. This means the systems of the air-
bag and front seat belt pretensioners
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system, “AIRBAG ON” indi-
cator light, “AIRBAG OFF” indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, warning light, interconnecting wiring
and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds or flashes.
The light comes on or flashes while
driving. If the light stays on, it indicates that the
SRS driver and front passenger airbag
system and/or front passenger occupant
classification system and “AIRBAG ON”
and “AIRBAG OFF” indicator lights have a
problem. If the light flashes, the SRS side
airbag system and/or curtain shield airbag
system have a problem.
(l) Master Warning Light
If the master warning light comes on, a
message appears on the multi
−information
display. Depending on the conditions a
warning tone may sound. (See “—Warning
messages” on page 155 in this Section for
instructions.)
(m) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key when you open the driver’s door
with the ignition key in the “ACC” or
“LOCK” position. CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and master warning light)
1. Apply the parking brake.
2. Open one of the side doors or back door.
The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do not start the hybrid system.
All the service reminder indicators ex-
cept the open door warning light should
come on. The SRS warning light goes
off after about 6 seconds.
5. Turn the ignition key to the “START” position briefly and firmly.
All of the service reminder indicators ex-
cept the red brake system warning light
and driver ’s seat belt reminder light go off
when the “READY” light comes on.
The driver ’s seat belt reminder light goes
off when the driver ’s seat belt is fastened.
The red brake system warning light goes
off when the parking brake is released.

’06 HIGHLANDER HB_U (L/O 0503)
151
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
There may be the case that the red and
yellow brake system warning lights and
“ABS” warning light stay on for about 60
seconds. It is normal if they go out after
a while.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.

’06 HIGHLANDER HB_U (L/O 0503)
152
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
The following modes are displayed
when you push the mode button with
the ignition switch on. Each time you
push the button, the display toggles
through these modes.
In case your vehicle has a system mal-
function or if there is some information
to relate to inform, a warning message
appears on the display. See “—Warning
messages” on page 155 for details.
(a) Odometer and trip meter (enlarged
character)
(b) Energy monitor
(c) Outside temperature
(d) Current fuel consumption
The displayed values of the fuel consump-
tion indicate general driving conditions.
Accuracy varies with driving habits and
road conditions.
When the ignition switch is on, the last
previously used mode is just before the
ignition switch is off will appear.
If the electrical power source has been
disconnected from the multi −information
display, the display will automatically be
set to the initial mode.
Multiinformation display—

’06 HIGHLANDER HB_U (L/O 0503)
153
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
When the instrument panel lights are
turned on, the brightness of the display
will be reduced.
You can adjust the brightness of the dis-
play. To adjust the brightness, see “Instru-
ment panel light control” on page 134.
CAUTION
Be sure to adjust the display only
when the vehicle is stopped.
(a) Odometer and two trip meters
The odometer and two trip meters ap-
pear on the display.
See “—Odometer and two trip meters” on
page 154 for details.
(b) Energy monitor
The operating condition of the hybrid
system appears on the display.
See “Energy monitor” on page 2 for de-
tails. (c) Outside temperature
(“OUTSIDE TEMP”)
Outside temperature appears on the
display.
The displayed temperature ranges from
− 30 C ( −22 F) up to 50 C (122 F). If the
temperature does not appear on the dis-
play or it shows “ −−”, take your vehicle to
your Toyota dealer.
(d) Current fuel consumption (“CURRENT”)
The current fuel consumption is calcu-
lated and displayed based on distance
and fuel consumption for 2 seconds.
Note that an accurate figure may not be
shown in some cases.

’06 HIGHLANDER HB_U (L/O 0503)
154
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
These meters appear on the multiinfor-
mation display.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.
3. Trip meter reset knob—Resets the two trip meters to zero, and also change
the meter display.
Every time you push lightly on the trip
meter reset knob, the display toggles
as shown in the illustration.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
—Odometer and two trip meters
Standard
character
Enlarged
character

’06 HIGHLANDER HB_U (L/O 0503)
155
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

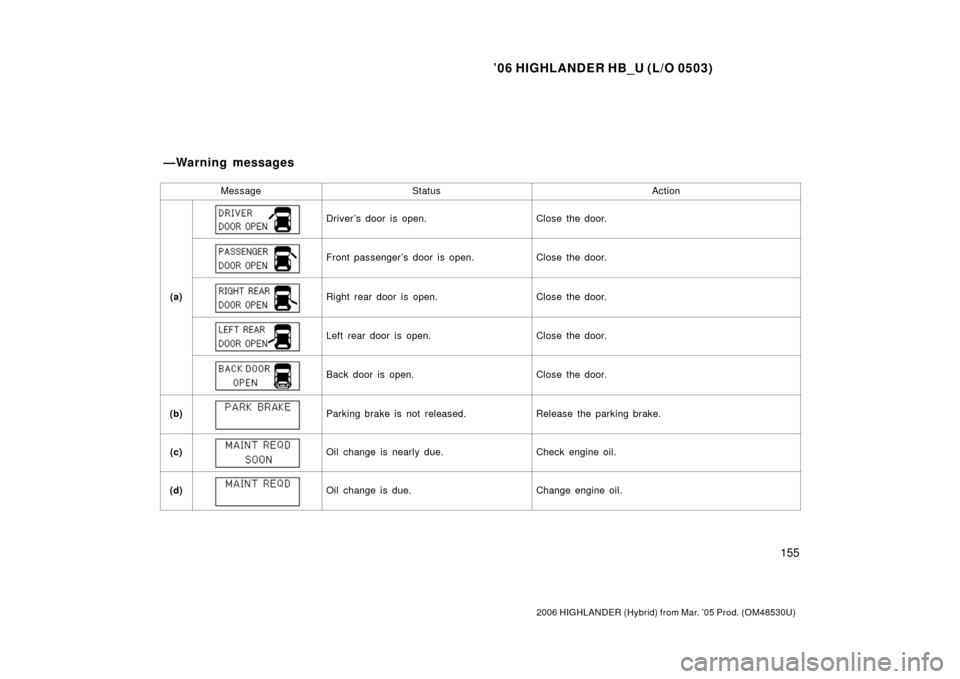

MessageStatusAction
(a)
Driver ’s door is open.Close the door.
Front passenger ’s door is open.Close the door.
Right rear door is open.Close the door.
Left rear door is open.Close the door.
Back door is open.Close the door.
(b)Parking brake is not released.Release the parking brake.
(c)Oil change is nearly due.Check engine oil.
(d)Oil change is due.Change engine oil.
—Warning messages

’06 HIGHLANDER HB_U (L/O 0503)
156
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

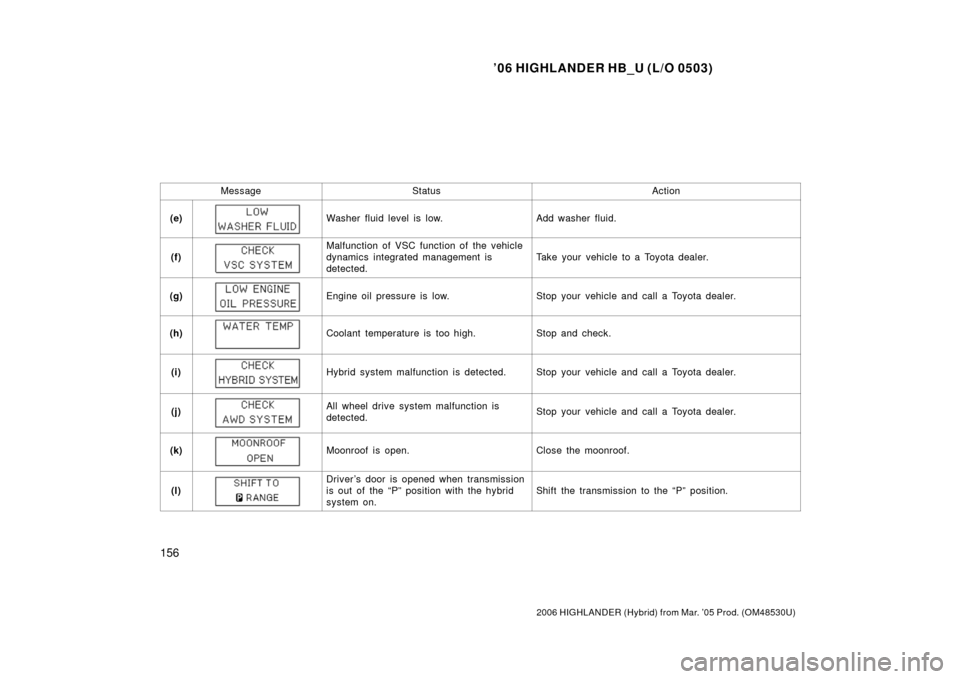

MessageStatusAction
(e)Washer fluid level is low.Add washer fluid.
(f)
Malfunction of VSC function of the vehicle
dynamics integrated management is
detected.
Take your vehicle to a Toyota dealer.
(g)Engine oil pressure is low.Stop your vehicle and call a Toyota dealer.
(h)Coolant temperature is too high.Stop and check.
(i)Hybrid system malfunction is detected.Stop your vehicle and call a Toyota dealer.
(j)All wheel drive system malfunction is
detected.Stop your vehicle and call a Toyota dealer.
(k)Moonroof is open.Close the moonroof.
(l)
Driver ’s door is opened when transmission
is out of the “P” position with the hybrid
system on.
Shift the transmission to the “P” position.
