2006 TOYOTA HIGHLANDER HYBRID Owners Manual

’06 HIGHLANDER HB_U (L/O 0503)
125
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

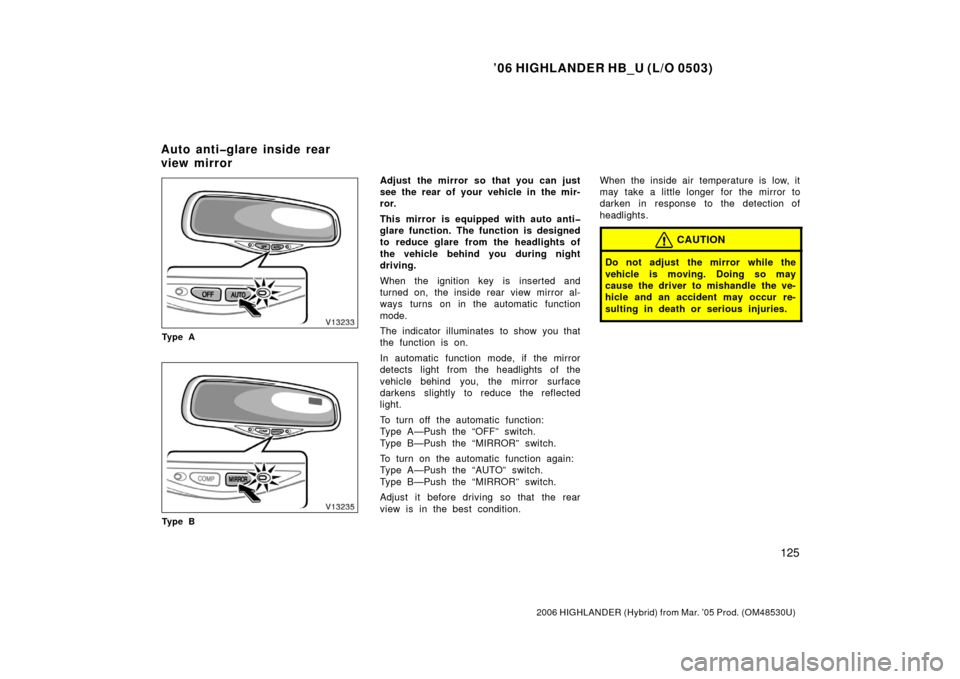

Ty p e A
Ty p e B
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.
In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off the automatic function:
Type A—Push the “OFF” switch.
Type B—Push the “MIRROR” switch.
To turn on the automatic function again:
Type A—Push the “AUTO” switch.
Type B—Push the “MIRROR” switch.
Adjust it before driving so that the rear
view is in the best condition. When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Auto antiglare inside rear
view mirror

’06 HIGHLANDER HB_U (L/O 0503)
126
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Ty p e A
Ty p e B
To ensure correct functioning of anti
glare mirror sensors located on both
sides of the mirror, do not touch or
cover the sensors with your finger or
a piece of cloth, etc.
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(position 3).
Sun visors—

’06 HIGHLANDER HB_U (L/O 0503)
127
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the antiglare
inside rear view mirror and obstruct
the rear view.
Ty p e A
Ty p e B
To use the vanity mirrors, swing down
the main sun visor and slide the cover.
Type A only—The vanity light comes on
when you slide the cover.
—Vanity mirrors

’06 HIGHLANDER HB_U (L/O 0503)
128
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

’06 HIGHLANDER HB_U (L/O 0503)
129
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 133
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior lights 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Personal lights 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Ignition switch light 137
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Windshield wipers and washer 137
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers and windshield wiper de −icer 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 5

’06 HIGHLANDER HB_U (L/O 0503)
130
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
The headlight indicator lights up in the
instrument cluster.
Position 3 (“AUTO”)—Headlights and/or all
of the lights in position 1
They automatically turn on or off depend-
ing on the darkness of the surroundings. Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
Headlights and turn signals
(with automatic light control
system)

’06 HIGHLANDER HB_U (L/O 0503)
131
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
The lights automatically turn off when the
driver ’s door is opened with the ignition
key in the “ACC” or “LOCK” position. To
turn them on again, turn the key to the
“ON” position or actuate the headlight
switch. If you are going to park for over
one week, make sure the headlight switch
is off.
NOTICE
To prevent the auxiliary battery from
being discharged, do not leave the
lights on for a long period when the
hybrid system is off.
Daytime running light system
(on some models)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the hybrid system turned on, even with
the light switch in the “OFF” position.
They will not go off until the ignition
switch is turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
position 1.
Twist the knob to position 2 to turn the
headlights to full intensity for driving at
night.
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 404 in Section 7 −3.

’06 HIGHLANDER HB_U (L/O 0503)
132
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
For the U.S.A.
For Canada
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
For Canada—The tail light indicator lights
up in the instrument cluster.
Position 2—Headlights and all of the
above
For the U.S.A.—The headlight indicator
lights up in the instrument cluster.
The lights automatically turn off when the
driver ’s door is opened with the ignition
turned off. To turn them on again, turn the
key to the “ON” position or actuate the
headlight switch. If you are going to park
for over one week, make sure the head-
light switch is off.
NOTICE
To prevent the auxiliary battery from
being discharged, do not leave the
lights on for a long period when the
hybrid system is off.
Daytime running light system
(on some models)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the hybrid system turned on, even with
the light switch in the “OFF” position.
They will not go off until the ignition
switch is turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
position 1.
Twist the knob to position 2 to turn the
headlights to full intensity for driving at
night.
Headlights and turn signals
(without automatic light
control system)
