2006 TOYOTA HIGHLANDER HYBRID Owners Manual

’06 HIGHLANDER HB_U (L/O 0503)
237
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

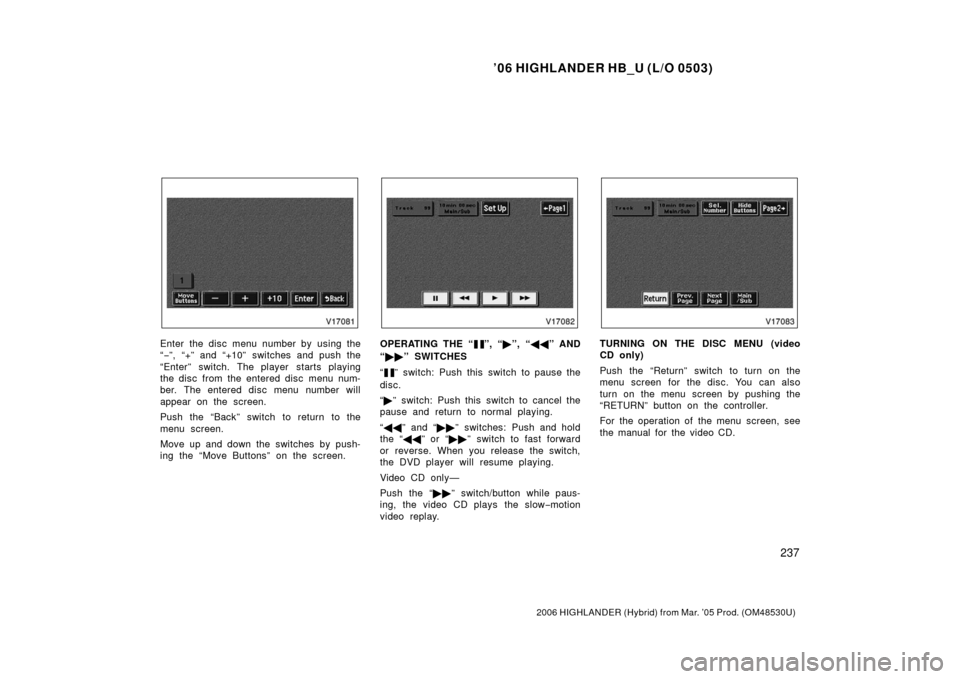

Enter the disc menu number by using the
“− ”, “+” and “+10” switches and push the
“Enter” switch. The player starts playing
the disc from the entered disc menu num-
ber. The entered disc menu number will
appear on the screen.
Push the “Back” switch to return to the
menu screen.
Move up and down the switches by push-
ing the “Move Buttons” on the screen.OPERATING THE “”, “ ”, “  ” AND
“  ” SWITCHES
“
” switch: Push this switch to pause the
disc.
“  ” switch: Push this switch to cancel the
pause and return to normal playing.
“  ” and “ ” switches: Push and hold
the “ ” or “ ” switch to fast forward
or reverse. When you release the switch,
the DVD player will resume playing.
Video CD only—
Push the “ ” switch/button while paus-
ing, the video CD plays the slow −motion
video replay.
TURNING ON THE DISC MENU (video
CD only)
Push the “Return” switch to turn on the
menu screen for the disc. You can also
turn on the menu screen by pushing the
“RETURN” button on the controller.
For the operation of the menu screen, see
the manual for the video CD.

’06 HIGHLANDER HB_U (L/O 0503)
238
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

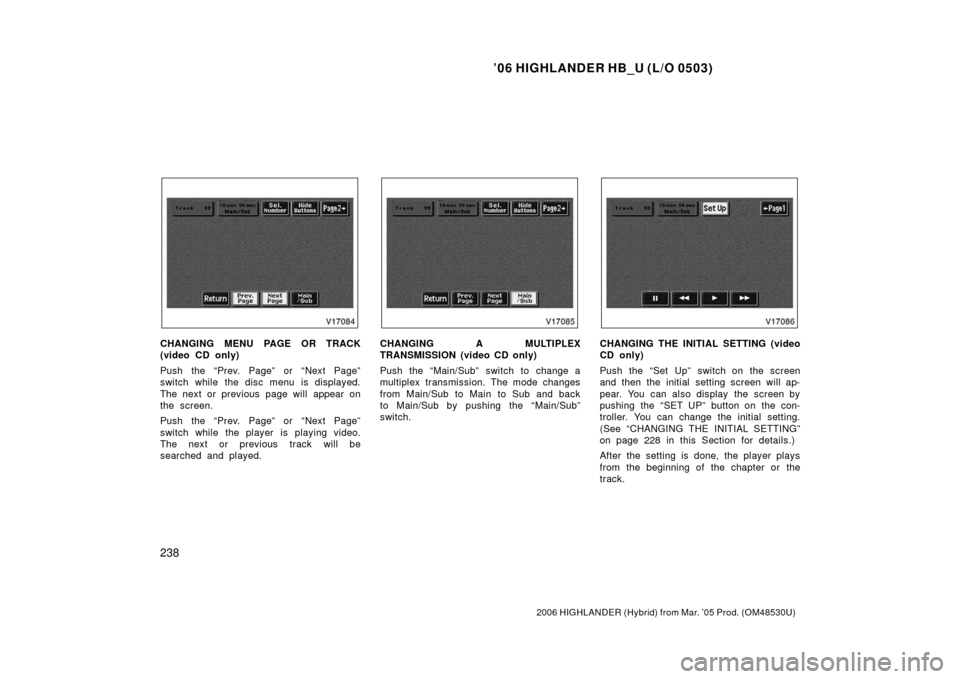

CHANGING MENU PAGE OR TRACK
(video CD only)
Push the “Prev. Page” or “Next Page”
switch while the disc menu is displayed.
The next or previous page will appear on
the screen.
Push the “Prev. Page” or “Next Page”
switch while the player is playing video.
The next or previous track will be
searched and played.CHANGING A MULTIPLEX
TRANSMISSION (video CD only)
Push the “Main/Sub” switch to change a
multiplex transmission. The mode changes
from Main/Sub to Main to Sub and back
to Main/Sub by pushing the “Main/Sub”
switch.CHANGING THE INITIAL SETTING (video
CD only)
Push the “Set Up” switch on the screen
and then the initial setting screen will ap-
pear. You can also display the screen by
pushing the “SET UP” button on the con-
troller. You can change the initial setting.
(See “CHANGING THE INITIAL SETTING”
on page 228 in this Section for details.)
After the setting is done, the player plays
from the beginning of the chapter or the
track.

’06 HIGHLANDER HB_U (L/O 0503)
239
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Video CD
Audio CD
CD Text
USING THE CONTROL SCREEN
When playing a disc, push the “DVD” but-
ton on the controller. The control screen
will appear on the screen.
CD text only—
The disc title and track title will appear on
the screen when pushing the “DVD” but-
ton.
Details of the specific switches, controls
and features are described below.
1. “PICTURE” switch (video CD only) Push the “PICTURE” switch to turn off
the control screen and return to the
picture previously displayed.
2. “RPT” switch (audio CD and CD text) Push the “RPT” switch while the track
is playing. When the track ends, it will
automatically replay. To turn off the re-
peat feature, push this switch again.

’06 HIGHLANDER HB_U (L/O 0503)
240
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
3. “RAND” switch (audio CD and CD text)
Push the “RAND” switch. The player
will play the tracks on the disc in ran-
dom order. To turn off the random fea-
ture, push this switch again.
4. “SCAN” switch (audio CD and CD text) Push the “SCAN” switch. The player
will scan all the tracks on the disc. To
stop scanning, push this switch again.
When the player has scanned all the
tracks on the disc, it will stop scan-
ning.
5. “
” and “” switches
Push the “
” or “” switch to fast
forward or reverse the disc. When you
push the switch again, the DVD player
will resume playing.

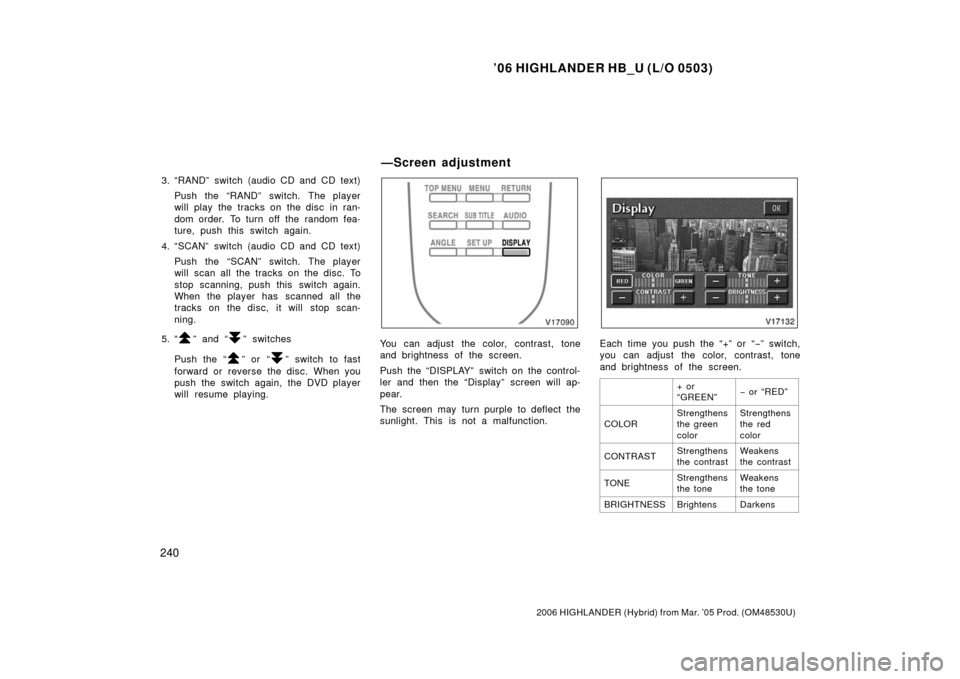

You can adjust the color, contrast, tone
and brightness of the screen.
Push the “DISPLAY” switch on the control-
ler and then the “Display” screen will ap-
pear.
The screen may turn purple to deflect the
sunlight. This is not a malfunction.Each time you push the “+” or “ −” switch,
you can adjust the color, contrast, tone
and brightness of the screen.
+ or
“GREEN”− or “RED”
COLORStrengthens
the green
colorStrengthens
the red
color
CONTRASTStrengthens
the contrastWeakens
the contrast
TONEStrengthens
the toneWeakens
the tone
BRIGHTNESSBrightensDarkens
—Screen adjustment

’06 HIGHLANDER HB_U (L/O 0503)
241
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
After adjusting the screen, push the “OK”
switch to return to the previous screen.The audio machine connected to the input
terminal adapter can be played in the
video mode.

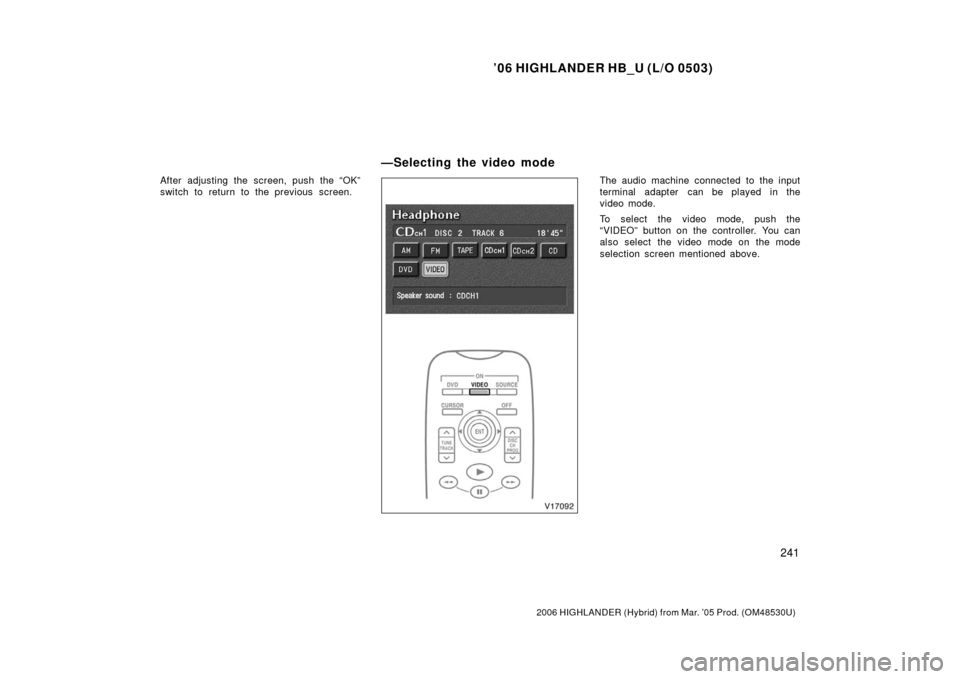

To select the video mode, push the
“VIDEO” button on the controller. You can
also select the video mode on the mode
selection screen mentioned above.
—Selecting the video mode

’06 HIGHLANDER HB_U (L/O 0503)
242
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
DVD PLAYER AND DVD VIDEO DISCS
This DVD player conforms to NTSC col-
or TV formats. DVD video discs con-
forming to other formats such as PAL
or SECAM cannot be used.
Region codes: Some DVD video discs
have a region code indicating where you
can use. If the DVD video disc is not
labeled “ALL” or “1”, you cannot use it in
this DVD player. If you attempt to play an
inappropriate DVD video disc in this play-
er, “REGION CODE ERROR” appears on
the screen. Even if the DVD video disc
does not have a region code, in some
cases you cannot use it. Marks shown on DVD video discs:
Indicates NTSC format
of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen
to be selected.
Wide screen: 16:9
Standard: 4:3
Indicates regions in
which this video disc
can be played.
ALL: all countries
Number: region codeDVD VIDEO DISC GLOSSARY
DVD video discs:
Digital Versatile Disc
that holds video. DVD video discs have
adopted “MPEG2”, one of the world stan-
dards of digital compression technologies.
The picture data is compressed by 1/40
on average and stored. Variable rate en-
coded technology in which the volume of
data assigned to the picture is changed
depending on the picture format has also
been adopted. Audio data is stored using
PCM and Dolby digital, which enables
higher quality of sound. Furthermore, mul-
ti −angle and multi −language features will
also help you enjoy the more advanced
technology of DVD video.
Viewer restrictions: This feature limits
what can be viewed in conformity with the
level of restrictions of the country. The
level of restrictions varies depending on
the DVD video disc. Some DVD video
discs cannot be played at all, or violent
scenes are skipped or replaced with other
scenes.
Level 1: DVD video discs for children can
be played.
Level 2—7: DVD video discs for children
and G −rated movies can be played.
—DVD video disc information

’06 HIGHLANDER HB_U (L/O 0503)
243
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Level 8: All types of DVD video discs can
be played.
Multiangle feature: You can enjoy the
same scene at different angles.
Multilanguage feature: You can select
the language of the subtitles and audio.
Region codes: Region codes are provided
on DVD players and DVD discs. If the
DVD video disc does not have the same
region code as the DVD player, you can-
not play the disc on the DVD player. For
region codes, see page 242.
Audio: This DVD player can play liner
PCM, Dolby digital, dts and MPEG audio
format DVD. Other decoded type cannot
be played.
Title and chapter: Video and audio pro-
grams stored on DVD video discs are di-
vided in parts by title and chapter.
Title: The largest unit of the video and
audio programs stored on DVD video
discs. Usually, one piece of a movie, one
album, or one audio program is assigned
as a title.
Chapter: A unit smaller than a title. A title
comprises plural chapters. Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the doubleD symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.

19921997 Dolby Laboratories. All
rights reserved.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. pat-
ents and other intellectual property
rights owned by Macrovision Corpora-
tion and other rights owners. Use of
this copyright protection technology
must be authorized by Macrovision Cor-
poration, and is intended for home and
other limited viewing uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
“dts” is a trademark of Digital Theater
Systems, Inc. The rear entertainment system plays vid-
eos and sound when an audio
−video
equipment is connected to the A/V input
adapter. For details, refer to the manufac-
turer’s instructions.
—A/V input adapter

’06 HIGHLANDER HB_U (L/O 0503)
244
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
To use the adapter, open the cover.
The A/V input adapter is composed of 3
input adapters.
“VIDEO”: Image input adapter
“MONO/L”: Audio input adapter (mono/left)
“AUDIO−R”: Audio input adapter (right)
NOTICE
Close the cover when the A/V input
adapter is not in use. Inserting any-
thing other than an appropriate plug
may cause electrical failure or short
circuit.
You can enjoy the rear seat entertain-
ment system with commercial head-
phones.
To use the headphones, connect them to
the jack.
The key must be in the “ACC” or “ON”
position.To adjust the volume of the headphones,
turn the dial.
Left side dial: Turn it upward to increase
the volume, turn it downward to decrease
the volume.
Right side dial: Turn it downward to in-
crease the volume, turn it upward to de-
crease the volume.
The maximum volume depends on the
type of headphones.
The recommended headphone impedance
is from 16 Ω to 32 Ω.
Please contact your Toyota dealer for fur-
ther details.
—Headphone j acks
