2006 TOYOTA HIGHLANDER HYBRID Owners Manual

’06 HIGHLANDER HB_U (L/O 0503)
45
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Sliding operation
Tilting operation
To operate the moonroof, use the
switch between the personal lights.
The moonroof works when the ignition
switch is in the “ON” position.
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch toward the
“SLIDE OPEN” side.
The roof will open and stop partway 45
mm (1.8 in.) from the fully opened posi-
tion. When you push the switch toward
the “SLIDE OPEN” side again, the moon
roof will open fully. To stop the roof part-
way, push the switch toward either the
“SLIDE OPEN” or “TILT UP” side quickly
while the roof is moving.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
45 mm (1.8 in.) from the fully opened
position.
When you quickly push and release the
switch, the moonroof will open while the
switch is depressed and stop when re-
leased.
The sun shade will be opened together
with the roof. To close: Push the switch toward the
“TILT UP” side.
The roof will fully close automatically. To
stop the roof partway, push the switch
toward either the “SLIDE OPEN” or “TILT
UP” side quickly.
When you quickly push and release the
switch, the moonroof will close while the
switch is depressed and stop when re-
leased.
Tilting operation—
To tilt up: Push the switch toward the
“TILT UP” side.
The roof will fully tilt up automatically. To
stop the roof partway, push the switch
toward either the “SLIDE OPEN” or “TILT
UP” side quickly.
When you quickly push and release the
switch, the moonroof will tilt up while the
switch is depressed and stop when re-
leased.
To tilt down: Push the switch toward the
“SLIDE OPEN” side.
The roof will fully tilt down automatically.
To stop the roof partway, push the switch
toward either the “SLIDE OPEN” or “TILT
UP” side quickly.
Electric moonroof

’06 HIGHLANDER HB_U (L/O 0503)
46
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
When you quickly push and release the
switch, the moonroof will tilt down while
the switch is depressed and stop when
released.
Open moonroof reminder: If the moon-
roof is left open when you turn the ignition
key to the “ACC” or “LOCK” position and
open the driver ’s door, a message
“MOONROOF OPEN” appears on the mul-
ti −information display and a warning tone
sounds.
Key off operation: If all the side doors
and back door are closed, it works for 43
seconds even after the ignition switch is
turned off. It stops working when either
front door is opened.
Jam protection function:
If something gets caught between the
moonroof and frame during slide clos-
ing operation, the moonroof stops and
then opens slightly.
If something gets caught between the
moonroof and frame during tilting down
operation, the moonroof stops and then
tilts up fully.
If the moonroof receives a strong impact,
this function may work even if nothing is
caught. If the moon roof does not operate auto-
matically or the jam protection function
does not operate correctly, you should
normalize the moon roof.
To normalize the moon roof, push and
hold the switch toward the “TILT UP” side.
The moon roof will tilt up and down, then
slide open and close. After the slide close
operation, release the switch.
Make sure that the moon roof opens and
closes automatically. If the moon roof can-
not be operated properly, have it checked
by your Toyota dealer.
CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Before you close the moonroof, al-
ways make sure there is nobody
around the moonroof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in death or serious injury.
When anyone closes the moonroof,
first make sure it is safe to do so.
Be sure to remove the ignition key
when you leave your vehicle.

’06 HIGHLANDER HB_U (L/O 0503)
47
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the moonroof switch and get
trapped in the roof opening. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the moonroof is fully
closed.

’06 HIGHLANDER HB_U (L/O 0503)
48
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

’06 HIGHLANDER HB_U (L/O 0503)
49
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Rear seats 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Flattening seatbacks 63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Seat heaters 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Head restraints 67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Armrests 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Seat belts 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS airbags 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Child restraint 101
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 3

’06 HIGHLANDER HB_U (L/O 0503)
50
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions

’06 HIGHLANDER HB_U (L/O 0503)
51
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Front passenger seat

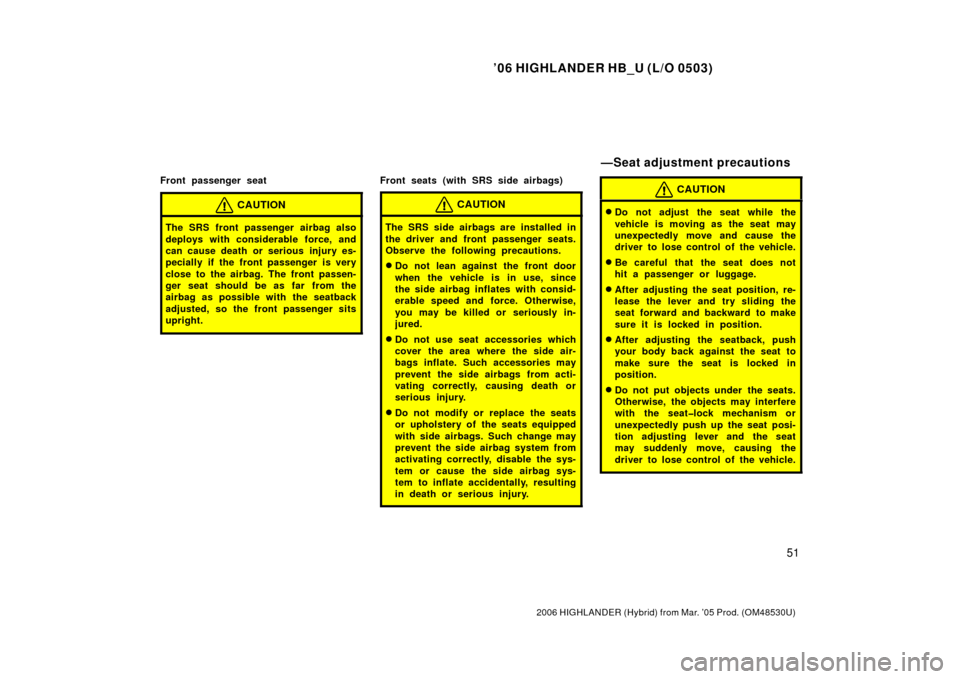

CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats equipped
with side airbags. Such change may
prevent the side airbag system from
activating correctly, disable the sys-
tem or cause the side airbag sys-
tem to inflate accidentally, resulting
in death or serious injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Seat adjustment precautions

’06 HIGHLANDER HB_U (L/O 0503)
52
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION ANGLE ADJUSTING KNOB
To change the angle of the seat cush-
ion on the front side, turn the knob
either way.
3. SEAT HEIGHT ADJUSTING LEVER
To change the height of the seat, pull
up or push down the lever.
4. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting front seats
(manual seat)
