STARTING AND DRIVING
Starting and driving
Before starting the hybrid system 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the hybrid system 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving in various conditions 327
. . . . . . . . . . . . . . . . . . . . . . . . . .
Off −road driving precautions 328
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Winter driving tips 330
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Dinghy towing 331
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trailer towing 332
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
How to save fuel and make your vehicle last longer 337
. . . . . . . . . . . . .
SECTION 3

’06 HIGHLANDER HB_U (L/O 0503)
326
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
1. Check the area around the vehicle be-
fore getting in.
2. Adjust seat position, seatback angle, seat cushion angle, seat height, head
restraint height and steering wheel
angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all side doors and back door.
5. Fasten seat belts.
When you get in the vehicle, check
whether the “READY” light is on or
not.
CAUTION
Your vehicle does not produce any
noise or vibration when the vehicle is
ready to be driven with the “READY”
indicator light on. Move your foot
carefully from the brake pedal to the
acceleration pedal when driving.
1. Apply the parking brake firmly.
2. Turn off unnecessary lights and acces- sories.
3. Put the selector lever in “P”.
4. Depress the brake pedal and hold it to the floor until driving off.
As the hybrid system starts only with the
transmission in the “P” position, put the
selector lever in “P” whenever starting the
system.
Before starting the hybrid system, be sure
to follow the instructions in “(a) Before
starting”.
Starting procedure
With your foot off the accelerator pedal,
turn the key to “START” briefly and firmly.
After a few seconds, the “READY” light
will come on and a beep will sound. If the
ambient temperature is low, such as dur-
ing winter driving conditions, it may take
time until the “READY” light comes on.
The engine may not start even with the
“READY” light on.
Before starting the hybrid
system How to start the hybrid
system—
(a) Before starting (b) Starting the hybrid system

’06 HIGHLANDER HB_U (L/O 0503)
327
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
You may hear a sound in the engine
compartment when the brake pedal is de-
pressed with the hybrid system off. How-
ever, this does not indicate any trouble.
When the hybrid system is started or
stopped, you may hear a sound coming
from the traction battery under the rear
seats. However, this does not indicate any
trouble.
When the hybrid system is started or
stopped, or while the vehicle is idling, you
may hear a sound coming from the trans-
mission. However, this does not indicate
any trouble.
When applying brakes, you may hear a
sound coming from the regenerative
brakes. However, this does not indicate
any trouble.
When the gasoline engine is started or
stopped with the hybrid system on, you
may feel a vibration. However, this does
not indicate any trouble.
If there is a problem somewhere in the
hybrid system, “CHECK HYBRID SYSTEM”
warning message will appear on the multi −
information display. Have your vehicle
checked by your Toyota dealer as soon as
possible. If the hybrid system will not start...
See “If your vehicle will not start” on page
340 in Section 4.
CAUTION
Never start the hybrid system from
outside the vehicle, or an accident
may occur. Be sure to sit in the driv-
er seat, then start the system.
NOTICE

If any service reminder indicator
light comes on or warning message
appears on the multiinformation
display (see page 144 and page 155
for details) or the auxiliary battery
is disconnected, the hybrid system
may not start. In that case, turn the
ignition on again. If the “READY”
light does not come on, contact
your Toyota dealer.
 When you start the hybrid system
at a lower outside temperature, it
may take longer before the blinking
“READY” light changes to constant
on.
Always slow down in gusty crosswinds.
This will allow you much better control.
Drive slowly onto curbs and, if pos-
sible, at a right angle. Avoid driving
onto high, sharp− edged objects and
other road hazards. Failure to do so
can lead to severe tire damage such
as a tire burst.
Drive slowly when passing over bumps
or travelling on a bumpy road. Other-
wise, the impact could cause severe
damage to the tires and/or wheels.
When parking on a hill, turn the front
wheels until they touch the curb so
that the vehicle will not roll. Apply the
parking brake, and place the transmis-
sion in “P”. If necessary, block the
wheels.
Washing your vehicle or driving through
deep water may get the brakes wet. To
see whether they are wet, check that
there is no traffic near you, and then
press the pedal lightly. If you do not
feel a normal braking force, the brakes
are probably wet. To dry them, drive
the vehicle cautiously while lightly
pressing the brake pedal with the park-
ing brake applied. If they still do not
work safely, pull to the side of the road
and call a Toyota dealer for assistance.
Tips for driving in various
conditions

’06 HIGHLANDER HB_U (L/O 0503)
328
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
CAUTION
Before driving off, make sure that
the parking brake is fully released
and the parking brake reminder
light is off.
Do not leave your vehicle unat-
tended while the hybrid system is
on.
Do not rest your foot on the brake
pedal while driving. It can cause
dangerous overheating, needless
wear, and poor fuel economy.
To drive down a long or steep hill,
reduce your speed and downshift.
Remember, if you ride the brakes
excessively, they may overheat and
not work properly.
Be careful when accelerating, down-
shifting or braking on a slippery
surface. Sudden acceleration or en-
gine braking, could cause the ve-
hicle to skid or spin.
Do not drive in excess of the speed
limit. Even if the legal speed limit
permits it, do not drive over 140
km/h (85 mph) unless your vehicle
has highspeed capability tires.
Driving over 140 km/h (85 mph) may
result in tire failure, loss of control
and possible injury. Be sure to con-
sult a tire dealer to determine
whether the tires on your vehicle
are highspeed capability tires or
not before driving at such speeds.
Do not continue normal driving
when the brakes are wet. If they are
wet, your vehicle will require a
longer stopping distance, and it
may pull to one side when the
brakes are applied. Also, the park-
ing brake will not hold the vehicle
securely.
Your vehicle is not designed to be driv-
en offroad
However, in the event that off−road driving
cannot be avoided, please observe the
following precautions to help avoid the
areas prohibited to vehicles.
a. Drive your vehicle only in areas where off−road vehicles are permitted to trav-
el.
b. Respect private property. Get owner ’s permission before entering private prop-
erty.
c. Do not enter areas that are closed. Honor gates, barriers and signs that re-
strict travel.
d. Stay on established roads. When condi- tions are wet, driving techniques should
be changed or travel delayed to pre-
vent damage to roads.
Offroad driving precautions

’06 HIGHLANDER HB_U (L/O 0503)
329
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
For owners in U.S. mainland, Hawaii and
Puerto Rico:
To obtain additional information pertaining
to driving your vehicle off−road, consult
the following organizations.
State and Local Parks and Recreation
Departments
State Motor Vehicle Bureau
Recreational Vehicle Clubs
U.S. Forest Service and Bureau of
Land Management
CAUTION
Always observe the following precau-
tions to minimize the risk of serious
personal injury or damage to your ve-
hicle:
Drive carefully when off the road.
Do not take unnecessary risks by
driving in dangerous places.
Do not grip the steering wheel
spokes when driving offroad. A
bad bump could jerk the wheel and
injure your hands. Keep both hands
and especially your thumbs on the
outside of the rim.
Always check your brakes for effec-
tiveness immediately after driving in
sand, mud, water or snow.
After driving through tall grass,
mud, rock, sand, rivers, etc., check
that there is no grass, bush, paper,
rags, stone, sand, etc. adhering or
trapped on the underbody. Clear off
any such matter from the under-
body. If the vehicle is used with
these materials trapped or adhering
to the underbody, a breakdown or
fire could occur.
In a rollover crash, an unbelted per-
son is significantly more likely to
die than a person wearing a seat
belt. Therefore, the driver and all
passengers should fasten their seat
belts whenever the vehicle is mo-
ving.
When offroad driving cannot be
avoided, do not drive at excessive
speeds, jump, make sharp turns, or
strike objects, etc. These maneu-
vers may result in loss of control
or vehicle rollover causing death or
serious injury. You also risk expen-
sive damage to your vehicle’s sus-
pension and chassis.
NOTICE
 If driving through water, such as
when crossing shallow streams,
first check the depth of the water
and the bottom of the river bed for
firmness. Drive slowly and avoid
deep water.

’06 HIGHLANDER HB_U (L/O 0503)
330
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Take all necessary safety measures
to ensure that water damage to the
traction battery, hybrid system or
other components does not occur.
Water entering the engine compart-
ment may cause severe damage to
the hybrid system. Water entering
the interior may cause the traction
battery stowed under the rear seats
to short circuit.
Water can wash the grease from
wheel bearings, causing rusting and
premature failure, and may also en-
ter the transaxle case, reducing the
gear oil’s lubricating qualities.
 Sand and mud that has accumulated
in brake drums and around brake
discs may affect braking efficiency
and may damage brake system com-
ponents.
 Always perform a maintenance in-
spection after each day of offroad
driving that has taken you through
rough terrain, sand, mud, or water.
For scheduled maintenance informa-
tion, refer to the “Scheduled Main-
tenance Guide” or “Owner’s Manual
Supplement”.Make sure your coolant is properly pro-
tected against freezing.
Only use “Toyota Super Long Life Coolant”
or similar high quality ethylene glycol
based non −silicate, non −amine, non −nitrite,
and non− borate coolant with long −life
hybrid organic acid technology. (Coolant
with long −life hybrid organic acid
technology is a combination of low
phosphates and organic acids.)
See “Checking the coolant level” on page
388 in Section 7 −2 for details of coolant
type selection.
For the U.S.A.—“Toyota Super Long Life
Coolant” is a mixture of 50% coolant and
50% deionized water. This coolant pro-
vides protection down to about −35 C
( − 31 F).
For Canada—“Toyota Super Long Life
Coolant” is a mixture of 55% coolant and
45% deionized water. This coolant pro-
vides protection down to about −42 C
( − 44 F).
NOTICE
Do not use plain water alone.
Check the status of the traction battery.
See page 4 for the status of the traction
battery. If the traction battery is dis-
charged, the hybrid system will not start
up.
Check the condition of the auxiliary
battery and cables.
Cold temperatures lower the performance
of the auxiliary battery, so it must be in
top shape to provide enough power for
winter starting. Section 7 −3 tells you how
to visually inspect the auxiliary battery.
Your Toyota dealer and most service sta-
tions will be pleased to check the charge
level.
Make sure the engine oil viscosity is
suitable for the cold weather.
See page 386 in Section 7 −2 for recom-
mended viscosity. Leaving a heavy sum-
mer oil in your vehicle during winter
months may cause harder starting. If you
are not sure about which oil to use, call
your Toyota dealer—they will be pleased
to help.
Keep the door locks from freezing.
Squirt lock de −icer or glycerine into the
locks to keep them from freezing.
Winter driving tips

’06 HIGHLANDER HB_U (L/O 0503)
331
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
“P” and block the rear wheels. Do not use
the parking brake, or snow or water accu-
mulated in and around the parking brake
mechanism may freeze, making it hard to
release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally. Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.Your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.
NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your vehicle.
Dinghy towing

’06 HIGHLANDER HB_U (L/O 0503)

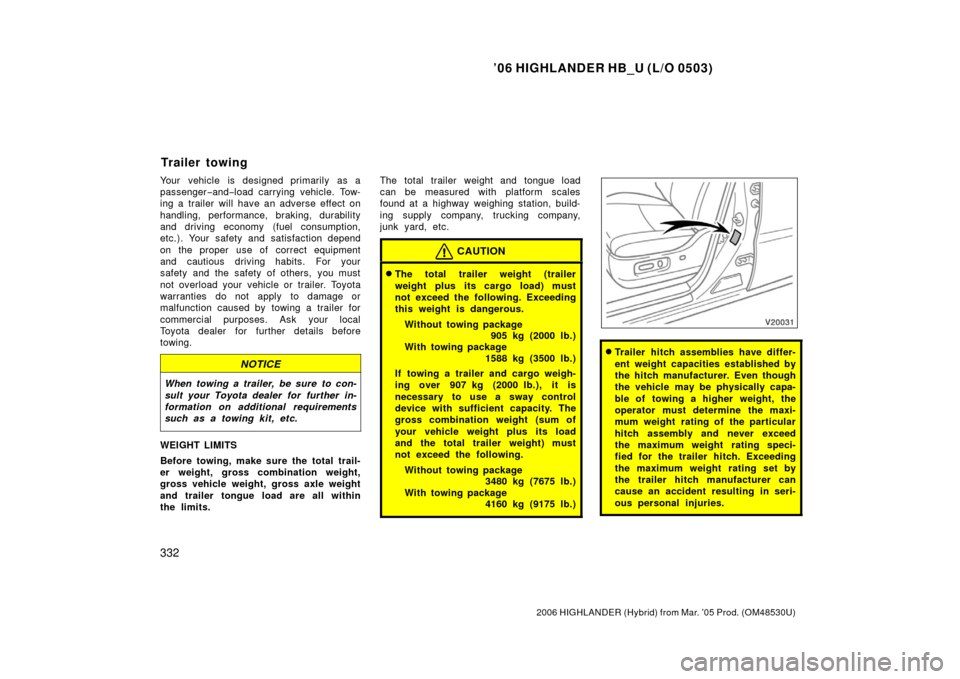

332
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Your vehicle is designed primarily as a
passenger−and− load carrying vehicle. Tow-
ing a trailer will have an adverse effect on
handling, performance, braking, durability
and driving economy (fuel consumption,
etc.). Your safety and satisfaction depend
on the proper use of correct equipment
and cautious driving habits. For your
safety and the safety of others, you must
not overload your vehicle or trailer. Toyota
warranties do not apply to damage or
malfunction caused by towing a trailer for
commercial purposes. Ask your local
Toyota dealer for further details before
towing.
NOTICE
When towing a trailer, be sure to con-
sult your Toyota dealer for further in-
formation on additional requirements
such as a towing kit, etc.
WEIGHT LIMITS
Before towing, make sure the total trail-
er weight, gross combination weight,
gross vehicle weight, gross axle weight
and trailer tongue load are all within
the limits. The total trailer weight and tongue load
can be measured with platform scales
found at a highway weighing station, build-
ing supply company, trucking company,
junk yard, etc.
CAUTION
The total trailer weight (trailer
weight plus its cargo load) must
not exceed the following. Exceeding
this weight is dangerous.
Without towing package 905 kg (2000 lb.)
With towing package
1588 kg (3500 lb.)
If towing a trailer and cargo weigh-
ing over 907 kg (2000 lb.), it is
necessary to use a sway control
device with sufficient capacity. The
gross combination weight (sum of
your vehicle weight plus its load
and the total trailer weight) must
not exceed the following.
Without towing package 3480 kg (7675 lb.)
With towing package 4160 kg (9175 lb.)
Trailer hitch assemblies have differ-
ent weight capacities established by
the hitch manufacturer. Even though
the vehicle may be physically capa-
ble of towing a higher weight, the
operator must determine the maxi-
mum weight rating of the particular
hitch assembly and never exceed
the maximum weight rating speci-
fied for the trailer hitch. Exceeding
the maximum weight rating set by
the trailer hitch manufacturer can
cause an accident resulting in seri-
ous personal injuries.
Tr ailer to win g
