2006 SUBARU LEGACY Owners Manual

13-10 Consumer information and Reporting safety defects
3. The result of step 2 shows that a
further 172 lbs (78 kg) of cargo can be carried.
Example 2B
For example, if a person weighing 143
lbs (65 kg) and a child weighing 40 lbs
(18 kg) now enter the same vehicle
(bringing the number of occupants to
three), and a child restraint system weighing 11 lbs (5 kg) is installed in
the vehicle for the child to use, the cal-
culations are as follows:
1. Calculate the total weight.
2. Calculate the available load capac- ity.
3. The total weight now exceeds the
capacity weight by
22 lbs (10 kg), so
the cargo weight must be reduced by
22 lbs (10 kg) or more.
„ Determining compatibility of
tire and vehicle load capaci-ties
The sum of four tires’ maximum load
ratings must exceed the maximum
loaded vehicle weight (“GVWR”). In
addition, sum of the maximum load
ratings of two front tires and of two
rear tires must exceed each axle’s
maximum loaded capacity (“GAWR”).
Original equipment tires are designedto fulfill those conditions.
The maximum loaded vehicle weight
is referred to Gross Vehicle Weight
Rating (GVWR). And each axle’s
maximum loaded capacity is referred
to Gross Axle Weight Rating
(GAWR). The GVWR and each axle’s
GAWR are shown on the vehicle cer-
tification label affixed to the driver’s
door.
The GVWR and front and rear
GAWRs are determined by not only
the maximum load rating of tires but
Available Load Capacity = 800 lbs (363 kg) 628 lbs (285 kg) = 172 lbs (78 kg) (Vehicle
capacity weight) (Total weight)
D00114
Total weight = 165 lbs (75 kg) + 143 lbs (65 kg) + 40 lbs (18 kg)
+ 11 lbs (5 kg) + 265 lbs (120 kg)+ 22 lbs (10 kg) + 176 lbs (80 kg) =
822 lbs (373 kg) (Occupant)
(Cargo)
(Trailer hitch)
(Child restraint)
(Tongue load)
(Occupant)
Available Load Capacity = 800 lbs (363 kg) 822 lbs (373 kg) =
22 lbs ( 10 kg)(Vehicle
capacity weight) (Total weight)

Consumer information and Reporting safety defects 13-11
also loaded capacities of the vehicle’s
suspension, axles and other parts of
the body.
Therefore, this means that the vehicle
cannot necessarily be loaded up to
the tire’s maximum load rating on the
tire sidewall. „Adverse safety consequenc-
es of overloading on handling
and stopping and on tires
Overloading could affect vehicle han-
dling, stopping distance, vehicle and
tire as shown in the following. This
could lead to an accident and possibly
result in severe personal injury.
y Vehicle stability will deteriorate.
y Heavy and/or high-mounted loads
could increase the risk of rollover.y Stopping distance will increase.
y Brakes could overheat and fail.
y Suspension, bearings, axles and
other parts of the body could break or
experience accelerated wear that will
shorten vehicle life.y Tires could fail.
y Tread separation could occur.
y Tire could separate from its rim. „
Steps for Determining Cor-
rect Load Limit
1. Locate the statement “The com-
bined weight of occupants and cargo
should never exceed XXX pounds” on
your vehicle’s placard.
2. Determine the combined weight of
the driver and passengers that will be
riding in your vehicle.
3. Subtract the combined weight of
the driver and passengers from XXX
kilograms or XXX pounds.
4. The resulting figure equals the
available amount of cargo and lug-
gage load capacity. For example, if the “XXX” amount equals 1,400 lbs
(635kg). and there will be five- 150 lbs
(68 kg) passengers in your vehicle,
the amount of available cargo and
luggage load capacity is 650 lbs.
(1,400 – 750 (5

13-12 Consumer information and Reporting safety defects
Uniform tire quality grading
standards
This information indicates the relative
performance of passenger car tires in
the area of treadwear, traction, and
temperature resistance. This is to aid
the consumer in making an informed
choice in the purchase of tires.
Quality grades can be found where
applicable on the tire sidewall be-
tween tread shoulder and maximum
section width. For example:
Treadwear 200 Traction AA Tem- perature A
The quality grades apply to new pneu-
matic tires for use on passenger cars.
However, they do not apply to deep
tread, winter type snow tires, space-
saver or temporary use spare tires,
tires with nominal rim diameters of 12
inches or less, or to some limited pro-
duction tires.
All passenger car tires must confirm
to Federal Safety Requirements in
addition to these grades. „
Treadwear
The treadwear grade is a comparative
rating based on the wear rate of the
tire when tested under controlled con-
ditions on a specified government test course.
For example, a tire graded 150 would
wear one and one-half (1-1/2) times
as well on the government course as
a tire graded 100. The relative perfor-
mance of tires depends upon the ac-
tual conditions of their use, however,
and may depart significantly from the
norm due to variations in driving hab-
its, service practices and differences
in road characteristics and climate. „ Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C. Thosegrades represent th e tire’s ability to
stop on wet pavement as measured
under controlled conditions on speci-
fied government test surfaces of as-
phalt and concrete. A tire marked C
may have poor traction performance.
„ Temperature A, B, C
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled condi-
tions on a specified indoor laboratory
test wheel. Sustained high tempera-
ture can cause the material of the tire
to degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. The grade C corre-
sponds to a level of performance
which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standards No. 109. Grades B
and A represent higher levels of per-
formance on the la boratory test wheel
than the minimum required by law.
The traction grade assigned to
this tire is b ased on straight-
ahead braking traction tests,
and does not include accelera-
tion, cornering, hydroplaning, or
peak traction characteristics.

Consumer information and Reporting safety defects 13-13

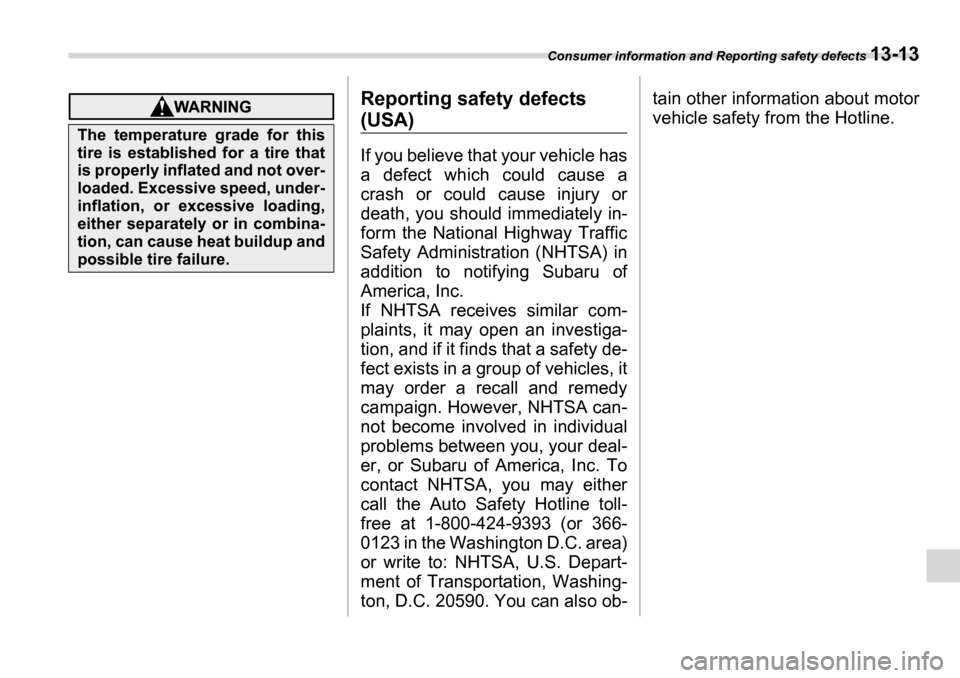

Reporting safety defects
(USA)
If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Subaru of
America, Inc.
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety de-
fect exists in a group of vehicles, it
may order a recall and remedycampaign. However, NHTSA can-
not become involved in individual
problems between you, your deal-
er, or Subaru of America, Inc. To
contact NHTSA, you may either
call the Auto Safety Hotline toll-
free at 1-800-424-9393 (or 366-
0123 in the Washington D.C. area)
or write to: NHTSA, U.S. Depart-
ment of Transportation, Washing-
ton, D.C. 20590. You can also ob-tain other information about motor
vehicle safety from the Hotline.The temperature grade for this
tire is established for a tire that
is properly inflated and not over-
loaded. Excessive speed, under-
inflation, or excessive loading,
either separately or in combina-
tion, can cause heat buildup and
possible tire failure.

Index
14

14-2 Index
A
ABS (Anti-lock Brake System) ....... ................................... 7-26
Warning light ....................................................... 3-20, 7-27
Accessories .................................................................... 11-47
Accessory power outlet .............. ........................................ 6-8
Active head restraint .. ..................................................... .... 1-6
Air cleaner element ........................................................ 11-17
Air conditioner .............. .................................................. .... 4-7
Air filtration system ........................................................... 4-13
Air flow selection ..................... ........................................... 4-2
Alarm system .................................................................... 2-14
All-Wheel Drive warning light (AT vehicles) ..................... 3-22
Aluminum wheels ......... .................................................. 11-39
Antenna system ................................................................. 5-2
Anti-lock Brake System (ABS) .... ...................................... 7-26
Arming the system ........ ....................................... ............. 2-15
Armrest ............................................................................. 1-10
Ashtray ............................................................................... 6-9
AT OIL TEMPerature warning light .................................. 3-18
Audio control button ......................................................... 5-39
Audio set ............................................................................ 5-3
Auto-dimming mirror/compass ...... ................................... 3-40
Automatic climate control system .. ..................................... 4-7
Automatic transmission 4-speed ....................................................................... 7-11
5-speed ....................................................................... 7-17
Capacities .................................................................... 12-4
Fluid ........................................................................... 11-22
Manual mode .............. ........................................ 7-14, 7-20
Selector lever ...................................................... 7-12, 7-18
Shift lock release ................................................ 7-16, 7-23
Temperature warning light (AT OIL TEMP) ................. 3-18 Automatic/Emergency Locking Retractor (A/ELR) ............ 1-13 B
Battery ............................................................................ 11-44
Jump starting ............................................................... 9-10
Replacement (Remote keyless en try system) ............... 2-7
Brake
Booster ...................................................................... 11-30
Fluid ........................................................................... 11-28
Pad and lining ............................................................ 11-32
Pedal .......................................................................... 11-30
Brake pedal Free play .................................................................... 11-30
Reserve distance ....................................................... 11-30
Brake system ......... ........................................................ ... 7-25
Warning light ................................................................ 3-20
Braking ............................................................................. 7-25 Tips .............................................................................. 7-25
Breaking Breaking-in of new brake pads and linings ................ 11-32
Bulb
Chart ............................................................................ 12-9
Replacing ................................................................... 11-48
C
Capacities ........... ........................................................ ...... 12-4
Cargo area Cover ........................................................................... 6-12
Light ............................................................................... 6-2
Tie-down hooks ........................................................... 6-15
Catalytic converter .................... .......................................... 8-3

Index 14-3
Center
Console ......................................................................... 6-5
Ventilators ...................................................................... 4-3
Changing Flat tire ........................................................................... 9-4
Oil and oil filter ........................................................... 11-10
Charge warning light ........................................................ 3-18
CHECK ENGINE warning light/Malfunction indicator lamp .............................................................................. 3-17
Checking Brake pedal free play ................................................. 11-30
Brake pedal reserve distance . ................................... 11-30
Clutch function ........................................................... 11-31
Clutch pedal free play ................................................ 11-31
Engine oil level ..................... ....................................... 11-9
Fluid level ............................... .. 11-22, 11-27, 11-28, 11-29
Gear oil level .............................................................. 11-24
Child restraint systems ....................................... .............. 1-25
Installation with seatbelt .............................................. 1-28
Lower and tether anchorages ...................................... 1-32
Child safety ............................................................................ 5
Locks .......... ............................ ..................................... 2-18
Chime Key ................................................................................ 3-5
Seatbelt ....................................................................... 1-13
Cleaning Aluminum wheels ................... ..................................... 10-3
Interior ......................................................................... 10-5
Ventilator grille ............................................................. 4-12
Climate control system
Automatic ....................................................................... 4-7
Manual ........................................................................... 4-3 Clock ................................................................................. 3-25
Clutch
Fluid ........................................................................... 11-29
Pedal .......................................................................... 11-31
Coat hook ......................................................................... 6-10
Cooling system .......... ....................................... .............. 11-13
Corrosion protection ................................................ 8-10, 10-4
Cruise control .................................................................... 7-36 Set indicator light ......................................................... 3-25
Cup holder Front passengers ........................................................... 6-7
Rear passengers ............................................................ 6-7
D Daytime running li ght system ............................................ 3-32
Differential gear oil
Front ........................................................................... 11-23
Rear ........................................................................... 11-24
Dimensions ....................................................................... 12-2
Disarming the system ....................................................... 2-16
Disc brake pad wear warning indica tors ........................... 7-26
Dome light ................................................................ 6-2, 11-53
Door locks ........................................................................... 2-4
Door open warning light .................................................... 3-22
Drive belts ....................................................................... 11-20
Driving All-Wheel Drive vehicle ................................................ 3-22
Car phone/cell phone ........................................................ 7
Drinking ............................................................................. 6
Drugs ................................................................................ 7
Foreign countries ..................... ...................................... 8-4
Pets ................................................................................... 7
