2006 SUBARU LEGACY Owners Manual

9-14 In case of emergency
4. Screw the towing hook into the thread
hole until the threads can no longer be
seen.
5. Tighten the towing hook securely using
a wheel nut wrench.
After towing, remove the towing hook from
the vehicle and stow it in the tool bag.
Fit the towing hook cover on the bumper.
Front towing hook (except OUTBACK
models):
1. Take out the towing hook, screwdriver
and wheel nut wrench from the on board
tool bag. 2. Wrap a flat-head screwdriver with cloth
or vinyl. Then, insert
the screwdriver into
the gap between the front fog light cover
and the bumper, and pry out the cover.
3. Pull the entire front fog light cover to-
ward you. 4. Likewise, insert the screwdriver still
wrapped with cloth or vinyl into the cutout
between the towing hook cover and the
bumper. Pry out the cover.
5. Screw the towing hook into the thread
hole until the threads can no longer beseen.
900248
900249
900250
900251

In case of emergency 9-15
– CONTINUED –
6. Tighten the towing hook securely using
a wheel nut wrench.
After towing, remove the towing hook from
the vehicle and stow it in the tool bag.
Fit the fog light cover and towing hook
cover on the bumper.
Rear towing hook:
The rear towing hook is located below the
center of the rear bumper.
Front tie-down hooks:
The front tie-down hooks are located be-
tween each of the front tires and the front
bumper.
Rear tie-down hooks:
The rear tie-down hooks are located near
y
Do not use the towing hook ex-
cept when towing your vehicle.
yBe sure to remove the towing
hook after towing. Leaving the
towing hook mounted on the vehi-
cle could interfere with proper op-
eration of the SRS airbag system
in a frontal collision.
900252
Never use the rear towing hook to tie
the vehicle down.
600150
900253
900032

9-16 In case of emergency
each of the jack-up reinforcements.
„Using a flat-bed truck
This is the best way to transport your vehi-
cle. Use the following procedures to en-
sure safe transportation.
1. Shift the selector lever into the “P” po-
sition for automatic transmission vehicles
or “1st” for manual transmission vehicles. 2. Pull up the parking brake lever firmly.
3. Secure the vehicle onto the carrier
properly with safety chains. Each safety
chain should be equally tightened and
care must be taken not to pull the chains
so tightly that the suspension bottoms out. „
Towing with all wheels on the ground
1. Check the transmission and differential
oil levels and add oil to bring it to the upper
level if necessary.
2. Release the parking brake and put the
transmission in neutral.
Use the rear tie-down hooks only for
downward anchoring. If they are
used to anchor the vehicle in any
other direction, cables may slip off
the hooks, possibly causing a dan-
gerous situation.
900033
yNever turn the ignition switch to
the “LOCK” position while the ve-
hicle is being towed because the
steering wheel and the direction
of the wheels will be locked.
900254
yRemember that the brake booster
and power steering do not func-
tion when the engine is not run-
ning. Because the engine is
turned off, it will take greater ef-
fort to operate the brake pedal and
steering wheel.
y If transmission failure occurs,
transport your vehicle on a flat-
bed truck.
y Do not run the engine while being
towed using this method. Trans-
mission damage could result if
the vehicle is towed with the en-
gine running.
y For vehicles with automatic trans-
mission, the traveling speed must
be limited to less than 20 mph (30
km/h) and the traveling distance
to less than 31 miles (50 km). For
greater speeds and distances,
transport your vehicle on a flat-
bed truck.

In case of emergency 9-17
3. The ignition switch should be in the
“ACC” position while the vehicle is being
towed.
4. Take up slack in the towline slowly to
prevent damage to the vehicle. Rear gate (Station wagon) – if the rear gate cannot be un-
locked
In the event that y
ou cannot unlock the
rear gate by operating the power door locking switches or the remote keyless en-
try system, you can unlock it from inside
the cargo area.
0
1. Remove the access cover at the bot-
tom-center of the rear gate trim using flat-
head screwdriver.
2. Locate the rear gate lock release lever
behind the rear gate trim panel. 3. Unlock the rear gate by pressing the le-
ver inside the trim downward.
4. Open the rear gat
e from outside by
raising the rear gate handle.
200261
200262

9-18 In case of emergency
Maintenance tools „Jack
A jack and other maintenance tools are
stored in the tool bucket in the center of
the spare tire located in the trunk or in the
cargo area.
Sedan: To take out the jack and mainte-
nance tools, open the floor cover and re-
move the bucket from the center of the
spare tire. Then, take the jack out of the
bucket. Station wagon:
To take out the jack and
maintenance tools, open the center lid
and remove the bucket from the center of
the spare tire. Then, take the jack out of
the bucket. „ Jack handle
The jack handle is stowed on the back of
the floor cover of the trunk or on the back
of the center lid of the cargo area. Sedan:
Open the floor cover and remove
the jack handle from the back of the floorcover.
Station wagon: Open the center lid, re-
move the left-hand part of the lid, and take
out the jack handle.
900244
900257900258
600117

In case of emergency 9-19
For how to use the jack, refer to “Flat
tires”. „Other maintenance tools
In addition to a jack and a jack handle, the
tool bucket on your vehicle contains the
following maintenance tools.
Screwdriver
Towing hook
Wheel nut wrench
900259

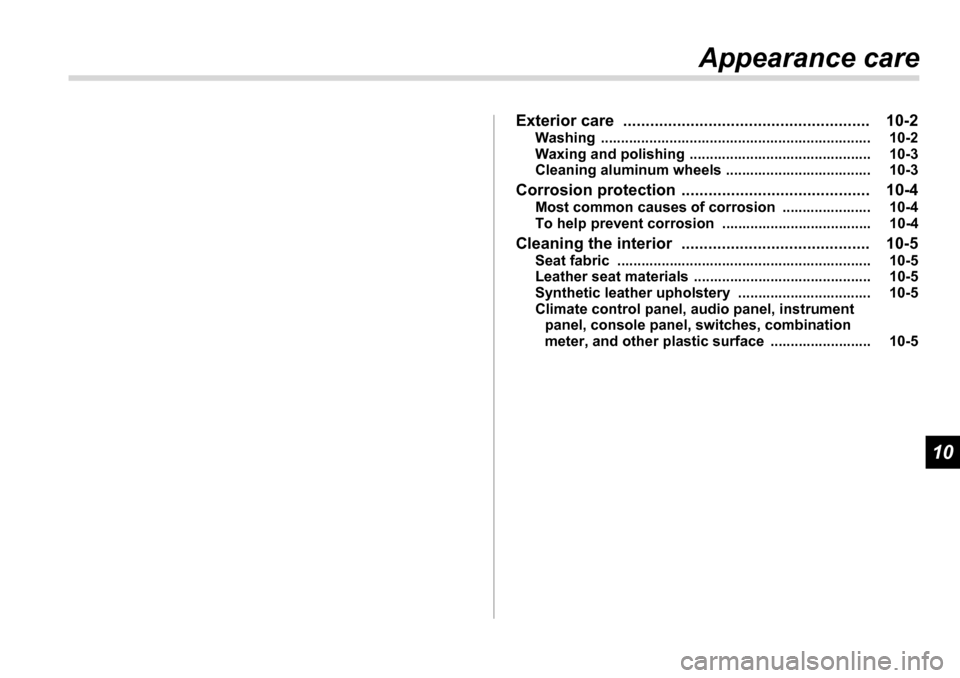

10
Appearance care
Exterior care ....................................................... 10-2 Washing ................................................................... 10-2
Waxing and polishing ............................................. 10-3
Cleaning aluminum wheels .................................... 10-3
Corrosion protection ......... ................................. 10-4
Most common causes of corrosion ...................... 10-4
To help prevent corrosion ..................................... 10-4
Cleaning the interior .......................................... 10-5 Seat fabric ............................................................... 10-5
Leather seat materials ............................................ 10-5
Synthetic leather upholstery ................................. 10-5
Climate control panel, audio panel, instrument panel, console panel, switches, combination
meter, and other plastic surface ......................... 10-5
