2006 SUBARU LEGACY Owners Manual

14
1
15 14 13 12 11 10 9 8 23 4567
000047
1) Parking brake lever (page 7-35)
2) Gear shift lever (MT) (page 7-9)
3) Select lever (AT) (page 7-11)
4) Information display (page 3-26)
5) Clock (page 3-25)
6) Dashboard storage compartment
(page 6-4)
7) Navigation system (if equipped) (See navigation system instruction manu-
al.)
8) Glove box (page 6-4)
9) Hazard warning flasher switch (page
3-5)
10) Audio (page 5-1)
11) Climate control (page 4-1)
12) Ashtray (page 6-9)
13) Accessory power outlet (page 6-8)
14) Tilt steering(page 3-43)
15) Cup holder (page 6-7/page 6-7)

15
– CONTINUED –
„
Instrument panel
000176
123456 7 8
9
10
11
12
13
14
1) Door locks (page 2-4)
2) Illumination brightness control (page
3-33)
3) Remote control mirror (page 3-41)
4) Windshield wiper deicer (page 3-38)
5) Vehicle Dynamics Control OFF switch (page 7-32)
6) Light control lever (page 3-31)
7) Combination meter (page 3-5/page
3-10)
8) Wiper control lever (page 3-34)
9) Cruise control (page 7-36)
10) Horn (page 3-43)
11) SRS airbag (page 1-38)
12) Fuse box (page 11-45)
13) Hood lock release knob (page 11-4)
14) Power windows (page 2-19)

16
„ Light control and wiper control levers/switches
1
6
7
11
10
9
8 2
3
4
5
000074
1) Parking light switch (page 3-33)
2) Windshield wiper (page 3-34)
3) Mist (page 3-36)
4) Windshield washer (page 3-35)
5) Rear window wiper and washer
switch (page 3-37)
6) Wiper control lever (page 3-35)
7) Light control lever (page 3-31)
8) Fog light switch (page 3-34)
9) Headlight ON/OFF (page 3-31)
10) Headlight flasher High/Low beam change (page 3-31)
11) Turn signal (page 3-32)

17
– CONTINUED –
„
Combination meter
T U.S.-spec. vehicles
000141
12 3
5
6 4
87
1) Temperature gauge (page 3-9/page 3-13)
2) Tachometer (page 3-8/page 3-12)
3) Speedometer (page 3-6/page 3-10)
4) Fuel gauge (page 3-8/page 3-12)
5) Trip meter A/B selection and trip
meter reset knob (page 3-7/page 3-11)
6) Trip meter and odometer (page 3-7/
page 3-11)
7) Selector lever position indicator (page 3-24)
8) Gear position indicator (page 3-24)

18
T Canada-spec. vehicles
12 3
5
6 4
87
000142
1) Temperature gauge (page 3-9/page 3-13)
2) Tachometer (page 3-8/page 3-12)
3) Speedometer (page 3-6/page 3-10)
4) Fuel gauge (page 3-8/page 3-12)
5) Trip meter A/B selection and trip
meter reset knob (page 3-7/page 3-
11)
6) Trip meter and odometer (page 3-7/
page 3-11)
7) Selector lever position indicator (page 3-24)
8) Gear position indicator (page 3-24)

19
– CONTINUED –
„
Warning and indicator light
Mark Name Page
Seatbelt warning light 3-14
Front passenger’s
seatbelt warning light 3-14
SRS airbag system
warning light 3-16
CHECK ENGINE
warning light/Malfunc-
tion indicator lamp 3-17
Charge warning light 3-18
Oil pressure warning light 3-18
AT OIL temperature
warning light (if equipped) 3-18
or ABS warning light 3-20
or Brake system warning light 3-20
Door open warning light 3-22
Low fuel warning light 3-21
All-Wheel Drive warn- ing light (if equipped)
3-22
Vehicle Dynamics
Control operation indi-
cator light (if equipped) 3-22
Vehicle Dynamics
Control warning light/
Vehicle Dynamics
Control OFF indicatorlight (if equipped) 3-22
Security indicator light 3-23
Turn signal indicator lights 3-24
High beam indicator light 3-25
Cruise control indica-
tor light (if equipped) 3-25
Cruise control set indi-
cator light (if equipped) 3-25
Light indicator light 3-25
Mark Name PageLow tire pressure
warning light (if
equipped)
3-18
or Passenger airbag ON
indicator light 3-17
or Passenger airbag OFF
indicator light 3-17
SPORT mode indica-
tor light (if equipped) 3-24
Mark Name Page

20

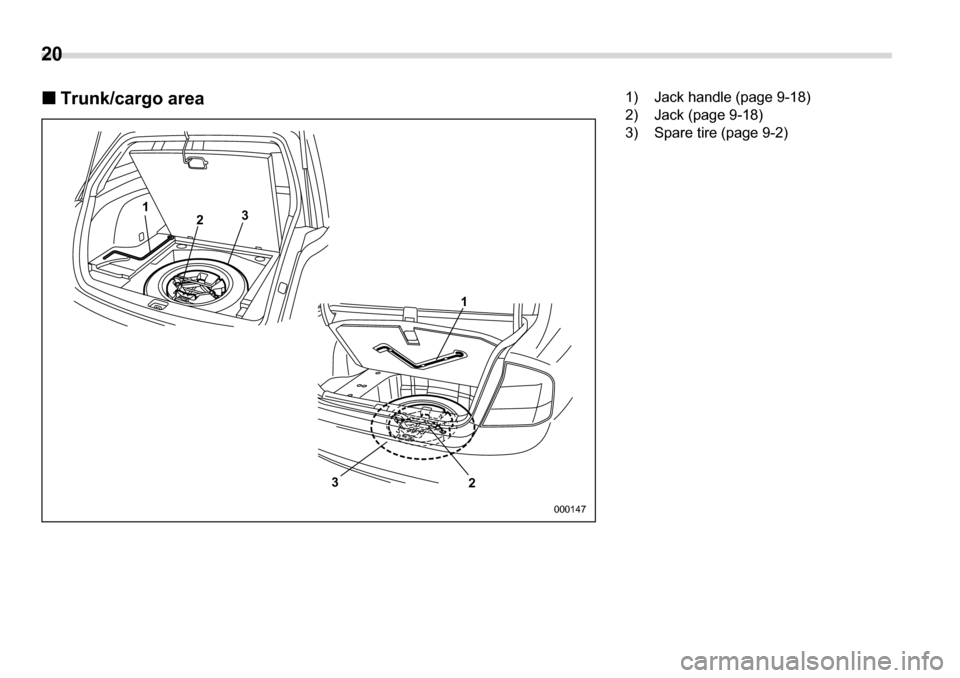

„ Trunk/cargo area
1
3
2
2
3 1
000147
1) Jack handle (page 9-18)
2) Jack (page 9-18)
3) Spare tire (page 9-2)

21
Function settings
A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Contact
the nearest SUBARU dealer for deta ils. If your vehicle is equipped with navigation system, the settings for some of these funct ions can
be changed using the monitor. For details, please refer to the Owner’s Manual supplement for the monitor.
Item Function Possible settings Default setting Page
Alarm system Alarm system Operation / Non-operation Operation 2-14 Monitoring start delay time (after closure of
doors) 0 second / 30 seconds 30 seconds 2-16
Impact sensor operatio n (only vehicles
with shock sensors (dealer option)) Operation / Non-operation Non-operation 2-18
Passive arming Operation / Non-operation Non-operation 2-17
Remote keyless entry system Hazard warning flasher Operation / Non-operation Operation 2-7 Audible signal Operation / Non-operation Operation 2-10
Key lock-in prevention Key lock-in prevention Operation / Non-operation Operation 2-6
Rear window defogger Rear window defogger Operation for 15 min. / Continuous opera- tionOperation for
15 min.3-38
Windshield wiper deicer (if
equipped) Windshield wiper deicer Operation
for 15 min. / Continuous opera-
tion Operation for
15 min.3-38
Dome light Operation in interlock with remote keyless entry system OFF / Short / Normal / Long Normal 6-2
Battery drainage prevention func-tion Battery drainage prevention function Operation / Non-operation Operation 2-6
