2006 SUBARU LEGACY Owners Manual

6-16 Interior equipment
ing recesses.
Under-floor storage compart-
ment
The subfloor storage compartment is lo-
cated under the floor of the trunk or cargo
area and can be used to store small items.
To open the lid, pull the tab or handle up.
NOTE
When storing a flat tire, put the sub-
floor storage in the trunk or cargo area.
TSedan
T Station wagon
Hang the hook provided on the underside
of the lid on the rear edge of the roof to
keep the lid open.
y
Always keep the lid of the sub-
floor storage compartment closed
while driving to reduce the risk of
injury in the event of sudden stop
or an accident.
y Do not store spray cans, contain-
ers with flammable or corrosive
liquids or any other dangerous
items in the subfloor storage com-
partment.
600115
600111

Interior equipment 6-17
– CONTINUED –
HomeLink® Wireless Control
System (if equipped)
1) HomeLink® buttons
2) Indicator light
3) Hand-held transmitter* * Not part of your vehicle’s keyless entry
system but of a HomeLink®-compatible
device.
The HomeLink® Wireless Control Sys-
tem, located on the driver’s sun visor, is a
handy way to operate, from inside of your
vehicle, up to three remote-controlled in-
door and outdoor devices, such as garage
door openers, entran ce gates, door locks,
home lighting, and security systems.
There are three HomeLink® buttons on
the sun visor, each of which you can pro- gram for operation of one desired device.
For details on the device types which can
be operated by this system, consult the
HomeLink website at www.homelink.com
or call 1-800-355-3515.
Note the following about this system:
If your vehicle is equipped with the
HomeLink® Wireless Control System, it
complies with Part 15 of the Federal Com-
munication Commission Rules in the U.S.
and the RSS-210 of Industry Canada in
Canada. Its operation is subject to the fol-
lowing two conditions:
(1) this device may not cause harmful in-
terference, and (2) this device must ac-
cept any interference received, including
interference that may cause undesired op-
eration. Changes and modifica
tions to this system
by anyone other than an authorized ser-
vice facility could void authorization to use
this equipment.
HomeLink and the HomeLink house are
registered trademarks of Johnson Con- trols, Inc.
1
2
3
600429
y When programming the
HomeLink® Wireless Control Sys-
tem, you may be operating a ga-
rage door opener or other device.
Make sure that people and objects
are out of the way of the garage
door opener or other device to
prevent potential harm or dam-
age.
yDo not use the HomeLink® Wire-
less Control System with any ga-
rage door opener that lacks the
safety stop and reverse feature as
required by applicable safety
standards. A garage door opener
which cannot detect an object,
signaling the door to stop and re-
verse, does not meet these safety
standards. Using a garage door
opener without these features in-
creases risk of serious injury or
death. For more information, con-
sult the HomeLink website at
www.homelink.com or call 1-800-
355-3515.

6-18 Interior equipment
NOTE yAfter programming your HomeLink®
Wireless Control System for the de-
sired devices, retain the hand-held
transmitters for further programming
or device testing in the event of a prob-lem. y It is recommended that you insert a
new battery in the hand-held transmit-
ter of a device to ensure correct pro-
gramming. „ Garage door opener pro-
gramming in the U.S.A.
NOTE
When programming the HomeLink®
Wireless Control System for a garage
door opener, it is suggested that you
park the vehicle outside the garage.
1. Unplug the motor of the garage door
opener from the outlet. 2. Press and hold the two outside
HomeLink® buttons until the indicator light
begins to flash (after 20 seconds). Re-
lease both buttons.
NOTE
If any of the HomeLink® buttons are al-
ready programmed for other devices,
skip step 2 because it clears the mem-
ory of all the three buttons.
3. Hold the end of the garage door open-
er’s hand-held transmitter between 1 and
3 inches (25 and 76 mm) away from the
HomeLink® buttons on the driver’s sun vi-
sor, keeping the indicator light in view.
4. Using both hands, simultaneously
push the hand-held transmitter button and
the desired HomeLink® button. DO NOT
release the buttons until step 5 has been completed.
5. Hold down both buttons until the
HomeLink® indicator light flashes, first
slowly then rapidly. When the indicator
light flashes rapidly, both buttons may be
released. (The rapidly flashing light indi-
cates successful programming of the new
frequency signal.)
6. Press and hold the programmed button
and check the HomeLink® indicator light.
If the indicator light
stays on continuously,
your garage door should activate and the
programming is completed.
If the indicator light flashes rapidly for two
seconds and then stays on continuously,
When programming the HomeLink®
Wireless Control System to operate
a garage door opener or an entrance
gate, unplug the device’s motor
from the outlet during programming
to prevent motor burnout.
600430600431

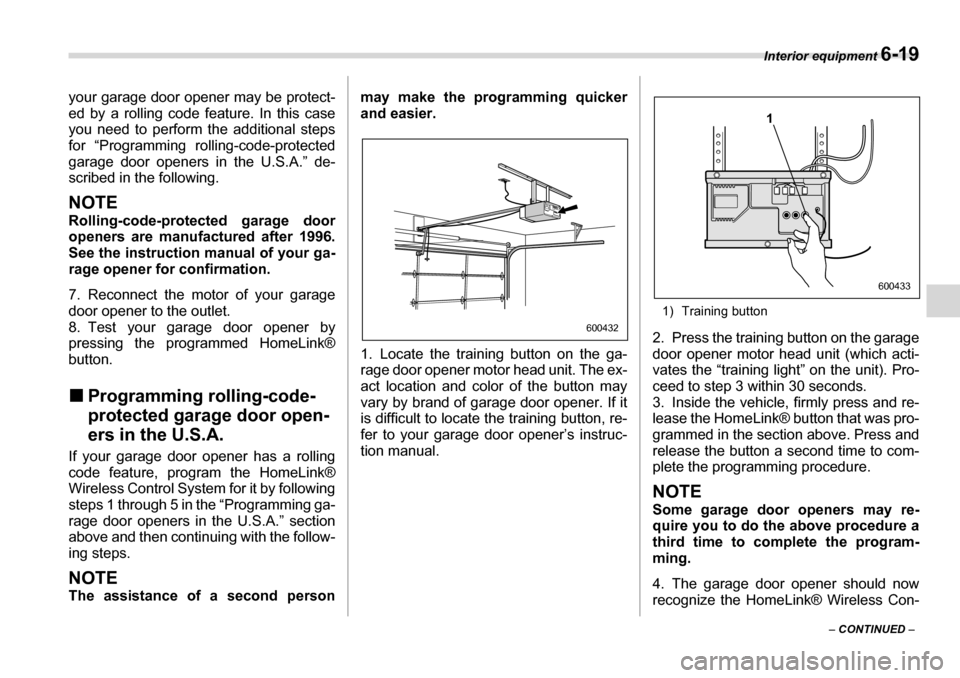

Interior equipment 6-19
– CONTINUED –
your garage door opener may be protect-
ed by a rolling code feature. In this case
you need to perform the additional steps
for “Programming ro
lling-code-protected
garage door openers in the U.S.A.” de-
scribed in the following.
NOTE
Rolling-code-protected garage door
openers are manufactured after 1996.
See the instruction manual of your ga-
rage opener for confirmation.
7. Reconnect the motor of your garage
door opener to the outlet.
8. Test your garage door opener by
pressing the programmed HomeLink®
button. „ Programming rolling-code-
protected garage door open-
ers in the U.S.A.
If your garage door opener has a rolling
code feature, program the HomeLink®
Wireless Control System for it by following
steps 1 through 5 in the “Programming ga-
rage door openers in the U.S.A.” section
above and then continuing with the follow-ing steps.
NOTE
The assistance of a second person may make the programming quicker
and easier.
1. Locate the training button on the ga-
rage door opener motor head unit. The ex-
act location and color of the button may
vary by brand of garage door opener. If it
is difficult to locate the training button, re-
fer to your garage door opener’s instruc-
tion manual.
1) Training button
2. Press the training button on the garage
door opener motor head unit (which acti-
vates the “training light” on the unit). Pro-
ceed to step 3 within 30 seconds.
3. Inside the vehicle, firmly press and re-
lease the HomeLink® bu tton that was pro-
grammed in the section above. Press and
release the button a second time to com-
plete the programming procedure.
NOTE
Some garage door openers may re-
quire you to do the above procedure a
third time to complete the program-ming.
4. The garage door opener should now
recognize the HomeLink® Wireless Con-
600432
1
600433

6-20 Interior equipment
trol System and your garage door opener
should activate when the HomeLink® but- ton is pressed. „Programming for entrance
gates and garage door open-
ers in Canada
1. Unplug the motor of the entrance gate
or garage door opener from the outlet.
2. Press and hold the two outside buttons
until the HomeLink® indicator light begins
to flash (after 20 seconds). Release both
buttons.
NOTE
If any of the HomeLink® buttons are al-
ready programmed for other devices,
skip step 2 because it clears the mem- ory of all three buttons.
3. Hold the end of the entrance gate’s/ga-
rage door opener’s hand-held transmitter
between 1 and 3 inches (25 and 76 mm)
away from the HomeLink® buttons on the
driver’s sun visor, keeping the indicator
light in view.
4. Press and hold the desired
HomeLink® button.
5. Press and release (“cycle”) the hand-
held transmitter button every two seconds
until step 6 is complete.
6. When the indicator light flashes slowly
and then rapidly after several seconds, re-
lease both buttons.
7. Plug the motor of the entrance gate/ga-
rage door opener to the outlet.
8. Test your entrance gate/garage door
opener by pressing the programmed
HomeLink® button.
„ Programming other devices
To program other devices such as door
locks, home lighting an d security systems,
contact HomeLink at www.homelink.com
or call 1-800-355-3515. „ Operating the HomeLink®
Wireless Control System
Once programmed, the HomeLink® Wire-
less Control System can be used to re-
mote-control the devices to which its but-
tons are programmed. To activate a de-
vice, simply press the appropriate button.
The indicator light illuminates, indicating
that the signal is being transmitted. „ Reprogramming a single
HomeLink® button
1. Press and hold the HomeLink® button
you wish to reprogram. DO NOT release
the button until step 4 has been complet-ed.
2. When the HomeLink® indicator light
begins to flash slowly (after 20 seconds),
position the hand-held transmitter of the
device for which you wish to program the
button at 1 to 3 inches (25 to 76 mm) away
600430
600434

Interior equipment 6-21
from the HomeLink® button surface.
3. Press and hold the hand-held transmit-
ter button. The HomeLink® indicator light
will flash, first slowly and then rapidly.
4. When the indicator light begins to flash
rapidly, release both buttons.
The programming for the previous device
is now erased and the new device can be
operated by pushing the HomeLink® but-ton. „Erasing HomeLink® button memory
NOTE yPerforming this procedure erases
the memory of all the preprogrammed
buttons simultaneously. The memory
of individual buttons cannot be erased.y It is recommended that upon the sale
of the vehicle, the memory of all pro-
grammed HomeLink® buttons be
erased for security purposes.
1. Press and hold the two outside buttons
until the indicator light begins to flash (af-ter 20 seconds).
2. Release both buttons. „ In case a problem occurs
If you cannot activate a device using the corresponding HomeLink® button after
programming, contact HomeLink at
www.homelink.com or call 1-800-355-
3515 for assistance.

7
Starting and operating
Fuel ...................................................................... 7-2 Fuel requirements .................................................. 7-2
Fuel filler lid and cap .............................................. 7-4
State emission testing (U .S. only) .................... 7-6
Preparing to drive .............................................. 7-7
Starting the engine ............................................. 7-8 Manual transmission vehicle ................................. 7-8
Automatic transmission vehicle ............................ 7-8
Stopping the engine ........................................... 7-9
Manual transmission ......................................... 7-9 Shifting speeds ....................................................... 7-10
Driving tips .............................................................. 7-11
Automatic transmission – 4- speed ................... 7-11
Selector lever .......................................................... 7-12
Selector lever reverse inhibiting function ............ 7-13
Selection of manual mode ..................................... 7-14
Maximum speeds .................................................... 7-15
Driving tips .............................................................. 7-16
SPORT mode ........................................................... 7-16
Shift lock release . ........................................... ........ 7-16
Automatic transmission – 5- speed ................... 7-17
Selector lever .......................................................... 7-18
Selector lever reverse inhibiting function ............ 7-19
Selection of manual mode ..................................... 7-20
Maximum speeds .................................................... 7-22
Driving tips .............................................................. 7-23
SPORT mode ........................................................... 7-23
Shift lock release . ........................................... ........ 7-23Rear viscous limited slip differential (LSD)
(if equipped) ..................................................... 7-24
Power steering .................................................... 7-25
Braking ................................................................ 7-25 Braking tips ............................................................. 7-25
Brake system .......................................................... 7-25
Disc brake pad wear warning in dicators .............. 7-26
ABS (Anti-lock Brake System) .......................... 7-26 ABS system self-check ......... ................................. 7-26
ABS warning light ................................................... 7-27
Electronic Brake Force Distribution (EBD) system .............................................................. 7-28Steps to take if EBD system fails .......................... 7-28
Vehicle Dynamics Control system (if equipped) ..................................................... 7-29Vehicle Dynamics Control system monitor .......... 7-31
Vehicle Dynamics Control OFF switch ................. 7-32
Tire pressure monitoring system (TPMS) (if equipped) ..................................................... 7-33
Parking your vehicle .......................................... 7-35
Cruise control ..................................................... 7-36 To set cruise control .............................................. 7-37
To temporarily cancel the cruise control ............. 7-37
To turn off the cruise control ................................. 7-38
To change the cruising speed ............................... 7-38
Cruise control indicator light ................................. 7-39
Cruise control set indicator light .......................... 7-39
