2006 SUBARU LEGACY Owners Manual

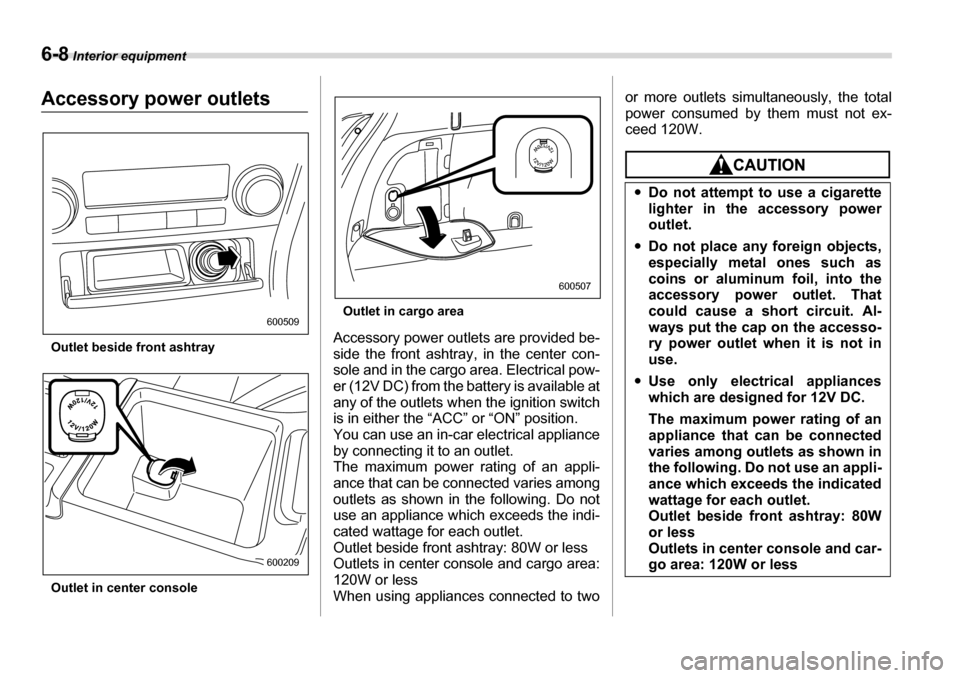

6-8 Interior equipment
Accessory power outlets
Outlet beside front ashtray
Outlet in center console Outlet in cargo area
Accessory power outlets are provided be-
side the front ashtray, in the center con-
sole and in the cargo area. Electrical pow-
er (12V DC) from the battery is available at
any of the outlets w hen the ignition switch
is in either the “ACC” or “ON” position.
You can use an in-car electrical appliance
by connecting it to an outlet.
The maximum power rating of an appli-
ance that can be connected varies among
outlets as shown in the following. Do not
use an appliance which exceeds the indi-
cated wattage for each outlet.
Outlet beside front ashtray: 80W or less
Outlets in center console and cargo area:
120W or less
When using appliances connected to two or more outlets simultaneously, the total
power consumed by them must not ex-
ceed 120W.
600509
600209
600507
y
Do not attempt to use a cigarette
lighter in the accessory power
outlet.
y Do not place any foreign objects,
especially metal ones such as
coins or aluminum foil, into the
accessory power outlet. That
could cause a short circuit. Al-
ways put the cap on the accesso-
ry power outlet when it is not in
use.
y Use only electrical appliances
which are designed for 12V DC.
The maximum power rating of an
appliance that can be connected
varies among outlets as shown in
the following. Do not use an appli-
ance which exceeds the indicated
wattage for each outlet.
Outlet beside front ashtray: 80W
or less
Outlets in center console and car-
go area: 120W or less

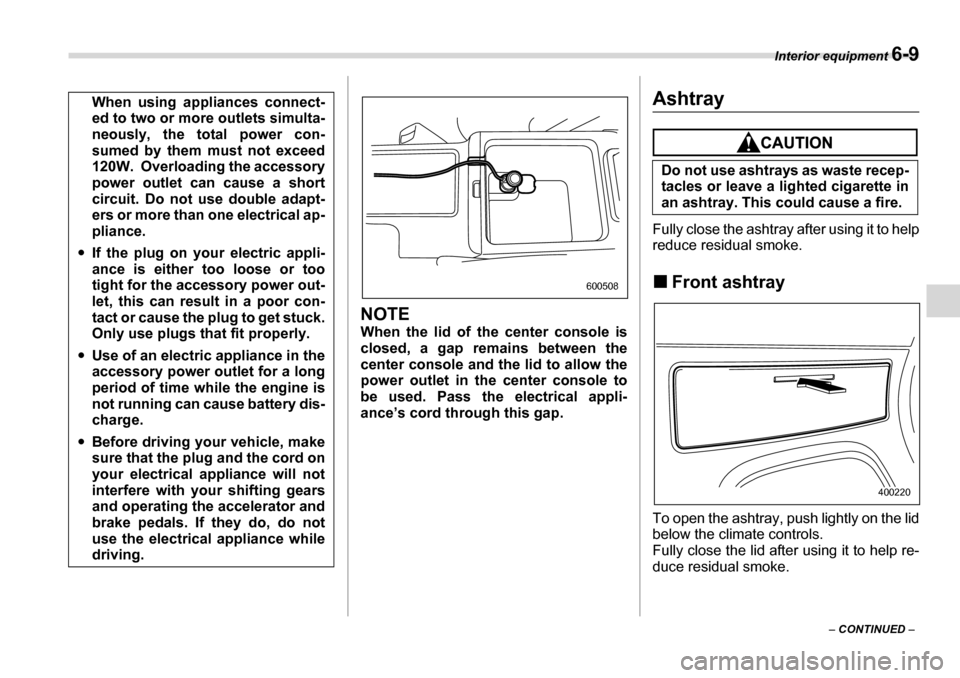

Interior equipment 6-9
– CONTINUED –
NOTE
When the lid of the center console is
closed, a gap remains between the
center console and the lid to allow the
power outlet in th e center console to
be used. Pass the electrical appli-
ance’s cord through this gap.
Ashtray
Fully close the ashtray after using it to help
reduce residual smoke. „ Front ashtray
To open the ashtray, push lightly on the lid
below the climate controls.
Fully close the lid after using it to help re-
duce residual smoke.
When using appliances connect-
ed to two or more outlets simulta-
neously, the total power con-
sumed by them must not exceed
120W. Overloading the accessory
power outlet can cause a short
circuit. Do not use double adapt-
ers or more than one electrical ap-
pliance.
y If the plug on your electric appli-
ance is either too loose or too
tight for the accessory power out-
let, this can result in a poor con-
tact or cause the plug to get stuck.
Only use plugs that fit properly.
y Use of an electric appliance in the
accessory power outlet for a long
period of time while the engine is
not running can cause battery dis-
charge.
y Before driving your vehicle, make
sure that the plug and the cord on
your electrical appliance will not
interfere with your shifting gears
and operating the accelerator and
brake pedals. If they do, do not
use the electrical appliance while
driving.
600508
Do not use ashtrays as waste recep-
tacles or leave a lighted cigarette in
an ashtray. This could cause a fire.
400220

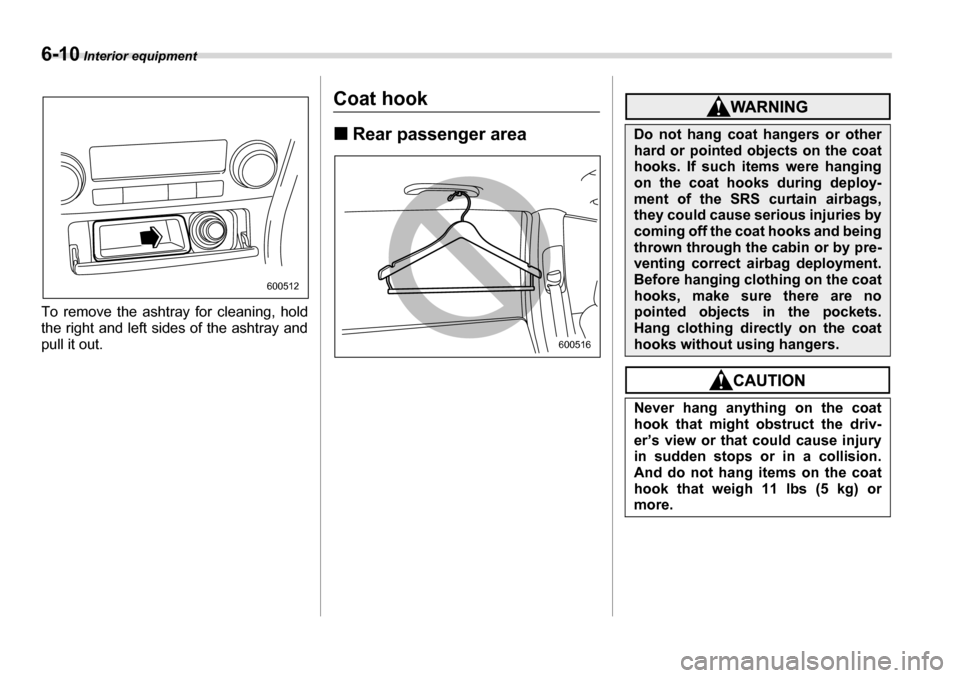

6-10 Interior equipment
To remove the ashtray for cleaning, hold
the right and left sides of the ashtray and
pull it out.
Coat hook „Rear passenger area
600512
600516
Do not hang coat hangers or other
hard or pointed objects on the coat
hooks. If such items were hanging
on the coat hooks during deploy-
ment of the SRS curtain airbags,
they could cause serious injuries by
coming off the coat hooks and being
thrown through the cabin or by pre-
venting correct airbag deployment.
Before hanging clothing on the coat
hooks, make sure there are no
pointed objects in the pockets.
Hang clothing directly on the coat
hooks without using hangers.
Never hang anything on the coat
hook that might obstruct the driv-
er’s view or that could cause injury
in sudden stops or in a collision.
And do not hang items on the coat
hook that weigh 11 lbs (5 kg) or
more.

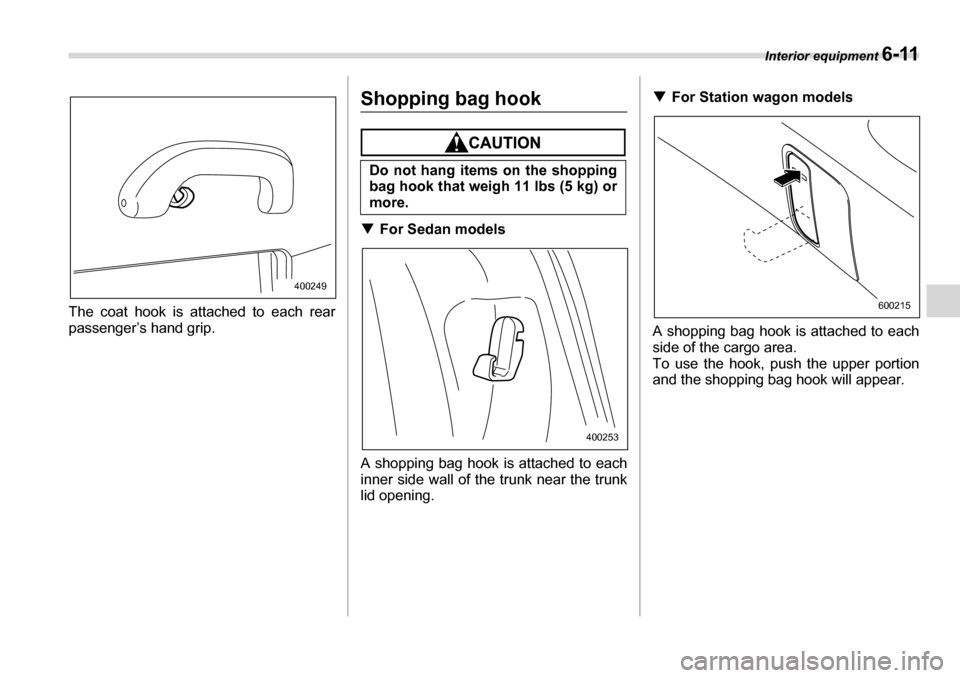

Interior equipment 6-11
The coat hook is attached to each rear
passenger’s hand grip.
Shopping bag hook
TFor Sedan models
A shopping bag hook is attached to each
inner side wall of the trunk near the trunk
lid opening. T
For Station wagon models
A shopping bag hook is attached to each
side of the cargo area.
To use the hook, push the upper portion
and the shopping bag hook will appear.
400249
Do not hang items on the shopping
bag hook that weigh 11 lbs (5 kg) ormore.
400253
600215

6-12 Interior equipment
Floor mat
A retaining pin is located on the driver’s
side of the vehicle next to the fuel filler
door release. Fit the grommet in the car-
pet onto the pin to pr event the carpet from
moving.Cargo area cover (Station
wagon)
The cargo area cover is provided for cov-
ering the cargo area and to protect its con-
tents from direct sunlight. This cover is de-
tachable to make room for additional car- go. „ Using the cover
To extend the cover, pull the end of the
cover out of the housing, then insert its
hooks into the catches as shown. To re-
wind it, unhook it from the catches and it
will rewind automatically. You should hold
on to the cover and guide it back into the
cover housing while it is rewinding.
600513
Make sure the dri ver’s floor mat is
placed back in its proper location
and correctly secured on its retain-
ing pin. If the floor mat slips forward
and interferes with the movement of
the pedals during driving, it could
cause an accident.
600514
400237

Interior equipment 6-13
– CONTINUED –
„To remove the cover housing
1. Rewind the cover.
2. Hold down the button on the right-hand
rear quarter panel and lift up the right-
hand cover housing.
3. Remove the cover housing. „
To remove the rear gate board
0
1. Remove the top of the rear gate board
from the groove in the rear gate panel.
2. Hold both sides of the bottom edge of the rear gate board, ro
tate the rear gate
board toward you, and pull it out down-
ward. „ Stowage of the cargo area
cover and rear gate board
The cargo area cover and rear gate board
can be stowed in under the cargo floor.
1. To open the lid, pull the handle up.
Do not place anything on the ex-
tended cover. Putting excessive
weight on the extended cover can
break it and an object on the cover
could tumble forward in the event of
a sudden stop or collision. This
could cause serious injury.
400239
400240
400241
600214

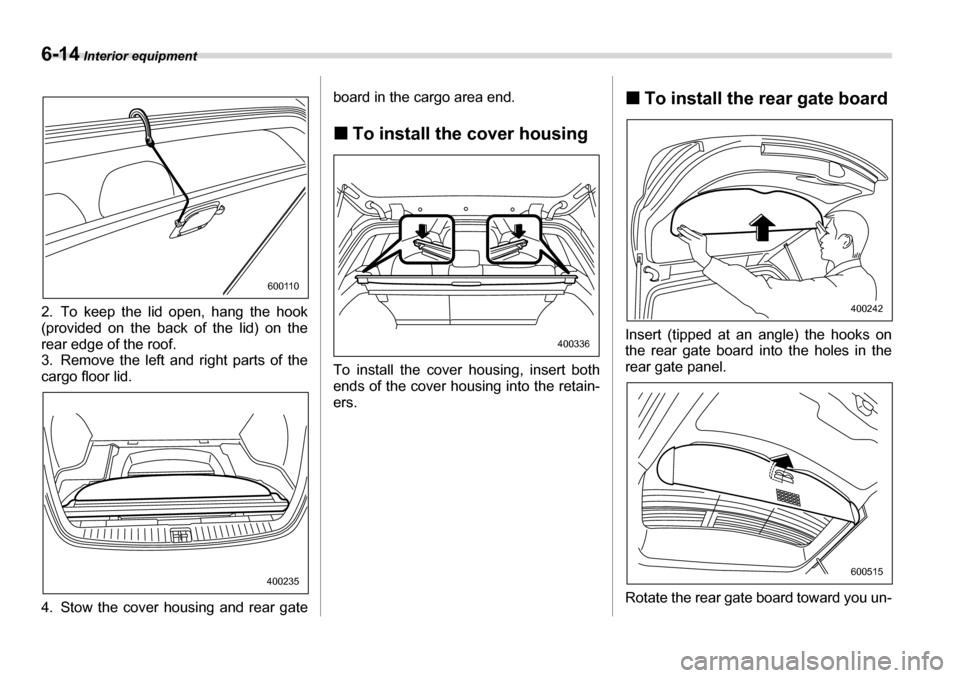

6-14 Interior equipment
2. To keep the lid open, hang the hook
(provided on the back of the lid) on the
rear edge of the roof.
3. Remove the left and right parts of the cargo floor lid.
4. Stow the cover housing and rear gate board in the cargo area end. „
To install the cover housing
To install the cover housing, insert both
ends of the cover housing into the retain- ers. „
To install the rear gate board
Insert (tipped at an angle) the hooks on
the rear gate board into the holes in the
rear gate panel.
Rotate the rear gate board toward you un-
600110
400235
400336
400242
600515

Interior equipment 6-15
– CONTINUED –
til its top touches the rear gate panel.
Fit the top of the rear gate board into the
groove in the rear gate panel.
Stowage boxes (Station wag-
on)
A stowage box is located on each side of
the cargo area. You can access each one
by pushing up and pulling the knob on the
lid.Convenient tie-down hooks (if equipped)
The cargo area is equipped with four tie-
down hooks so that cargo can be secured
with a luggage net or ropes.
When using the tie-down hooks, turn them
down out of the storing recesses. When
not in use, put the hoo
ks up into the stor-
400243
600216
The convenient tie-down hooks are
designed only for securing light car-
go. Never try to secure cargo that
exceeds the capacity of the hooks.
The maximum load capacity is 44
lbs (20 kg) per hook.
600535
