2006 SUBARU LEGACY Instruments and control

1
– CONTINUED –
Warranties „Warranties for U.S.A.
All SUBARU vehicles distributed by
Subaru of America, Inc. and sold at retail
by an authorized SUBARU dealer in the
United States come with the following
warranties: y SUBARU Limited Warranty
y Emission Control Systems Warranty
y Emissions Performance Warranty
All warranty information, including details
of coverage and exclusions, is in the
“Warranty and Maintenance Booklet”.
Please read these warranties carefully. T Warranties for Canada
All SUBARU vehicles distributed by
Subaru Canada, Inc. and sold at retail by
an authorized SUBARU dealer in Canada
come with the following warranties: y SUBARU Limited Warranty
y Anti-Corrosion Warranty
y Emission Control Warranty
All warranty information, including details
of coverage and exclusions, is in the
“Warranty and Service Booklet”. Please
read these warranties carefully.How to use this owner’s man-
ual „ Using your Owner’s manual
Before you operate your vehicle, carefully
read this manual. To protect yourself and
extend the service life of your vehicle, fol-
low the instructions in this manual. Failure
to observe these instructions may result in
serious injury and damage to your vehicle.
This manual is composed of fourteen
chapters. Each chapter begins with a brief
table of contents, so you can usually tell at
a glance if that chapter contains the infor-
mation you want.
Chapter 1: Seat, seatbelt and SRS air-
bags
This chapter informs you how to use the
seat and seatbelt and contains precau-
tions for the SRS airbags.
Chapter 2: Keys and doors
This chapter informs you how to operate
the keys, locks and windows.
Chapter 3: Instruments and controls
This chapter informs you about the opera-
tion of instrument panel indicators and
how to use the instruments and other
switches.
Chapter 4: Climate control
This chapter informs you how to operate
If your vehicle is equipped with a
navigation system, the display con-
tains mercury. Therefore, the dis-
play of the navigation system must
be removed before vehicle disposal.
Once the display has been removed,
please reuse, recycle or dispose of
them as hazardous waste.

1
2
3
4
5
6
7
8
9
10
11
12
13
14

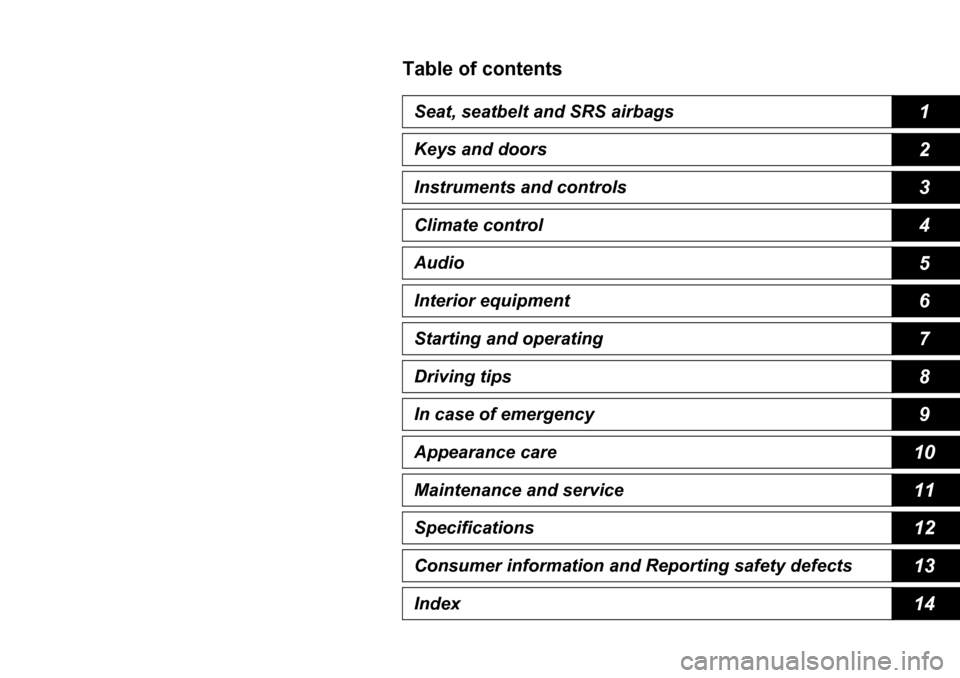

Table of contentsSeat, seatbelt and SRS airbags
Keys and doors
Instruments and controls
Climate control Audio
Interior equipment
Starting and operating
Driving tips
In case of emergency
Appearance care
Maintenance and service
Specifications
Consumer information and Reporting safety defects
Index

3
Instruments and controls
Ignition switch .................................................... 3-3 LOCK ....................................................................... 3-3
ACC .......................................................................... 3-4
ON ............................................................................ 3-4
START ...................................................................... 3-4
Key reminder chime ............................................... 3-5
Ignition switch light ................................................ 3-5
Hazard warning flasher ...................................... 3-5
Meters and gauges (Tur bo models) ................. 3-5
Combination meter illumination ............................ 3-5
Canceling the function for meter/gauge needle movement and combination meter sequential
illumination upon turning on the ignition
switch .................................................................... 3-6
Speedometer ........................................................... 3-6
Odometer ................................................................. 3-7
Double trip meter .................................................... 3-7
Tachometer ............................................................. 3-8
Fuel gauge ............................................................... 3-8
Temperature gauge ................................................ 3-9
Meters and gauges (Non-turbo models) .......... 3-10 Combination meter illumination ............................ 3-10
Canceling the function for meter/gauge needle movement upon turning on the ignition
switch .................................................................... 3-10
Speedometer ........................................................... 3-10
Odometer ................................................................. 3-11
Double trip meter .................................................... 3-11
Tachometer ............................................................. 3-12
Fuel gauge ............................................................... 3-12 Temperature gauge ................................................ 3-13
Warning and indicator lights ............................. 3-14 Seatbelt warning light and chime .......................... 3-14
SRS airbag system warning lig ht .......................... 3-16
Front passenger’s frontal airbag ON and OFF indicators .............................................................. 3-17
CHECK ENGINE warning light/Malfunction
indicator lamp ....................................................... 3-17
Charge warning light .............................................. 3-18
Oil pressure warning light ..................................... 3-18
AT OIL TEMPerature warning light (AT
vehicles) ................................................................ 3-18
Low tire pressure warning light (if equipped) ...... 3-18
ABS warning light ................................................... 3-20
Brake system warning light ................................... 3-20
Low fuel warning light ............................................ 3-21
Door open warning light ........................................ 3-22
All-Wheel Drive warning light (AT vehicles) ......... 3-22
Vehicle Dynamics Contro l operation indicator
light (if equipped) ................................................. 3-22
Vehicle Dynamics Control warning light (if
equipped)/Vehicle Dynamics Control OFF
indicator light (if equipped) ................................. 3-22
Security indicator light ........................................... 3-23
SPORT mode indicator light (AT vehicles) ........... 3-24
Selector lever position indicator (AT vehicles) .... 3-24
Gear position indicator (AT vehicles) ................... 3-24
Turn signal indicator lights .................................... 3-24
High beam indicator light ....................................... 3-25
Cruise control indicator light ................................. 3-25

Instruments and controls
Cruise control set indicator light .......................... 3-25
Headlight indicator light ........................................ 3-25
Front fog light indicator light ................................ 3-25
Clock .................................................................... 3-25
Information display (Vehicle without Navigation System) ......................................... 3-26Outside temperature indicator .............................. 3-27
Current fuel consumption ...................................... 3-28
Average fuel consumption .................................... 3-28
Driving range on remaining fu el ........................... 3-29
Journey time ........................................................... 3-30
Light control switch ........................................... 3-31 Headlights ............................................................... 3-31
High/low beam change (dimmer) .......................... 3-31
Headlight flasher .................................................... 3-32
Daytime running light system ............................... 3-32
Turn signal lever ................................................. 3-32
Illumination brightness control ......................... 3-33
Parking light switch ........................................... 3-33
Front fog light switch (if equipped) .................. 3-34
Wiper and washer ............................................... 3-34 Windshield wiper and washer switches ............... 3-35
Rear window wiper and washer switch (Station wagon) .................................................................. 3-37
Windshield wiper deicer (i f equipped) .............. 3-38
Rear window defogger butt on ........................... 3-38
Mirrors ................................................................. 3-40 Inside mirror ........................................................... 3-40
Auto-dimming mirror/compas s (if equipped) ...... 3-40 Outside mirrors ....................................................... 3-41
Tilt steering wheel .............................................. 3-43
Horn ..................................................................... 3-43

Instruments and controls 3-3
– CONTINUED –
Instruments and controlsIgnition switch
The ignition switch has four positions:
LOCK, ACC, ON and START.
NOTE yKeep the ignition switch in the
“LOCK” position when the engine is
not running. y Using electrical accessories for a
long time with the igni tion switch in the
“ON” or “ACC” posi tion can cause the
battery to go dead.
If the ignition switch will not move from
the “LOCK” position to the “ACC” po-
sition, turn the steering wheel slightlyto the left and right as you turn the ig-
nition switch. y If the key is attached to a keyholder
or to a large bunch of other keys, cen-
trifugal force may act on it as the vehi-
cle moves, resulting in unwanted turn-
ing of the ignition switch. Also, if a
large keyholder is attached to the key, your knees or hands may accidentally
touch it in a way that turns the ignition
switch. „
LOCK
The key can only be inserted or removed
in this position. The ignition switch will lock
the steering wheel when you remove the key.
If turning the key is di fficult, turn the steer-
ing wheel slightly to the right and left as
you turn the key. T Automatic transmission vehicles
The key can be turned from “ACC” to
“LOCK” only when the selector lever is in
the “P” position.
y Never turn the ignition switch to
“LOCK” while the vehicle is being
driven or towed because that will
lock the steering wheel, prevent-
ing steering control. And when
the engine is turned off, it takes a
much greater effort than usual to
steer.
y Before leaving th e vehicle, always
remove the key from the ignition
switch for safety and never allow
an unattended child to remain in
the vehicle. Failure to follow this
procedure could result in injury to
a child or others. Children could
operate the power windows, the
sunroof or other controls or even
make the vehicle move.
300259
300501

3-4 Instruments and controls
TManual transmission vehicles
The key can be turned from “ACC” to
“LOCK” only when the key is pushed in
while turning it. „ ACC
In this position the electrical accessories
(radio, accessory power outlet, etc.) can
be used. „ ON
This is the normal operating position after
the engine is started. „
START
The engine is started in this position. The
starter cranks the engine to start it. When
the key is released (after the engine has
started), the key automatically returns to
the “ON” position.
If your registered key fails to start the en-
gine, pull out the key once (the security in-
dicator light will blink), and then insert thekey in the ignition swit ch and turn it to the
“START” position and again try to start the
engine.
NOTE
The engine may not st art in the follow-
ing cases: y
The key grip is touching another key
or a metallic key holder. y The key is near another key that con-
tains an immobilizer transponder.
300591
Do not turn the ignition switch to the
“START” position while the engine
is running.
300502
300503

Instruments and controls 3-5
– CONTINUED –
„
Key reminder chime
The reminder chime sounds when the
driver’s door opens and the key is in the
“LOCK” or “ACC” positions. The chime
stops when the key is removed from the
ignition switch. „ Ignition switch light
For easy access to the ignition switch in
the dark, the ignition switch light comes on
when any of the doors are opened. The
light remains on for a several seconds and
gradually goes out after all doors are
closed or if the key is inserted in the igni-
tion switch.
Hazard warning flasher
The hazard warning flasher is used to
warn other drivers when you have to park
your vehicle under emergency conditions.
The hazard warning flasher works with the
ignition switch in any position.
To turn on the hazard warning flasher,
push the hazard warning button on the in-
strument panel. To turn off the flasher,
push the button again.
NOTE
When the hazard warning flasher is on,
the turn signals do not work. Meters and gauges (Turbo
models)
NOTE
Liquid-crystal displays are used in
some of the meters and gauges in the
combination meter. Yo
u will find their
indications hard to see if you wear po-
larized glasses. „ Combination meter illumina- tion
When the ignition switch is turned to the
“ON” position, the various parts of the
combination meter are illuminated in the
following sequence:
1. Meter rims, gauge rims, warning lights,
and indicator lights light up.
2. Meter needles and gauge needles light
up.
3. Meter needles and gauge needles
each show MAX position.
4. Meter needles and gauge needles
each show MIN position.
5. Dials in meters and gauges light up.
6. Regular illumination (for driving) be-
gins.
300177

3-6 Instruments and controls
„Canceling the function for
meter/gauge needle move-
ment and combination meter
sequential illumination upon
turning on the ignition switch
It is possible to activate or deactivate the
movement of the meter needles and
gauge needles and sequential illumination
of the combination meter that take place
when the ignition switch is turned to the
“ON” position.
Turn the ignition switch to the “ACC” posi-
tion. With the A trip meter indication se-
lected, briefly press the trip knob twice.
You can now establish the activated/deac-
tivated setting for mo vement of the meter
needles and gauge needles when the ig-
nition switch is turned to the “ON” position. To change the current setting, press the
trip knob for at least two seconds.
: Activated : Deactivated
Briefly press the trip knob again. You can
now establish the activated/deactivated
setting for sequential illumination of the
combination meter when the ignition
switch is turned to the “ON” position. To
change the current setting, press the trip
knob for at least two seconds. : Activated : Deactivated
Briefly press the knob to return to the A trip
meter indication.
If you turn the ignition switch to the “LOCK” position, turn the ignition switch to
the “ON” position, or open and close the
driver’s door during the setting procedure,
the new setting will be canceled.
Also, if you do not press the trip knob for a
period of 10 seconds, the new setting will
be canceled.
NOTE
It is not possible to cancel sequential
illumination of the combination meter
while sequential illumination is actual-
ly taking place. Can
cel sequential illu-
mination when regula r illumination (for
driving) has begun. „ Speedometer
The speedometer shows the vehicle
speed.
300185
300186
