2006 SUBARU LEGACY Instruments and control

Instruments and controls 3-23
– CONTINUED –
T
Vehicle Dynamics Control warning
light
The Vehicle Dynami cs Control system is
probably inoperative under any of the fol-
lowing conditions. Have your vehicle
checked at a SUBARU dealer immediate- ly.y The warning light does not come on
when the ignition switch is turned to the
“ON” position.y The warning light comes on while the
vehicle is running.y If the electrical circuit of the Vehicle Dy-
namics Control system itself becomes
faulty, the warning light only comes on. At
this time, the ABS (Anti-lock Brake Sys-
tem) remains fully operational.y The warning light comes on when the
electronic control sys tem of the ABS/Vehi-
cle Dynamics Control system becomes
faulty.
The Vehicle Dynamics Control system
provides its ABS control through the elec-
trical circuit of the ABS system. Accord-
ingly, if the ABS is in operative, the Vehicle
Dynamics Control system becomes un- able to provide ABS c ontrol. As a result,
the Vehicle Dynamics Control system also
becomes inoperative, causing the warning
light to come on. Though both the Vehicle
Dynamics Control and ABS systems are
inoperative in this case, the ordinary func- tions of the brake system are still avail-
able. You will be safe while driving with
this condition, but have your vehicle
checked at a SUBARU dealer as soon as
possible.
NOTE
If the warning light behavior is as
shown in the following, the Vehicle Dy-
namics Control system may be consid-
ered normal.y
The warning light comes on right af-
ter the engine is started but goes out
immediately, remaining off.y The warning light comes on after en-
gine startup and goes off while the ve-
hicle is subsequently being driven.y The warning light comes on during
driving, but it goes out immediately
and remains off. T Vehicle Dynamics Control OFF indi-
cator light
y It comes on when the Vehicle Dynamics
Control OFF switch is pressed. y It also comes on when the Vehicle Dy-
namics Control system is deactivated.
NOTE y The light may stay on for a while after
the engine has been started, especially
in cold weather. This does not indicate
the existence of a problem. The light should go out as soon as the engine
has warmed up. y
The indicator light comes on when
the engine has developed a problem
and the Malfunction indicator light is
on.
The Vehicle Dynamics Control system is
probably faulty under the following condi-
tion. Have your vehicle checked at a
SUBARU dealer as soon as possible. y The light does not go out even after the
lapse of several minutes (the engine has
warmed up) after the engine has started. „ Security indicator light
This indicator light shows the status of the
alarm system. It also indicates operation
of the immobilizer system. T Alarm system
It blinks to show the driver the operational
status of the alarm system. For detailed
information, refer to the “Alarm system”
section in chapter 2. T Immobilizer system
This light blinks approximately 60 seconds
after the ignition switch is turned from
“ON” position to the “ACC” or “LOCK” po-
sition or immediately after the key is pulled
out. (Refer to the “Door locks” section in

3-24 Instruments and controls
chapter 2.)
If the indicator light does not flash, it may
indicate that immobilizer system may be
faulty. Contact your nearest SUBARU
dealer immediately.
In the event that an unauthorized key (for
example, an unauthorized duplicate) is
used, the security indicator light comes
on. „ SPORT mode indicator
light (AT vehicles)
This light comes on when the ignition
switch is turned to the “ON” position and
goes out after the engine has started.
When the selector lever is moved to the
manual gate, the SPORT mode is select-
ed and the indicator light comes on. (Refer
to the “Automatic transmission – 4-speed”
or “Automatic transmission – 5-speed”
section in chapter 7.) T Automatic transmission control
system warning
If the light flashes after the engine starts,
it may indicate that the automatic trans-
mission control system is not working
properly. Contact your nearest SUBARU
dealer for service immediately. „
Selector lever position indi-
cator (AT vehicles)
This indicator shows the position of the
selector lever. „
Gear position indicator (AT
vehicles)
When the manual mode is selected, the
gear position indicator (which shows the
current gear selectio n) and the upshift/
downshift indicator light up. (Refer to the
“Automatic transmission – 4-speed” or
“Automatic transmission – 5-speed” sec-
tion in chapter 7.) „ Turn signal indicator
lights
These lights show the operation of the
turn signal or lane change signal.
If the indicator lights do not blink or blink
rapidly, the turn signal bulb may be
burned out. Replace the bulb as soon as
300192300266

Instruments and controls 3-25
– CONTINUED –
possible. Refer to the “Replacing bulbs”
section in chapter 11. „
High beam indicator light
This light shows that the headlights are in
the high beam mode.
This indicator light also comes on when
the headlight flasher is operated. „ Cruise control indica- tor light
The cruise control indicator light comes on
when the ignition switch is turned to the
“ON” position and goes out after approxi-mately three seconds.
This light comes on when the “CRUISE”
main switch is pressed.
NOTE
If you move the cruise control lever or
press the main switch button while
turning the ignition switch “ON”, the
cruise control function is deactivated
and the “CRUISE” indicator light flash-
es. To reactivate the cruise control function, turn the ig nition switch back
to the “ACC” or “LOCK” position, and then turn it again to the “ON” position. „
Cruise control set indica- tor light
The cruise control set indicator light
comes on when the ignition switch is
turned to the “ON” position and goes out
after approximately three seconds.
This light comes on when vehicle speed has been set. „ Headlight indicator light
This indicator light comes on when the
light switch is turned to the “ ” posi-
tion (to turn on the parking lights) or to the
“ ” position (to turn on the headlights). „ Front fog light indicator light
This indicator light is on while the front fog
lights are on.
Clock
NOTE
If your vehicle is equipped with a navi-
gation system, refer to the separate
“Operating Instructions for MonitorSystem”.
The clock shows the time while the igni-
tion switch is in the “ACC” or “ON” posi-tion.
400257

3-26 Instruments and controls
To adjust the time shown by the clock,
press the “+” button or the “–” button. The
indicated time will change in one-minute
increments. If you keep the button
pressed, the rate at which the indicated
time changes will speed up.
To reset the minutes to “00” with a radio
time signal, push the “SET” button. The clock will also show the time if you
press the “DISP” button while the ignition
switch is in the “LOCK” position. It is pos-
sible to adjust the time setting while the
time is being shown. If you do not press
the “+” button or “–” button for 10 seconds
while the time is being shown, the time in-
dication will go off.
Also, the time indication will go off if you
open and close the driver’s door while the
time is being shown.
Information display (Vehicle
without Navigation System)
NOTE
If your vehicle is equipped with a navi-
gation system, refer to the separate
“Operating Instructions for Monitor
System”.
With the ignition switch in the “ON” posi-
tion, each successive
push of the “DISP”
button toggles the display in the following
sequence:
300599
To ensure safety, do not attempt to
set the time during driving, as an ac-
cident could result.
300600
300600

Instruments and controls 3-27
– CONTINUED –
„
Outside temperature indica- tor
U.S.-spec. vehicles Canada-spec. vehicles
The outside temperature indicator shows
the outside temperature in a range from –
22 to 122 °F (–30 to 50 °C).
The indicator can give a false reading un-
der any of the following conditions:y When there is too much sun.
y During idling; while running at low
speeds in a traffic jam; when the engine is
restarted immediately following a shut-
down. y When the actual outside temperature
falls outside the specified indicator range. T
Road surface freeze warning indica- tion
U.S.-spec. vehicles
Canada-spec. vehicles
Outside tempera-ture Current fuel con-sumptionAverage fuel con-sumption
Driving rangeon remaining fuel
Journey time
300594
300267
300595
300268

3-28 Instruments and controls
When the outside temperature drops to 37°F (3 °C) or lower, the temperature indi-
cation flashes to show that the road sur-
face may be frozen.
If the outside temperature drops to 37 °F
(3 °C) or lower while the display is giving
an indication other than the outside tem-
perature, the display switches to the out-
side temperature indication and flashes
for five seconds before returning to its
original indication.
If the display is already indicating an out-
side temperature of 37 °F (3 °C) or lower
when the ignition switch is turned to the
“ON” position, the indication does notflash.
NOTE
The outside temperature indication may differ from the actual outside tem-
perature. The road surface freeze warn-
ing indication should be treated only
as a guide. Be sure to check the condi-
tion of the road surface before driving. „

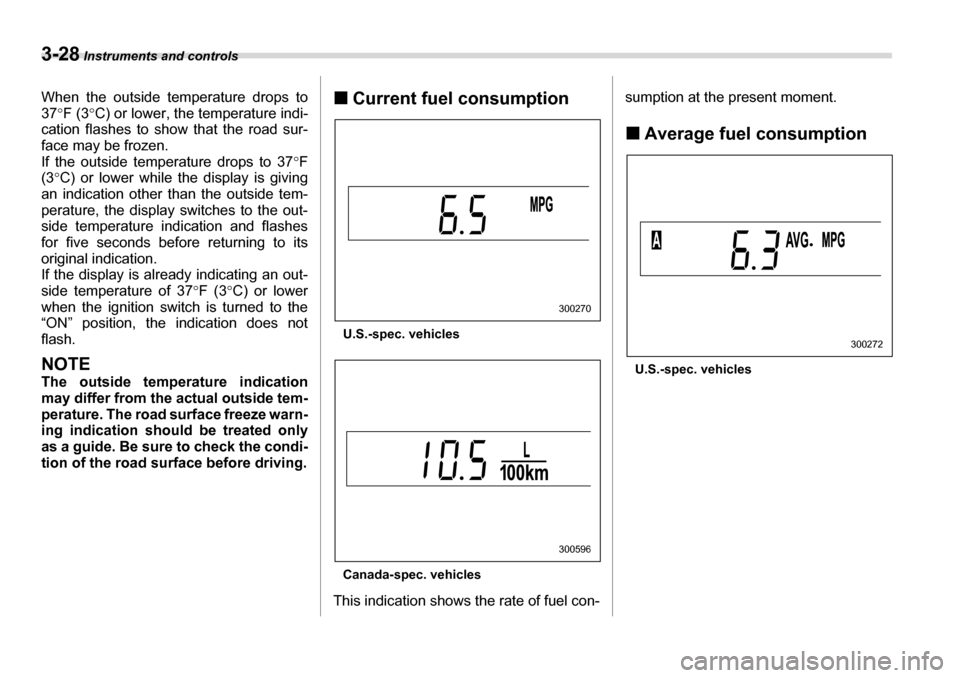

Current fuel consumption
U.S.-spec. vehicles
Canada-spec. vehicles
This indication shows the rate of fuel con- sumption at the present moment. „
Average fuel consumption
U.S.-spec. vehicles
300270
300596
300272

Instruments and controls 3-29
– CONTINUED –
Canada-spec. vehicles
This indication shows the average rate of
fuel consumption since the trip meter waslast reset.
Pressing the trip knob toggles the indica-
tion between the average fuel consump-
tion corresponding to the A trip meter indi-
cation and the average fuel consumption
corresponding to the B trip meter indica-tion.
When either of the trip meter indications is
reset, the corresponding average fuel
consumption value is also reset.
NOTE y The indicated values vary in accor-
dance with changes in the vehicle’s
running conditions. Also, the indicated
values may differ slightly from the ac- tual values and should thus be treated
only as a guide. y
When either trip meter indication is
reset, the average fuel consumption
corresponding to that trip meter indica-
tion is not shown un til the vehicle has
subsequently covered a distance of 1
mile (or 1 km). „ Driving range on remaining fuel
U.S.-spec. vehicles Canada-spec. vehicles
The driving range indicates the distance
that can be driven taking into account the
amount of fuel remaining in the tank and
the average rate of fuel consumption.
When the low fuel warning light comes on,
the driving range indication flashes for five
seconds. (The display first switches to the
driving range indication if it was originally
giving some other indication.)
300597
300274
300273

3-30 Instruments and controls
U.S.-spec. vehicles
Canada-spec. vehicles
If the driving range is shown as “ ”,
there is only a tiny amount of fuel left in the tank. You must refuel the vehicle immedi-ately.
NOTE
The driving range on remaining fuel is
only a guide. The indicated value may differ from the actu
al driving range on
remaining fuel, so you must immedi-
ately fill the tank when the low fuel
warning light comes on. „ Journey time
The journey time shows the time that has
elapsed since the ignition switch was
turned to the “START” position. The journey time indication flashes each
time a complete hour has elapsed. If the
display is giving an indication other than
the journey time, the display switches to
the journey time, flashes for five seconds,
and returns to its original indication each
time a complete hour has elapsed.
NOTE
The journey time is reset when the igni-
tion switch is turned
to the “OFF” posi-
tion. It is also reset if the ignition
switch is turned to the “LOCK” or “ACC” position prio r to restarting of
the engine.
300275
400265
400266
400267
