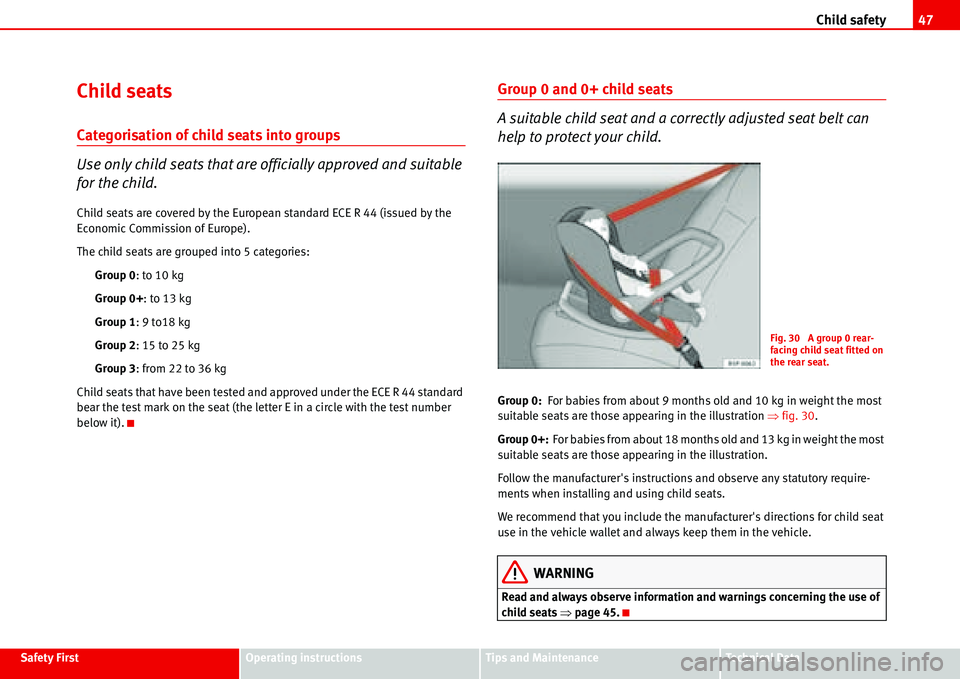

Child safety47
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Child seats
Categorisation of child seats into groups
Use only child seats that are officially approved and suitable
for the child.
Child seats are covered by the European standard ECE R 44 (issued by the
Economic Commission of Europe).
The child seats are grouped into 5 categories:
Group 0: to 10 kg
Group 0+: to 13 kg
Group 1: 9to18kg
Group 2: 15 to 25 kg
Group 3: from 22 to 36 kg
Child seats that have been tested and approved under the ECE R 44 standard
bear the test mark on the seat (the letter E in a circle with the test number
below it).
Group 0 and 0+ child seats
A suitable child seat and a correctly adjusted seat belt can
help to protect your child.
Group 0: For babies from about 9 months old and 10 kg in weight the most
suitable seats are those appearing in the illustration Ÿ fig. 30.
Group 0+: For babies from about 18 months old and 13 kg in weight the most
suitable seats are those appearing in the illustration.
Follow the manufacturer's instructions and observe any statutory require-
ments when installing and using child seats.
We recommend that you include the manufacturer's directions for child seat
use in the vehicle wallet and always keep them in the vehicle.
WARNING
Read and always observe information and warnings concerning the use of
child seats Ÿpage 45.
Fig. 30 A group 0 rear-
facing child seat fitted on
the rear seat.

Child safety 48
Group 1 child seats
A suitable child seat and a correctly adjusted seat belt can
help to protect your child.
Child seats using the “ISOFIX” system or seats in which the child faces the
rear of the car are most appropriate for babies and small children weighing
between 9 and 18 kg.
Follow the manufacturer's instructions and observe any statutory require-
ments when installing and using child seats.
We recommend that you include the manufacturer's directions for child seat
use in the vehicle wallet and always keep them in the vehicle.
WARNING
Read and always observe information and warnings concerning the use of
child seats
Group 2 and 3 child seats
A suitable child seat and a correctly adjusted seat belt can
help to protect your child.
Follow the manufacturer's instructions and observe any statutory require-
ments when installing and using child seats.
We recommend that you include the manufacturer's directions for child seat
use in the vehicle wallet and always keep them in the vehicle.
Group 2 child seats
Children under 7 years of age weighing between 15 and 25 kg are best
protected by group 2 child seats in conjunction with properly adjusted seat
belts.
Group 3 child seats
Children over 7 years of age weighing between 22 and 36 kg but less than 1.5
metres tall are best protected by seat cushions with head restraints in
conjunction with properly worn seat belts Ÿfig. 32.
Fig. 31 A category 1
forward-facing child seat
fitted on the rear seat.Fig. 32 Forward-facing
child seat installed on rear
seat.

Child safety49
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
WARNING
•The shoulder part of the seat belt must lie approximately on the centre
of the shoulder, never across the neck or the arm. The seat belt must lie
close to the torso. The lap belt part must lie across the pelvis, not across
the stomach, and always fit closely. Pull the belt tight if necessary to take
up any slack Ÿpage 22, “Seat belts”.
•Read and always observe information and warnings concerning the use
of child seats Ÿpage 45.
Installation of child seats in vehicle seats
General notes
The correct fitting of child seats in the different seats is described below.
Child restraint systems that have been checked according to ECE-R 44 are
suitable for installation on the front passenger seat or on the rear seats.
Note
The passenger seat and the rear seats comply with directive 77/541 EEC for
the installation of child restraint systems .
Front passenger seat
Only the use of an officially approved child seat corre-
sponding to the weight and height of the child is permitted.
Universal seats for children in groups 0, 0+, 1, 2, or 3 (Ÿpage 52) Ÿ can
be fitted in the passenger seat.
To fit a child seat, position the seat in the upright position and move the
passenger seat as far back as possible. The seat must be in the highest posi-
tion
3) on vehicles with a height-adjustableŸ front passenger seat.
WARNING
•Never fit a child seat in the passenger seat, where the child faces back-
wards to the direction of travel and the frontal airbag has not been deacti-
vated. This is highly dangerous for the child. If it is necessary in excep-
tional cases to transport a child on the front passenger seat, you must
always disable the front and side passenger airbags Ÿpage 43
•Children must travel in a child seat appropriate to their weight and
height.
•The vehicle seat must always be fitted in the direction of travel when
securing child restraint systems in weight class 0 or 0+.
•Read and always observe information and warnings concerning the use
of child seats Ÿ in “Safety notes on using child seats” on page 45.
•Please always read and follow the information and warnings provided
by the child seat manufacturer.
3)Optional equipment

Child safety 50
Outer seats in the second row of seats and seats in the third
row of seats
Only the use of an officially approved child seat corre-
sponding to the weight and height of the child is permitted.
In the outer seats of seats in the second and third row universal child seats
for groups 0, 0+, 1, 2, or 3 (Ÿpage 52) Ÿ may be fitted.
Seat with ISOFIX retainers
These seats are suitable for ISOFIX child seats specially designed for this type
of vehicle in accordance with regulation ECE-R 44 Ÿ.
Vehicle seat with integrated child seat
Universal child restraint systems for any group can be fitted to this seat if the
integrated child seat Ÿpage 52, “Integrated child seat” is not used.Ÿ
WARNING
•Children must travel in a child seat appropriate to their weight and
height.
•The vehicle seat must always be fitted in the direction of travel when
securing child restraint systems in weight class 0 or 0+.
•Read and always observe information and warnings concerning the use
of child seats Ÿ in “Safety notes on using child seats” on page 45.
•Please always read and follow the information and warnings provided
by the child seat manufacturer.
Note
•Due to space limitation, only the two outer seats can be used if two ISOFIX
system seats are to be fitted in the second row of seats.
Centre seat in the second row of seats (with three-point roof-
anchored belt)
Only the use of an officially approved child seat corre-
sponding to the weight and height of the child is permitted.
The centre seat with the three-point roof-anchored belt is suitable for weight
classes 0 to 2 Ÿ.
Seat with ISOFIX retainers
Child seats fitted with the ISOFIX system can be used on the centre seat if it
is equipped with ISOFIX retainers Ÿ.
WARNING
The central seat with three-point roof anchored belt is not suited to
universal child seats in group 3.
•The vehicle seat must always be fitted in the direction of travel when
securing child restraint systems in weight class 0 or 0+.
•Children must travel in a child seat appropriate to their weight and
height.
•Read and always observe information and warnings concerning the use
of child seats Ÿ in “Safety notes on using child seats” on page 45.
•Please always read and follow the information and warnings provided
by the child seat manufacturer.
Note
•Due to space limitations, no further ISOFIX restraint systems can be fitted
in the second row of seats once an ISOFIX system has been fitted to the centre
seat.

Child safety51
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
ISOFIX child seat mounting system
ISOFIX child seats can be mounted in the second and third
row seats quickly, safely and easily.When removing or fitting the child seat, please be sure to follow the
manufacturer's instructions.
– Press the child seat onto the ISOFIX retaining rings Ÿfig. 33
(arrows) until the child seat can be heard to engage securely.
– Pull on both sides of the child seat to ensure that it is secure.
When a child seat is mounted in seats equipped with the “ISOFIX” system,
the backrest should be fitted in one of two positions Ÿfig. 34 or .
Two ISOFIX retaining rings are secured to the body behind the seats in the
second and third rows. The ISOFIX retaining rings are attached to the seat
frames.
Child seats with ISOFIX mountings are available from Authorised SEAT Service
Centres.
WARNING
•The retaining rings are designed only for use with ISOFIX child seats.
•Never secure retaining belts, objects or non-ISOFIX child seats to the
fastening rings. Risk of fatal accidents.
Fig. 33 Retaining rings
for ISOFIX child seats in
the frames of the outer
seats in the second row of
seats
Fig. 34 Backrest adjust-
ment when using ISOFIX
child seats
A1A2

Child safety 52
Integrated child seat
Basic information on the integrated child seat
Proper use of child seats substantially reduces the risk of
injury in an accident!
It can be adjusted to suit the child's size and is suitable for children in the
following groups according to the ECE-R 44 norm: Group 1 (9 - 18 Kg), Group
2 (15 - 25 kg) and Group 3 (22 - 36 kg).
The integrated child seat for children in the Groups 1 and 2 must be used
with the slumber roll delivered with the seat.
For safety reasons, we recommend that the child seat for children in Group 1
is installed facing against the direction of travel. To do this, simply remove
the seat and fit it again facing in the opposite direction. The child must be
fastened in using the harness belt.
The child seat may only be fitted in the direction of travel for children in
Groups 2 and 3 who are fastened in using the three-point belt fitted in the
vehicle.
WARNING
•With the integrated child seat, the backrest may only be adjusted to the
first or second backrest position for children in Groups 1 to 3.
•The slumber roll must always be fitted for children in Groups 1 and 2.
•The integrated child seat must not be modified in any way.
•Do not allow the belt webbing to become twisted or jammed, or to rub
on any sharp edges.
•If the child seat or any parts of the seat are damaged, or if the child seat
has to withstand the force of a collision in an accident, the seat, or part of
the seat, must be replaced - preferably by a qualified dealership.
Group 1 integrated child seat
A suitable child seat and a correctly adjusted seat belt can
help to protect your child.
Setting up the child seat
– Pull the loop to the front in the direction of the arrow Ÿfig. 35
.
– Push the seat cushion in direction of the arrow until it
engages in position.
– Pull the loop to fold down the child seat cushion in direction
of arrow .
Restoring the normal seat
– First fold the child seat cushion up.
Fig. 35 Using the inte-
grated child seat
A1
A2
A3
A4

Child safety53
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a

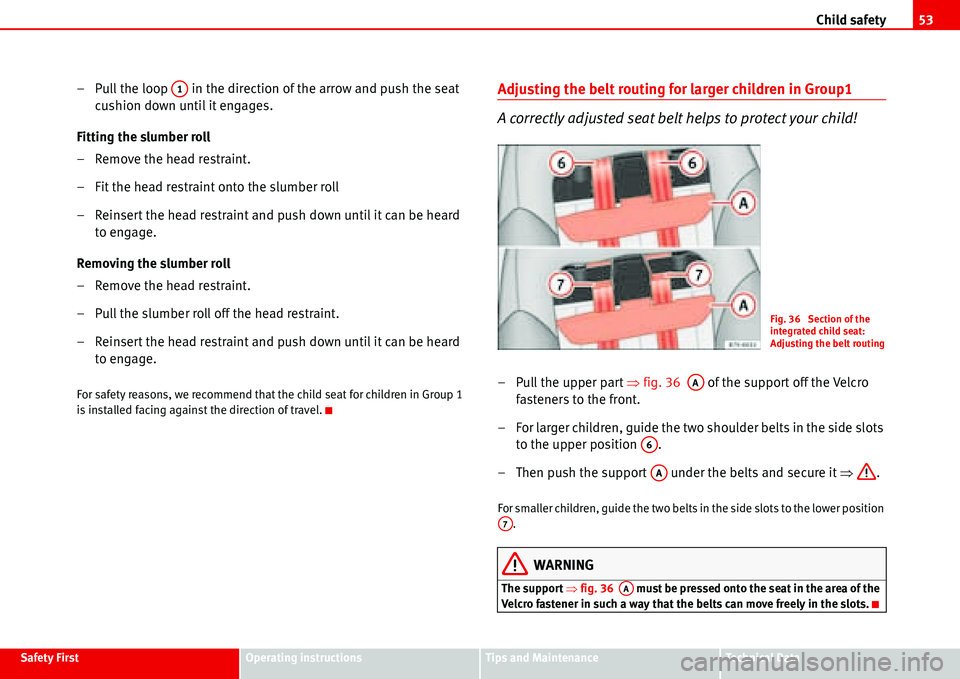

– Pull the loop in the direction of the arrow and push the seat
cushion down until it engages.
Fitting the slumber roll
– Remove the head restraint.
– Fit the head restraint onto the slumber roll
– Reinsert the head restraint and push down until it can be heard
to engage.
Removing the slumber roll
– Remove the head restraint.
– Pull the slumber roll off the head restraint.
– Reinsert the head restraint and push down until it can be heard
to engage.
For safety reasons, we recommend that the child seat for children in Group 1
is installed facing against the direction of travel.
Adjusting the belt routing for larger children in Group1
A correctly adjusted seat belt helps to protect your child!
– Pull the upper part Ÿfig. 36 of the support off the Velcro
fasteners to the front.
– For larger children, guide the two shoulder belts in the side slots
to the upper position .
– Then push the support under the belts and secure it Ÿ.
For smaller children, guide the two belts in the side slots to the lower position
.
WARNING
The support Ÿfig. 36 must be pressed onto the seat in the area of the
Velcro fastener in such a way that the belts can move freely in the slots.
A1
Fig. 36 Section of the
integrated child seat:
Adjusting the belt routing
AA
A6
AA
A7
AA

Child safety 54

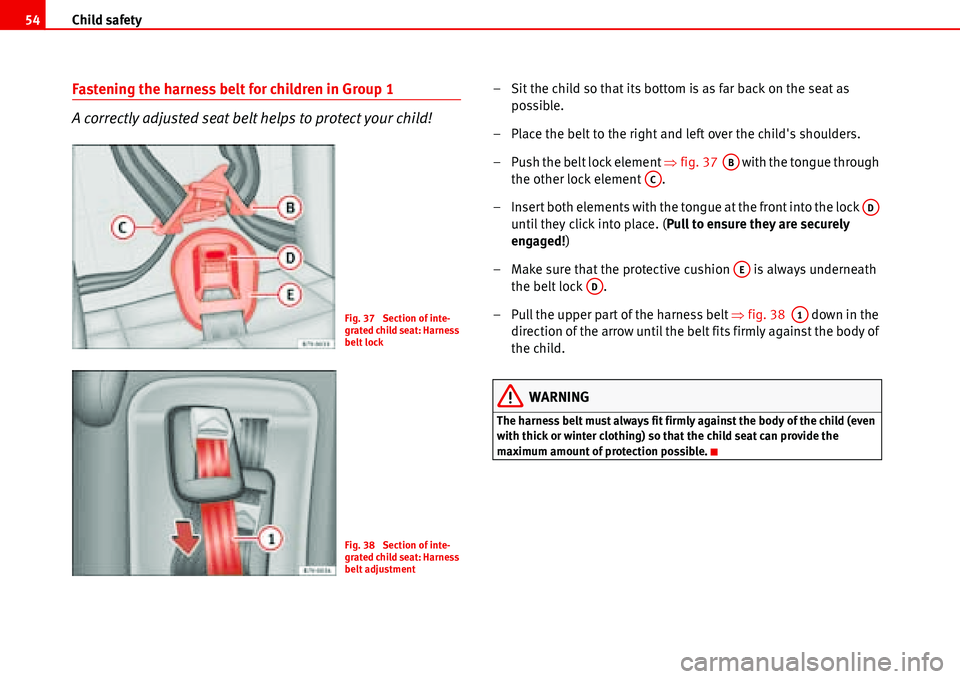

Fastening the harness belt for children in Group 1
A correctly adjusted seat belt helps to protect your child!– Sit the child so that its bottom is as far back on the seat as
possible.
– Place the belt to the right and left over the child's shoulders.
– Push the belt lock element Ÿfig. 37 with the tongue through
the other lock element .
– Insert both elements with the tongue at the front into the lock
until they click into place. (Pull to ensure they are securely
engaged!)
– Make sure that the protective cushion is always underneath
the belt lock .
– Pull the upper part of the harness belt Ÿfig. 38 down in the
direction of the arrow until the belt fits firmly against the body of
the child.
WARNING
The harness belt must always fit firmly against the body of the child (even
with thick or winter clothing) so that the child seat can provide the
maximum amount of protection possible.
Fig. 37 Section of inte-
grated child seat: Harness
belt lock
Fig. 38 Section of inte-
grated child seat: Harness
belt adjustment
AB
AC
AD
AE
AD
A1
