Seats and stowage127
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Second row, right seat
27).
Third row, right seat27).

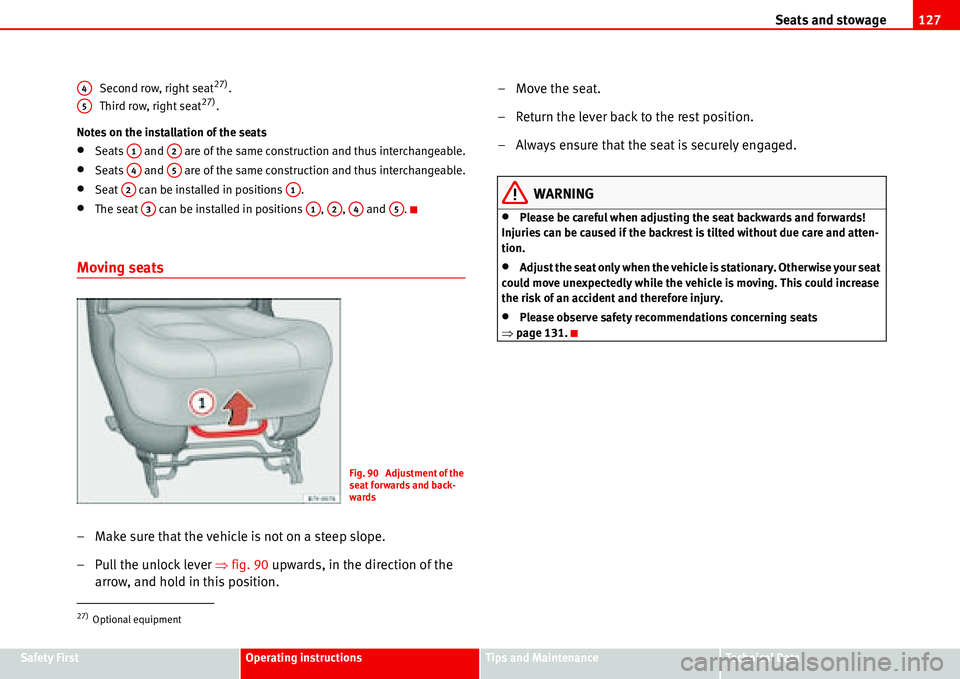

Notes on the installation of the seats
•Seats and are of the same construction and thus interchangeable.
•Seats and are of the same construction and thus interchangeable.
•Seat can be installed in positions .
•The seat can be installed in positions , , and .
Moving seats
– Make sure that the vehicle is not on a steep slope.
– Pull the unlock lever Ÿfig. 90 upwards, in the direction of the
arrow, and hold in this position.–Move the seat.
– Return the lever back to the rest position.
– Always ensure that the seat is securely engaged.
WARNING
•Please be careful when adjusting the seat backwards and forwards!
Injuries can be caused if the backrest is tilted without due care and atten-
tion.
•Adjust the seat only when the vehicle is stationary. Otherwise your seat
could move unexpectedly while the vehicle is moving. This could increase
the risk of an accident and therefore injury.
•Please observe safety recommendations concerning seats
Ÿpage 131.
27)Optional equipment
A4
A5
A1A2
A4A5
A2A1
A3A1A2A4A5
Fig. 90 Adjustment of the
seat forwards and back-
wards

Seats and stowage 128

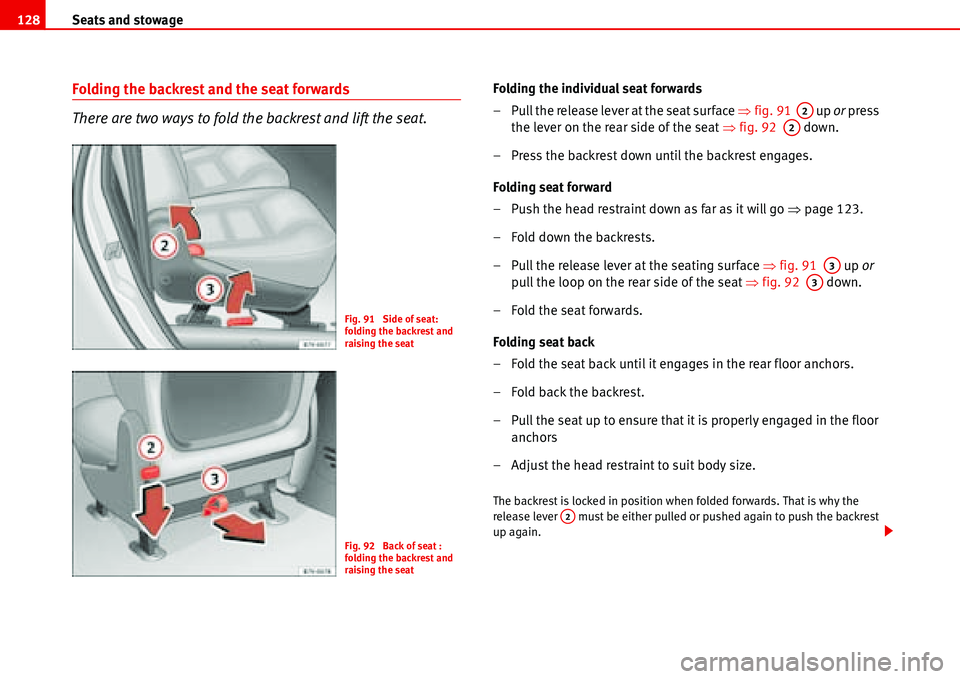

Folding the backrest and the seat forwards
There are two ways to fold the backrest and lift the seat.Folding the individual seat forwards
– Pull the release lever at the seat surface Ÿfig. 91 up or press
the lever on the rear side of the seat Ÿfig. 92 down.
– Press the backrest down until the backrest engages.
Folding seat forward
– Push the head restraint down as far as it will go Ÿpage 123.
– Fold down the backrests.
– Pull the release lever at the seating surface Ÿfig. 91 up or
pull the loop on the rear side of the seat Ÿfig. 92 down.
– Fold the seat forwards.
Folding seat back
– Fold the seat back until it engages in the rear floor anchors.
– Fold back the backrest.
– Pull the seat up to ensure that it is properly engaged in the floor
anchors
– Adjust the head restraint to suit body size.
The backrest is locked in position when folded forwards. That is why the
release lever must be either pulled or pushed again to push the backrest
up again.
Fig. 91 Side of seat:
folding the backrest and
raising the seat
Fig. 92 Back of seat :
folding the backrest and
raising the seat
A2
A2
A3
A3
A2

Seats and stowage129
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
WARNING
If you do not hold the backrest firmly when you operate the lever for
adjusting the backrest angle, the backrest will be pushed forward by
springs. Risk of injury.
•Always hold the backrest firmly when you adjust the backrest angle.
•Please observe safety recommendations concerning seats
Ÿpage 131.

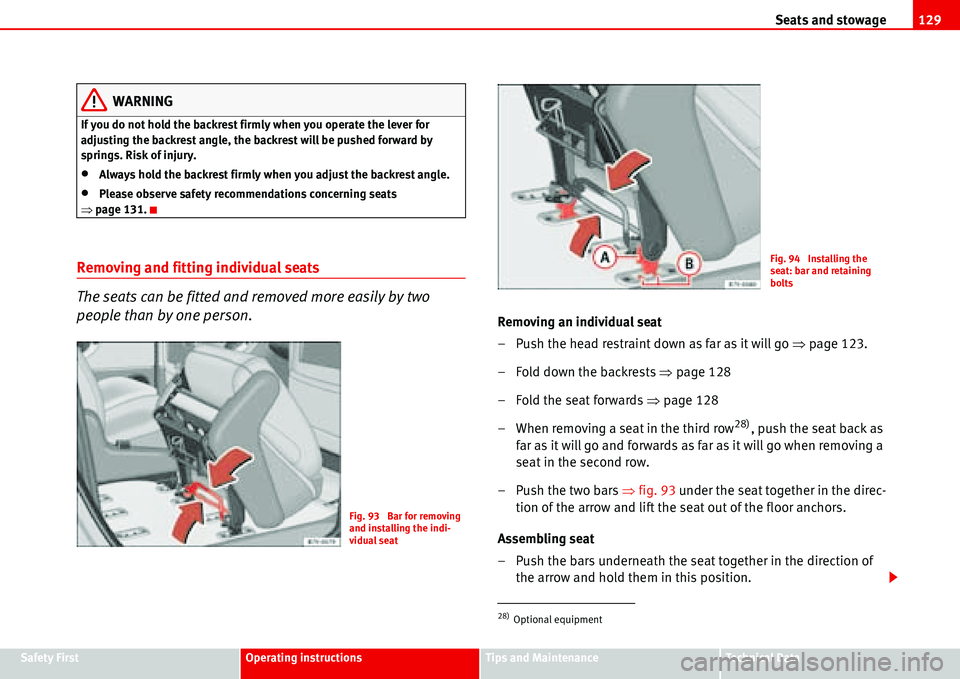

Removing and fitting individual seats
The seats can be fitted and removed more easily by two
people than by one person.
Removing an individual seat
– Push the head restraint down as far as it will go Ÿpage 123.
– Fold down the backrests Ÿpage 128
– Fold the seat forwards Ÿpage 128
– When removing a seat in the third row
28), push the seat back as
far as it will go and forwards as far as it will go when removing a
seat in the second row.
– Push the two bars Ÿfig. 93 under the seat together in the direc-
tion of the arrow and lift the seat out of the floor anchors.
Assembling seat
– Push the bars underneath the seat together in the direction of
the arrow and hold them in this position.
Fig. 93 Bar for removing
and installing the indi-
vidual seat
28)Optional equipment
Fig. 94 Installing the
seat: bar and retaining
bolts

Seats and stowage 130
– Place the seat frame Ÿpage 129, fig. 94 between the
retaining bolts in the floor anchors and release both bars.
– Pull the seat up to ensure that it is properly engaged in the front
floor anchors
– Fold the seat back until it engages in the rear floor anchors.
– Fold the backrest back and adjust the head restraint to suit body
size.
Covers for the floor anchors
After removing the seats in the passenger compartment, it is possible to fix
covers to the floor anchors to stop dirt getting into them, for example. You will
receive 12 covers delivered with the vehicle.
Guide the cover into the floor anchoring and press it in.
The covers will have to be removed by levering them off with the vehicle key
before you can install the seats.
WARNING
Please observe safety recommendations concerning seats Ÿpage 131.
ArmrestsAA
AB
Fig. 95 Removable
armrest: button
Fig. 96 Protective bag for
the removable armrests

Seats and stowage131
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a

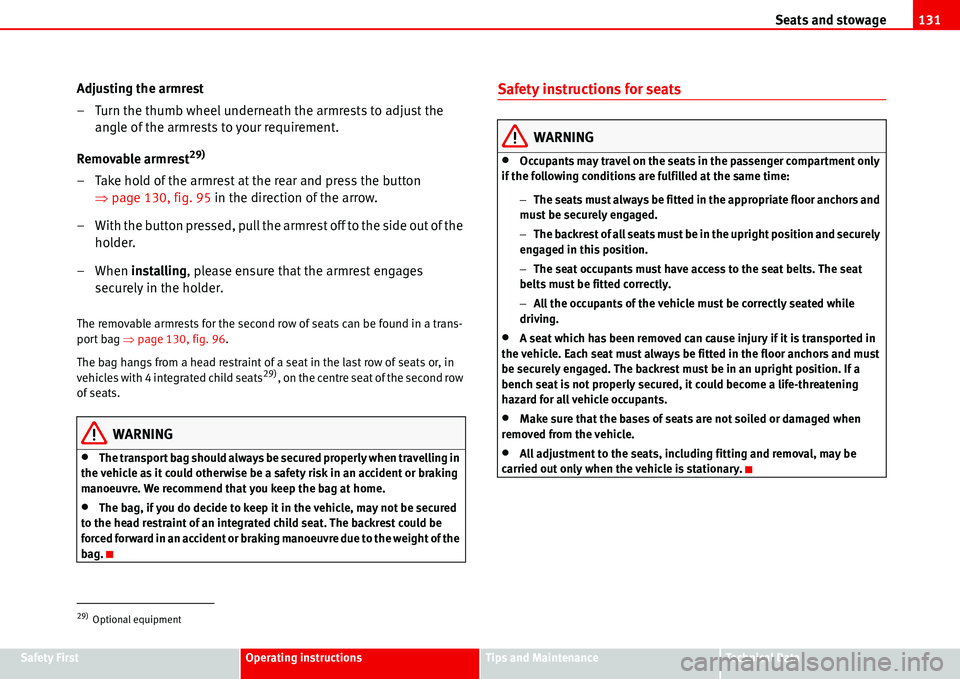

Adjusting the armrest
– Turn the thumb wheel underneath the armrests to adjust the
angle of the armrests to your requirement.
Removable armrest
29)
– Take hold of the armrest at the rear and press the button
Ÿpage 130, fig. 95 in the direction of the arrow.
– With the button pressed, pull the armrest off to the side out of the
holder.
– When installing, please ensure that the armrest engages
securely in the holder.
The removable armrests for the second row of seats can be found in a trans-
port bag Ÿpage 130, fig. 96.
The bag hangs from a head restraint of a seat in the last row of seats or, in
vehicles with 4 integrated child seats
29), on the centre seat of the second row
of seats.
WARNING
•The transport bag should always be secured properly when travelling in
the vehicle as it could otherwise be a safety risk in an accident or braking
manoeuvre. We recommend that you keep the bag at home.
•The bag, if you do decide to keep it in the vehicle, may not be secured
to the head restraint of an integrated child seat. The backrest could be
forced forward in an accident or braking manoeuvre due to the weight of the
bag.
Safety instructions for seats
WARNING
•Occupants may travel on the seats in the passenger compartment only
if the following conditions are fulfilled at the same time:
−The seats must always be fitted in the appropriate floor anchors and
must be securely engaged.
−The backrest of all seats must be in the upright position and securely
engaged in this position.
−The seat occupants must have access to the seat belts. The seat
belts must be fitted correctly.
−All the occupants of the vehicle must be correctly seated while
driving.
•A seat which has been removed can cause injury if it is transported in
the vehicle. Each seat must always be fitted in the floor anchors and must
be securely engaged. The backrest must be in an upright position. If a
bench seat is not properly secured, it could become a life-threatening
hazard for all vehicle occupants.
•Make sure that the bases of seats are not soiled or damaged when
removed from the vehicle.
•All adjustment to the seats, including fitting and removal, may be
carried out only when the vehicle is stationary.
29)Optional equipment

Seats and stowage 132
Some seat settings for the Alhambra
Examples of how the seating layout can be altered.
Of course, the illustrations show only some of the many seat combinations
possible in the Alhambra. You can, for example, purchase corresponding
retainers for your bicycle from SEAT Service. That means you will be able to
protect your bicycles from both theft and the weather when transporting
them.Or you turn
30) the driver and front passenger seats 180° to use the Alhambra
as a conference room or breakfast room. Or you can easily remove the seats
in the third row
30) in order to travel with a lot of luggage.
WARNING
•Luggage and other items in the luggage or passenger compartment can
be thrown forward in a braking manoeuvre. Please ensure that these items
are secured properly.
•Do not release the backrest of a seat in the second row when folding a
seat in the third row of seats forwards. Serious injuries can occur if a back-
rest has not been properly engaged in position.
Fig. 97 Alhambra loaded
with luggage.
Fig. 98 Alhambra trans-
formed into conference
room
30)Optional equipment

Seats and stowage133
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Stowage compartments
Stowage compartment on the front passenger side
The compartment can be opened by pulling the lever Ÿfig. 99. It is locked
when the key slot* is horizontal.
Vehicle wallet compartment
The vehicle wallet should always be kept in the glove compartment.
Cooling the stowage compartment on the front passenger side
There is an air outlet on the right of the rear panel Ÿfig. 99. If the air condi-
tioning is switched on, cooled air can be fed into the compartment. Turn the
air vent to open and close it.
WARNING
Always keep the stowage compartment cover closed while the vehicle is in
motion to reduce the risk of injury during a sudden braking manoeuvre or
in the event of an accident.
Central stowage on instrument panel
dame una pistaTo o p e n stowage compartment, press on the part closest to
the air vents (dotted area) in the direction of the arrow, this opens by spring
action Ÿfig. 100
To c l o s e, lower the cover by hand until it is completely closed.
Fig. 99 Passenger side:
Stowage compartment
Fig. 100 Central stowage
on instrument panel

Seats and stowage 134
Upper right stowage on instrument panel
To o p e n , press as shown by arrow Ÿfig. 101. The stowage compartment
opens by spring action.
To c l o s e, lower the cover by hand until it is completely closed.
Stowage compartment on centre console*
Some versions of the model may include a stowage compartment between
the radio and the Climatronic.
Fig. 101 Upper right
stowage on instrument
panelFig. 102 Stowage
compartment on centre
console
