2006 Seat Alhambra Owner's Manual

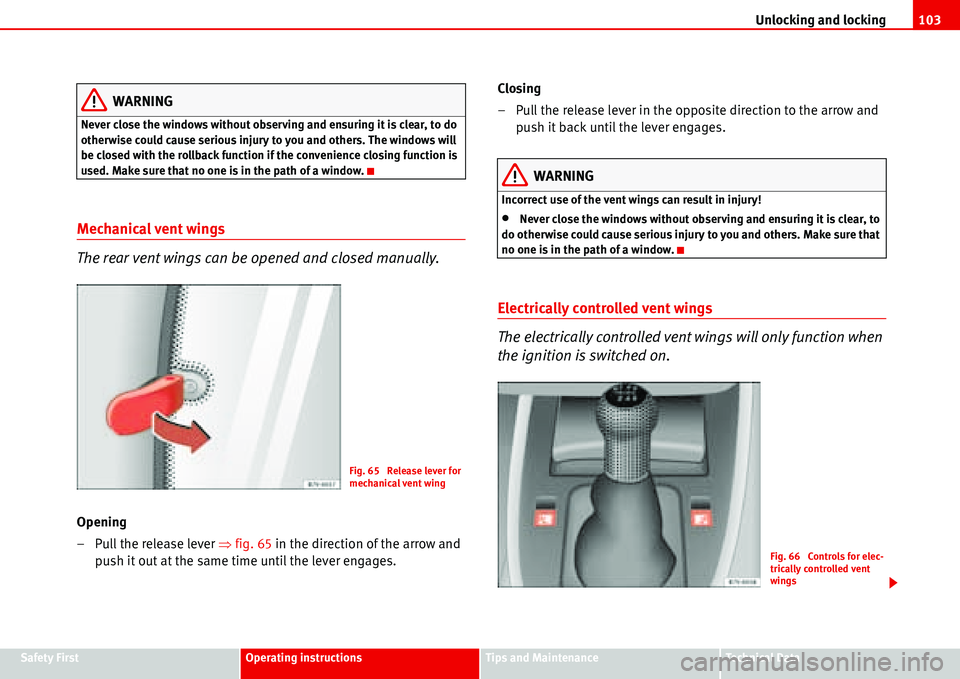

Unlocking and locking103
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
WARNING
Never close the windows without observing and ensuring it is clear, to do
otherwise could cause serious injury to you and others. The windows will
be closed with the rollback function if the convenience closing function is
used. Make sure that no one is in the path of a window.
Mechanical vent wings
The rear vent wings can be opened and closed manually.
Opening
– Pull the release lever Ÿfig. 65 in the direction of the arrow and
push it out at the same time until the lever engages.Closing
– Pull the release lever in the opposite direction to the arrow and
push it back until the lever engages.
WARNING
Incorrect use of the vent wings can result in injury!
•Never close the windows without observing and ensuring it is clear, to
do otherwise could cause serious injury to you and others. Make sure that
no one is in the path of a window.
Electrically controlled vent wings
The electrically controlled vent wings will only function when
the ignition is switched on.
Fig. 65 Release lever for
mechanical vent wing
Fig. 66 Controls for elec-
trically controlled vent
wings

Unlocking and locking 104
Opening
– A window is opened by pressing the corresponding switch
Ÿfig. 66.
Closing
– A window is closed by pulling on the corresponding switch.
the electrically controlled vent wings can also be closed from the outside on
vehicles equipped with central locking. For this purpose, the key must be
inserted in the lock of the driver's door or in the tailgate and held in the
locking position.
WARNING
Incorrect use of the electrically controlled vent wings can result in injury!
•Never close the windows without observing and ensuring it is clear, to
do otherwise could cause serious injury to you and others. Make sure that
no one is in the path of a window.
Sliding/tilting sun roof
Opening and closing the sliding/tilting roof
The sliding/tilting roof is opened and closed using the switch
when the ignition is switched on.
Opening sliding/tilting roof
–Press the surface Ÿfig. 67 .
Tilting the sliding/tilting sunroof
–Press the surface .
Closing the sliding/tilting roof,
–Press the surface Ÿ
Fig. 67 Roof trim: switch
for sliding/tilting roof
A1
A2
A3

Unlocking and locking105
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Always close the sliding/tilting roof fully if you park the vehicle or leave it
unattended Ÿ.
If you wish to tilt the roof when the sliding roof is open, press surface until
the function has been carried out. If the sliding roof is to be opened directly
from the tilted position, press surface to carry out the required function.
Once the ignition has been switched off, the sliding/tilting sun roof can no
longer be opened or closed.
Sunroof blind
The sunroof blind is opened together with the sliding/tilting roof. If required,
it can be closed by hand when the sunroof is closed.
WARNING
Incorrect use of the sliding/tilting sunroof can result in injury.
•Never close the sliding/tilting sunroof without observing and ensuring
it is clear, to do otherwise could cause serious injury to you and others.
Make sure that no one is in the path of the sliding/tilting sunroof.
•Always take the vehicle key with you when you leave the vehicle.
•Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. Unsupervised use of a key could mean that
the engine is started or that electrical equipment is used (e.g. electric
windows). Risk of accident. The doors can be locked using the remote
control key. This could result in people being trapped in the vehicle in an
emergency.
•The sliding/tilting sunroof operates as long as the ignition is switched
on.
Note
The roof can be closed by hand if the system is defective.
Convenience closing*
–Via door lock: Hold the key in the door lock of the driver's door in
the locking position until the sliding/tilting roof is closed.
– Release the key to interrupt this function.
During convenience closing, first the windows and then the sliding roof will
be closed.
WARNING
Never close the sliding/tilting sunroof without observing and ensuring it is
clear, to do otherwise could cause serious injury to you and others. The
sliding/tilting sunroof closes with the roll-back function activated.
However, always make sure that no one is in the path of the sliding/tilting
sunroof.
Note
The sliding/tilting sunroof rotary button remains in the last position selected
if the roof is closed using convenience closing from outside the vehicle and
will have to be re-positioned the next time you drive.
A2
A1

Unlocking and locking 106
Roll-back function of the sliding/tilting roof
The sliding/tilting roof has a roll-back function which prevents larger objects
getting trapped when the roof is closed Ÿ. The roll-back function does
not prevent fingers getting pinched against the roof opening. The
sliding/tilting sunroof stops and opens again immediately if it is obstructed
when closing.
If the sliding/tilting roof has been opened again by the roll-back function, it
can be closed only by pressing button Ÿpage 104, fig. 67 until the
sliding/tilting roof has closed fully. The sliding/tilting roof then closes
without the roll-back function.
If it still does not close, consult a specialised workshop.
WARNING
Incorrect use of the sliding/tilting sunroof can result in injury.
•Never close the sliding/tilting sunroof without observing and ensuring
it is clear, to do otherwise could cause serious injury to you and others.
Make sure that no one is in the path of the sliding/tilting sunroof.
Fig. 68 Roof trim: switch
for sliding/tilting roof
A3
WARNING (continued)

Unlocking and locking107
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Manual release
In the event of a breakdown, the sunroof may be closed manually.– Remove the interior light To do so, insert a screwdriver on the
right-hand side, between the light and the covering and turn the
screwdriver.
– Invert the screwdriver head and undo the two Philips screws
Ÿfig. 69
– Move the cover in the direction of the arrow and remove
Ÿfig. 69
–Turn the cover Ÿfig. 70 of the lever opening in the direction
of the arrow.
– Remove the lever from its casing, insert it in the opening and
close the roof
– Replace the lever in its casing and turn the cover Ÿfig. 70
over the lever opening.
– Replace the cover and interior light.
Fig. 69 Manual release
Fig. 70 Manual release
A1
A2
AA
AA

Lights and visibility 108
Lights and visibility
Lights
Switching lights on and off “
Switching on the daylight driving light (only available in some
countries)
– To switch on the daylight driving lights, leave the light switch in
position O when you turn on the ignition.
Switching on the side lights
– Turn the light switch Ÿfig. 71 to position
 Ÿ.
Switching on dipped headlights
– Turn the light switch to position
.Switching off the lights
– Turn the light switch to position O.
Switching on the front fog lights
17)
– Pull the switch out of position  or  to the first stop. The
symbol
in the light switch lights up.
Switching on the rear fog lights (vehicles with no front fog lights)
– Pull the switch out of position
 to the last stop. A warning lamp
lights up in the instrument panel

.
Switching on the rear fog lights (vehicles with front fog lights)
– Pull the switch out of position
 or  to the second stop. A
warning lamp lights up in the control panel

.
The dipped beam headlights will only work with the ignition on. The head-
lights are automatically switched to the side light setting while the engine is
being started and after the ignition has been switched off.
The daylight driving light
18) automatically comes on when the ignition is
switched on. It is not necessary to turn on the light switch. The daylight
driving lights are switched on as long as the ignition is switched on.
Rear fog light
The rear fog light is so bright that it may dazzles drivers behind. You should
use the rear fog light only when visibility is very poor.
Fig. 71 Detail of the dash
panel: Switch for lights,
fog lights and rear fog
light
17)Optional equipment18)for selected markets only

Lights and visibility109
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a If you are towing a trailer equipped with a rear fog light on a vehicle with a
factory-fitted towing bracket
17), the rear fog light on the car will automatically
be switched off.
WARNING
•Never drive with just the side lights on. Risk of accident. The side lights
are not bright enough to illuminate the road ahead and to ensure that other
road users are able to see you. Always use your dipped headlights if it is
dark or if visibility is poor.
Note
•If the lights are left on after the key has been taken out of the ignition lock,
a buzzer sounds when the driver door is opened. This is a reminder to switch
off the lights.
•The rear fog light is so bright that it can dazzle drivers behind you. You
should use the rear fog light only when visibility is very poor.
•If you are towing a trailer equipped with a rear fog light on a vehicle with
a factory-fitted towing bracket, the rear fog light on the car will automatically
be switched off.
•The use of the lighting described here is subject to the relevant statutory
requirements.
Coming Home function (guide lights)*
The Coming Home function (guide lights) allows the vehicle
lights to stay on for approximately 3 minutes after the ignition
is switched off.
To activate the Coming Home function the vehicle lights should have
already been switched on.– Switch off vehicle lights.
– Switch off ignition.
– Keep all doors closed.
– Briefly pull the turn signal lever towards the steering wheel
within a maximum of 2 minutes after switching off the lights.
– Open the driver door.
When the driver's door is opened, the vehicle lights automatically light up for
approx. 3 minutes If the door is closed within 3 minutes, the guide lights will
stay on for approximately. 30 seconds. If the door is closed after 3 minutes,
the vehicle lights switch off and the guide lights are not activated.
Illumination of instruments and switches and headlight
range control
Fig. 72 Instrument panel:
headlight range control
and illumination of
instruments and switches
A1
A2

Lights and visibility 110
Illumination of instruments and switches
When the headlights are switched on, the brightness of the instruments and
switch lighting can be regulated to suit your requirements by turning the
switch Ÿpage 109, fig. 72 .
Headlight range control
Using the headlight range control, you can adjust the headlight range to the
l o ad l ev el that is b e i ng ca r r i e d in t he ve h ic l e . In t h is way i t is p o ssi ble to a vo i d
dazzling oncoming traffic more than necessary. At the same time, the driver
has the best possible lighting for the road ahead using the correct headlight
settings.
The headlights can only be adjusted when the dipped beam is switched on.
To lower the beam, turn the switch down from the basic setting 0.
If the vehicle load does not correspond to those shown in the table, it is
possible to select intermediary positions.
Dynamic headlight range control
Vehicles with gas discharge lamps
19) (“xenon lamps”) are equipped with
dynamic headlight range control. When the dipped light is switched on, the
range of the headlights adjusts to the vehicle load condition. In these vehi-
cles, the control is not available.
WARNING
In order not to dazzle other drivers, the dipped light should be adjusted
according to the vehicle load using the headlight range control. If not, an
accident may occur.
•Use the switch to lower the light cone, depending on the vehicle load.
Hazard warning lights
The hazard warning lights are used to draw the attention of
other road users to your vehicle in emergencies.
If you have a breakdown:
1. Park your vehicle at a safe distance from moving traffic.
2. Press button Ÿfig. 73 to switch on the hazard warning lights
Ÿ.
The settings on the switch correspond roughly to the following load condi-
tions:
- Front seats occupied and light luggage in the vehicle
1 Several seats occupied and light luggage in the vehicle
2 All seats occupied and heavy luggage in luggage compartment
3 Front seats occupied and heavy luggage in luggage compart-
ment
19)Optional equipment
A1
A1
A2
A2
A2
Fig. 73 Switch for hazard
warning lights
