GENERAL INFORMATION
FRONT AXLE26-3

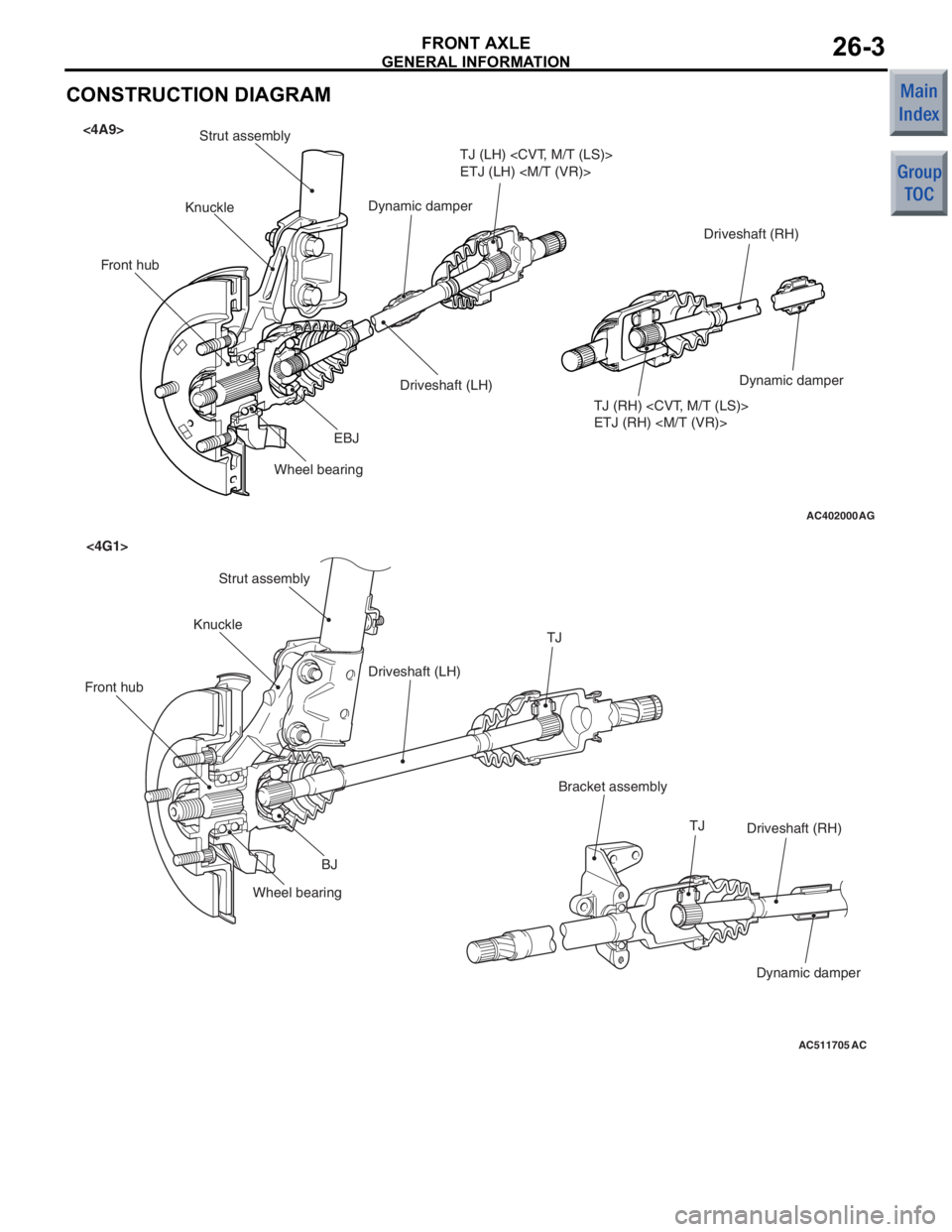

CONSTRUCTION DIAGRAM
AC402000AG
<4A9>EBJ TJ (RH)
ETJ (RH)
Driveshaft (LH) TJ (LH)
ETJ (LH)
Dynamic damper
Driveshaft (RH)
Front hub KnuckleStrut assembly
Wheel bearing Dynamic damper
AC403318
AC511705AC
<4G1>
Front hub Knuckle
Strut assembly
BJDriveshaft (LH)
TJ
Wheel bearing Driveshaft (RH)
Bracket assembly
TJ
Dynamic damper

GENERAL INFORMATION
FRONT SUSPENSION33-3

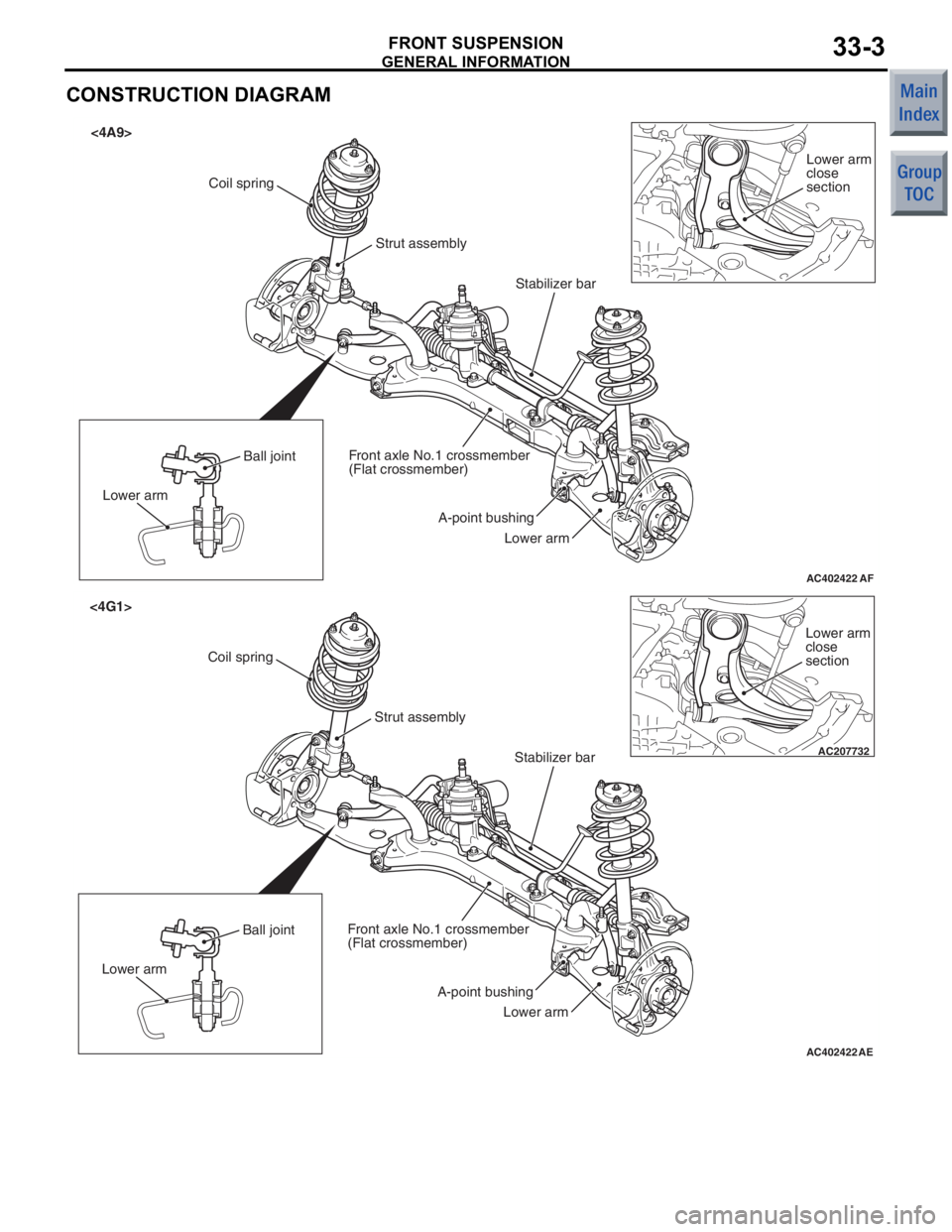

CONSTRUCTION DIAGRAM
AC402422AF
<4A9>
A-point bushing
Stabilizer bar
Coil spring
Strut assembly
Lower arm
Front axle No.1 crossmember
(Flat crossmember)
Lower arm Ball joint
Lower arm
close
section
AC402422AE
<4G1>
A-point bushing
Stabilizer bar
Coil spring
Strut assembly
Lower arm
Front axle No.1 crossmember
(Flat crossmember)
Lower arm Ball jointAC207732
Lower arm
close
section

GENERAL INFORMATION
ENGINE COOLING14-3

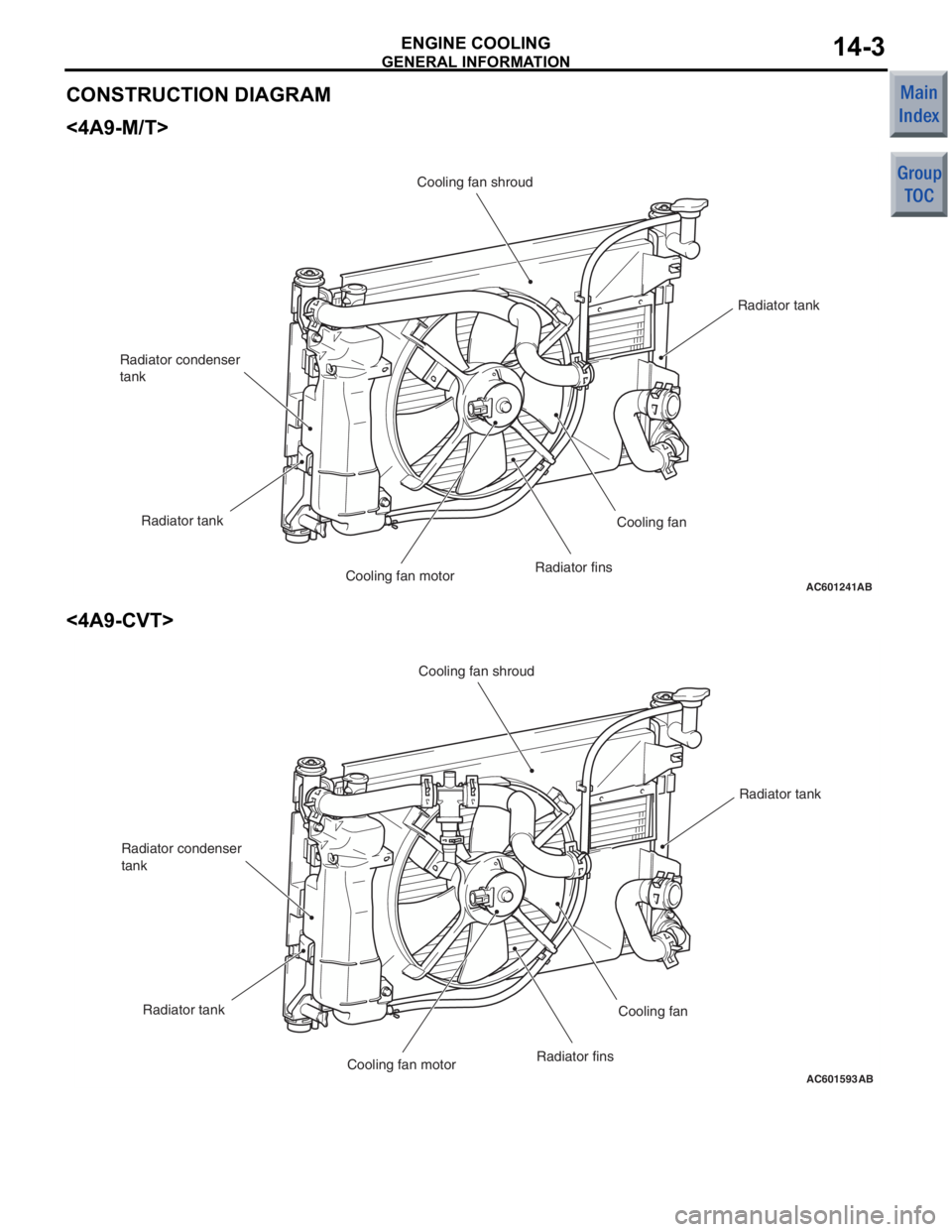

CONSTRUCTION DIAGRAM
<4A9-M/T>
AC601241AB
Cooling fan shroudRadiator finsCooling fan
Radiator condenser
tank
Radiator tank Cooling fan motor Radiator tank
<4A9-CVT>
AC601593AB
Cooling fan shroud
Radiator finsCooling fan
Radiator condenser
tank
Radiator tank Cooling fan motor Radiator tank

GENERAL INFORMATION
POWER STEERING37-3
CONSTRUCTION DIAGRAM
AC405883AB
Steering wheel
Steering column assembly
Selector lever assembly
Electric power
steering-ECU
Motor
Torque sensor
Tie-rod end Steering gearDash panel cover

GENERAL INFORMATION
SMART WIRING SYSTEM (SWS)54B-2
GENERAL INFORMATION
M2541000100424
SWS is a minimal line system which transmits
numerous signals using one wiring.
To transmit numerous signals, the ETACS*1-ECU,
column switch (incorporating inside the col
-
umn-ECU) incorporate multi-distribution circuits to
carry out communication between control units.
ETACS-ECU can receive some input signals through
CAN
*2 communication, improving the SWS function.
NOTE: *1: ETACS (Electronic Time and Alarm Con-
trol System)
NOTE: *2: CAN (Controller Area Network)
For more information, refer to GROUP 54C P.54C-2.

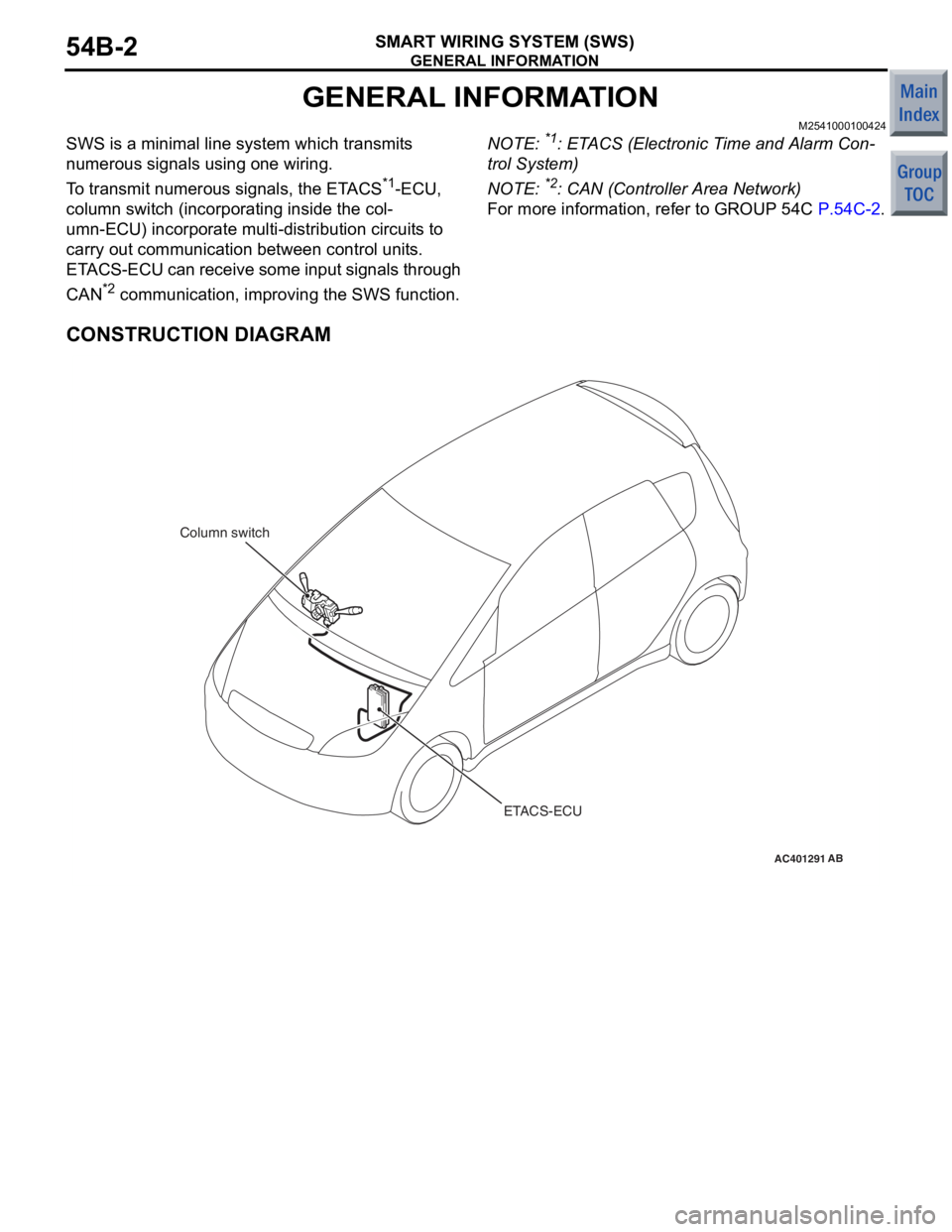

CONSTRUCTION DIAGRAM
AC401291
ETACS-ECU
Column switch
AB

GENERAL INFORMATION
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)52B-3
CONSTRUCTION DIAGRAM
AC601639
AC207323
AC207321AC207230
AC601468
Driver's air bag
modulePassenger's (front)
air bag module
SRS-ECU
Diagnosis connector
Clock springSRS warning lamp
Seat belt with
pre-tensioner
Curtain air bag module
Front impact sensor
SRS-ECUSide impact sensor
Side-airbag module
AB
SRS warning lamp
SRS warning lamp

GENERAL INFORMATION
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)52B-4
SRS SYSTEM CIRCUIT DIAGRAM
AC401544
Ignition switch (IG1)
Combination
meter (SRS
warning lamp)
No.40
7.5A
Driver's
air bag
module ON
OFF OFF
ON ON
OFF
ON
OFF
ON
ON
OFF
Passenger's
(front)
air bag
moduleClock spring
ON
OFF
OFF ON
OFF ON
OFF
ON
OFF
ON
ON
OFF
ON
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Connector
lock switch*
Connector
lock switch* Connector
lock switch*Connector
lock switch*
Seat belt
pre-tensioner
(LH)
Seat belt
pre-tensioner
(RH)
Side-airbag
module
(LH)
Side-airbag
module
(RH)
Curtain air bag
module
(LH)
Curtain air bag
module
(RH) ON
OFF
OFF ON
ON
OFF
ON
ON
OFF
OFFONON
OFF
OFFON
OFF
ON
Connector
lock switch*
Connector
lock switch* Connector
lock switch*
OFFON
OFF
Connector
lock switch*Side impact
sensor (RH)
Side impact
sensor (LH)
Diagnosis
connector
Front impact
sensor (RH)
Front impact
sensor (LH)
Note
*: Connector
connected: ON Connector
disconnected: OFF
AB
SRS-ECU
ON
OFF
ON
OFF
ON
OFF
ON
OFF
OFF
ON
OFF OFF
No.37
7.5A

GROUP 35C
ACTIVE STABILITY
CONTROL SYSTEM
(ASC)
CONTENTS
GENERAL . . . . . . . . . . . . . . . . . . . . .35C-2
CONSTRUCTION DIAGRAM. . . . . . .35C-5
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . 35C-5
ACTUATOR . . . . . . . . . . . . . . . . . . . . . . . . . 35C-6
ASC-ECU . . . . . . . . . . . . . . . . . . . . . . . . . . 35C-7
DESCRIPTION OF CONSTRUCTION
AND OPERATION . . . . . . . . . . . . . . .35C-17
