Symptom:
INTRUSION SENSOR 1 CIRCUIT OPEN/SHORT TO GROUND
When Monitored and Set Condition:
INTRUSION SENSOR 1 CIRCUIT OPEN/SHORT TO GROUND
When Monitored: Whenever the battery voltage is above 10.0 volts and the Security
System Module is connected.
Set Condition: The Security System Module detects the incorrect voltage on the Intrusion
Sensor circuit.
POSSIBLE CAUSES
DTC PRESENT
FUSE 2 IN FUSE BLOCK 3
FUSED B(+) WIRE OPEN
GROUND CIRCUIT OPEN
INTRUSION SENSOR 1 SIGNAL SHORTED
INTRUSION SENSOR 1 SIGNAL CIRCUIT OPEN
INTRUSION SENSOR INTERFACE WIRE SHORTED
INTRUSION SENSOR INTERFACE WIRE OPEN
INTRUSION SENSOR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Remove the ignition key.
Close and lock all doors and set the Vehicle Theft Security System.
Wait 1 minute.
Disarm the Vehicle Theft System.
With the DRBIIIt, read DTC's.
Does the DRBIIItdisplay the same DTC?All
Ye s!Go To 2
No!Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Check Fuse 2 in Fuse Block 3.
Is the fuse open?All
Ye s!Check for a short to ground and replace the fuse.
Perform BODY VERIFICATION TEST - VER 1.
No!Go To 3
220
VEHICLE THEFT/SECURITY

Symptom:
INTRUSION SENSOR 1 GROUND CIRCUIT OPEN
When Monitored and Set Condition:
INTRUSION SENSOR 1 GROUND CIRCUIT OPEN
When Monitored: Whenever the battery voltage is above 10.0 volts and the Security
System Module is connected.
Set Condition: The Security System Module detects the incorrect voltage on the Intrusion
Sensor circuit.
POSSIBLE CAUSES
DTC PRESENT
GROUND CIRCUIT OPEN
INTRUSION SENSOR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Remove the ignition key.
Close and lock all doors and set the Vehicle Theft Security System.
Wait 1 minute.
Disarm the Vehicle Theft System.
With the DRBIIIt, read DTC's.
Does the DRBIIItdisplay the same DTC?All
Ye s!Go To 2
No!Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Disconnect the Intrusion Sensor No. 1 connector.
Measure the resistance of the Ground circuit at the Intrusion Sensor connector.
Is the resistance below 5.0 ohms?All
Ye s!Replace the Intrusion Sensor.
Perform BODY VERIFICATION TEST - VER 1.
No!Repair the Ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
222
VEHICLE THEFT/SECURITY

Symptom:
INTRUSION SENSOR 2 CIRCUIT OPEN/SHORT TO GROUND
When Monitored and Set Condition:
INTRUSION SENSOR 2 CIRCUIT OPEN/SHORT TO GROUND
When Monitored: Whenever the battery voltage is above 10.0 volts and the Security
System Module is connected.
Set Condition: The Security System Module detects the incorrect voltage on the Intrusion
Sensor circuit.
POSSIBLE CAUSES
DTC PRESENT
FUSE 2 IN FUSE BLOCK 3
FUSED B(+) WIRE OPEN
GROUND CIRCUIT OPEN
INTRUSION SENSOR 2 SIGNAL SHORTED
INTRUSION SENSOR 2 SIGNAL CIRCUIT OPEN
INTRUSION SENSOR INTERFACE WIRE SHORTED
INTRUSION SENSOR INTERFACE WIRE OPEN
INTRUSION SENSOR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Remove the ignition key.
Close and lock all doors and set the Vehicle Theft Security System.
Wait 1 minute.
Disarm the Vehicle Theft System.
With the DRBIIIt, read DTC's.
Does the DRBIIItdisplay the same DTC?All
Ye s!Go To 2
No!Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Check Fuse 2 in Fuse Block 3.
Is the fuse open?All
Ye s!Check for a short to ground and replace the fuse.
Perform BODY VERIFICATION TEST - VER 1.
No!Go To 3
223
VEHICLE THEFT/SECURITY

Symptom:
INTRUSION SENSOR 2 GROUND CIRCUIT OPEN
When Monitored and Set Condition:
INTRUSION SENSOR 2 GROUND CIRCUIT OPEN
When Monitored: Whenever the battery voltage is above 10.0 volts and the Security
System Module is connected.
Set Condition: The Security System Module detects the incorrect voltage on the Intrusion
Sensor circuit.
POSSIBLE CAUSES
DTC PRESENT
GROUND CIRCUIT OPEN
INTRUSION SENSOR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Remove the ignition key.
Close and lock all doors and set the Vehicle Theft Security System.
Wait 1 minute.
Disarm the Vehicle Theft System.
With the DRBIIIt, read DTC's.
Does the DRBIIItdisplay the same DTC?All
Ye s!Go To 2
No!Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Disconnect the Intrusion Sensor No. 2 connector.
Measure the resistance of the Ground circuit at the Intrusion Sensor connector.
Is the resistance below 5.0 ohms?All
Ye s!Replace the Intrusion Sensor.
Perform BODY VERIFICATION TEST - VER 1.
No!Repair the Ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
225
VEHICLE THEFT/SECURITY

Symptom:
INTRUSION SENSOR 3 CIRCUIT OPEN/SHORT TO GROUND
When Monitored and Set Condition:
INTRUSION SENSOR 3 CIRCUIT OPEN/SHORT TO GROUND
When Monitored: Whenever the battery voltage is above 10.0 volts and the Security
System Module is connected.
Set Condition: The Security System Module detects the incorrect voltage on the Intrusion
Sensor circuit.
POSSIBLE CAUSES
DTC PRESENT
FUSE 2 IN FUSE BLOCK 3
FUSED B(+) WIRE OPEN
GROUND CIRCUIT OPEN
INTRUSION SENSOR 3 SIGNAL SHORTED
INTRUSION SENSOR 3 SIGNAL CIRCUIT OPEN
INTRUSION SENSOR INTERFACE WIRE SHORTED
INTRUSION SENSOR INTERFACE WIRE OPEN
INTRUSION SENSOR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Remove the ignition key.
Close and lock all doors and set the Vehicle Theft Security System.
Wait 1 minute.
Disarm the Vehicle Theft System.
With the DRBIIIt, read DTC's.
Does the DRBIIItdisplay the same DTC?All
Ye s!Go To 2
No!Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Check Fuse 2 in Fuse Block 3.
Is the fuse open?All
Ye s!Check for a short to ground and replace the fuse.
Perform BODY VERIFICATION TEST - VER 1.
No!Go To 3
226
VEHICLE THEFT/SECURITY

Symptom:
INTRUSION SENSOR 3 GROUND CIRCUIT OPEN
When Monitored and Set Condition:
INTRUSION SENSOR 3 GROUND CIRCUIT OPEN
When Monitored: Whenever the battery voltage is above 10.0 volts and the Security
System Module is connected.
Set Condition: The Security System Module detects the incorrect voltage on the Intrusion
Sensor circuit.
POSSIBLE CAUSES
DTC PRESENT
GROUND CIRCUIT OPEN
INTRUSION SENSOR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Remove the ignition key.
Close and lock all doors and set the Vehicle Theft Security System.
Wait 1 minute.
Disarm the Vehicle Theft System.
With the DRBIIIt, read DTC's.
Does the DRBIIItdisplay the same DTC?All
Ye s!Go To 2
No!Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Disconnect the Intrusion Sensor No. 3 connector.
Measure the resistance of the Ground circuit at the Intrusion Sensor connector.
Is the resistance below 5.0 ohms?All
Ye s!Replace the Intrusion Sensor.
Perform BODY VERIFICATION TEST - VER 1.
No!Repair the Ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
228

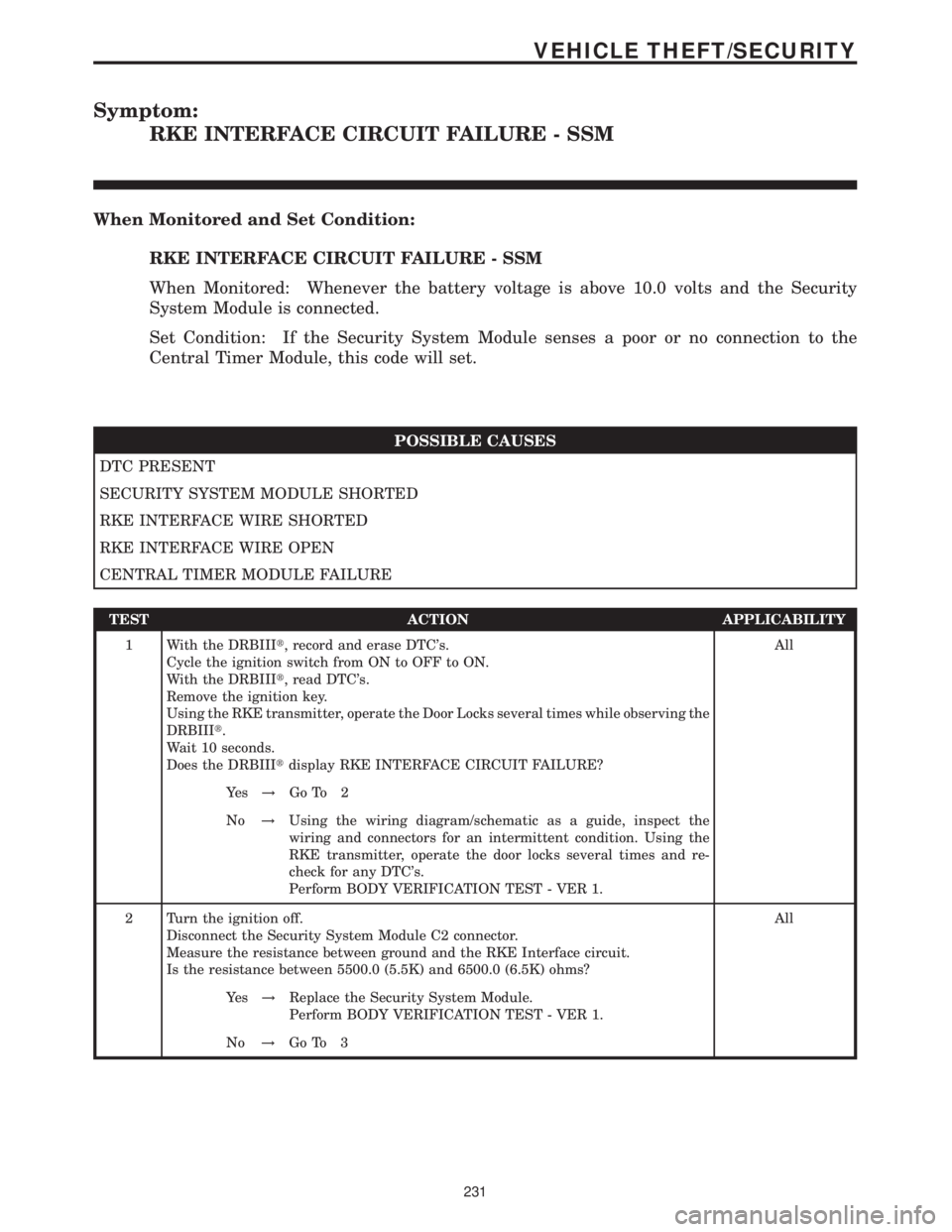

VEHICLE THEFT/SECURITY

Symptom:
RKE INTERFACE CIRCUIT FAILURE - SSM
When Monitored and Set Condition:
RKE INTERFACE CIRCUIT FAILURE - SSM
When Monitored: Whenever the battery voltage is above 10.0 volts and the Security
System Module is connected.
Set Condition: If the Security System Module senses a poor or no connection to the
Central Timer Module, this code will set.
POSSIBLE CAUSES
DTC PRESENT
SECURITY SYSTEM MODULE SHORTED
RKE INTERFACE WIRE SHORTED
RKE INTERFACE WIRE OPEN
CENTRAL TIMER MODULE FAILURE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Cycle the ignition switch from ON to OFF to ON.
With the DRBIIIt, read DTC's.
Remove the ignition key.
Using the RKE transmitter, operate the Door Locks several times while observing the
DRBIIIt.
Wait 10 seconds.
Does the DRBIIItdisplay RKE INTERFACE CIRCUIT FAILURE?All
Ye s!Go To 2
No!Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Using the
RKE transmitter, operate the door locks several times and re-
check for any DTC's.
Perform BODY VERIFICATION TEST - VER 1.
2 Turn the ignition off.
Disconnect the Security System Module C2 connector.
Measure the resistance between ground and the RKE Interface circuit.
Is the resistance between 5500.0 (5.5K) and 6500.0 (6.5K) ohms?All
Ye s!Replace the Security System Module.
Perform BODY VERIFICATION TEST - VER 1.
No!Go To 3
231

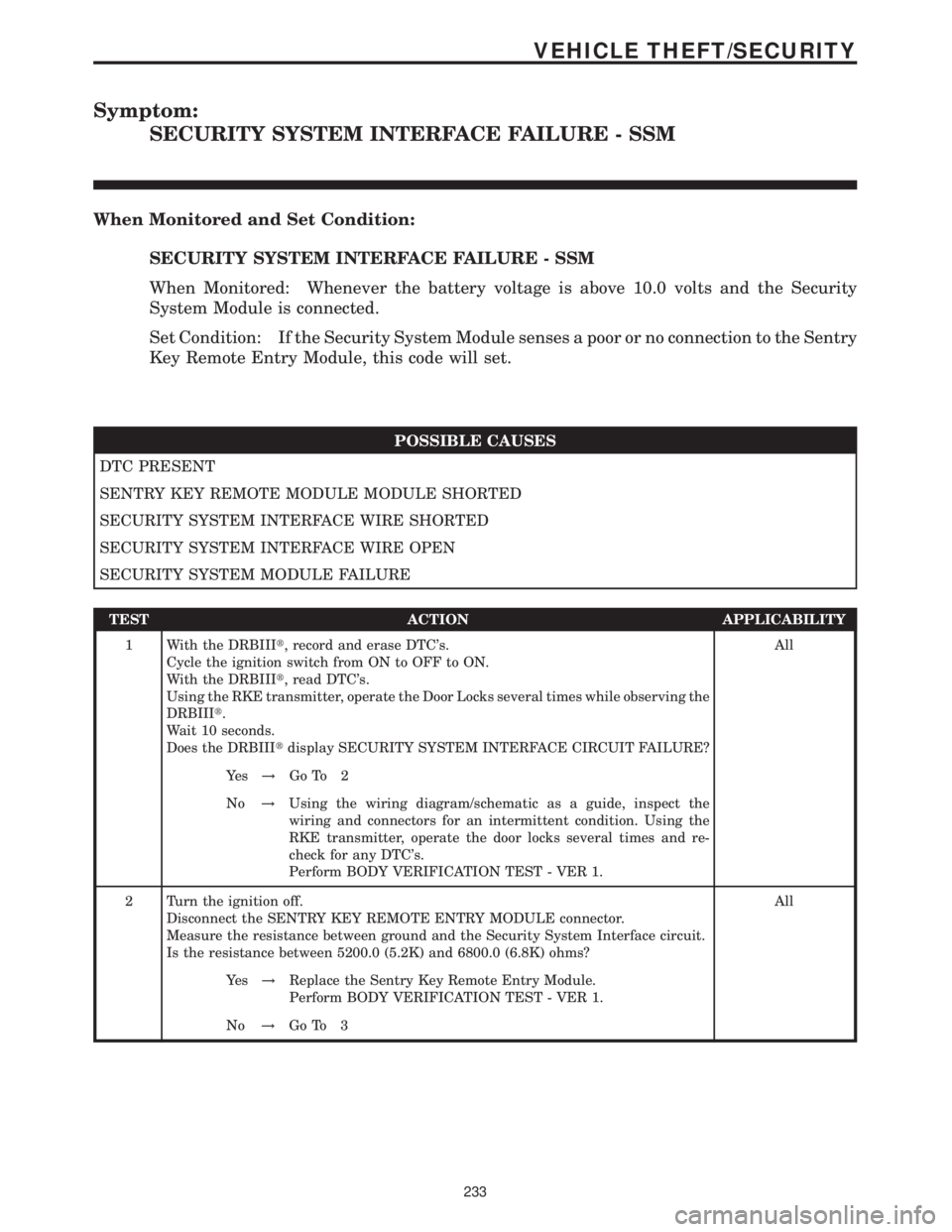

VEHICLE THEFT/SECURITY

Symptom:
SECURITY SYSTEM INTERFACE FAILURE - SSM
When Monitored and Set Condition:
SECURITY SYSTEM INTERFACE FAILURE - SSM
When Monitored: Whenever the battery voltage is above 10.0 volts and the Security
System Module is connected.
Set Condition: If the Security System Module senses a poor or no connection to the Sentry
Key Remote Entry Module, this code will set.
POSSIBLE CAUSES
DTC PRESENT
SENTRY KEY REMOTE MODULE MODULE SHORTED
SECURITY SYSTEM INTERFACE WIRE SHORTED
SECURITY SYSTEM INTERFACE WIRE OPEN
SECURITY SYSTEM MODULE FAILURE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Cycle the ignition switch from ON to OFF to ON.
With the DRBIIIt, read DTC's.
Using the RKE transmitter, operate the Door Locks several times while observing the
DRBIIIt.
Wait 10 seconds.
Does the DRBIIItdisplay SECURITY SYSTEM INTERFACE CIRCUIT FAILURE?All
Ye s!Go To 2
No!Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Using the
RKE transmitter, operate the door locks several times and re-
check for any DTC's.
Perform BODY VERIFICATION TEST - VER 1.
2 Turn the ignition off.
Disconnect the SENTRY KEY REMOTE ENTRY MODULE connector.
Measure the resistance between ground and the Security System Interface circuit.
Is the resistance between 5200.0 (5.2K) and 6800.0 (6.8K) ohms?All
Ye s!Replace the Sentry Key Remote Entry Module.
Perform BODY VERIFICATION TEST - VER 1.
No!Go To 3
233
