TEST ACTION APPLICABILITY
3 Disconnect the Central Timer Module C1 connector.
Disconnect the SKREEM connector.
Measure the resistance between ground and the RKE Interface circuit.
Is the resistance below 20000.0 ohms?All
Ye s!Repair the RKE Interface circuit for a short to ground.
Perform BODY VERIFICATION TEST - VER 1.
No!Replace the Sentry Key RemotE Entry Module.
Perform BODY VERIFICATION TEST - VER 1.
202
POWER DOOR LOCKS/RKE

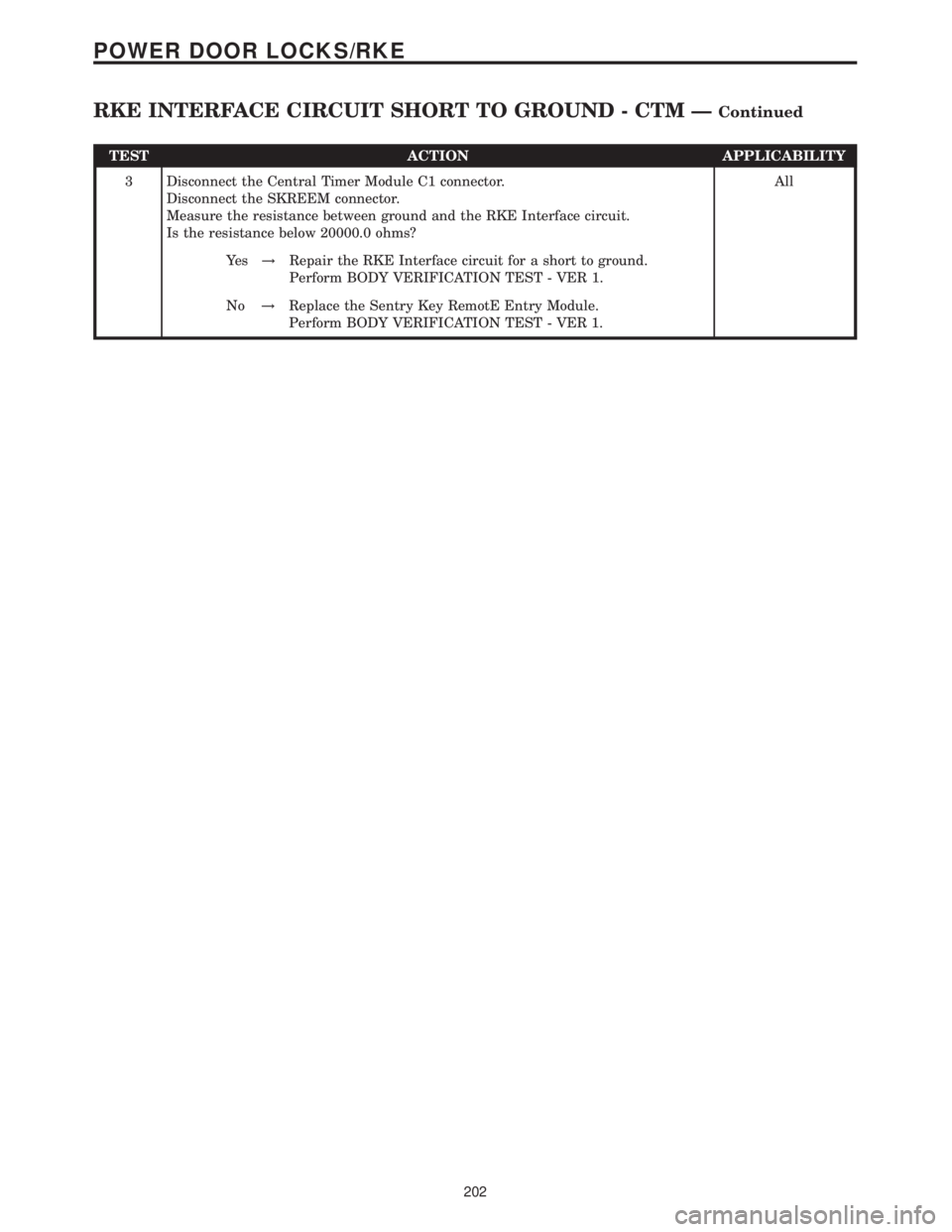

RKE INTERFACE CIRCUIT SHORT TO GROUND - CTM ÐContinued

Symptom:

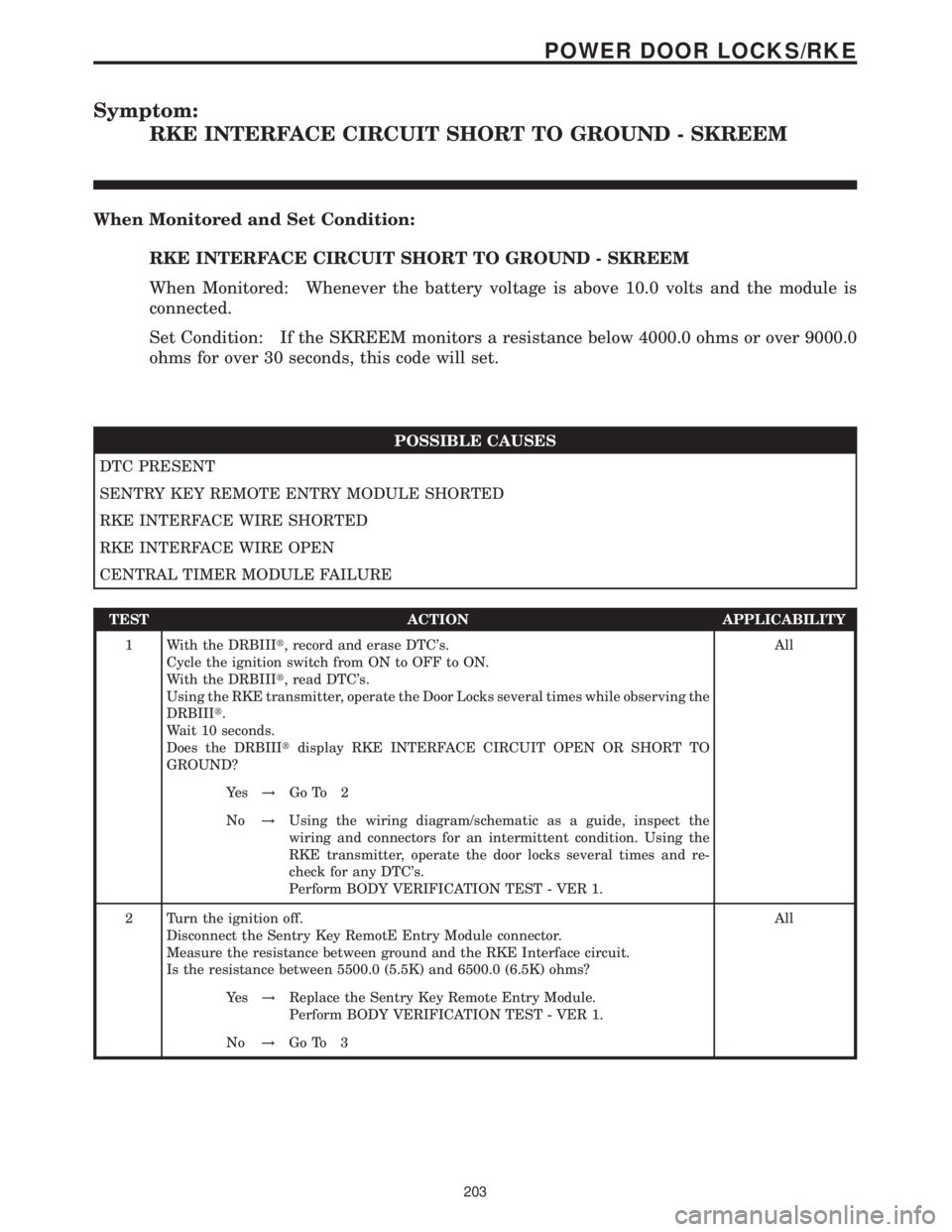

RKE INTERFACE CIRCUIT SHORT TO GROUND - SKREEM
When Monitored and Set Condition:
RKE INTERFACE CIRCUIT SHORT TO GROUND - SKREEM
When Monitored: Whenever the battery voltage is above 10.0 volts and the module is
connected.
Set Condition: If the SKREEM monitors a resistance below 4000.0 ohms or over 9000.0
ohms for over 30 seconds, this code will set.
POSSIBLE CAUSES
DTC PRESENT
SENTRY KEY REMOTE ENTRY MODULE SHORTED
RKE INTERFACE WIRE SHORTED
RKE INTERFACE WIRE OPEN
CENTRAL TIMER MODULE FAILURE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Cycle the ignition switch from ON to OFF to ON.
With the DRBIIIt, read DTC's.
Using the RKE transmitter, operate the Door Locks several times while observing the
DRBIIIt.
Wait 10 seconds.
Does the DRBIIItdisplay RKE INTERFACE CIRCUIT OPEN OR SHORT TO
GROUND?All
Ye s!Go To 2
No!Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Using the
RKE transmitter, operate the door locks several times and re-
check for any DTC's.
Perform BODY VERIFICATION TEST - VER 1.
2 Turn the ignition off.
Disconnect the Sentry Key RemotE Entry Module connector.
Measure the resistance between ground and the RKE Interface circuit.
Is the resistance between 5500.0 (5.5K) and 6500.0 (6.5K) ohms?All
Ye s!Replace the Sentry Key Remote Entry Module.
Perform BODY VERIFICATION TEST - VER 1.
No!Go To 3
203
POWER DOOR LOCKS/RKE

Symptom:

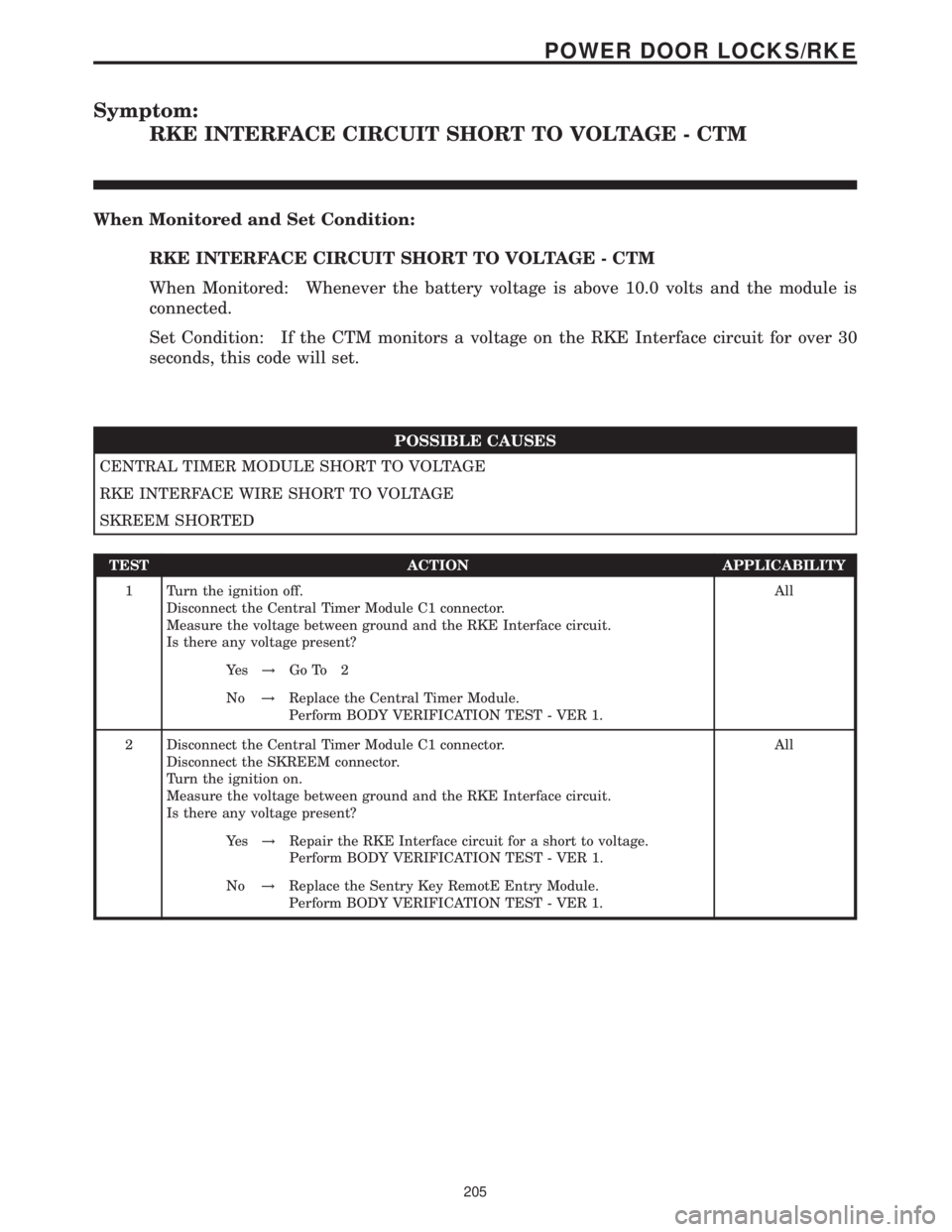

RKE INTERFACE CIRCUIT SHORT TO VOLTAGE - CTM
When Monitored and Set Condition:
RKE INTERFACE CIRCUIT SHORT TO VOLTAGE - CTM
When Monitored: Whenever the battery voltage is above 10.0 volts and the module is
connected.
Set Condition: If the CTM monitors a voltage on the RKE Interface circuit for over 30
seconds, this code will set.
POSSIBLE CAUSES
CENTRAL TIMER MODULE SHORT TO VOLTAGE
RKE INTERFACE WIRE SHORT TO VOLTAGE
SKREEM SHORTED
TEST ACTION APPLICABILITY
1 Turn the ignition off.
Disconnect the Central Timer Module C1 connector.
Measure the voltage between ground and the RKE Interface circuit.
Is there any voltage present?All
Ye s!Go To 2
No!Replace the Central Timer Module.
Perform BODY VERIFICATION TEST - VER 1.
2 Disconnect the Central Timer Module C1 connector.
Disconnect the SKREEM connector.
Turn the ignition on.
Measure the voltage between ground and the RKE Interface circuit.
Is there any voltage present?All
Ye s!Repair the RKE Interface circuit for a short to voltage.
Perform BODY VERIFICATION TEST - VER 1.
No!Replace the Sentry Key RemotE Entry Module.
Perform BODY VERIFICATION TEST - VER 1.
205
POWER DOOR LOCKS/RKE

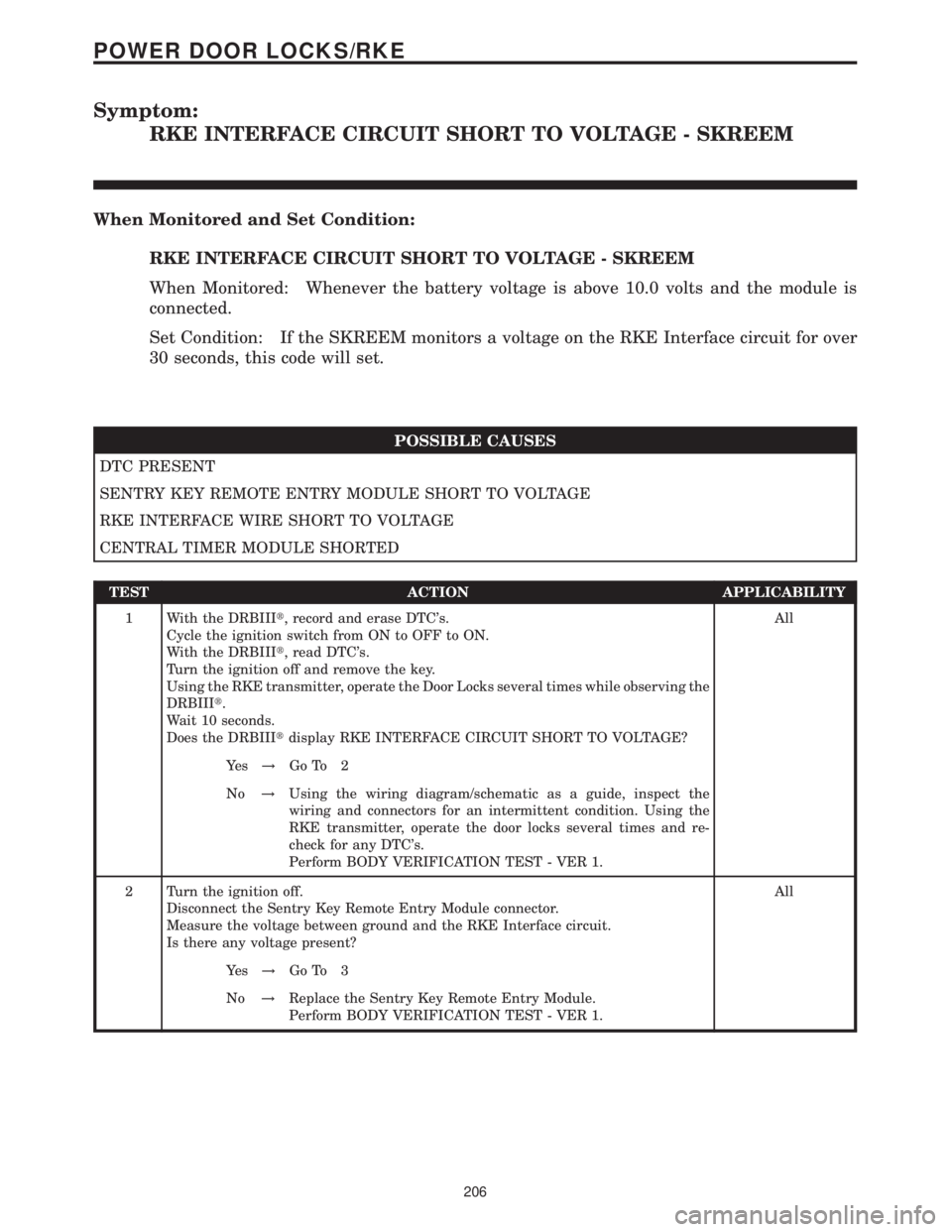

Symptom:
RKE INTERFACE CIRCUIT SHORT TO VOLTAGE - SKREEM
When Monitored and Set Condition:
RKE INTERFACE CIRCUIT SHORT TO VOLTAGE - SKREEM
When Monitored: Whenever the battery voltage is above 10.0 volts and the module is
connected.
Set Condition: If the SKREEM monitors a voltage on the RKE Interface circuit for over
30 seconds, this code will set.
POSSIBLE CAUSES
DTC PRESENT
SENTRY KEY REMOTE ENTRY MODULE SHORT TO VOLTAGE
RKE INTERFACE WIRE SHORT TO VOLTAGE
CENTRAL TIMER MODULE SHORTED
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Cycle the ignition switch from ON to OFF to ON.
With the DRBIIIt, read DTC's.
Turn the ignition off and remove the key.
Using the RKE transmitter, operate the Door Locks several times while observing the
DRBIIIt.
Wait 10 seconds.
Does the DRBIIItdisplay RKE INTERFACE CIRCUIT SHORT TO VOLTAGE?All
Ye s!Go To 2
No!Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Using the
RKE transmitter, operate the door locks several times and re-
check for any DTC's.
Perform BODY VERIFICATION TEST - VER 1.
2 Turn the ignition off.
Disconnect the Sentry Key Remote Entry Module connector.
Measure the voltage between ground and the RKE Interface circuit.
Is there any voltage present?All
Ye s!Go To 3
No!Replace the Sentry Key Remote Entry Module.
Perform BODY VERIFICATION TEST - VER 1.
206
POWER DOOR LOCKS/RKE

Symptom:

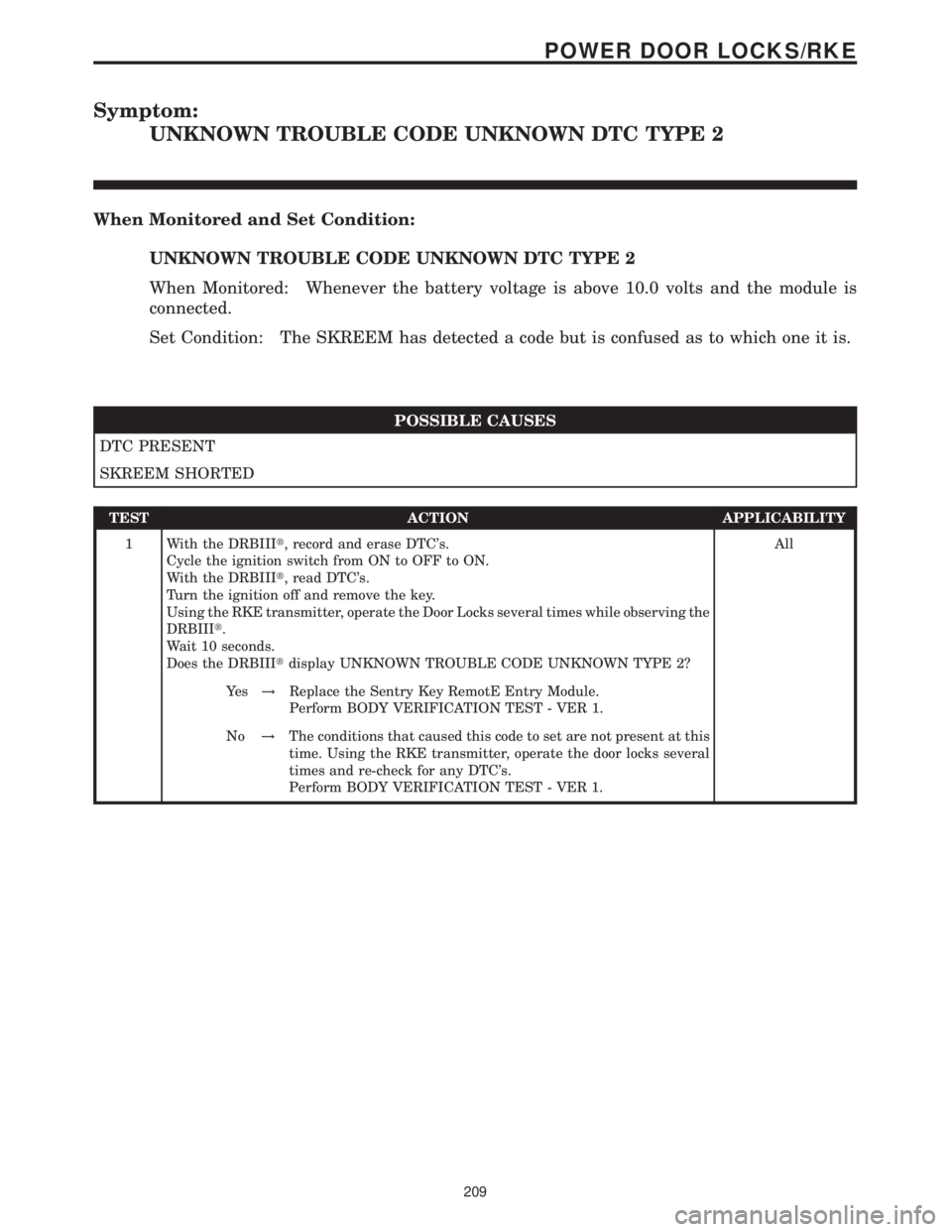

UNKNOWN TROUBLE CODE UNKNOWN DTC TYPE 2
When Monitored and Set Condition:
UNKNOWN TROUBLE CODE UNKNOWN DTC TYPE 2
When Monitored: Whenever the battery voltage is above 10.0 volts and the module is
connected.
Set Condition: The SKREEM has detected a code but is confused as to which one it is.
POSSIBLE CAUSES
DTC PRESENT
SKREEM SHORTED
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Cycle the ignition switch from ON to OFF to ON.
With the DRBIIIt, read DTC's.
Turn the ignition off and remove the key.
Using the RKE transmitter, operate the Door Locks several times while observing the
DRBIIIt.
Wait 10 seconds.
Does the DRBIIItdisplay UNKNOWN TROUBLE CODE UNKNOWN TYPE 2?All
Ye s!Replace the Sentry Key RemotE Entry Module.
Perform BODY VERIFICATION TEST - VER 1.
No!The conditions that caused this code to set are not present at this
time. Using the RKE transmitter, operate the door locks several
times and re-check for any DTC's.
Perform BODY VERIFICATION TEST - VER 1.
209
POWER DOOR LOCKS/RKE

Symptom:

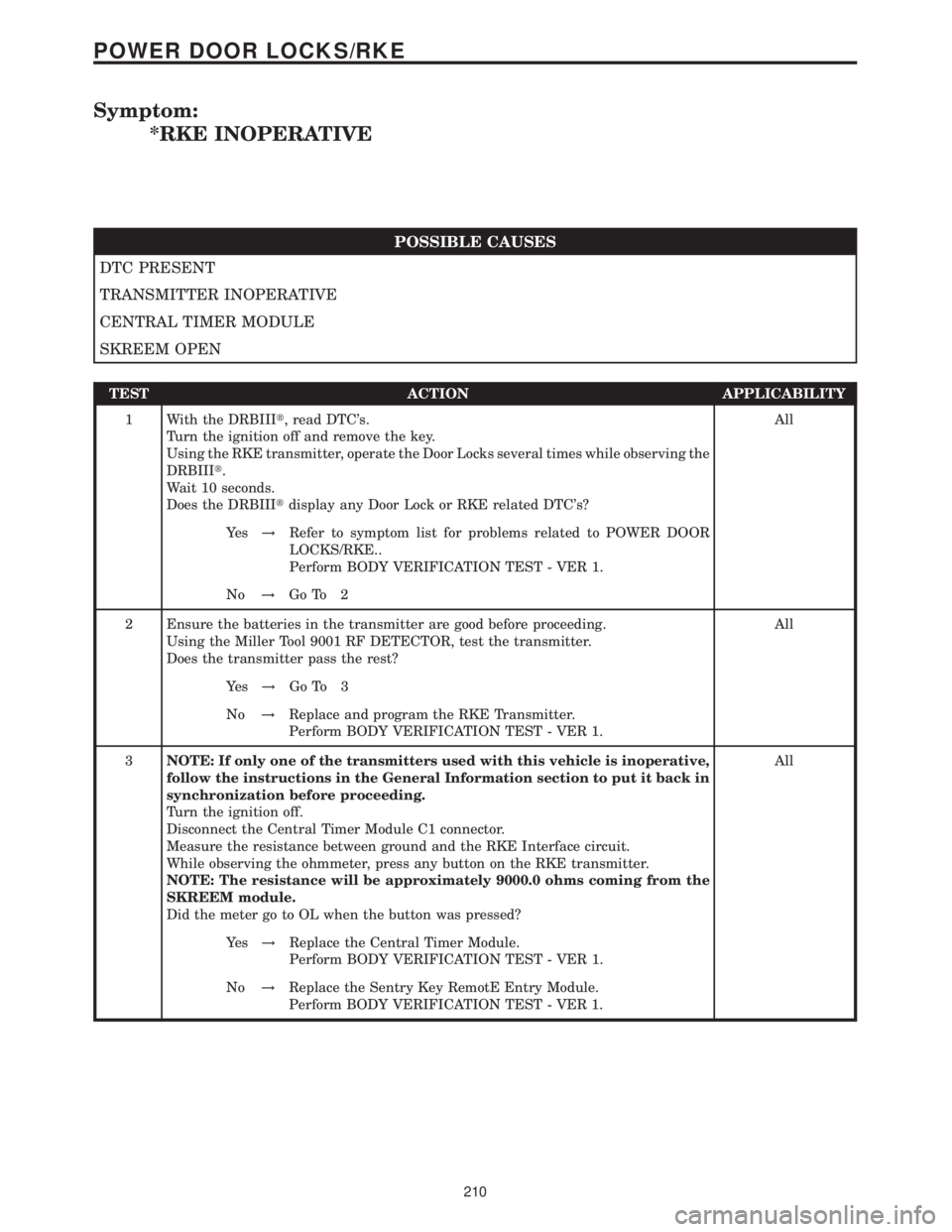

*RKE INOPERATIVE
POSSIBLE CAUSES
DTC PRESENT
TRANSMITTER INOPERATIVE
CENTRAL TIMER MODULE
SKREEM OPEN
TEST ACTION APPLICABILITY
1 With the DRBIIIt, read DTC's.
Turn the ignition off and remove the key.
Using the RKE transmitter, operate the Door Locks several times while observing the
DRBIIIt.
Wait 10 seconds.
Does the DRBIIItdisplay any Door Lock or RKE related DTC's?All
Ye s!Refer to symptom list for problems related to POWER DOOR
LOCKS/RKE..
Perform BODY VERIFICATION TEST - VER 1.
No!Go To 2
2 Ensure the batteries in the transmitter are good before proceeding.
Using the Miller Tool 9001 RF DETECTOR, test the transmitter.
Does the transmitter pass the rest?All
Ye s!Go To 3
No!Replace and program the RKE Transmitter.
Perform BODY VERIFICATION TEST - VER 1.
3NOTE: If only one of the transmitters used with this vehicle is inoperative,
follow the instructions in the General Information section to put it back in
synchronization before proceeding.
Turn the ignition off.
Disconnect the Central Timer Module C1 connector.
Measure the resistance between ground and the RKE Interface circuit.
While observing the ohmmeter, press any button on the RKE transmitter.
NOTE: The resistance will be approximately 9000.0 ohms coming from the
SKREEM module.
Did the meter go to OL when the button was pressed?All
Ye s!Replace the Central Timer Module.
Perform BODY VERIFICATION TEST - VER 1.
No!Replace the Sentry Key RemotE Entry Module.
Perform BODY VERIFICATION TEST - VER 1.
210
POWER DOOR LOCKS/RKE

Symptom:

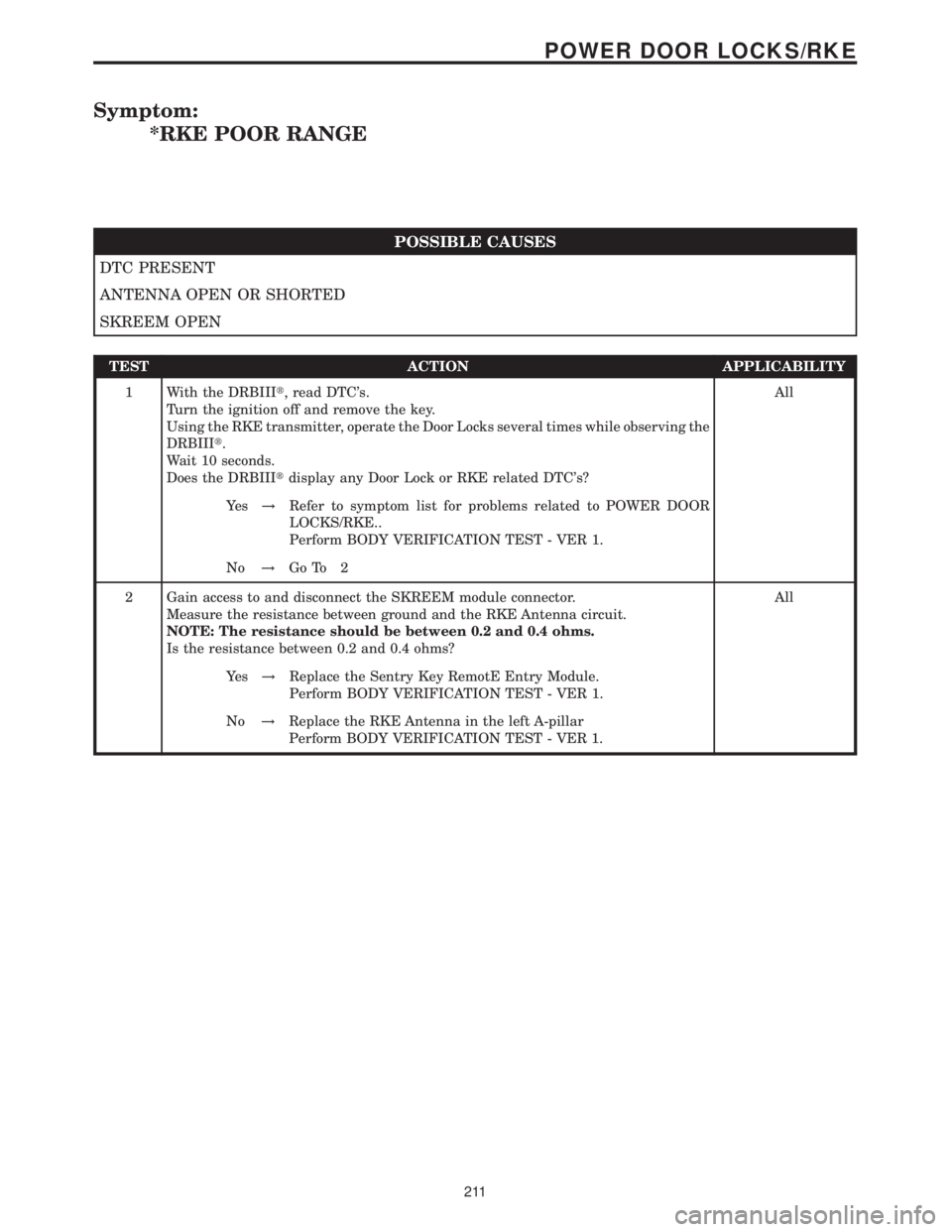

*RKE POOR RANGE
POSSIBLE CAUSES
DTC PRESENT
ANTENNA OPEN OR SHORTED
SKREEM OPEN
TEST ACTION APPLICABILITY
1 With the DRBIIIt, read DTC's.
Turn the ignition off and remove the key.
Using the RKE transmitter, operate the Door Locks several times while observing the
DRBIIIt.
Wait 10 seconds.
Does the DRBIIItdisplay any Door Lock or RKE related DTC's?All
Ye s!Refer to symptom list for problems related to POWER DOOR
LOCKS/RKE..
Perform BODY VERIFICATION TEST - VER 1.
No!Go To 2
2 Gain access to and disconnect the SKREEM module connector.
Measure the resistance between ground and the RKE Antenna circuit.
NOTE: The resistance should be between 0.2 and 0.4 ohms.
Is the resistance between 0.2 and 0.4 ohms?All
Ye s!Replace the Sentry Key RemotE Entry Module.
Perform BODY VERIFICATION TEST - VER 1.
No!Replace the RKE Antenna in the left A-pillar
Perform BODY VERIFICATION TEST - VER 1.
211
POWER DOOR LOCKS/RKE

Symptom:

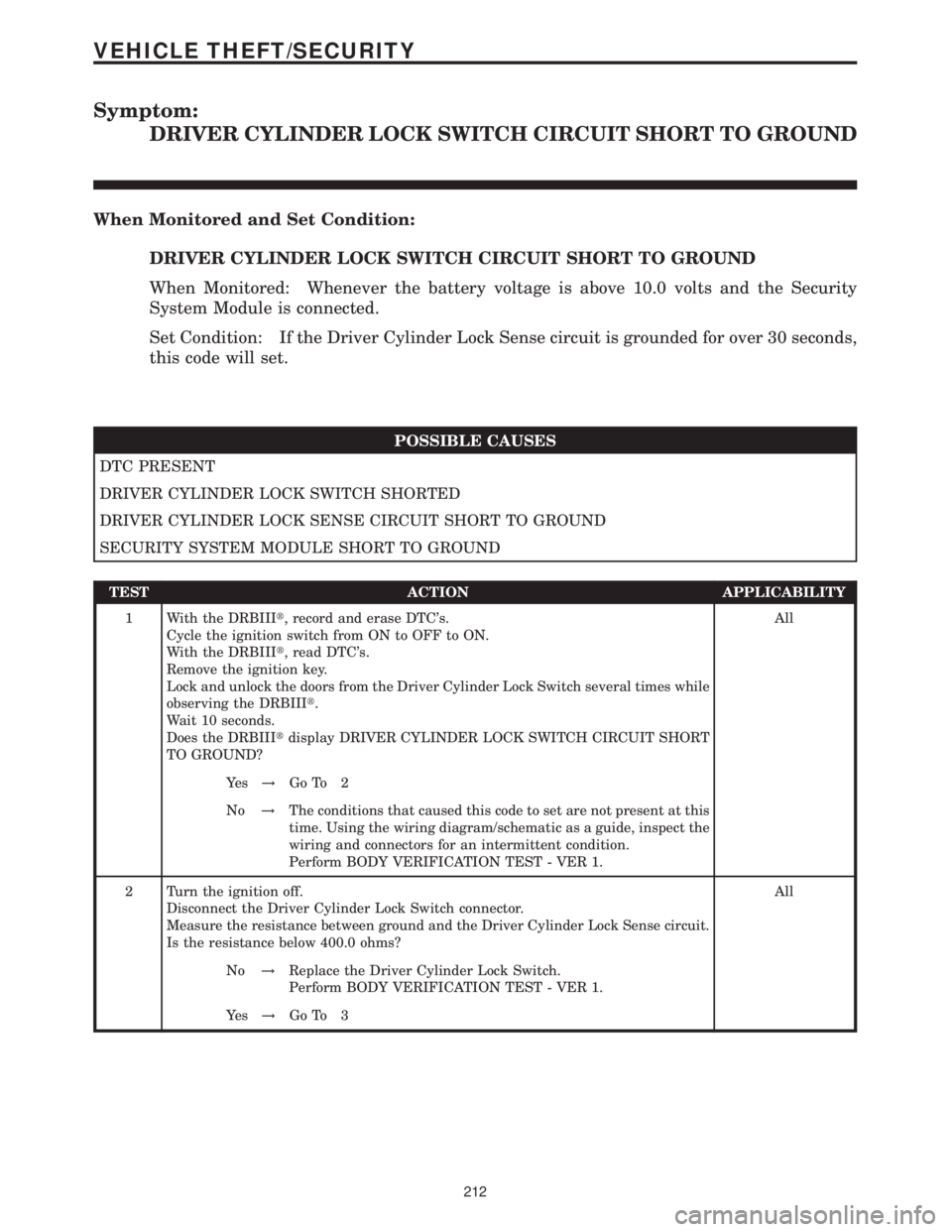

DRIVER CYLINDER LOCK SWITCH CIRCUIT SHORT TO GROUND
When Monitored and Set Condition:
DRIVER CYLINDER LOCK SWITCH CIRCUIT SHORT TO GROUND
When Monitored: Whenever the battery voltage is above 10.0 volts and the Security
System Module is connected.
Set Condition: If the Driver Cylinder Lock Sense circuit is grounded for over 30 seconds,
this code will set.
POSSIBLE CAUSES
DTC PRESENT
DRIVER CYLINDER LOCK SWITCH SHORTED
DRIVER CYLINDER LOCK SENSE CIRCUIT SHORT TO GROUND
SECURITY SYSTEM MODULE SHORT TO GROUND
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Cycle the ignition switch from ON to OFF to ON.
With the DRBIIIt, read DTC's.
Remove the ignition key.
Lock and unlock the doors from the Driver Cylinder Lock Switch several times while
observing the DRBIIIt.
Wait 10 seconds.
Does the DRBIIItdisplay DRIVER CYLINDER LOCK SWITCH CIRCUIT SHORT
TO GROUND?All
Ye s!Go To 2
No!The conditions that caused this code to set are not present at this
time. Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Turn the ignition off.
Disconnect the Driver Cylinder Lock Switch connector.
Measure the resistance between ground and the Driver Cylinder Lock Sense circuit.
Is the resistance below 400.0 ohms?All
No!Replace the Driver Cylinder Lock Switch.
Perform BODY VERIFICATION TEST - VER 1.
Ye s!Go To 3
212
