qConstant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
lSAS unit
lCrash sensor
lAir bag modules
lSide crash sensorsí
lSeat belt pretensioners
lRelated wiring
lFront passenger air bag deactivation
switch
lDriver seat slide position sensor
lFront passenger seat weight sensors
lDriver and front passenger seat belt
buckle switches
The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
q Air Bag/Seat Belt Pretensioner
System Warning Light
If the air bag/seat belt pretensioner system
is normal, the warning light illuminates
when the ignition switch is turned to the
ON position or after the engine is cranked.
After about 6 seconds it goes out. A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death. Never tamper
with the systems and always have an
Authorized Mazda Dealer perform all
servicing and repairs.
q
Maintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.
lThe air bags have deployed.
Essential Safety Equipment
SRS Air Bags
2-45íSome models.
MX-5_8U35-EA-05F_Edition4 Page57
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (58,1)
lPassenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart or when you
manually deactivate the passenger air
bag with the key.
For more details about passenger air
bag deactivation, refer to:
lPassenger seat weight sensors (page
2-37)
lPassenger air bag deactivation
switch (page 2-30)
WARNING
Damaged Air Bag/Seat Belt
Pretensioner System Components:
Expended or damaged air bag or seat
belt pretensioner units must be
replaced after any collision which
caused them to deploy or damage
them. Only a trained Authorized
Mazda Dealer can fully evaluate these
systems to see that they will work in
the next accident. Driving with an
expended or damaged air bag or
pretensioner units will provide you
reduced protection in the next accident
and you could be injured or killed.
Removing Interior Parts:
Removing any components such as the
seats(if side air bags are equipped),
dashboard, the steering wheel or parts
containing air bag parts or sensors is
dangerous. These parts contain
essential air bag components. The air
bag could accidentally activate and
cause serious injuries. Always have an
Authorized Mazda Dealer remove
these parts.
WARNING
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury can
result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint system
modified to accommodate a person with
certain medical conditions in
accordance with a certified physician,
contact an Authorized Mazda Dealer,
refer to“Customer Assistance (U.S.A.) ”
(page 9-2).
2-46
Essential Safety Equipment
SRS Air Bags
MX-5_8U35-EA-05F_Edition4 Page58
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (59,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Advanced Keyless Entry and Start System ................................ 3-2Advanced Keysí...................................................................... 3-2
Operation Using Advanced Keyless Functions ......................... 3-7
Operation Using Advanced Key Functions ............................. 3-14
Advanced Key Suspend Function ........................................... 3-17
Warning and Beep Sounds ...................................................... 3-18
Setting Change (Function Customization) .............................. 3-20
User Mis-Operation Warning Indicators ................................. 3-21
Doors and Locks ......................................................................... 3-22 Keys (without Advanced Key) ................................................ 3-22
Keyless Entry System (with Retractable Type Key)
í............ 3-23
Door Locks ............................................................................. 3-28
Trunk Lid ................................................................................ 3-31
Inside Trunk Release Lever ..................................................... 3-34
Power Windows ...................................................................... 3-35
Fuel-Filler Lid and Cap ........................................................... 3-37
Hood ....................................................................................... 3-38
Convertible Top ...................................................................... 3-40
Detachable Hardtop (Canada)
í.............................................. 3-45
Security System ........................................................................... 3-53 Immobilizer System (with Advanced Key) ............................. 3-53
Immobilizer System (without Advanced Key) ........................ 3-56
Theft-Deterrent System
í........................................................ 3-59
Steering Wheel and Mirrors ...................................................... 3-61 Steering Wheel ........................................................................ 3-61
Mirrors .................................................................................... 3-61
3-1íSome models.
MX-5_8U35-EA-05F_Edition4 Page59
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (60,1)
Advanced Keysí
The advanced keyless functions (advanced keyless entry and start system) enables the
following operations while the advanced key is being carried (page 3-7).
lLocking/unlocking the doors, opening the trunk lid, without operating the key.
lStarting the engine without operating the key.
The advanced key enables additional functions other than those with the advanced keyless
functions (page 3-14).
lThe following operations are possible using the keyless entry system from a distance
(Lock/Unlock/Trunk button/Panic button):
lLocking/unlocking the doors.lOpening the trunk lid.lTurning on the alarm.
lLocking/unlocking the doors, opening the trunk lid, or starting the engine using the
auxiliary key.
WARNING
Keys and Children:
Leaving children in a vehicle with the key is dangerous. This could result in someone
being badly injured or even killed. These new kinds of keys are fascinating to
children. They could play with power windows or other controls, or even make the
vehicle move. Don't leave the keys in your vehicle with children and keep them in a
place where your children will not find or play with them.
Use of Advanced Key Near Medical Equipment:
Radio waves from the advanced key may affect medical equipment such as
pacemakers. Before using the advanced key near people who use medical equipment,
ask the medical equipment manufacturer or your physician if radio waves from the
advanced key will affect the equipment.
NOTE
lThe driver must carry the advanced key to ensure the system functions properly.
lRefer to Immobilizer System (page 3-53) for information regarding keys and engine
starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-59) for information regarding keys and the
prevention of vehicle and vehicle contents theft.
3-2
Knowing Your Mazda
íSome models.
Advanced Keyless Entry and Start System
MX-5_8U35-EA-05F_Edition4 Page60
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (61,1)
Panic button Trunk buttonKey code number plate
Operation indicator light Unlock button
Lock button
Auxiliary key
A code number is stamped on the plate attached to the key set; detach this plate and store it
in a safe place (not in the vehicle) for use if you need to make a replacement key.
Also write down the code number and keep it in another safe and handy place, but not in
the vehicle.
If your key is lost, consult your Authorized Mazda Dealer with the code number ready.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-3
MX-5_8U35-EA-05F_Edition4 Page61
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (62,1)

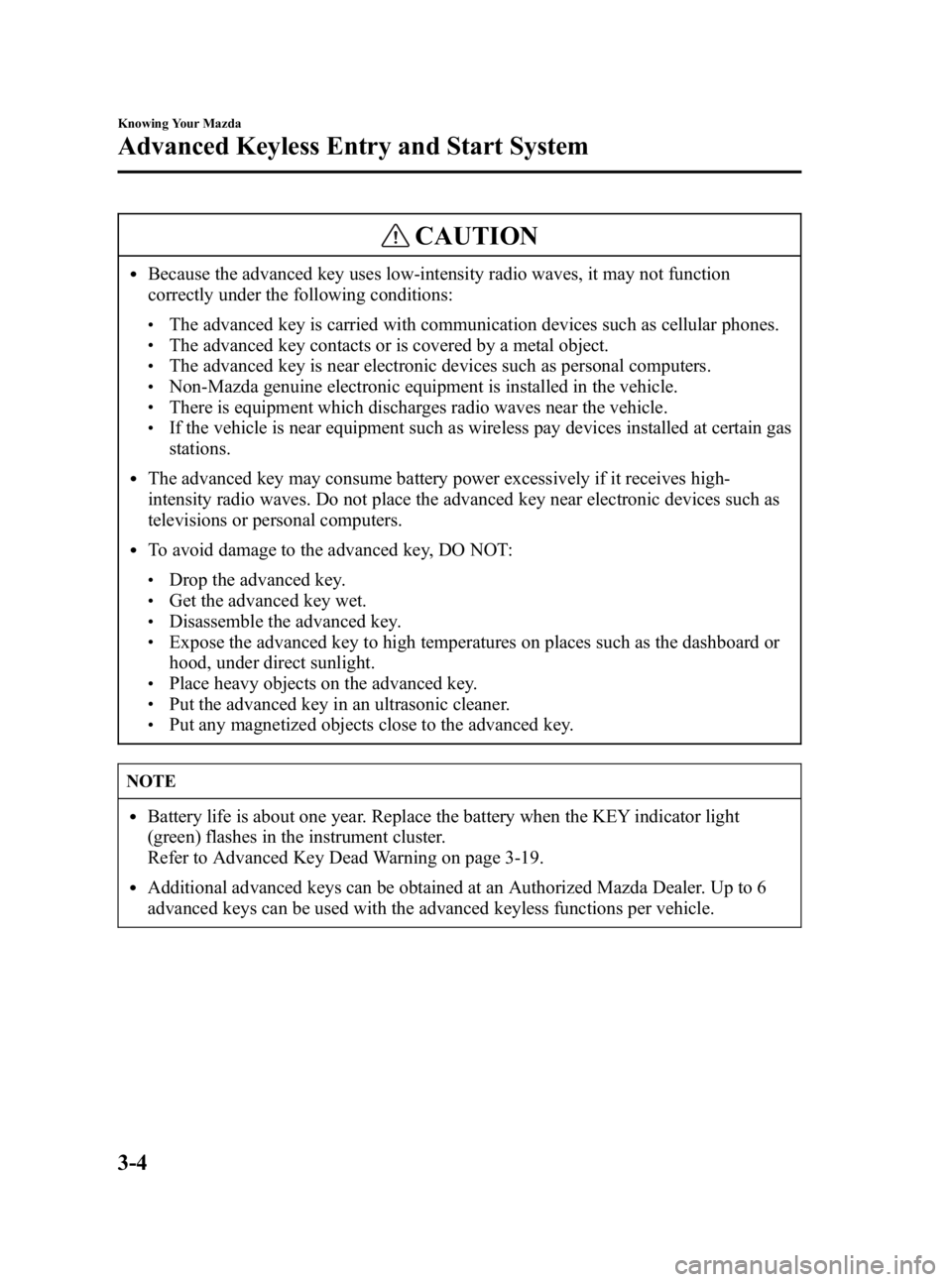

CAUTION

lBecause the advanced key uses low-intensity radio waves, it may not function
correctly under the following conditions:
lThe advanced key is carried with communication devices such as cellular phones.lThe advanced key contacts or is covered by a metal object.lThe advanced key is near electronic devices such as personal computers.lNon-Mazda genuine electronic equipment is installed in the vehicle.lThere is equipment which discharges radio waves near the vehicle.lIf the vehicle is near equipment such as wireless pay devices installed at certain gas
stations.
lThe advanced key may consume battery power excessively if it receives high-
intensity radio waves. Do not place the advanced key near electronic devices such as
televisions or personal computers.
lTo avoid damage to the advanced key, DO NOT:
lDrop the advanced key.lGet the advanced key wet.lDisassemble the advanced key.lExpose the advanced key to high temperatures on places such as the dashboard or
hood, under direct sunlight.
lPlace heavy objects on the advanced key.lPut the advanced key in an ultrasonic cleaner.lPut any magnetized objects close to the advanced key.
NOTE
lBattery life is about one year. Replace the battery when the KEY indicator light
(green) flashes in the instrument cluster.
Refer to Advanced Key Dead Warning on page 3-19.
lAdditional advanced keys can be obtained at an Authorized Mazda Dealer. Up to 6
advanced keys can be used with the advanced keyless functions per vehicle.
3-4
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8U35-EA-05F_Edition4 Page62
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (63,1)
qAdvanced Key Maintenance
CAUTION
lMake sure the battery is installed
with the correct pole facing upward.
Battery leakage could occur if it is
not installed correctly.
lWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also be
careful not to get dirt in the
transmitter as it could be damaged.
lThere is the danger of explosion if
the battery is not correctly replaced.
lReplace only with the same type
battery (CR2025 or equivalent).
lDispose of used batteries according
to the following instructions.
lInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
lNever disassemble.lNever throw the battery into fire
or water.
lNever deform or crush.
The following conditions indicate that the
battery power is low:
lThe KEY indicator light (green) flashes
in the instrument cluster when the
engine is turned off.
lThe system does not operate and the
operation indicator light does not flash
when the buttons are pressed.
lThe system's operational range is
reduced. Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the advanced key. If replacing
the battery by yourself, follow the
instruction below.
Replacing the advanced key battery
1. Pull out the auxiliary key.
2. Release the cap using a flathead
screwdriver, then rotate and remove the
cap.
Cap
CAUTION
Do not turn the cap excessively. The
cap may be damaged.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-5
MX-5_8U35-EA-05F_Edition4 Page63
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (64,1)
3. Insert a flathead screwdriver into thecrack and press the battery out.
4. Insert the new battery (CR2025 or
equivalent) with the positive pole (
)
facing the (
) mark on the cap.
5. Rotate and close the cap.
Cap
6. Reinsert the auxiliary key.
q Service
If you have a problem with the advanced
keyless functions, consult an Authorized
Mazda Dealer.
If your advanced key is lost or stolen,
bring all remaining advanced keys to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen advanced key
inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
3-6
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8U35-EA-05F_Edition4 Page64
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F
