2006 MAZDA MODEL MX-5 MIATA Owners Manual

Black plate (9,1)
Power door lock switch ..................................................................................... page 3-29
Outside mirror switch ........................................................................................ page 3-61
DSC OFF switch ............................................................................................... page 5-24
Passenger airbag deactivation switch ................................................................ page 2-30
Dashboard illumination ..................................................................................... page 5-37
Lighting control/Turn signals ............................................................................ page 5-52
Instrument cluster .............................................................................................. page 5-33
Air bags ............................................................................................................. page 2-26
Wiper and washer lever ..................................................................................... page 5-55
Cruise control switches ...................................................................................... page 5-19
Hazard warning flasher switch .......................................................................... page 5-57
Climate control system ........................................................................................ page 6-2
Audio system ..................................................................................................... page 6-10
Parking brake ....................................................................................................... page 5-5
Power window switches .................................................................................... page 3-36
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-12
Accessory socket ............................................................................................... page 6-43
Ignition switch ..................................................................................................... page 5-2
Tilt wheel release lever ...................................................................................... page 3-61
Audio control switch ......................................................................................... page 6-36
Fog light switch ................................................................................................. page 5-54
Hood release handle .......................................................................................... page 3-38
Trunk release button .......................................................................................... page 3-31
Fuse box ............................................................................................................ page 8-43
Seat belt ............................................................................................................... page 2-5
Seats ..................................................................................................................... page 2-2
Convertible top unlock lever .............................................................................. page 3-43
Sunvisor ............................................................................................................. page 6-39
Rearview mirror ................................................................................................. page 3-62
Interior light ....................................................................................................... page 6-39
Vanity mirror ...................................................................................................... page 6-39
Glove box .......................................................................................................... page 6-41
Mesh Pocket ...................................................................................................... page 6-42
Cup holder ......................................................................................................... page 6-40
Bottle Holder ..................................................................................................... page 6-41
Remote fuel-filler lid release ............................................................................. page 3-37
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3
MX-5_8U35-EA-05F_Edition4 Page9
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (10,1)
The equipment and installation position varies by model.
1-4
Your Vehicle at a Glance
Exterior Overview
MX-5_8U35-EA-05F_Edition4 Page10
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (11,1)
Trunk lid ............................................................................................................ page 3-31
Rear window defroster ....................................................................................... page 5-56
Antenna ............................................................................................................. page 6-10
Doors and keys .................................................................................................. page 3-28
Outside mirror .................................................................................................... page 3-61
Tires ................................................................................................................... page 8-30
Light bulbs ......................................................................................................... page 8-35
Hood .................................................................................................................. page 3-38
Windshield wiper blades .................................................................................... page 8-25
Convertible top .................................................................................................. page 3-40
Power windows ................................................................................................. page 3-35
Fuel-filler lid ...................................................................................................... page 3-37
Your Vehicle at a Glance
Exterior Overview
1-5
MX-5_8U35-EA-05F_Edition4 Page11
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (12,1)
1-6
MX-5_8U35-EA-05F_Edition4 Page12
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (13,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2Seats .......................................................................................... 2-2
Seat Belt Systems .......................................................................... 2-5 Seat Belt Precautions ................................................................ 2-5
Seat Belts .................................................................................. 2-8
Seat Belt Pretensioner and Load Limiting Systems ................ 2-10
Seat Belt Extender ................................................................... 2-12
Seat Belt Warning Light/Beep ................................................ 2-13
Child Restraint ............................................................................ 2-15 Child Restraint Precautions ..................................................... 2-15
Installing a Child-Restraint System ......................................... 2-20
LATCH Child-Restraint System ............................................. 2-23
SRS Air Bags ............................................................................... 2-26 Supplemental Restraint Systems (SRS) Precautions ............... 2-26
Passenger Air Bag Deactivation Switch .................................. 2-30
Supplemental Restraint System Components ......................... 2-34
How the Air Bags Work .......................................................... 2-37
2-1
MX-5_8U35-EA-05F_Edition4 Page13
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (14,1)
Seats
WARNING
Modification of the Front Seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Damaged Front Seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, the
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
Securing the Seats:
Adjustable seats and seatbacks that
are not securely locked are dangerous.
In a sudden stop or collision, the seat
or seatback could move, causing
injury. Make sure the adjustable
components of the seat are locked in
place by attempting to slide the seat
forward and backward and rocking
the seatback.
qSeat Slide
WARNING
Driver's Seat Adjustment:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident. Adjust the
driver's seat only when the vehicle is
stopped.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
2-2
Essential Safety Equipment
Seats
MX-5_8U35-EA-05F_Edition4 Page14
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (15,1)

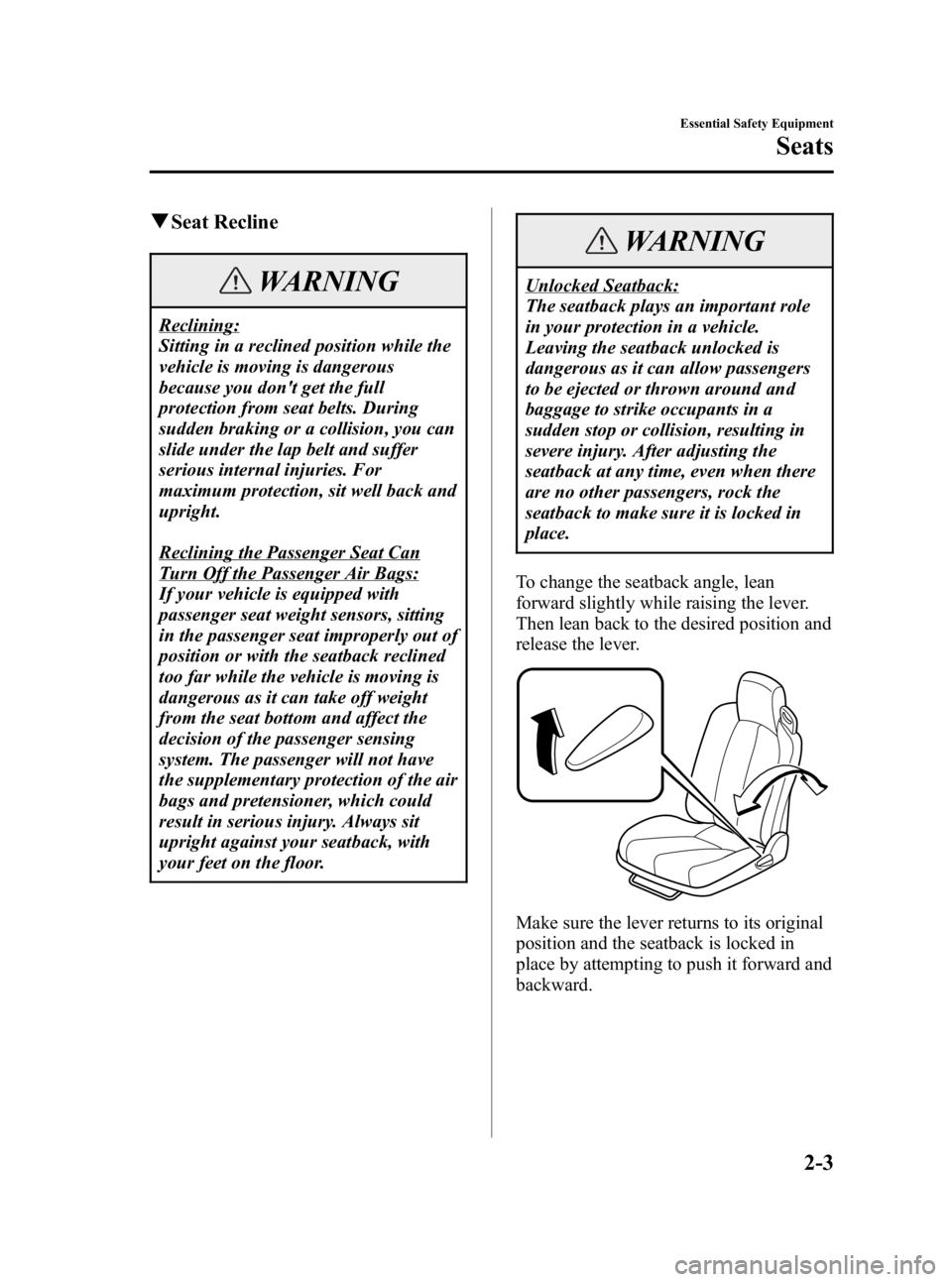

qSeat Recline
WARNING
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Reclining the Passenger Seat Can
Turn Off the Passenger Air Bags:
If your vehicle is equipped with
passenger seat weight sensors, sitting
in the passenger seat improperly out of
position or with the seatback reclined
too far while the vehicle is moving is
dangerous as it can take off weight
from the seat bottom and affect the
decision of the passenger sensing
system. The passenger will not have
the supplementary protection of the air
bags and pretensioner, which could
result in serious injury. Always sit
upright against your seatback, with
your feet on the floor.
WARNING
Unlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
MX-5_8U35-EA-05F_Edition4 Page15
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (16,1)
CAUTION
When returning a rear-reclined seatback
to its upright position, make sure you
hold onto the seatback with your other
hand while operating the lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
qSeat Warmerí
The seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
NOTE
The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.
2-4
Essential Safety Equipment
íSome models.
Seats
MX-5_8U35-EA-05F_Edition4 Page16
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F
