Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
rear wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
Wheel dollies
CAUTION
Don't tow the vehicle pointed forward
with driving wheels on the ground. This
may cause internal damage to the
transmission.
CAUTION
Don't tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
In Case of an Emergency
Emergency Towing
7-27
MX-5_8U35-EA-05F_Edition4 Page265
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (266,1)
Tiedown Hooks
CAUTION
Don't use the tiedown hooks under the
front and rear for towing.
They are designed ONLY for tying
down the vehicle when it's being
transported. Using them for towing will
damage the bumper.
qTiedown Hooks
1. Remove the tiedown eyelet, lug
wrench, and jack lever from the trunk
(page 7-5).
2. Wrap the jack lever with a soft cloth to prevent damage to the bumper and
open the cap located on the front and
rear bumper.
Front
Rear
CAUTION
The cap cannot be completely removed.
Do not use excessive force as it may
damage the cap or scratch the painted
bumper surface.
3. Securely install the tiedown eyelet using the lug wrench.
Lug wrench
Front
7-28
In Case of an Emergency
Emergency Towing
MX-5_8U35-EA-05F_Edition4 Page266
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (267,1)
Lug wrenchRear
4. Hook the tying rope to the tiedowneyelet.
Front
Rear
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down the
vehicle. Make sure that the tiedown
eyelet is securely tightened to the
bumper.
In Case of an Emergency
Emergency Towing
7-29
MX-5_8U35-EA-05F_Edition4 Page267
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (268,1)
Recreational Towing
An example of“recreational towing ”is
towing your vehicle behind a motorhome.
The transmission is not designed for
towing this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ”(page 7-27) and
“ Tiedown Hooks ”(page 7-28) and
carefully follow the instructions.
7-30
In Case of an Emergency
Emergency Towing
MX-5_8U35-EA-05F_Edition4 Page268
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (269,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3 Scheduled Maintenance (North America) ................................. 8-3
Scheduled Maintenance (Except North America) ..................... 8-8
Owner Maintenance .................................................................... 8-11 Owner Maintenance Schedule ................................................. 8-11
Owner Maintenance Precautions ............................................. 8-12
Engine Compartment Overview .............................................. 8-14
Engine Oil ............................................................................... 8-15
Engine Coolant ....................................................................... 8-18
Brake/Clutch Fluid .................................................................. 8-21
Power Steering Fluid ............................................................... 8-22
Washer Fluid ........................................................................... 8-22
Body Lubrication .................................................................... 8-23
Air Filter .................................................................................. 8-24
Wiper Blades ........................................................................... 8-25
Battery ..................................................................................... 8-27
Tires ........................................................................................ 8-30
Light Bulbs ............................................................................. 8-35
Fuses ....................................................................................... 8-43
Appearance Care ........................................................................ 8-48 How to Minimize Environmental Paint Damage .................... 8-48
Exterior Care ........................................................................... 8-50
Interior Care ............................................................................ 8-54
8-1
MX-5_8U35-EA-05F_Edition4 Page269
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (270,1)

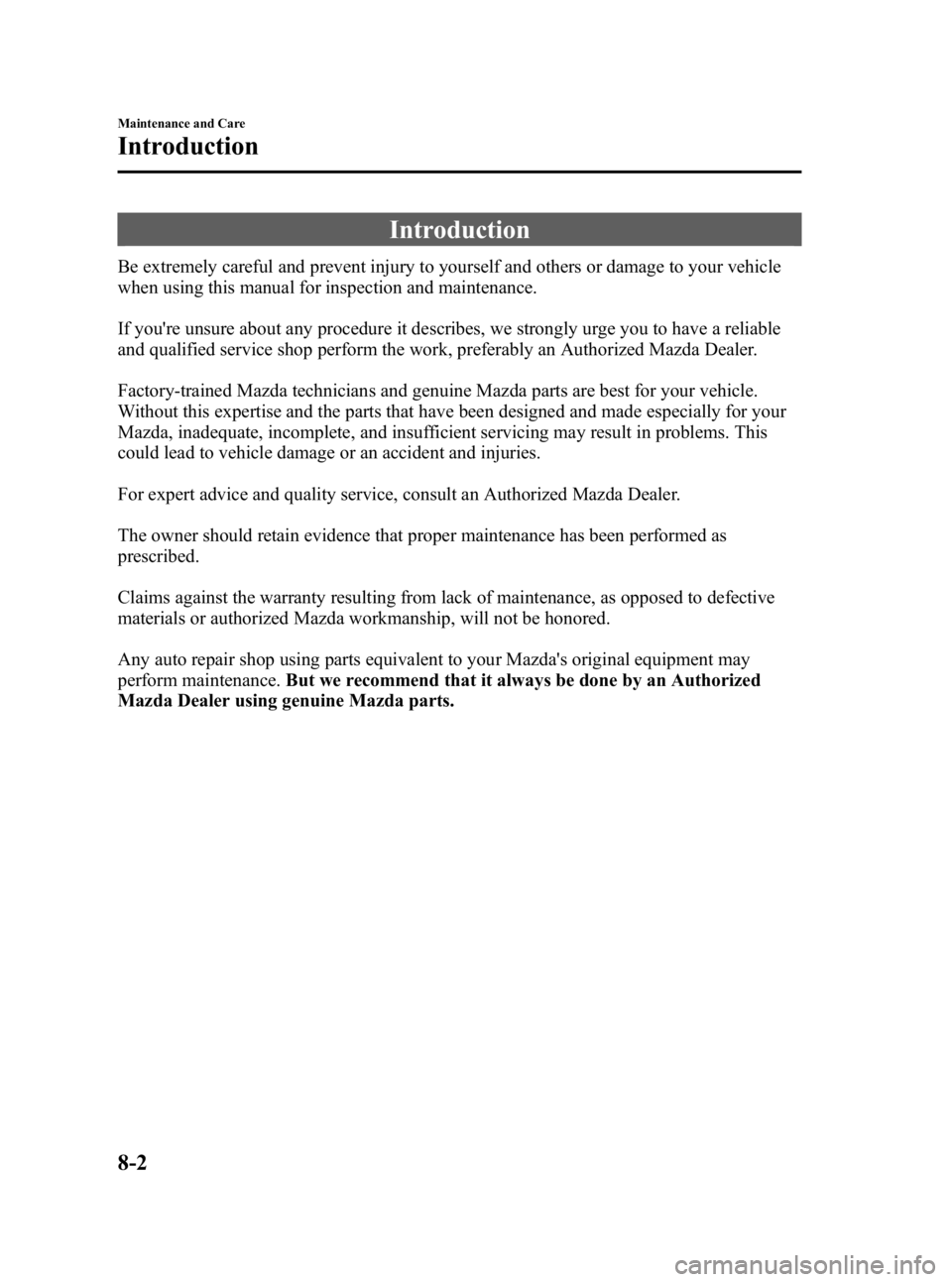

Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you're unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance.But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
8-2
Maintenance and Care
Introduction
MX-5_8U35-EA-05F_Edition4 Page270
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (271,1)
Scheduled Maintenance (North America)
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).
lRepeated short-distance driving
lDriving in dusty conditions
lDriving with extended use of brakes
lDriving in areas where salt or other corrosive materials are being used
lDriving on rough or muddy roads
lExtended periods of idling or low-speed operation
lDriving for long periods in cold temperatures or extremely humid climates
NOTE
After the prescribed period, continue to follow the described maintenance at the
recommended intervals.
Maintenance and Care
Scheduled Maintenance
8-3
MX-5_8U35-EA-05F_Edition4 Page271
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (272,1)
qSchedule 1
Maintenance Interval Number of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Drive belts (tension) I
Engine valve clearance Audible inspect every 120,000 km (75,000 miles), if noisy,
adjust
Engine oil RRRRRRRR
Engine oil filter RRRRRRRR
COOLING SYSTEM
Engine coolant FL22 type
*1Replace at first 192,000 km (120,000 miles) or 10 years; after
that, 96,000 km (60,000 miles) or 5 years
Others Replace at first 96,000 km (60,000 miles) or 4 years; after that,
every 2 years
FUEL SYSTEM
Air filter CC R C
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles)
8-4
Maintenance and Care
Scheduled Maintenance
MX-5_8U35-EA-05F_Edition4 Page272
Thursday, October 6 2005 11:5 AM
