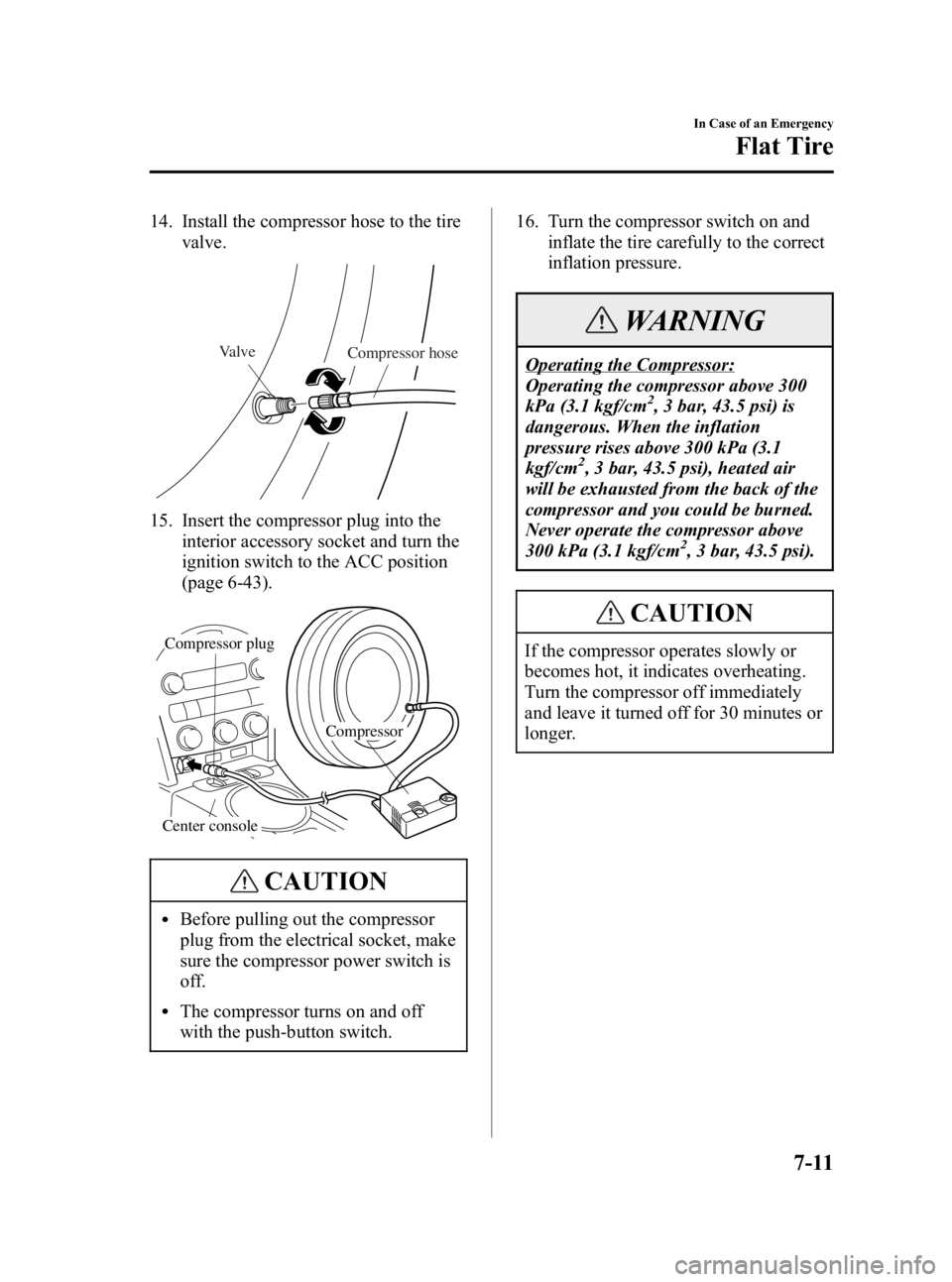

14. Install the compressor hose to the tirevalve.
Valve Compressor hose
15. Insert the compressor plug into the
interior accessory socket and turn the
ignition switch to the ACC position
(page 6-43).
Compressor plug
Center console
Compressor
CAUTION
lBefore pulling out the compressor
plug from the electrical socket, make
sure the compressor power switch is
off.
lThe compressor turns on and off
with the push-button switch. 16. Turn the compressor switch on and
inflate the tire carefully to the correct
inflation pressure.
WARNING
Operating the Compressor:
Operating the compressor above 300
kPa (3.1 kgf/cm
2, 3 bar, 43.5 psi) is
dangerous. When the inflation
pressure rises above 300 kPa (3.1
kgf/cm
2, 3 bar, 43.5 psi), heated air
will be exhausted from the back of the
compressor and you could be burned.
Never operate the compressor above
300 kPa (3.1 kgf/cm
2, 3 bar, 43.5 psi).
CAUTION
If the compressor operates slowly or
becomes hot, it indicates overheating.
Turn the compressor off immediately
and leave it turned off for 30 minutes or
longer.
In Case of an Emergency
Flat Tire
7-11
MX-5_8U35-EA-05F_Edition4 Page249
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (250,1)
NOTE
lCheck the tire inflation pressure label
(driver's door frame) for the correct
tire inflation pressure.
lDo not use the compressor for longer
than 10 minutes because using the
compressor for long periods could
damage it.
lIf the tire does not inflate, repair of
the tire may not be possible. If the
tire does not reach the correct
inflation pressure within a 10-minute
period, it probably has received more
extensive damage. When this
happens, the emergency flat tire
repair kit cannot be used to repair the
tire. Contact an Authorized Mazda
Dealer.
lIf the tire has been over-inflated,
loosen the screw cap on the
compressor and bleed some of the air
out.
17. When the tire has been inflated to the proper inflation pressure, turn the
compressor switch off and remove the
compressor hose from the tire valve.
18. Install the tire valve cap.
19. Put the emergency flat tire repair kit in the trunk and continue driving.
CAUTION
lDrive carefully to an Authorized
Mazda Dealer and keep the vehicle
speed below 80 km/h (50 mph).
lIf the vehicle is driven 80 km/h (50
mph) or higher, the vehicle might
begin to vibrate. 20. After driving the vehicle for 10
minutes or 5 km (3 miles), check the
tire pressure with the tire pressure
gauge equipped with the compressor.
If the tire pressure has fallen below
the correct tire pressure, inflate the
tire to the correct pressure again
following the steps from number 15.
CAUTION
lIf the tire inflation pressure falls
below 130 kPa (1.3 kgf/cm2or bar,
18.9 psi), repair cannot be done with
the repair kit. Park the vehicle on a
level surface off the right-of-way and
contact an Authorized Mazda Dealer.
lIf the tire inflation pressure
continues to remain low after
repeating steps 14 to 21, park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
NOTE
When checking the tire inflation
pressure with the tire pressure gauge on
the compressor unit, make sure the
compressor switch is turned off.
21. If the tire inflation pressure remains stable, the tire repair is complete.
Drive the vehicle with care to an
Authorized Mazda Dealer to have the
tire replaced.
7-12
In Case of an Emergency
Flat Tire
MX-5_8U35-EA-05F_Edition4 Page250
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (251,1)
CAUTION
lA tire that has been temporarily
repaired with the tire sealant cannot
be reused. Mazda recommends
replacing the tire with a new one.
lThe wheel can be reused after any
sealant adhering to it is wiped off
and carefully inspected. However,
replace the tire valve with a new one.
qInspecting the IMS Emergency
Flat Tire Repair Kit
Inspect the emergency tire repair kit at
regular intervals.
lCheck the tire sealant period of
effective use.
lCheck the operation of the tire
compressor.
NOTE
The tire sealant has a period of effective
use. Check the period of effective use
indicated on the bottle label and do not
use it if it has expired. Have the tire
sealant replaced at an Authorized
Mazda Dealer before the period of
effective use has expired.
Changing a Tire
WARNING
Jacking a Vehicle:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a
jack.
Passenger in Vehicle Supported by a
Jack:
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury. Never allow anyone inside a
vehicle supported by a jack.
CAUTION
(With Tire Pressure Monitoring
System)
The wheels equipped on your Mazda
are specially designed for installation of
the tire pressure sensors. Do not use
non-genuine wheels, otherwise it may
not be possible to install the tire
pressure sensors.
In Case of an Emergency
Flat Tire
7-13
MX-5_8U35-EA-05F_Edition4 Page251
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (252,1)
NOTE
lMake sure the jack is well lubricated
before using it.
(With Tire Pressure Monitoring
System)
lBe sure to register the tire pressure
sensor ID signal code whenever tires
or wheels are changed (page 5-30).

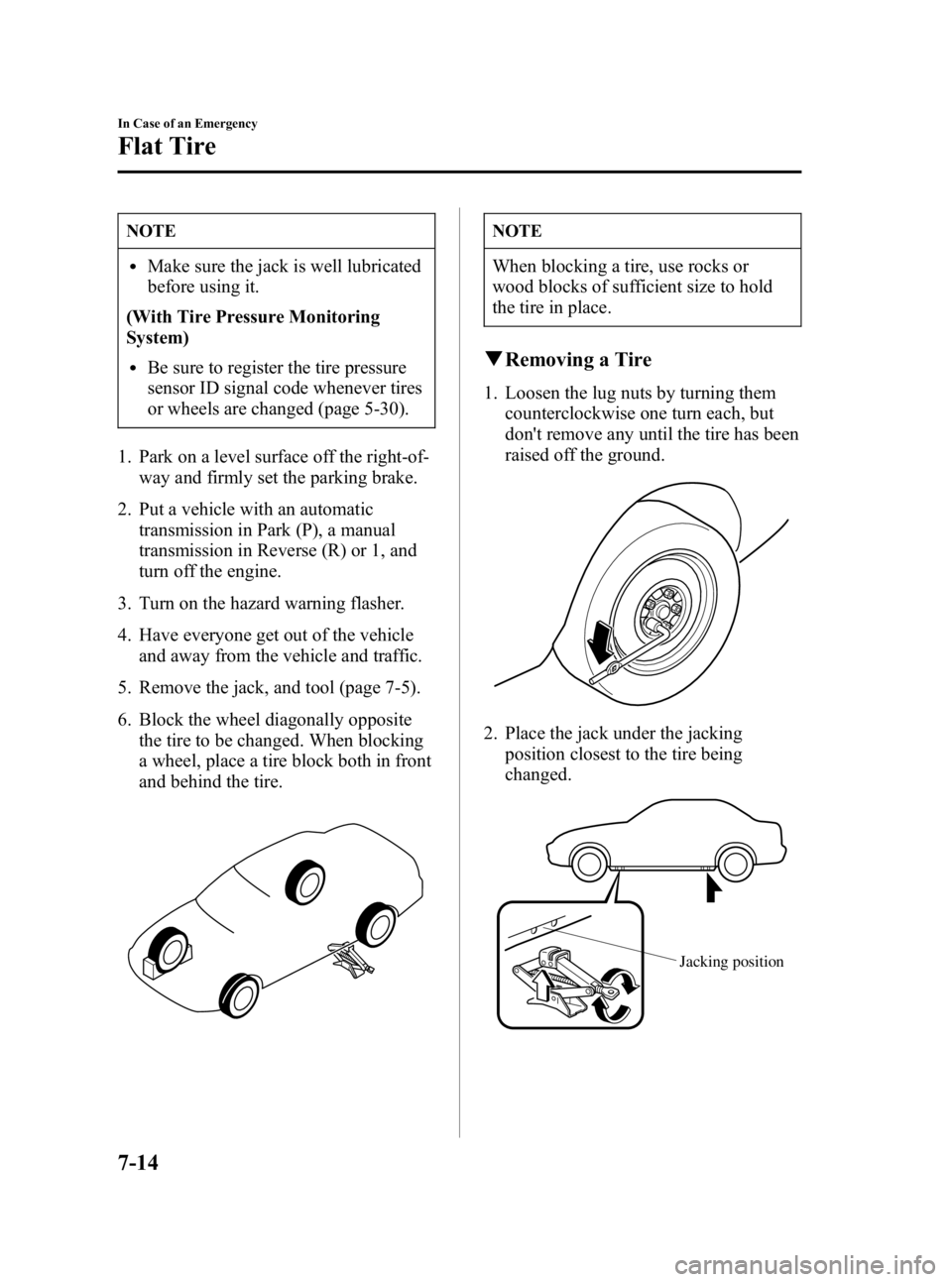

1. Park on a level surface off the right-of- way and firmly set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle and away from the vehicle and traffic.
5. Remove the jack, and tool (page 7-5).
6. Block the wheel diagonally opposite the tire to be changed. When blocking
a wheel, place a tire block both in front
and behind the tire.
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size to hold
the tire in place.
qRemoving a Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don't remove any until the tire has been
raised off the ground.
2. Place the jack under the jackingposition closest to the tire being
changed.
Jacking position
7-14
In Case of an Emergency
Flat Tire
MX-5_8U35-EA-05F_Edition4 Page252
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (253,1)
WARNING
Incorrect Jacking Position:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Improper Jack:
Using a jack that isn't designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone. Use only the jack
provided with your Mazda.
Placing Objects Under the Jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle. Never place objects
under the jack.
3. Insert the jack handle into the jack. 4. Turn the jack handle clockwise and
raise the vehicle high enough so that
the tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
5. Remove the lug nuts by turning themcounterclockwise, then remove the
wheel.
In Case of an Emergency
Flat Tire
7-15
MX-5_8U35-EA-05F_Edition4 Page253
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (254,1)
qLocking Lug Nuts
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench. Register them with the
lock manufacturer by filling out the card
provided in the glove box and mailing it
in the accompanying envelope. If you lose
this key, consult an Authorized Mazda
Dealer or use the lock manufacturer's
order form, which is with the registration
card.
Special key
Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the key for the antitheft lug nut.
2. Place the key on top of the nut, and be
sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Don't use a
power impact wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the wrench
counterclockwise.
To install the nut
1. Place the key on top of the nut, and besure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Don't use a
power impact wrench.
2. Place the lug wrench on top of the key, apply pressure, and turn it clockwise.
qMounting the Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Removing Dirt and Grime from
Wheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
7-16
In Case of an Emergency
Flat Tire
MX-5_8U35-EA-05F_Edition4 Page254
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (255,1)
2. Mount the tire.
3. Install the lug nuts with the bevelededge inward; tighten them by hand.
WARNING
Don't Apply Oil or Grease to Lug
Nuts, Bolts:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident.
In addition, lug nuts and bolts could
be damaged if tightened more than
necessary. Do not apply oil or grease
to lug nuts and bolts and do not
tighten the lug nuts beyond the
recommended tightening torque. 4. Turn the jack handle counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you're unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 88
―118
(9 ― 12, 65 ―87)
In Case of an Emergency
Flat Tire
7-17
MX-5_8U35-EA-05F_Edition4 Page255
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (256,1)
WARNING
Loose Lug Nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident. Always securely and
correctly tighten the lug nuts.
Metric Studs and Lug Nuts:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident. Be sure to
reinstall the same nuts you removed or
replace them with metric nuts of the
same configuration.
5. Check the inflation pressure. Refer to the specification charts on page 10-6.
WARNING
Incorrect Tire Air Pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
Don't drive with any tires that have
incorrect air pressure.
NOTE
To prevent the jack and tool from
rattling, store them properly.
7-18
In Case of an Emergency
Flat Tire
MX-5_8U35-EA-05F_Edition4 Page256
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F
