NOTE
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
of the replacement bulb to dispose of
the old bulb promptly out of the
reach of children.
Low-beam bulbs
(Xenon fusion bulbs)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulbs)
NOTE
Replacing low-beam halogen bulbs is
difficult therefore contacting an
Authorized Mazda Dealer is
recommended.
1. If you are changing the right headlight bulb, start the engine, turn the steering
wheel all the way to the left, and turn
off the engine. If you are changing the
left headlight bulb, turn the steering
wheel to the right. 2. Turn the screws counterclockwise and
remove them.
3. Turn the center section of the plastic
retainers counterclockwise and remove
them, then remove the mudguard.
Removal
Installation
4. Disconnect the electrical connector from the bulb by pulling it to the rear.
Maintenance and Care
Owner Maintenance
8-37
MX-5_8U35-EA-05F_Edition4 Page305
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (306,1)
5. Pull off the sealing cover.
6. Unhook the bulb retaining spring.
7. Swing the retaining spring out andaway to free the headlight bulb.
8. Carefully remove the socket and bulb assembly by pulling it straight back.
9. Remove the headlight bulb from the socket.
10. Install the new socket and bulb
assembly in the reverse order of
removal.
NOTE
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
lWhen reinstalling the sealing cover,
make sure
faces up.
Front fog light bulbsí
1. If you are changing the right Front foglight bulb, start the engine, turn the
steering wheel all the way to the left,
and turn off the engine. If you are
changing the left Front fog light bulb,
turn the steering wheel to the right.
2. Turn the screws counterclockwise and remove them.
8-38
Maintenance and Care
íSome models.
Owner Maintenance
MX-5_8U35-EA-05F_Edition4 Page306
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (307,1)
3. Turn the center section of the plasticretainers counterclockwise and remove
them, then remove the mudguard.
Removal
Installation
4. Turn the socket and bulb assembly counterclockwise, and carefully pull it
backward.
5. Disconnect the socket and bulb assembly from the electrical connector
by pressing the tab on the connector
with your finger and pulling it.
6. Install the new socket and bulbassembly in the reverse order of
removal.
NOTE
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
of the replacement bulb to dispose of
the old bulb promptly out of the
reach of children.
Front turn signal lights
1. If you are changing the right front turn
signal light bulb, start the engine, turn
the steering wheel all the way to the
left, and turn off the engine. If you are
changing the left front turn signal light
bulb, turn the steering wheel to the
right.
2. Turn the screws counterclockwise and remove them.
Maintenance and Care
Owner Maintenance
8-39
MX-5_8U35-EA-05F_Edition4 Page307
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (308,1)
3. Turn the center section of the plasticretainers counterclockwise and remove
them, then remove the mudguard.
Removal
Installation
4. Turn the socket and bulb assembly counterclockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order of removal.
Parking lights
1. Turn the socket and bulb assemblycounterclockwise and remove it. 2. Disconnect the bulb from the socket.
3. Install the new bulb in the reverse order
of removal.
Front side-marker lights
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
1. Slide the unit as shown in the figure to remove it.
2. Turn the socket and bulb assemblycounterclockwise and remove it.
8-40
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition4 Page308
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (309,1)
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse orderof removal.

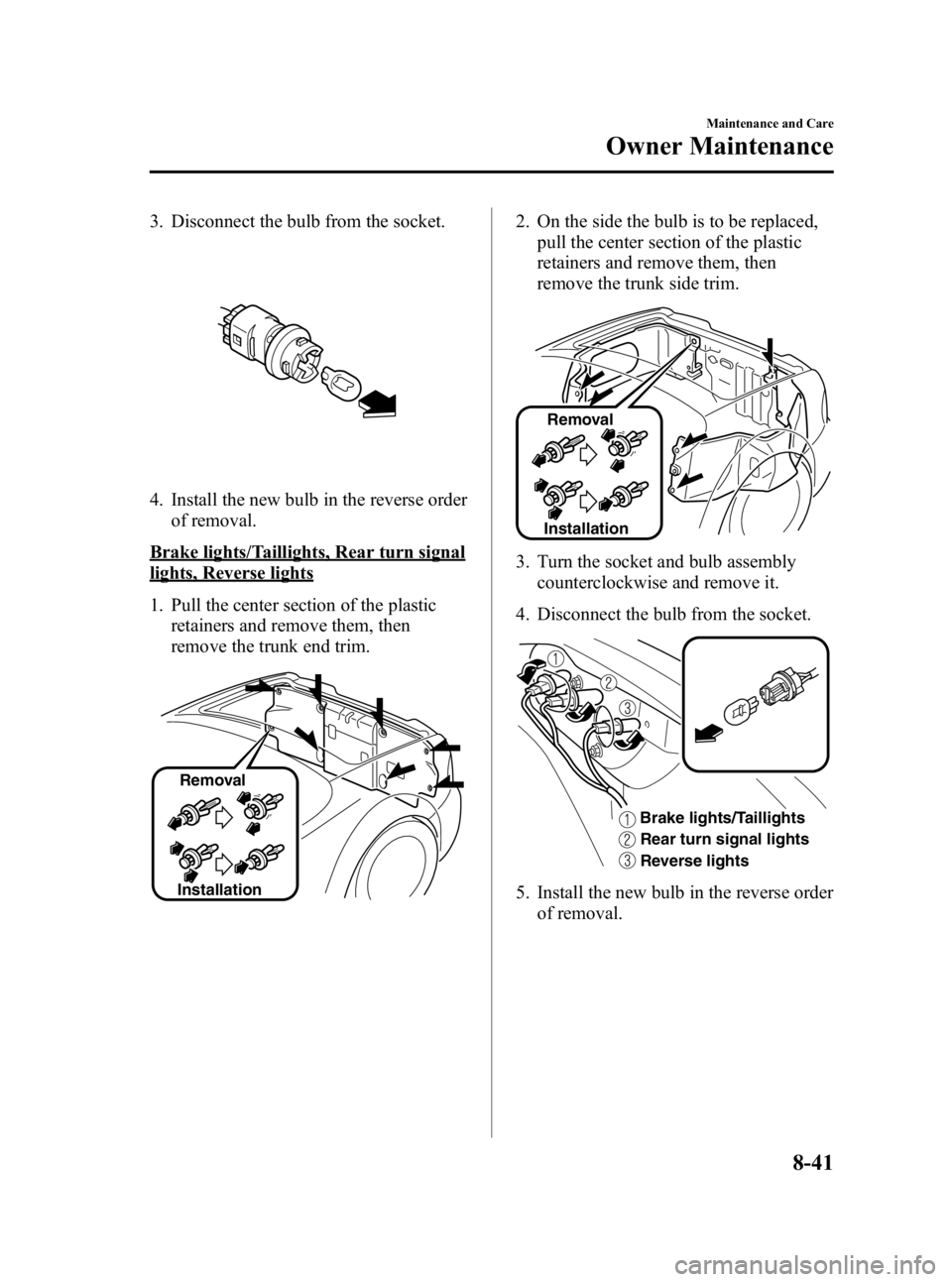

Brake lights/Taillights, Rear turn signal
lights, Reverse lights
1. Pull the center section of the plasticretainers and remove them, then
remove the trunk end trim.
Removal
Installation
2. On the side the bulb is to be replaced, pull the center section of the plastic
retainers and remove them, then
remove the trunk side trim.
Removal
Installation
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Brake lights/Taillights Rear turn signal lights
Reverse lights
5. Install the new bulb in the reverse order of removal.
Maintenance and Care
Owner Maintenance
8-41
MX-5_8U35-EA-05F_Edition4 Page309
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (310,1)
qReplacing Interior Light Bulbs
Overhead light
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the cover.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
Trunk light
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the trim and
gently insert it in the luggage
compartment light as shown in the
figure, and then remove the luggage
compartment light unit.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
8-42
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition4 Page310
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (311,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system doesn't work, first
inspect fuses on the vehicle's left side.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
3. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
Fuse puller
Fuse block cover
4. Inspect it and replace if it's blown.
Normal Blown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
WARNING
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Maintenance and Care
Owner Maintenance
8-43
MX-5_8U35-EA-05F_Edition4 Page311
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (312,1)
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new one of the same amperage rating .
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-45).
