If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.
qElectronic Brake Force
Distribution System Warningí
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light and the ABS warning light
on at the same time. The problem is likely
to be an electronic brake force distribution
system.
WARNING
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don't drive with both lights on, have
the vehicle towed to an Authorized
Mazda Dealer to have the brakes
inspected as soon as possible.
qBrake Pad Wear Indicator
When the disc brake pads become worn,
the built-in wear indicators contact the
disc plates. This causes a screeching noise
to warn that the pads should be replaced.
When you hear this noise, consult an
Authorized Mazda Dealer as soon as
possible.
5-8
Driving Your Mazda
íSome models.
Starting and Driving
MX-5_8U35-EA-05F_Edition4 Page144
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (177,1)
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.
qElectronic Brake Force
Distribution System Warningí
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light and the ABS warning light
on at the same time. The problem is likely
to be an electronic brake force distribution
system.
WARNING
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don't drive with both lights on, have
the vehicle towed to an Authorized
Mazda Dealer to have the brakes
inspected as soon as possible.
qCharging System Warning Light
This warning light illuminates when the
ignition switch is turned to the ON
position and turns off when the engine is
started.
If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-41íSome models.
MX-5_8U35-EA-05F_Edition4 Page177
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (239,1)

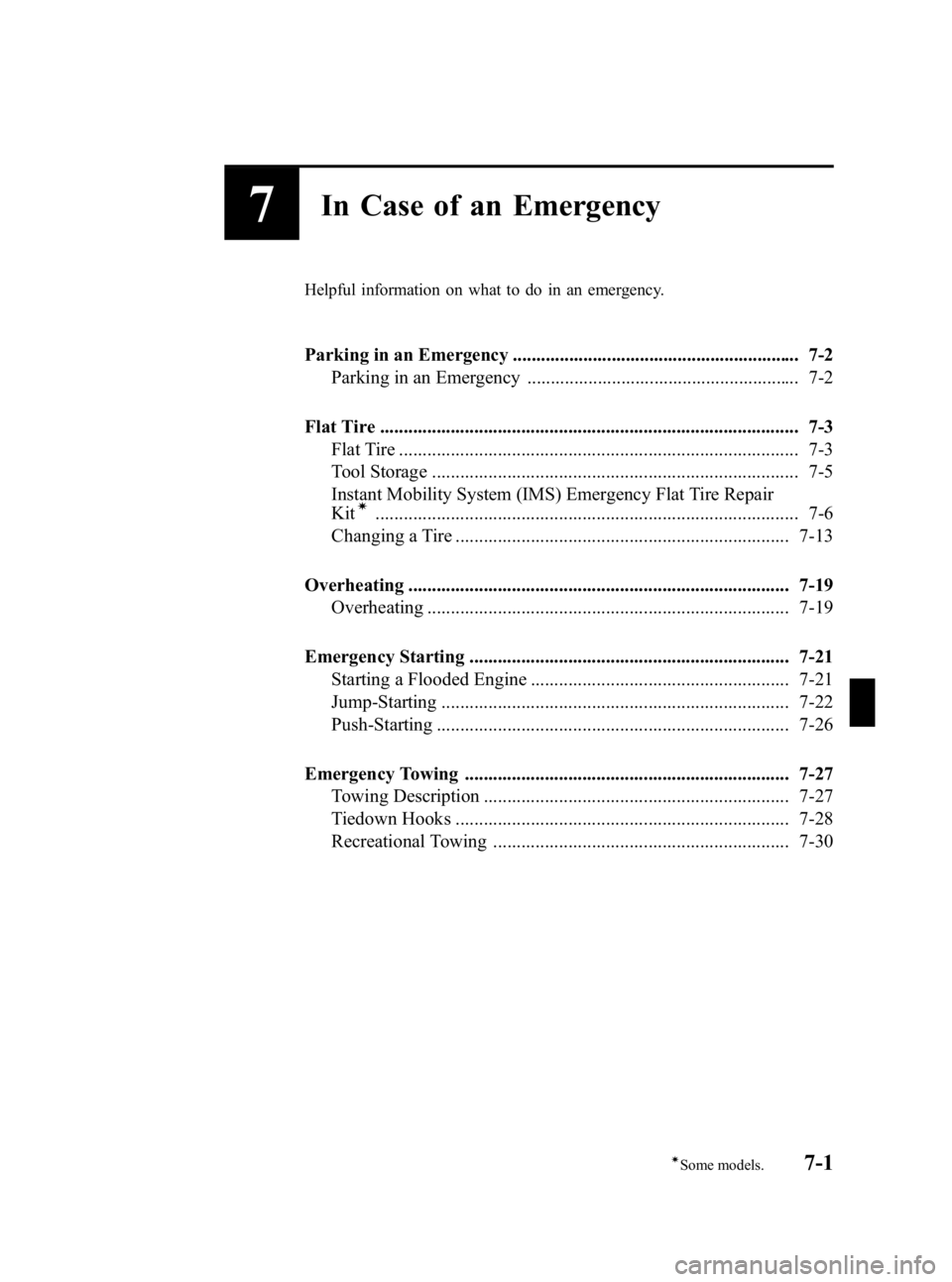

7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Flat Tire ..................................................................................... 7-3
Tool Storage .............................................................................. 7-5
Instant Mobility System (IMS) Emergency Flat Tire Repair
Kit
í.......................................................................................... 7-6
Changing a Tire ....................................................................... 7-13
Overheating ................................................................................. 7-19 Overheating ............................................................................. 7-19
Emergency Starting .................................................................... 7-21 Starting a Flooded Engine ....................................................... 7-21
Jump-Starting .......................................................................... 7-22
Push-Starting ........................................................................... 7-26
Emergency Towing ..................................................................... 7-27 Towing Description ................................................................. 7-27
Tiedown Hooks ....................................................................... 7-28
Recreational Towing ............................................................... 7-30
7-1íSome models.
MX-5_8U35-EA-05F_Edition4 Page239
Thursday, October 6 2005 11:4 AM
Form No.8U35-EA-05F

Black plate (260,1)
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Eye Protection:
Working without eye protection is dangerous. Battery fluid contains SULFURIC
ACID which could cause blindness if splashed into your eyes. Also, hydrogen gas
produced during normal battery operation, could ignite and cause the battery to
explode. Always wear eye protection when working near the battery.
Spilled Battery Fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets
in eyes, skin or clothing. If this happens, immediately flush your eyes with water for
15 minutes or wash your skin thoroughly and get medical attention. Wear eye
protection and protective gloves to prevent contact with battery fluid.
Children and Batteries:
Allowing children to play near batteries is dangerous. Battery fluid could cause
serious injuries if it gets in the eyes or on the skin. Always keep batteries out of the
reach of children.
7-22
In Case of an Emergency
Emergency Starting
MX-5_8U35-EA-05F_Edition4 Page260
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (261,1)
WARNING
Keep Flames Away:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells. When working near a battery, do
not allow metal tools to contact the positive (
) or negative () terminal of the
battery. Do not allow the positive (
) terminal to contact any other metal object that
could cause sparks.
Battery-Related Explosion:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames, including
cigarettes, and sparks away from open battery cells.
Low Fluid Level or Frozen Battery:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Don't jump-start a frozen battery or one with a low fluid level.
Connecting Jumper Cable Directly to Negative Terminal:
Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Connect the negative cable to a good ground point away from the battery.
Connecting Jumper Cable to Moving Parts:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury. Route the
jumper cables away from parts that will be moving.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
In Case of an Emergency
Emergency Starting
7-23
MX-5_8U35-EA-05F_Edition4 Page261
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (262,1)
Discharged battery
Connect cables in numerical order and disconnect in reverse order.
Jumper cablesBooster battery
7-24
In Case of an Emergency
Emergency Starting
MX-5_8U35-EA-05F_Edition4 Page262
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (263,1)
1. Remove the rubber hose from thebattery cover.
2. Remove the battery cover from its right
side.
3. Make sure the booster battery is 12 Vand that its negative terminal is
grounded.
4. If the booster battery is in another vehicle, don't allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles. 5. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to a solid,
stationary, exposed metallic point
(for example, the hood latch) away
from the discharged battery (4).
6. Start the engine of the booster vehicle and run it a few minutes. Then start the
engine of the other vehicle.
7. When finished, carefully disconnect the cables in the reverse order described in
the illustration.
8. If the battery cover has been removed, install it in the reverse order of
removal.
In Case of an Emergency
Emergency Starting
7-25
MX-5_8U35-EA-05F_Edition4 Page263
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (375,1)
C
Clock ................................................. 6-24
Convertible Top ................................ 3-40
Cruise Control ................................... 5-19
Cup Holder ........................................ 6-40
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-37
Daytime Running Lights ................... 5-53
DefrosterRear window .............................. 5-56
Detachable Hardtop .......................... 3-45
Dimensions ....................................... 10-5
Door Locks ....................................... 3-28
Driving In Flooded Area ................... 4-11
Driving Tips ........................................ 4-7 Automatic transmission .............. 5-18
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-24
DSC OFF indicator light ............ 5-25
DSC OFF switch ........................ 5-26
TCS/DSC Indicator light ............ 5-24
E
Emergency Starting ........................... 7-21Flooded engine ........................... 7-21
Jump-starting .............................. 7-22
Push-starting .............................. 7-26
Emergency Towing ........................... 7-27
Emission Control System .................... 4-3
E
Engine Coolant ....................................... 8-18
Exhaust gas .................................. 4-5
Hood release .............................. 3-38
Oil .............................................. 8-15
Overheating ................................ 7-19
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-14
Engine Coolant Overheating ................................ 7-19
Engine Coolant Temperature
Gauge ................................................ 5-35
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-50
F
Flasher Hazard warning .......................... 5-57
Headlights .................................. 5-52
Flat Tire ............................................... 7-3 Changing .................................... 7-13
Instant Mobility System
(IMS) Emergency Flat Tire Repair
Kit ................................................ 7-6
Tool storage .................................. 7-5
Fluids Classification .............................. 10-4
Owner maintenance .................... 8-11
Fog Lights ......................................... 5-54
Foot Brake .......................................... 5-5
Fuel Filler lid and cap ........................ 3-37
Gauge ......................................... 5-36
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Index
11-3
MX-5_8U35-EA-05F_Edition4 Page375
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F
