2006 KIA SPECTRA5 Owners Manual

Knowing your vehicle54
3
1
2
3
4
5
6
7
8
9

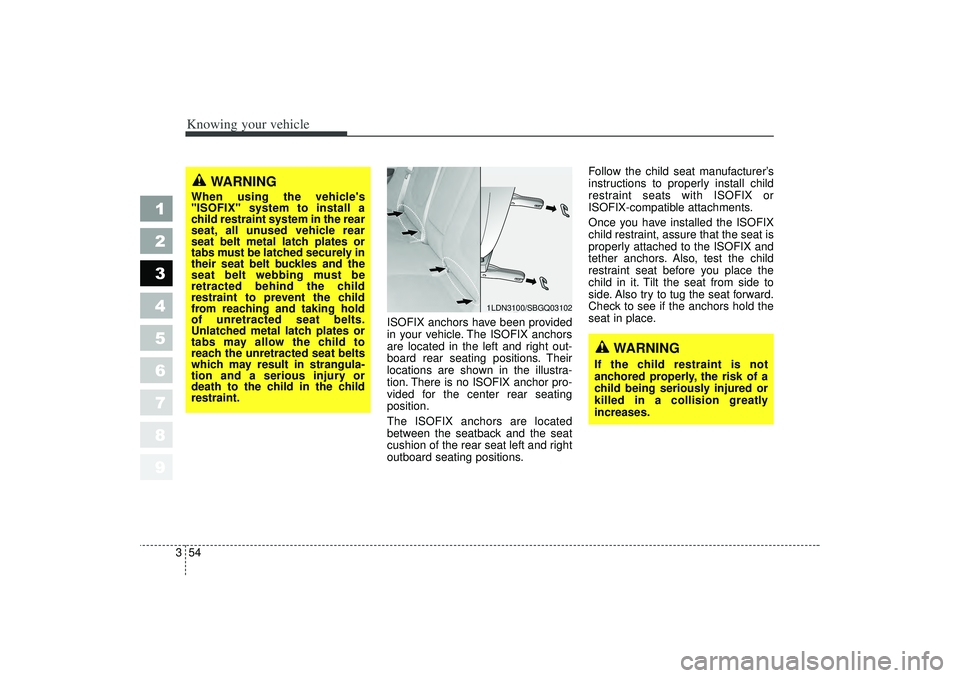

ISOFIX anchors have been provided
in your vehicle. The ISOFIX anchors
are located in the left and right out-
board rear seating positions. Their
locations are shown in the illustra-
tion. There is no ISOFIX anchor pro-
vided for the center rear seating
position.
The ISOFIX anchors are located
between the seatback and the seat
cushion of the rear seat left and right
outboard seating positions. Follow the child seat manufacturer
’s
instructions to properly install child
restraint seats with ISOFIX or
ISOFIX-compatible attachments.
Once you have installed the ISOFIX
child restraint, assure that the seat is
properly attached to the ISOFIX and
tether anchors. Also, test the child
restraint seat before you place the
child in it. Tilt the seat from side to
side. Also try to tug the seat forward.
Check to see if the anchors hold the
seat in place.
WARNING
If the child restraint is not
anchored properly, the risk of a
child being seriously injured or
killed in a collision greatly
increases.
1LDN3100/SBGQ03102
WARNING
When using the vehicle's
"ISOFIX" system to install a
child restraint system in the rear
seat, all unused vehicle rear
seat belt metal latch plates or
tabs must be latched securely in
their seat belt buckles and the
seat belt webbing must be
retracted behind the child
restraint to prevent the child
from reaching and taking hold
of unretracted seat belts.
Unlatched metal latch plates or
tabs may allow the child to
reach the unretracted seat belts
which may result in strangula-
tion and a serious injury or
death to the child in the child
restraint.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 54

355
1
2
3
4
5
6
7
8
9
Knowing your vehicle
(Continued)In a crash, the child restraint
seat ISOFIX attachments may
not be strong enough to
secure the child restraint seat
improperly in the rear center
seating position and may
break, causing serious injury
or death.
 Attach the ISOFIX or ISOFIX- compatible child restraint seat
only to the appropriate loca-
tions shown in the illustration.
 Always follow the installation and use instructions provided
by the manufacturer of the
child restraint.
WARNING

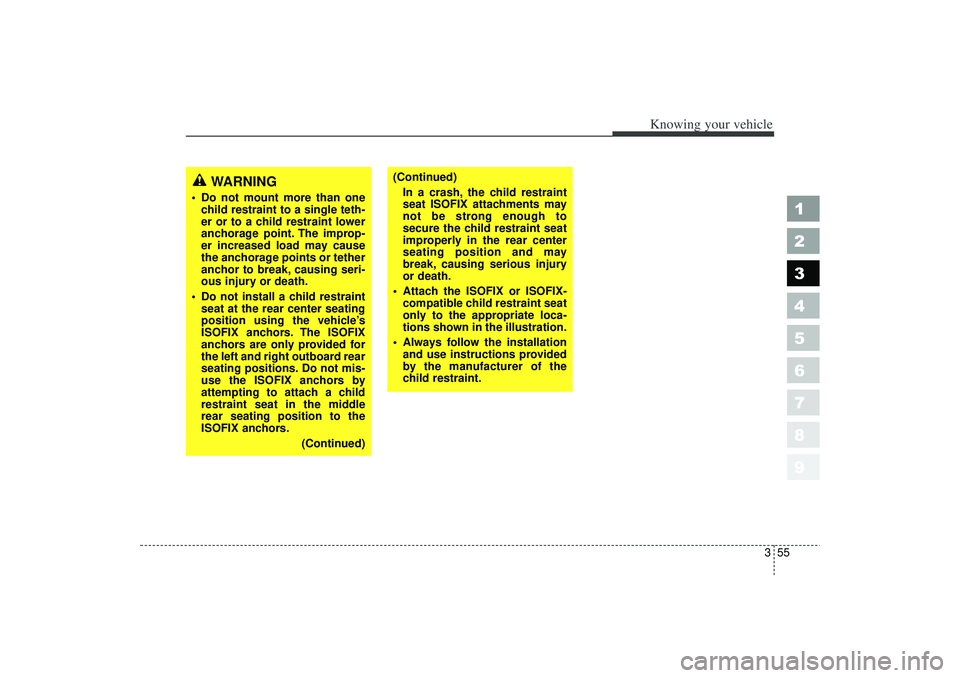

 Do not mount more than onechild restraint to a single teth-
er or to a child restraint lower
anchorage point. The improp-
er increased load may cause
the anchorage points or tether
anchor to break, causing seri-
ous injury or death.
 Do not install a child restraint seat at the rear center seating
position using the vehicle’s
ISOFIX anchors. The ISOFIX
anchors are only provided for
the left and right outboard rear
seating positions. Do not mis-
use the ISOFIX anchors by
attempting to attach a child
restraint seat in the middle
rear seating position to the
ISOFIX anchors.
(Continued)
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 55

Knowing your vehicle56
3
1
2
3
4
5
6
7
8
9
AIRBAG - SUPPLEMENTAL RESTRAINT SYSTEM ➀Driver’ s airbag
➁Front passenger’ s
airbag
➃Curtain Airbag (if equipped)
➄Front impact sensor
➆SRS control
module
➈ Occupant classifi-
cation system
1LDC2047/1LDN2048/1LDA2049/1LDN2050/1LDN2051/1LDA2052/1LDN2053/1LDN2055A/1LDA2054/1LDN2055A/1LDN2166/1LDN2167/1LDN2168
➂Side airbag (if equipped)
\bSide impact sensor
(if equipped)
➇ Front seat position
sensor
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 56

357
1
2
3
4
5
6
7
8
9
Knowing your vehicle
➀
Driver’s airbag
(see page 3- 60)
➁
Front passenger’ s airbag
(see page 3- 61)
➂
Side airbag (if equipped, see page 3- 67)
➃
Curtain Airbag(if equipped, see page 3- 68)
➄ Front impact sensor
(see page 3- 69)
\b
Side impact sensor(if equipped, see page 3- 69)
➆
SRS Control Module (see page 3- 69)
➇
Front seat position sensor
➈
Occupant classification system(see page 3- 62)

Airbag inflation condition(see page 3- 70)

Airbag non-inflation condition(see page 3- 72)

Airbag warning light(see page 3- 77)

Airbag service(see page 3- 77)

Airbag warning label(see page 3- 79)
What your airbag system doesDriver’s airbag and front passenger’ s
airbag are designed to supplement
the protection offered by the safety
belt in certain frontal collisions.
Likewise, side airbag and curtain
airbags (if equipped) are designed to
supplement the protection offered by
the safety belt in side collisions.
Safety belts are designed to reduce
the injury of the driver or passengers
in case of light impact or collision.
However, to help reduce impact on
driver or passengers in a serious col-
lision, seat belts must also be cor-
rectly worn.What your airbag system does
not doThe air bag system is designed to
supplement the protection offered by
the safety belt system. IT IS NOT A
SUBSTITUTE FOR THE SAFETY
BELT.
The importance of using
safety beltsThere are four very important rea-
sons to use safety belts even with an
airbag supplemental restraint sys-
tem. They:
 help keep you in the proper posi-
tion (away from the airbag) when it
inflates.
 reduce the risk of harm in rollover,
side impact (vehicles not equipped
with side and curtain airbags) or
rear impact collisions, because an
airbag is not designed to inflate in
such situations and even a side
curtain airbag is designed to inflate
only in certain side impact colli-
sions.
 reduce the risk of harm in frontal or
side collisions which are not
severe enough to actuate the
airbag supplemental restraint sys-
tem.
 reduce the risk of being thrown
from your vehicle.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 57

Knowing your vehicle58
3
1
2
3
4
5
6
7
8
9
Airbag system components The main components of your SRS
are:
 To indicate that your vehicle is
equipped with airbags, the corre-
sponding airbag covers are
marked with “SRS AIRBAG”.
- Driver’ s airbag (see page 3- 60)
- Passenger’ s airbag(see page 3- 61)
- Side airbag (if equipped, see page 3- 67)
- Curtain airbag (if equipped, see page 3- 68)
 A diagnostic system that continual-
ly monitors the system operation.
 An indicator light to warn you of a
possible problem with the system.
 Emergency power backup in case
your car’ s electrical system is dis-
connected in a crash.
WARNING
- Airbags &
safety belts
 Even in vehicles with air bags, you and your passengers
must always wear the safety
belts provided in order to min-
imize the risk and severity of
injury in the event of a colli-
sion or rollover.
 Always wear your safety belt. It can help keep you away
from the air bags during heavy
braking just before a collision.
 If occupants are not fastened or correctly seated, they can-
not be protected, and thus
face serious injury or death.
 Driver’s and front passenger’s airbag are designed to inflate
only in certain frontal colli-
sions, and side and curtain
airbags (if equipped) are
designed to inflate in certain
side impacts.
(Continued)
(Continued)They will generally not provide
protection in side impacts
(vehicles not equipped with
side and curtain airbags) or
rear impacts, rollovers, less
severe frontal collisions. They
will not provide protection
from later impacts in a multi-
impact collision.
 If your vehicle has been sub- jected to flood conditions (e.g.
soaked carpeting/standing
water on the floor of the vehi-
cle, etc.) or if your vehicle has
become flood damaged in any
way, do not attempt to start
the vehicle or put the key in
the ignition before discon-
necting the battery. This may
cause airbag deployment,
which could result in serious
personal injury or death. If
flooded conditions are sub-
jected to your vehicle, before
starting the vehicle, have the
vehicle towed to an authorized
Kia dealer for inspection and
necessary repairs.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 58

359
1
2
3
4
5
6
7
8
9
Knowing your vehicle
The SRS uses a collection of sen-
sors to gather information about the
driver’s and front passenger’ s seat
position, the driver’ s and front pas-
senger’ s safety belt usage and
impact severity.
The driver’ s and front passenger’ s
seat position sensors, which are
installed on the seat track, determine
if the seats are fore or aft of a refer-
ence position. Similarly, the safety
belt usage sensors determine if the
driver and front passenger’ s safety
belts are fastened. These sensors
provide the ability to control the SRS
deployment based on how close the
driver’ s seat is to the steering wheel,
how close the passenger’ s seat is to
the instrument panel, whether or not
the safety belts are fastened, and
how severe is the impact. The advanced SRS offers the ability
to control the airbag inflation with two
levels. A first stage level is provided
for moderate-severity impacts. A sec-
ond stage level is provided for more
severe impacts.
The SRSCM (SRS Control Module)
controls the airbag inflation in accor-
dance with impact severity, seating
position and safety belt usage.
Additionally, your SRS is equipped
with an occupant classification sys-
tem in the front passenger’
s seat.
The occupant classification system
detects the presence of a passenger
in the front passenger’ s seat and will
turn off the front passenger ’s airbag
under certain conditions. For more
detail, see “Occupant Classification
System” later in this section.
CAUTION
If the seat position sensor is not
working properly, the SRS
airbag warning light ( ) on the
instrument panel will illuminate
even if there is no malfunction
of the SRS airbag system,
because the SRS airbag warn-
ing light is connected with the
seat position sensor. If the SRS
airbag warning light does not
illuminate when the ignition key
is turned to the "ON" position, if
it remains illuminated after
blinking for approximately 6
seconds, or if it illuminates
while the vehicle is being driv-
en, have an authorized Kia deal-
er inspect the seat position sen-
sor and the advanced SRS
airbag system as soon as possi-
ble.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 59

Knowing your vehicle60
3
1
2
3
4
5
6
7
8
9
Driver’s airbagThe driver’ s airbag is stored in the
center of the steering wheel.
WARNING
 Modification to the seat struc- ture can adversely affect the
seat position sensor and
cause the airbag to deploy at a
different level than should be
provided.
 Do not place any objects underneath the front seats
that could damage the seat
position sensor or interfere
with the occupant classifica-
tion system.
 Do not place any objects that may cause magnetic fields
near the front seat. These may
cause a malfunction of the
seat position sensor.
(Continued)
(Continued)
 Ignoring the SRS indictor light(airbag indicator and passen-
ger airbag off indicator) can
result in serious or fatal injury
if the airbags occupant classi-
fication system or pretension-
ers do not work properly. Have
your car checked by a dealer
as soon as possible if the SRS
warning light alerts you to a
potential problem.
 Sitting improperly or out of position can result in serious
or fatal injury in a crash. All
occupants should sit upright
in their seats with their feet on
the floor until the vehicle is
parked and the ignition key is
removed.
HLZ206
1LDN2048A
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 60

361
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Front passenger’s airbagFront passenger’s airbag is stored in
the instrument panel on the glove
box.
Since you cannot anticipate which
airbags will deploy or from what
direction, never put any objects or
ornaments on the instrument panel. Occupant classification system
The occupant classification system
detects the presence of a passenger
in the front passenger's seat and will
turn off the front passenger's airbag
under certain conditions.
The occupant classification system is
designed to detect the presence of a
properly-seated occupant and deter-
mine if the front passenger's airbag
should be enabled (may inflate) or
not.
Only the front passenger front airbag
and front passenger side airbag are
controlled by the Occupant
Classification System.
WARNING
 You must always sit as far
back from the steering wheel
airbag as possible (chest at
least 10 inches (250 mm) away
from the steering wheel), while
still maintaining a comfortable
seating position for good
vehicle control, in order to
reduce the risk of injury or
death in a collision.
 Never place objects over the airbag storage compartments
or between the airbags and
yourself. Due to the speed and
force of the airbag inflation,
such objects could hit your
body at high speed and cause
severe bodily injury and even
death.
 Do not put stickers or orna- ments on the steering wheel
cover. These may interfere
with the deployment of the
airbag.
1LDA2049HLZ208
1LDN2166
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 61
