2006 KIA SPECTRA5 Owners Manual

Knowing your vehicle38
3
1
2
3
4
5
6
7
8
9

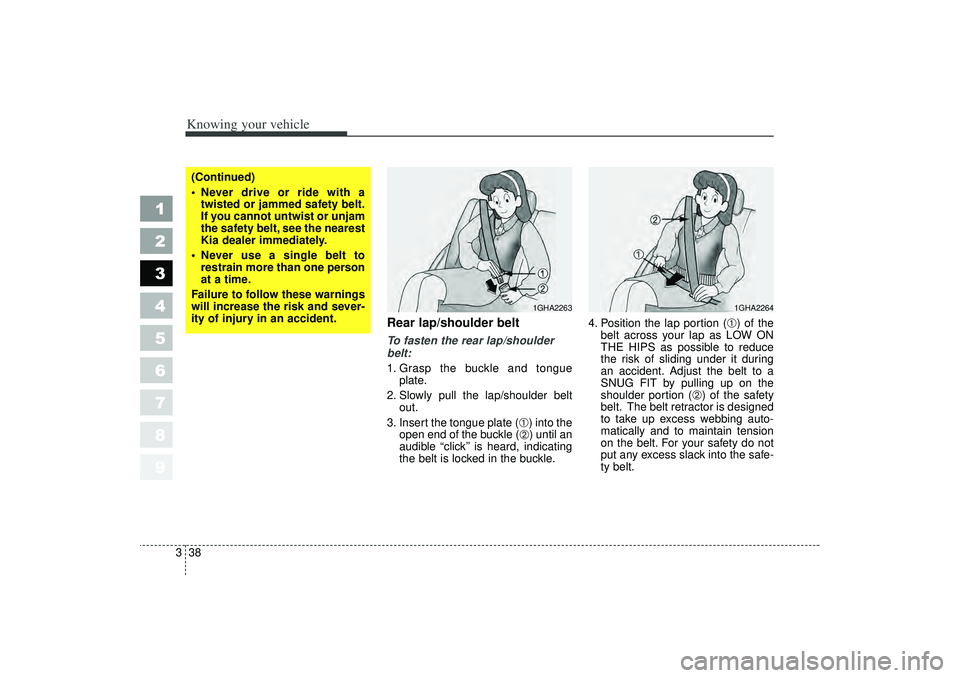

Rear lap/shoulder belt To fasten the rear lap/shoulder
belt:
1. Grasp the buckle and tongue
plate.
2. Slowly pull the lap/shoulder belt out.
3. Insert the tongue plate (
➀) into the
open end of the buckle (➁) until an
audible “click’’ is heard, indicating
the belt is locked in the buckle. 4. Position the lap portion (
➀) of the
belt across your lap as LOW ON
THE HIPS as possible to reduce
the risk of sliding under it during
an accident. Adjust the belt to a
SNUG FIT by pulling up on the
shoulder portion (
➁) of the safety
belt. The belt retractor is designed
to take up excess webbing auto-
matically and to maintain tension
on the belt. For your safety do not
put any excess slack into the safe-
ty belt.
1GHA2263
1GHA2264
(Continued)
 Never drive or ride with a twisted or jammed safety belt.
If you cannot untwist or unjam
the safety belt, see the nearest
Kia dealer immediately.
 Never use a single belt to restrain more than one person
at a time.
Failure to follow these warnings
will increase the risk and sever-
ity of injury in an accident.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 38

339
1
2
3
4
5
6
7
8
9
Knowing your vehicle

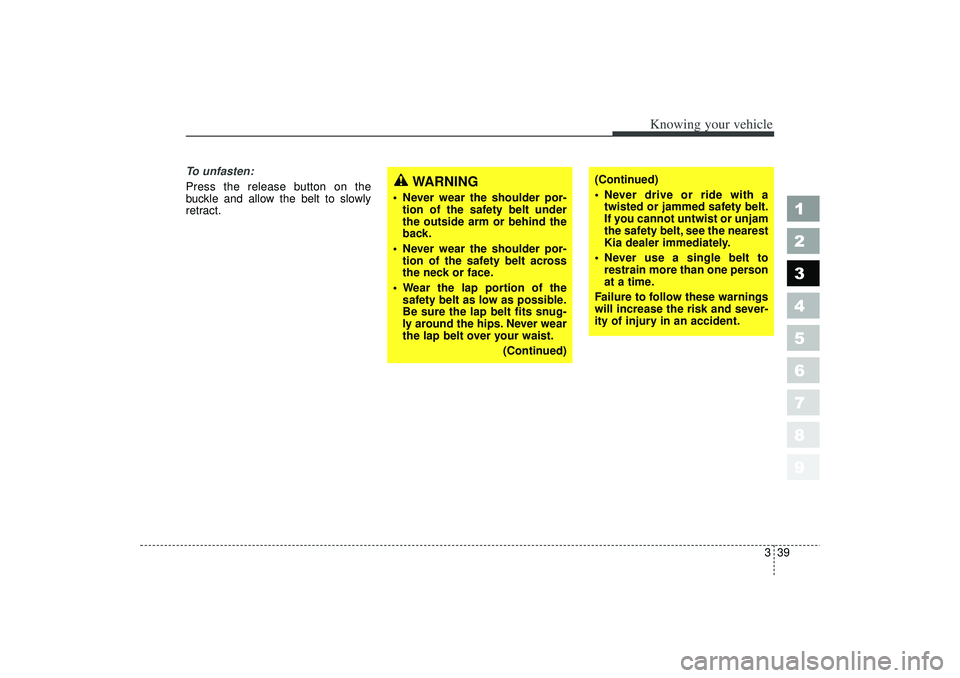

To unfasten:
Press the release button on the
buckle and allow the belt to slowly
retract.
(Continued)
 Never drive or ride with atwisted or jammed safety belt.
If you cannot untwist or unjam
the safety belt, see the nearest
Kia dealer immediately.
 Never use a single belt to restrain more than one person
at a time.
Failure to follow these warnings
will increase the risk and sever-
ity of injury in an accident.
WARNING
 Never wear the shoulder por- tion of the safety belt under
the outside arm or behind the
back.
 Never wear the shoulder por- tion of the safety belt across
the neck or face.
 Wear the lap portion of the safety belt as low as possible.
Be sure the lap belt fits snug-
ly around the hips. Never wear
the lap belt over your waist.
(Continued)
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 39

Knowing your vehicle40
3
1
2
3
4
5
6
7
8
9

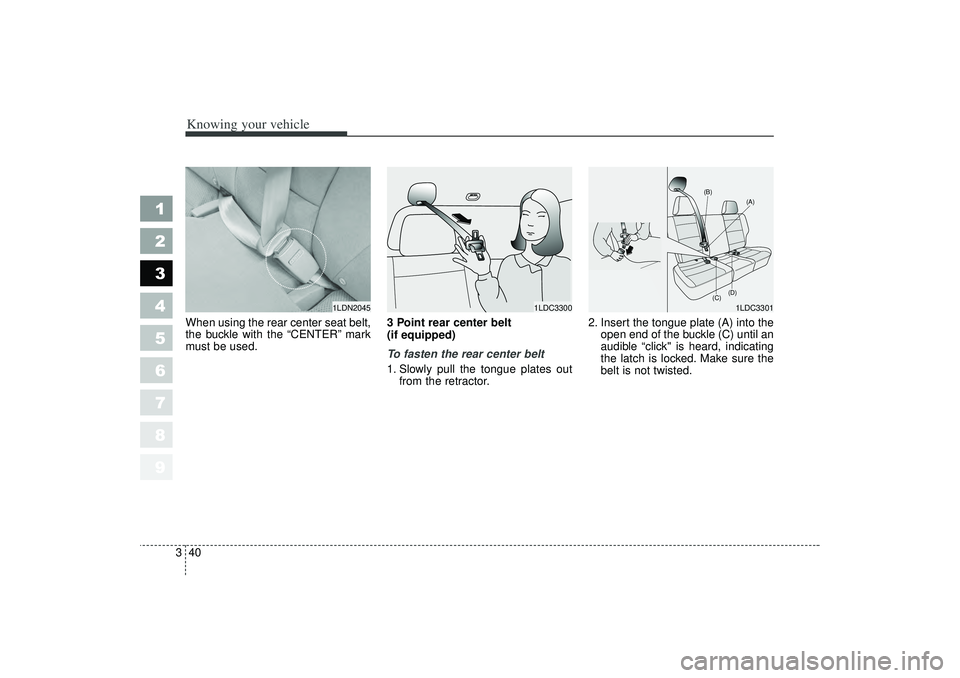

When using the rear center seat belt,
the buckle with the “CENTER” mark
must be used. 3 Point rear center belt
(if equipped)
To fasten the rear center belt
1. Slowly pull the tongue plates out
from the retractor. 2. Insert the tongue plate (A) into the
open end of the buckle (C) until an
audible “click" is heard, indicating
the latch is locked. Make sure the
belt is not twisted.
1LDN2045
1LDC3300
(D) (A)
(C)
(B)1LDC3301
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 40

341
1
2
3
4
5
6
7
8
9
Knowing your vehicle
3. Pull the tongue plate (B) andinsert the tongue plate into the
open end of the buckle (D) until an
audible “click”is heard, indicating
the latch is locked. Make sure the
belt is not twisted. There will be an audible
“click”when
the tab locks in the buckle. The seat
belt automatically adjusts to the
proper length only after the lap belt is
adjusted manually so that it fits snug-
ly around your hips, if you lean for-
ward in a slow, easy motion, the belt
will extend and let you move around.
If there is a sudden stop or impact,
the belt will lock into position. It will
also lock if you try to lean forward too
quickly.
(D) (B)P
R ES S
1LDC3302
WARNING
When using the rear seat center
belt, you must lock all tongue
plates and buckles. If any
tongue plate or buckle is not
locked, it will increase the
chance of injury in the event of
collision.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 41

Knowing your vehicle42
3
1
2
3
4
5
6
7
8
9
To unfasten the rear center belt
1. Press the release button on the
buckle (D) and remove the tongue
plate (B) from the buckle (D). 2. To retract the rear center seatbelt,
insert the key or similar small rigid
device into the web release button
(C) on the anchor connector. Pull
up on the seat belt web (A) and
allow the webbing to retract auto-
matically. (5 Door, if equipped)
Proper use and care of the
safety belt system To ensure that the safety belts pro-
vide the maximum protection, please
follow these instructions:
Use the belts at all times - even on
short trips.
 If the safety belt is twisted, straight-
en it prior to use.
 Keep sharp edges and damaging
objects away from the belts.
 Periodically inspect belt webbing,
anchors, buckles and all other
parts for signs of wear and dam-
age. Replace damaged, excessive-
ly worn or questionable parts
immediately.
(D) (B)P
R ESS
1LDC3303
1LDN3211A
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 42

343
1
2
3
4
5
6
7
8
9
Knowing your vehicle
To clean the belt webbing, use a
mild soap solution recommended
for cleaning upholstery or carpets.
Follow the instructions provided
with the soap.
 Do not make modifications or addi-
tions to the safety belt.
 After wearing a safety belt, make
sure it fully retracts to the stowed
position. Do not allow the belt to
get caught in the door when you
close it.
Restraint of pregnant women Pregnant women should wear
lap/shoulder belt assemblies when-
ever possible according to specific
recommendations by their doctors.
The lap portion of the belt should be
worn AS SNUGLY AND LOW AS
POSSIBLE.
Restraint of infants and small
children To increase their safety, infants and
young children should always be
restrained by a restraint system
approved for their age and size.
Never allow a child to stand or kneel
on the seat of a moving vehicle.
Never allow a safety belt to be placed
around both a child and an adult or
around two children at the same
time.
It is best for children to be seated in
the rear seats.
WARNING
- Pregnant
women
Pregnant women must never
place the lap portion of the safe-
ty belt over the area of the
abdomen where the fetus is
located or above the abdomen
where the belt could injure the
fetus during an impact.
WARNING
Do not bleach or dye the web-
bing because this may weaken
the webbing fibers and allow
them to fail when loaded in a
collision.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 43

Knowing your vehicle44
3
1
2
3
4
5
6
7
8
9

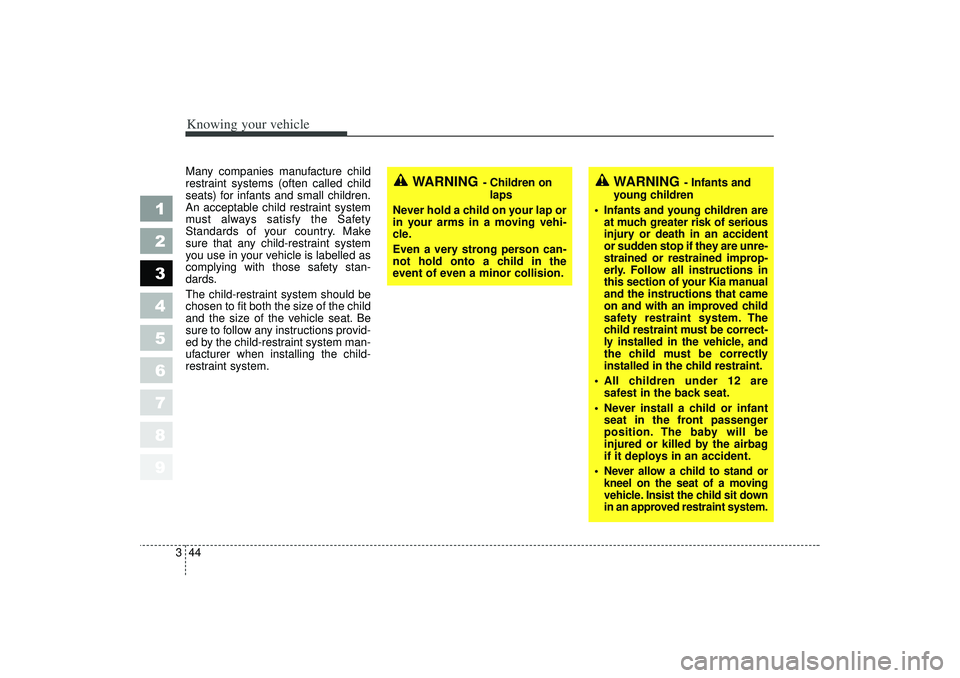

Many companies manufacture child
restraint systems (often called child
seats) for infants and small children.
An acceptable child restraint system
must always satisfy the Safety
Standards of your country. Make
sure that any child-restraint system
you use in your vehicle is labelled as
complying with those safety stan-
dards.
The child-restraint system should be
chosen to fit both the size of the child
and the size of the vehicle seat. Be
sure to follow any instructions provid-
ed by the child-restraint system man-
ufacturer when installing the child-
restraint system.
WARNING
- Infants and
young children
 Infants and young children are at much greater risk of serious
injury or death in an accident
or sudden stop if they are unre-
strained or restrained improp-
erly. Follow all instructions in
this section of your Kia manual
and the instructions that came
on and with an improved child
safety restraint system. The
child restraint must be correct-
ly installed in the vehicle, and
the child must be correctly
installed in the child restraint.
 All children under 12 are safest in the back seat.
 Never install a child or infant seat in the front passenger
position. The baby will be
injured or killed by the airbag
if it deploys in an accident.

Never allow a child to stand or
kneel on the seat of a moving
vehicle. Insist the child sit down
in an approved restraint system.
WARNING
- Children on laps
Never hold a child on your lap or
in your arms in a moving vehi-
cle.
Even a very strong person can-
not hold onto a child in the
event of even a minor collision.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 44

345
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Restraint of larger children As children grow, they may need to
use new child-restraint systems,
including larger child seats or boost-
er seats, which are appropriate for
their increased size.
A child who has outgrown available
child-restraint systems should use
the belts provided in the vehicle.
When seated in the rear outboard
seats, the child should be restrained
by the lap/shoulder belt.
If the shoulder belt portion slightly
touches the child’s neck or face, try
placing the child closer to the center
of the vehicle. If the shoulder belt still
touches their face or neck they may
need to be returned to a child
restraint system. In addition, after-
market devices are available from
independent manufacturers which
help pull the shoulder belt down and
away from the child’ s face or neck.
Larger children should use one of
the seat belts provided.
WARNING
- Shoulder
belts on small children
 Never allow a shoulder belt to be in contact with a child’s
neck or face while the vehicle
is in motion.
 If safety belts are not properly worn and adjusted, there is a
risk of death or serious injury
to such a child.
CAUTION
- Hot metal
parts
Safety belts and seats can
become hot in a vehicle that has
been closed during warm/hot
weather; they could burn a
child. Check seat covers and
buckles before you place a child
anywhere near them.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 45
