2006 KIA SPECTRA5 Owners Manual

Driving your vehicle20
4
1
2
3
4
5
6
7
8
9
Tilt steering (if equipped)A tilt steering wheel allows you to
adjust the steering wheel before you
drive.You can also raise it to the
highest level to give your legs more
room when you exit and enter the
vehicle.
The steering wheel should be posi-
tioned so that it is comfortable for
you to drive, while permitting you to
see the instrument panel warning
lights and gauges. To change the steering wheel angle,
pull down (
➀) the lock release lever,
adjust the steering wheel to the
desired angle (
➁), then pull up the
lock-release lever to lock the steering
wheel in place.
Be sure to adjust the steering wheel
to the desired position before driving.
WARNING
 Never adjust the angle of
steering wheel while driving.
You may lose your steering
control and cause severe per-
sonal injury or accidents.
 After adjusting, push the
steering wheel both up and
down to be certain it is locked
in position.
1LDN2076A
LD CAN (ENG) 4.qxd 7/29/05 10:16 AM Page 20

421
1
2
3
4
5
6
7
8
9
Driving your vehicle

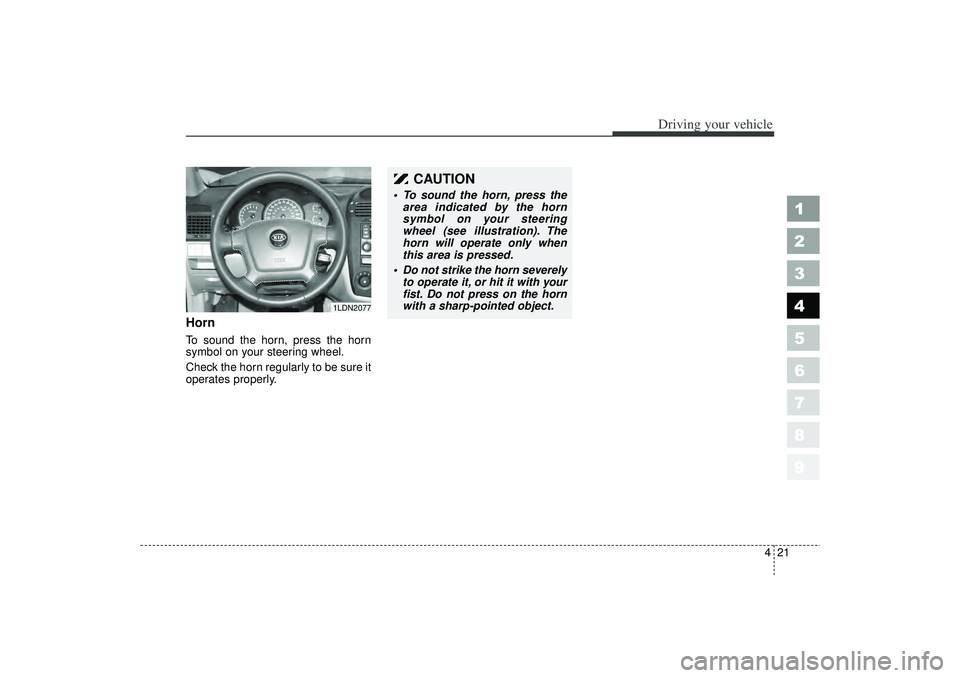

HornTo sound the horn, press the horn
symbol on your steering wheel.
Check the horn regularly to be sure it
operates properly.
CAUTION
• To sound the horn, press thearea indicated by the horn
symbol on your steering
wheel (see illustration). The
horn will operate only when
this area is pressed.
 Do not strike the horn severely to operate it, or hit it with your
fist. Do not press on the horn
with a sharp-pointed object.
1LDN2077
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 21

Driving your vehicle22
4
1
2
3
4
5
6
7
8
9
The cruise control system allows you
to program the vehicle to maintain a
constant speed without resting your
foot on the accelerator pedal.
With cruise control, you can set and
automatically maintain any speed of
between 40 km/h (24 mph) and
163 km/h (102 mph).
To set cruise control speed:1. Push the CRUISE ON/OFF button
on the steering wheel, to turn the
system on. The CRUISE indicator
light in the instrument cluster will
illuminate. 2. Accelerate to the desired speed,
which must be more than 40 km/h
(24 mph) and less than 163 km/h
(102 mph).
CRUISE CONTROL (IF EQUIPPED)
WARNING
- Cruise
control
Do not use the cruise control
feature under the following con-
ditions:
 Heavy or unsteady traffic
 Slippery or winding roads
 Situations that involve varying
speeds
WARNING
If the cruise control is left on,
(CRUISE indicator light in the
instrument cluster illuminated)
the cruise control can be
switched on accidentally. Keep
the cruise control system off
(CRUISE indicator light OFF)
when cruise control is not in
use.
1LDN4024
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 22

423
1
2
3
4
5
6
7
8
9
Driving your vehicle
3. Push down the SET/COAST switch,and release it at the speed you
want. The “SET” indicator light in the
instrument cluster will illuminate.
Release the accelerator at the
same time. The desired speed will
automatically be maintained. The SET function cannot be activated
until approximately 2 seconds after the
CRUISE ON-OFF button has been
engaged.
On a steep grade, the vehicle may
momentarily slow down while going
downhill.
To cancel cruise control, do
one of the following:
Press the brake pedal.
 Press the clutch pedal with a manu-
al transaxle or shift into N (Neutral)
with an automatic transaxle.
 Pull the CANCEL switch.
Each of these actions will cancel
cruise control operation (the “SET”
indicator light in the instrument clus-
ter will go OFF), but it will not turn the
system off. If you wish to resume
cruise control operation, push up the
RES/ACC switch located on your
steering wheel. You will return to your
previously preset speed.
1LDN4025
1LDN4025A
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 23

Driving your vehicle24
4
1
2
3
4
5
6
7
8
9
To turn cruise control off, do
one of the following: Push the CRUISE ON-OFF button
(the CRUISE indicator light in the
instrument cluster will go OFF).
 Turn the ignition off.
Both of these actions cancel cruise
control operation. If you want to
resume cruise control operation,
repeat the steps provided in “To Set
Cruise Control Speed” on the previ-
ous page.
To increase cruise control set
speed:Follow either of these procedures:
 Push up the RES/ACC switch and
hold it. Your vehicle will accelerate.
Release the switch at the speed you
want.
Push up the RES/ACC switch and
release it immediately. The cruising
speed will increase 1.6 km/h (1
mph) by one touch and will be mem-
orized to the reset speed.
1LDN4026
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 24

425
1
2
3
4
5
6
7
8
9
Driving your vehicle
To temporarily accelerate with
the cruise control onIf you want to speed up temporarily
when the cruise control is on,
depress the accelerator pedal.
Increased speed will not interfere
with cruise control operation or
change the set speed.
To return to the set speed, take your
foot off the accelerator.
To decrease the cruising
speed:Follow either of these procedures:
Push down the SET/COAST switch
and hold it. Your vehicle will gradu-
ally slow down. Release the switch
at the speed you want to maintain.
Push down the SET/COAST switch
and release it immediately. The
cruising speed will decrease 1.6
km/h (1 mph) by one touch and will
be memorized to the reset speed.
1LDN4025
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 25

Driving your vehicle26
4
1
2
3
4
5
6
7
8
9

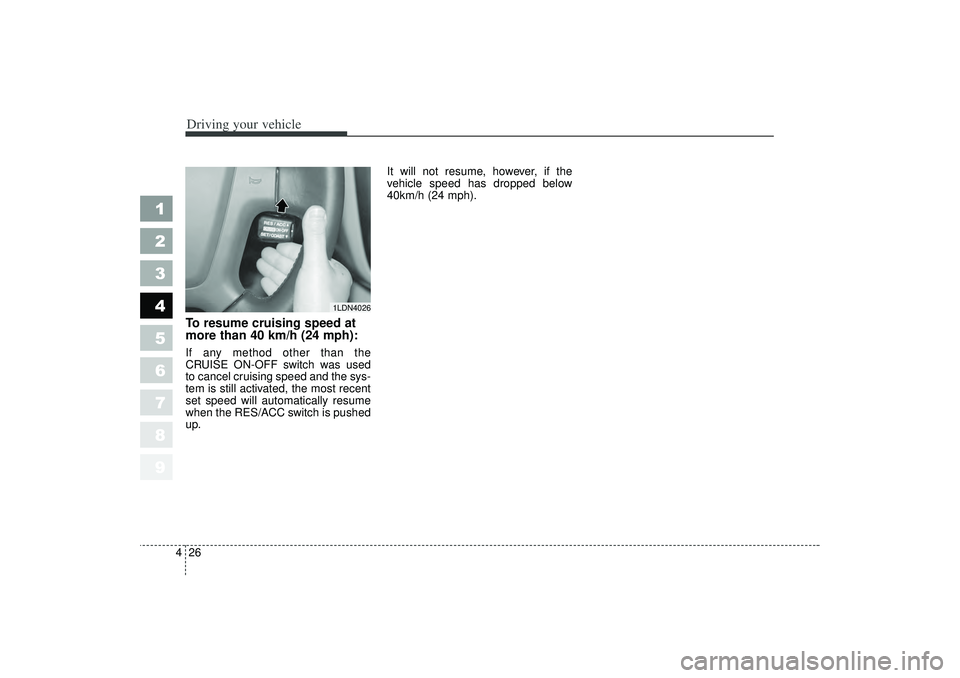

To resume cruising speed at
more than 40 km/h (24 mph):If any method other than the
CRUISE ON-OFF switch was used
to cancel cruising speed and the sys-
tem is still activated, the most recent
set speed will automatically resume
when the RES/ACC switch is pushed
up. It will not resume, however, if the
vehicle speed has dropped below
40km/h (24 mph).
1LDN4026
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 26

427
1
2
3
4
5
6
7
8
9
Driving your vehicle
The Traction Control System (TCS)
helps the vehicle accelerate on slip-
pery road surfaces by preventing the
drive wheels from spinning exces-
sively. It also provides improved driv-
ing force and steering.
TCS operationTCS ON condition When the ignition is turnedON, TCS and TCS OFF
indicator light illuminate for
approximately 3 seconds,
then TCS is turned on.
 Press the TCS button to turn TCS off. (TCS OFF
indicator will illuminate). To
turn the TCS on, press the
TCS button (TCS OFF
indicator light will go off).
 When starting the engine,
you may hear a slight tick-
ing sound. This is the TCS
performing an automatic
system self-check and does
not indicate a problem. When operating
When the TCS is in opera-
tion, TCS indicator light
blinks.
 When the traction controlsystem is operating prop-
erly, you can feel a slight
pulsation in the vehicle.
This is only the effect of
brake control and indi-
cates nothing unusual.
 When moving out of mud or driving on a slippery
road, pressing the accel-
erator pedal may not
cause the engine rpm
(revolutions per minute) to
increase.
TRACTION CONTROL SYSTEM (IF EQUIPPED)
1LDN2117B
-
TCS
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 27
