2006 KIA SPECTRA5 Owners Manual

Knowing your vehicle14
3
1
2
3
4
5
6
7
8
9
Power windows (if equipped)➀ Driver’s door power window switch
➁ Front passenger’s door power win-
dow switch
➂ Rear door (left) power window
switch
➃ Rear door (right) power window
switch
➄ Window opening and closing
(see page 3-15)
\b Automatic power window down
(Driver’s window, if equipped)
➆ Power window lock switch
(see page 3-15)
 Power window timer (if equipped)
The power windows can be operat-
ed for approximately 30 seconds
after the ignition key is removed or
turn to the ACC or LOCK position.
However, if the front doors are
opened, the power windows can-
not be operated even within the 30
seconds after the ignition key
removal.
WINDOWS
1LDA2010
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 14

315
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Window opening and closing
The driver’s door has a master power
window switch that controls all the
windows in the vehicle. To open or
close a window, press down (
➄) or
pull up (
➄) the front portion of the
corresponding switch. Automatic power window down
(driver’s window, if equipped)
Depressing the power window switch
momentarily to the second detent
position (
\b) completely lowers the
driver’s window even when the
switch is released. To stop the win-
dow at the desired position while the
window is in operation, pull up the
switch momentarily to the opposite
direction of the window movement.
If the battery has been discharged
or disconnected, the automatic
power window system must be reset
as follows:
1. Turn the ignition key to ON posi- tion.
2. Close each window and continue pulling up on each power window
switch for at least 0.5 second after
the window is completely closed. Power window lock switch
 The driver can disable the power
window switches on a passenger
door by depressing the power win-
dow lock switch located on the dri-
ver’s door to LOCK (pressed).
 When the power window lock switch is ON, the driver’s master
control cannot operate the passen-
ger door power windows either.
1LDA20121LDA2011
1LDA2013
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 15

Knowing your vehicle16
3
1
2
3
4
5
6
7
8
9
Power windows (if equipped)
The ignition switch must be in the ON
position for power windows to oper-
ate. Each door has a power window
switch that controls that door’s win-
dow. However, the driver has a power
window lock switch which can block
the operation of passenger windows.
If you notice buffeting and pulsation
(wind shock) with either side window
open, you should open the opposite
window slightly to reduce the condi-
tion.✽ ✽
NOTICETo prevent the power window sys-
tem from the possibility of damage,
do not open or close two windows at
the same time. This will also ensure
the longevity of the fuse.
Manual windows (if equipped)Use the window crank to open and
close each window.
CAUTION
 Make sure heads and hands
are safely out of the way
before closing a window.
 Do not allow children to play with the power windows. Keep
the driver’s door power win-
dow lock switch in the LOCK
position (depressed). Serious
injury can result from uninten-
tional window operation by
the child.
 Do not extend face or arms outside through the window
opening while driving.
 Always double check to make sure all arms, hands and other
obstructions are safely out of
the way before closing a win-
dow.
3FDA2015
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 16

317
1
2
3
4
5
6
7
8
9
Knowing your vehicle

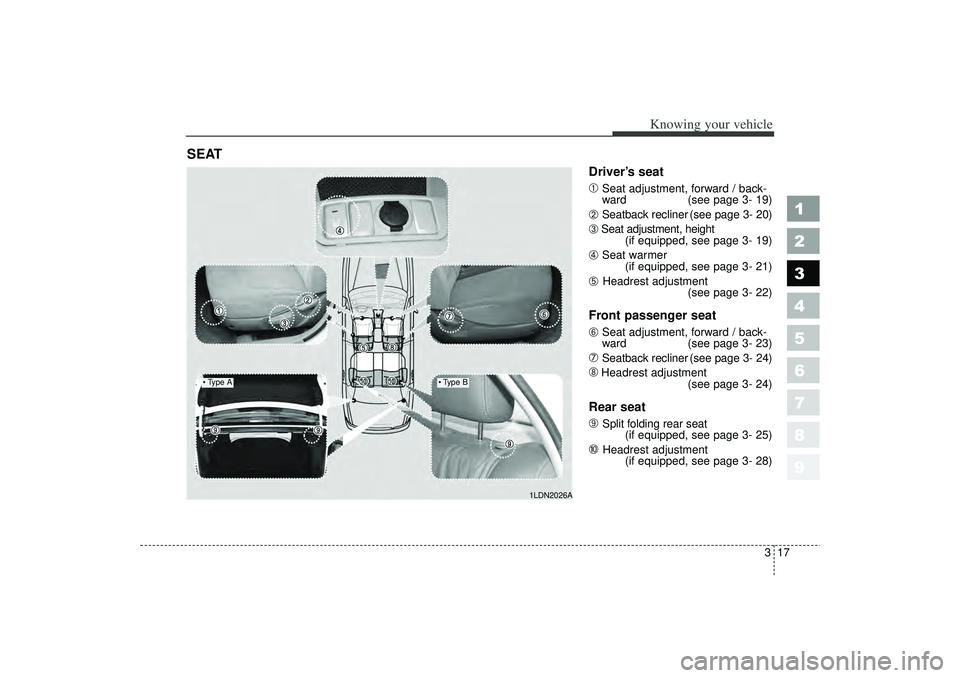

Driver’s seat
➀
Seat adjustment, forward / back-
ward (see page 3- 19)
➁
Seatback recliner (see page 3- 20)
➂
Seat adjustment, height(if equipped, see page 3- 19)
➃
Seat warmer(if equipped, see page 3- 21)
➄
Headrest adjustment (see page 3- 22)
Front passenger seat
\b
Seat adjustment, forward / back-
ward (see page 3- 23)
➆
Seatback recliner (see page 3- 24)
➇
Headrest adjustment (see page 3- 24)
Rear seat
➈
Split folding rear seat (if equipped, see page 3- 25)
\f
Headrest adjustment (if equipped, see page 3- 28)
SEAT
1LDN2026A
 Type A
 Type B
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 17

Knowing your vehicle18
3
1
2
3
4
5
6
7
8
9
WARNING
 Loose objects in the driver’s
foot area could interfere with
the operation of the foot ped-
als, possibly causing an acci-
dent. Loose objects might
interfere with the seat slide
mechanism. Do not place any-
thing under the front seats.
 Children should never be left unattended in the car.
WARNING
- Driver’s seat
 Never attempt to adjust seat while the vehicle is moving.
This could result in loss of
control, and an accident caus-
ing death, serious injury, or
property damage.
 Do not allow anything to inter- fere with the normal position
of the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatback
could result in serious or fatal
injury in a sudden stop or col-
lision.
(Continued)
(Continued)
 Always drive and ride withyour seatback upright and the
lap portion of the safety belt,
or lap belt, snug and low
across the hips. This position
puts your safety belts in the
best position to protect you in
case of an accident.
 In order to avoid unnecessary airbag injuries including the
possibility of severe injury or
death, always sit as far back
as possible from the steering
wheel so that your chest is
away at least 10 inches (250
mm) away from the steering
wheel.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 18

319
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Driver’s seat adjustmentAdjusting the seat forward and
backward
To move the seat forward or back-
ward:
1. Pull the seat slide adjustmentlever under the front edge of the
seat cushion up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place. Adjust the seat before driving, and
make sure the seat is locked secure-
ly by trying to move forward and
backward without using the control
knob. If the seat moves, it is not
locked properly.
Adjusting height of driver seat
cushion (if equipped)
Pivot the lever upward to raise the
seat cushion.
Pivot the lever downward to lower the
seat cushion.
1LDA2027
1LDA2028
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 19

Knowing your vehicle20
3
1
2
3
4
5
6
7
8
9
Adjusting the driver’s seatback
recliner
To recline the seatback:
1. Lean forward slightly and lift up on
the seatback recline lever located
on the outside of the seat, at the
rear.
2. Carefully lean back on the seat and adjust the seatback to the
position you desire. 3. Release the lever and make sure
the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
1LDA2029
WARNING
Driving or riding in a vehicle
with a front seatback reclined
could lead to serious or fatal
injury in an accident. If a front
seat is reclined during an acci-
dent, the occupant’s hips may
slide under the lap portion of
the safety belt applying great
force to the unprotected
abdomen or neck. Serious or
fatal internal injuries could
result. Keep the seatbacks in a
comfortably upright position
whenever the vehicle is in
motion.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 20

321
1
2
3
4
5
6
7
8
9
Knowing your vehicle

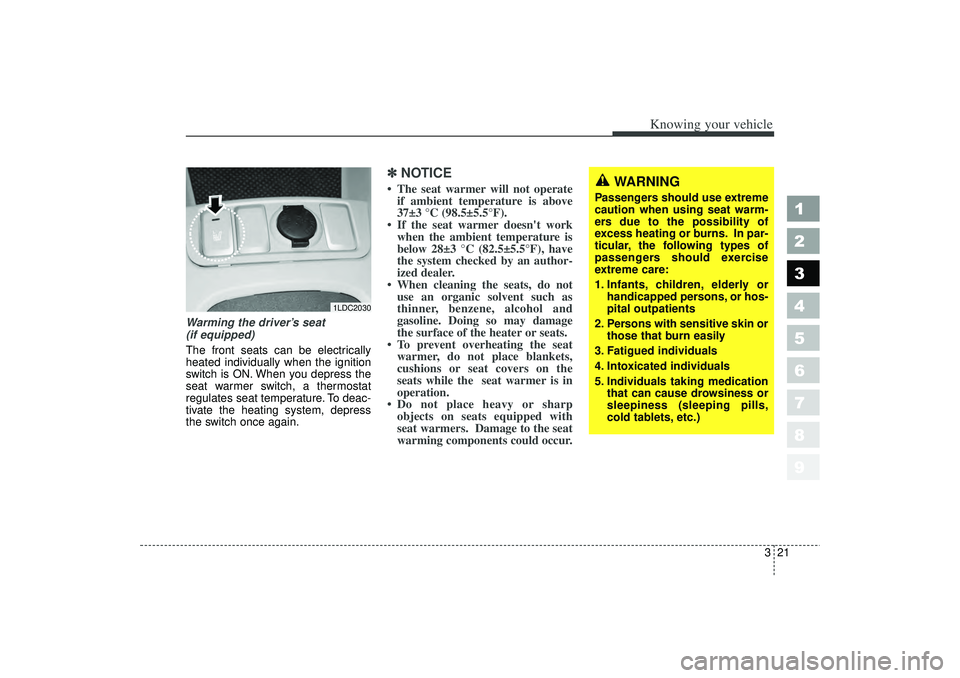

Warming the driver’s seat
(if equipped)
The front seats can be electrically
heated individually when the ignition
switch is ON. When you depress the
seat warmer switch, a thermostat
regulates seat temperature. To deac-
tivate the heating system, depress
the switch once again.
✽ ✽NOTICE The seat warmer will not operate
if ambient temperature is above
37±3 °C (98.5±5.5°F).
 If the seat warmer doesn't work when the ambient temperature is
below 28±3 °C (82.5±5.5°F), have
the system checked by an author-
ized dealer.
 When cleaning the seats, do not use an organic solvent such as
thinner, benzene, alcohol and
gasoline. Doing so may damage
the surface of the heater or seats.
 To prevent overheating the seat warmer, do not place blankets,
cushions or seat covers on the
seats while the seat warmer is in
operation.
 Do not place heavy or sharp objects on seats equipped with
seat warmers. Damage to the seat
warming components could occur.
WARNING
Passengers should use extreme
caution when using seat warm-
ers due to the possibility of
excess heating or burns. In par-
ticular, the following types of
passengers should exercise
extreme care:
1. Infants, children, elderly or
handicapped persons, or hos-
pital outpatients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or
sleepiness (sleeping pills,
cold tablets, etc.)
1LDC2030
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 21
