2006 KIA SPECTRA5 Owners Manual

Knowing your vehicle78
3
1
2
3
4
5
6
7
8
9
When repairing or scrapping the
vehicles
 Repairing steering wheel, instru-
ment panel, center console or
roofs, or installing car audio around
center console or painting front
metal sheet could disable the
airbag system. Have them checked
by an authorized Kia dealer.
 When leaving the vehicle at an
authorized Kia dealer, inform that
the vehicle is equipped with airbag
system, and leave the owner’ s
manual in the vehicle.
 Since airbag system contains
explosive chemical substances,
contact an authorized Kia dealer
when scrapping the vehicle.
CAUTION
Do not modify any part of the
Supplemental Restraint System.
Excessive modification could
make the airbag system ineffec-
tive.
WARNING
 Do not modify your steering
wheel, seat or any other part
of the Supplemental Restraint
System. Modification could
make the system inoperable.
 Do not work on the system’s components or wiring. This
could cause the airbags to
inflate inadvertently, possibly
seriously injuring someone.
Working on the system could
also disable the system so
that the airbags would not
deploy in a collision.
 Any work on the SRS system, such as removing, installing,
repairing, or any work on the
steering wheel must be per-
formed by a qualified Kia tech-
nician. Improper handling of
the airbag system may result
in serious personal injury.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:29 AM Page 78

379
1
2
3
4
5
6
7
8
9
Knowing your vehicle

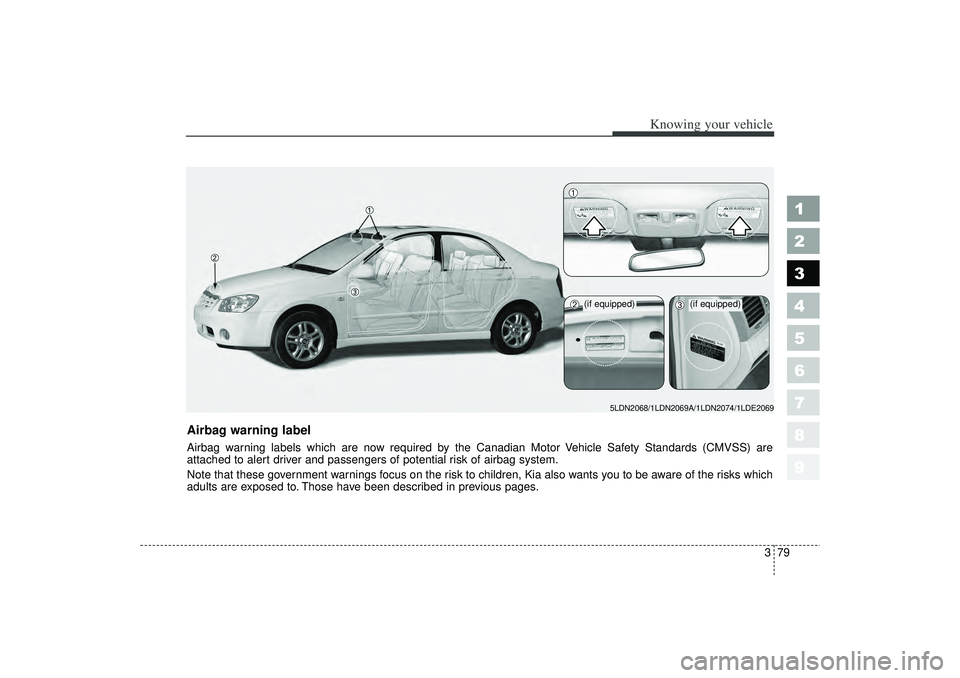

Airbag warning labelAirbag warning labels which are now required by the Canadian Motor Vehicle Safety Standards (CMVSS) are
attached to alert driver and passengers of potential risk of airbag system.
Note that these government warnings focus on the risk to children, Kia also wants you to be aware of the risks which
adults are exposed to. Those have been described in previous pages.
5LDN2068/1LDN2069A/1LDN2074/1LDE2069
➀
(if equipped)
(if equipped)
➁
➂
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:29 AM Page 79

Knowing your vehicle80
3
1
2
3
4
5
6
7
8
9
Outside the vehicle To open the trunk, insert the key
into the lock and turn it clockwise
(
➀).
 To close the trunk, use both hands
to push the trunk lid down. Check
to see if the trunk is completely
shut.
 Trunk can be opened with transmit-
ter (if equipped). Trunk room lamp
Trunk room lamp turns on when the
trunk is opened. It remains on until
the trunk is securely closed.
✽ ✽
NOTICEMake sure to close the trunk secure-
ly. If it remains open while engine is
not running, it may cause battery
discharge because trunk room lamp
remains on.
TRUNK (IF EQUIPPED)
1LDN2014
PROPOSITION 65
WARNING
Engine exhaust and a wide vari-
ety of automobile components
and parts, including compo-
nents found in the interior fur-
nishings in a vehicle, contain or
emit chemicals known to the
State of California to cause can-
cer and birth defects and repro-
ductive harm. In addition, cer-
tain fluids contained in vehicles
and certain products of compo-
nent wear contain or emit chem-
icals known to the State of
California to cause cancer and
birth defects or other reproduc-
tive harm.
1LDA2015
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:29 AM Page 80

381
1
2
3
4
5
6
7
8
9
Knowing your vehicle

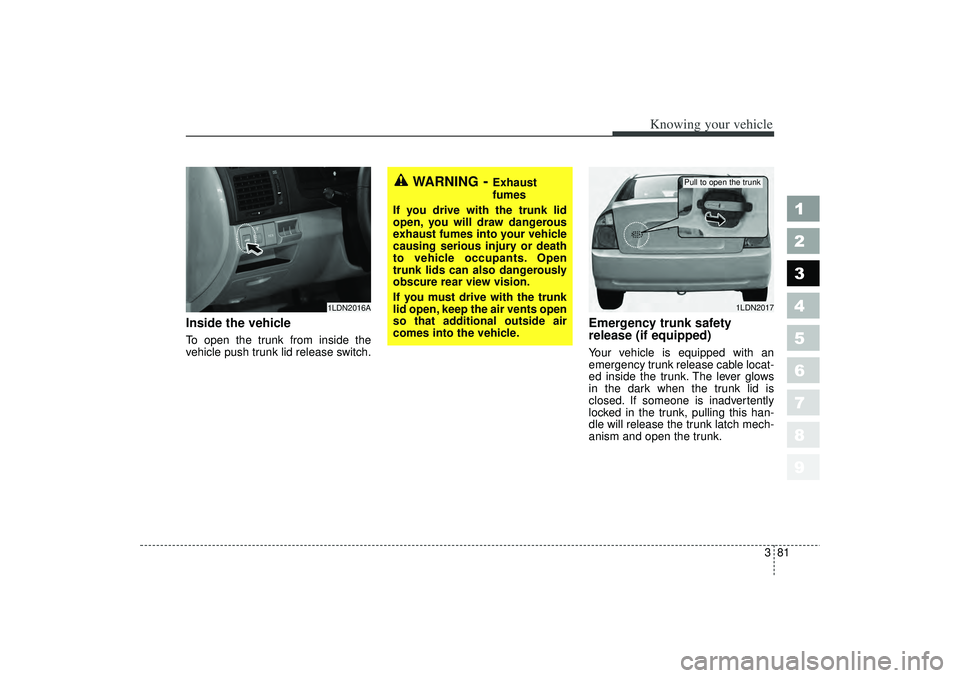

Inside the vehicleTo open the trunk from inside the
vehicle push trunk lid release switch.
Emergency trunk safety
release (if equipped)Your vehicle is equipped with an
emergency trunk release cable locat-
ed inside the trunk. The lever glows
in the dark when the trunk lid is
closed. If someone is inadvertently
locked in the trunk, pulling this han-
dle will release the trunk latch mech-
anism and open the trunk.
WARNING
- Exhaust
fumes
If you drive with the trunk lid
open, you will draw dangerous
exhaust fumes into your vehicle
causing serious injury or death
to vehicle occupants. Open
trunk lids can also dangerously
obscure rear view vision.
If you must drive with the trunk
lid open, keep the air vents open
so that additional outside air
comes into the vehicle.
1LDN2016A
1LDN2017
Pull to open the trunk
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:29 AM Page 81

Knowing your vehicle82
3
1
2
3
4
5
6
7
8
9
Trunk lid knob lock
(if equipped)The trunk lid lock knob (located near
the latch) is in the “LOCK ( )”posi-
tion when the trunk lid is closed, it
will not be possible to open the trunk
lid by using the remote release. In
this instance, use the master key to
unlock and open the trunk lid. To
allow the trunk lid to be opened with
the remote release, push the trunk
lid lock knob down, then to the oppo-
site direction of the “LOCK ( )”
position.
WARNING
No one should be allowed to
occupy the trunk of the vehicle
at any time. If the trunk is par-
tially or totally latched and the
person is unable to get out,
severe injury or death could
occur due to lack of ventilation,
exhaust fumes and rapid heat
build-up, or because of expo-
sure to cold weather conditions.
The trunk is also a highly dan-
gerous location in the event of a
crash because it is not a pro-
tected occupant space but
merely a part of the vehicle’s
crush zone.
CAUTION
 If a person is locked in the trunk, they can pull the emer-
gency release to open the
trunk lid.
 We recommend that cars be kept locked and keys be kept
out of the reach of children,
and that parents teach their
children about the dangers of
playing in trunks.
1LDN2017A
UnlockLock
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:29 AM Page 82

383
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Opening the hood:1. Pull the release lever on the lowerleft side of the instrument panel to
unlatch the hood. The hood should
pop open slightly. 2. Go to the front of the vehicle, raise
the hood slightly, push the second-
ary latch (
➀) inside of the hood
center and lift (➁) the hood. 3. Lift the hood and hold it open with
the support rod by inserting the
free end of the rod into the slot.
HOOD
1LDA2020
1LDN2021
1LDA2166
CAUTION
Grasp the support rod in the
area wrapped in rubber. The rub-
ber will help prevent you from
being burned by hot metal when
the engine is hot.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:29 AM Page 83

Knowing your vehicle84
3
1
2
3
4
5
6
7
8
9
Closing the hood1. Before closing the hood, check the
following:
• All filler caps in engine compart- ment must be correctly installed.
 Gloves, rags or any other com- bustible material must be
removed from the engine com-
partment.
2. Secure the support rod in its clip.
3. Lower the hood to about 12 inches (30 cm) height and then let it drop
to properly lock in place.
Make sure the hood is properly
locked before driving.
FUEL FILLER LID 1. Stop the engine.
2. To open the fuel filler lid, pull the release lever. 3. Pull the fuel filler lid out to open.
4. To remove the cap, turn the fuel
tank cap counter-clockwise.
5. Refuel as needed.
6. To install the cap, turn it clockwise until it “clicks”. This indicates that
the cap is securely tightened.
7. Close the fuel filler lid and push it lightly and make sure that it is
securely closed.
1LDA2018
1LDA2019
CAUTION
• Before closing the hood, makesure that all engine parts and
tools have been removed from
the engine area and that no
one’s hands are near the hood
opening.
 Do not leave gloves, rags or any other combustible materi-
al in the engine compartment.
Doing so may cause a heat-
induced fire.
CAUTION
To avoid injury from sharp
edges, it is recommended that
protective gloves be worn if
there is a need to open the fuel
filler door manually.
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 84

385
1
2
3
4
5
6
7
8
9
Knowing your vehicle
WARNING
- Refueling
If pressurized fuel sprays out, it
can cause serious injuries.
Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a
hissing sound, wait until the
condition stops before com-
pletely removing the cap.
WARNING
Automotive fuels are flamma-
ble/explosive materials. When
refueling, please note the fol-
lowing guidelines carefully.
Failure to follow these guide-
lines may result in severe per-
sonal injury, severe burns or
death by fire or explosion.
• Before refueling always note the location of the Emergency
Gasoline Shut-Off, if available,
at the gas station facility.
(Continued)
(Continued)
 Before touching the fuel noz-zle or fuel filler cap, you
should eliminate potentially
dangerous static electricity
discharge by touching anoth-
er metal part of the front of the
vehicle, a safe distance away
from the fuel filler neck, noz-
zle, or other gas source.
 Do not get back into a vehicle once you have begun refuel-
ing. Do not touch, rub or slide
against any item or fabric
(polyester, satin, nylon, etc.)
capable of producing static
electricity. Static electricity
discharge can ignite fuel
vapors resulting in explosion.
If you must re-enter the vehi-
cle, you should once again
eliminate potentially danger-
ous static electricity dis-
charge by touching a metal
part of the vehicle, away from
the fuel filler neck, nozzle or
other gasoline source.
(Continued)
(Continued)
 When using a portable fuel con-tainer be sure to place the con-
tainer on the ground prior to
refueling. Static electricity dis-
charge from the container can
ignite fuel vapors causing a fire.
Once refueling has begun, con-
tact with the vehicle should be
maintained until the filling is
complete. Use only portable
fuel containers designed to
carry and store gasoline.
 Do not use cellular phones around a gas station or while
refueling any vehicle. Electric
current and/or electronic
interference from cellular
phones can potentially ignite
fuel vapors causing a fire. If
you must use your cellular
phone, use it in a place away
from the gas station.
(Continued)
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 85
