2006 KIA SPECTRA5 Owners Manual

Knowing your vehicle94
3
1
2
3
4
5
6
7
8
9
Glove boxTo open the glove box, then pull the
handle (
➀) and the glove box will
automatically open (
➁). Close the
glove box after use.
✽ ✽ NOTICESince key is not fully inserted into
the glove box key set, do not apply
excessive force. Doing so may dam-
age the parts.
1LDA2156
CAUTION
To reduce the risk of injury in
case of an accident or sudden
stop, always keep the glove box
door closed while driving.
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 94

395
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Sunglass holder A sunglass storage compartment is
provided on the overhead console.
To open the sunglass holder, press
the cover and the holder will slowly
open. Place your sunglasses in the
compartment door with the lenses
facing out. Push to close.
✽ ✽NOTICEMake sure the sunglass holder is
closed while driving.
1LDA2159
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 95

Knowing your vehicle96
3
1
2
3
4
5
6
7
8
9
Cigarette lighterFront
To operate the cigarette lighter, press
it in and release it. When it is heated,
it automatically pops out ready for
use.
If the engine is not running, the igni-
tion switch must be in the ACC posi-
tion for the lighter to operate.
✽ ✽
NOTICE Do not hold the lighter in after it is
already heated because it will
overheat.
 Only a genuine Kia lighter should be used in the cigarette lighter
socket. The use of plug-in acces-
sories (shavers, hand-held vacu-
ums, and coffee pots, for example)
may damage the socket or cause
electrical failure.
 If the lighter does not pop out within 30 seconds, remove it to
prevent overheating.
Ashtrays Front
To use the ashtray, pull it out.
To remove the ashtray to empty or
clean, push the tab (
➀) inside, lift it
up slightly and pull it all the way out.
INTERIOR FEATURES
1LDA2152
1LDA2153
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 96

397
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Rear (if equipped)
You can open the rear ashtray by
pulling it out by its top edge. To
remove the ashtray to empty or
clean, push the tab (
➀) inside, lift the
ashtray up slightly and pull it all the
way out.
Cup holder
WARNING
- Ashtray use
 Do not use the vehicle’s ash- trays as waste receptacles.
 Putting lit cigarettes or match- es in an ashtray with other
combustible materials may
cause a fire.
WARNING
- Hot liquids
 Do not place uncovered cups of hot liquid in the cup holder
while the vehicle is in motion.
If the hot liquid spills, you
could be burned. Such a burn
to the driver could cause a
loss of control of the vehicle.
 To reduce the risk of personal injury in the event of sudden
stop or collision, do not place
uncovered or insecure bot-
tles, glasses, cans, etc., in the
cup holder while the vehicle is
in motion.
1LDA2154
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 97

Knowing your vehicle98
3
1
2
3
4
5
6
7
8
9

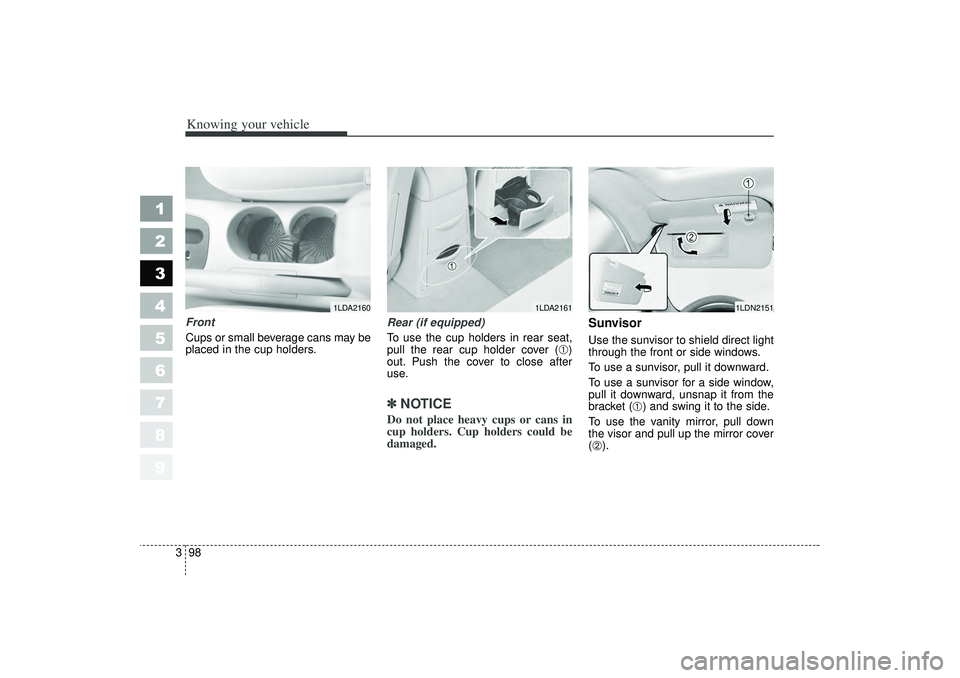

Front
Cups or small beverage cans may be
placed in the cup holders. Rear (if equipped)
To use the cup holders in rear seat,
pull the rear cup holder cover (
➀)
out. Push the cover to close after
use.
✽ ✽ NOTICEDo not place heavy cups or cans in
cup holders. Cup holders could be
damaged.
SunvisorUse the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
To use a sunvisor for a side window,
pull it downward, unsnap it from the
bracket (
➀) and swing it to the side.
To use the vanity mirror, pull down
the visor and pull up the mirror cover
(
➁).
1LDA2161
1LDN2151
1LDA2160
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 98

399
1
2
3
4
5
6
7
8
9
Knowing your vehicle
✽ ✽NOTICEClose the vanity mirror cover
securely and return the sunvisor to
its original position after use. If the
vanity mirror is not closed securely,
the lamp will stay on and could
result in battery discharge and pos-
sible sunvisor damage.
Power socket (if equipped)The power outlets are designed to
provide power for mobile telephones
or other devices designed to operate
with vehicle electrical systems. The
devices should draw less than 10
amps with the engine running.
✽ ✽NOTICE Use when the engine is running,
and remove a plug from the power
outlet after using the electric
appliance. Using when the engine
stops or remaining the electric
appliance with plugged in for
many hours may cause the battery
to be discharged.
 Only use the electric appliances which are less than 12V and 10A
in electric capacity.
 Adjust the air-conditioner or heater to the lowest operation
level when you have to use the
power socket while using air-con-
ditioner or heater.
 Close the cover when not in use.
 Some electronic devices can cause electronic interference when
plugged into a vehicle’s power out-
let. These devices may cause exces-
sive audio static and malfunctions
in other electronic systems or
devices used in your vehicle.
1LDE2155
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 99

Knowing your vehicle100
3
1
2
3
4
5
6
7
8
9
Digital clock (if equipped)Whenever the battery terminals,
ROOM fuse, or Power Connect are
disconnected, you must reset the
time.
When the ignition switch is in the
ACC or ON position, the clock but-
tons operates as follows:
HOUR:
Pressing the “H” button with your
finger, a pencil or similar object will
advance the time displayed by one
hour.
 MINUTE: Pressing the “M” button with your
finger, a pencil or similar object will
advance the time displayed by one
minute.
 RESET: To clear away minutes, press the
“R” button with your finger, a pencil
or similar object. Then the clock will
be set precisely on the hour.
For example, if the “R” button is
pressed while the time is between
9:01 and 9:29, the display will be
reset to 9:00.
9:01 ~ 9:29 ➾ 9:00
9:30 ~ 9:59 ➾ 10:00
1LDN2150
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 100

3 101
1
2
3
4
5
6
7
8
9
Knowing your vehicle
If your vehicle is equipped with this
feature, you can slide or tilt your sun-
roof with the sunroof control buttons
located on the overhead console.
The sunroof can only be opened,
closed, or tilted when the ignition
switch is in the “ON” position.
✽ ✽NOTICE Do not continue to press the sun-
roof control button(s) after the
sunroof is in the fully open, closed,
or tilt position(s). Damage to the
motor or system components
could occur.
 The sunroof cannot slide when it is in the tilt position nor can it be tilt-
ed while in an open or slide posi-
tion.
Sliding the sunroof Autoslide open
To use the autoslide feature,
momentarily (less than 0.5 second)
press the SLIDE OPEN ( ) button
on the overhead console. The sun-
roof will slide all the way open. To
stop the sunroof sliding at any point,
press any sunroof control button.
Manual slide open
Press the SLIDE OPEN ( ) button
on the overhead console for more
than 0.5 second.
Close
To close the sunroof, press the
CLOSE ( ) button on the over-
head console and hold it until the
sunroof is closed.
SUNROOF (IF EQUIPPED)
1LDA2022
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 101
