2006 Hyundai Accent Owner's Manual

1CONTROLS AND EQUIPMENT
18
SB090E1-E Injured Persons A seat belt should be used when an injured person is being transported. Forspecific recommendations, the advice of a qualified Medical Practioner should be sought. SB090F1-E Seat Belt Occupancy The seat belts are designed to be used by one seat occupant only. The use of a seat belt by more than one person increases the levels of injury whichmay be sustained in the event of an accident. SE090G1-E Do Not Lie Down To ensure that the maximum level of protection may be afforded by the seat belt system, all passengers should besitting in an upright position throughout the journey. The seat belt will be unable to afford maximum protection if thefront seats are at or near the fully reclined position.
SB090C1-E Larger Children Larger children should occupy the rear seat and be restrained at all times. Therestraint may take the form of a special safety belt or the original factory fitted seat belt used in conjunction with anapproved booster cushion depending upon the size and weight of the child. Under no circumstances should chil-dren be allowed to travel standing, kneel- ing or lying on the seat. Never allow children to ride in the frontpassenger seat. SB090O1-E Pregnant Women The use of a seat belt is recommended for pregnant women. The seat belt should be worn as low and snugly as possible across the hips, not across the abdo-men. A qualified Medical Practitioner should be consulted for further informa- tion.SEAT BELT
SB090A1-E SEAT BELT PRECAUTIONS Seat belts should be worn at all times by all occupants front and rear. Thepossibility of injury or the severity of injuries suffered in the event of an accident will be greatly reduced by thewearing of seat belts. In addition the following recommenda- tions should be observed. SB090B1-E Babies/Small Children Babies and small children must be restrained using a restraint system spe-cifically designed for this purpose. Un- der no circumstances should a child be carried in the vehicle without the use ofa suitable restraint which meets the regulations in force in the country where the vehicle is in operation.

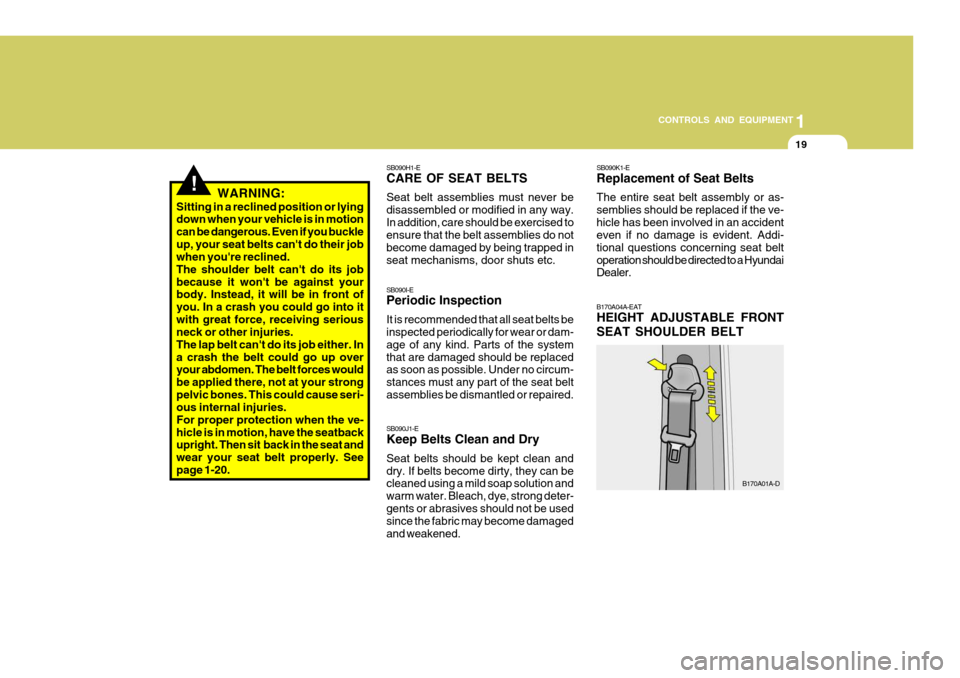

19
1
CONTROLS AND EQUIPMENT
!WARNING:
Sitting in a reclined position or lying down when your vehicle is in motion can be dangerous. Even if you buckleup, your seat belts can't do their job when you're reclined. The shoulder belt can't do its jobbecause it won't be against your body. Instead, it will be in front of you. In a crash you could go into itwith great force, receiving serious neck or other injuries. The lap belt can't do its job either. Ina crash the belt could go up over your abdomen. The belt forces would be applied there, not at your strongpelvic bones. This could cause seri- ous internal injuries. For proper protection when the ve-hicle is in motion, have the seatback upright. Then sit back in the seat and wear your seat belt properly. Seepage 1-20.
SB090K1-E Replacement of Seat Belts The entire seat belt assembly or as- semblies should be replaced if the ve-hicle has been involved in an accident even if no damage is evident. Addi- tional questions concerning seat beltoperation should be directed to a Hyundai Dealer. B170A04A-EAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT
SB090H1-E CARE OF SEAT BELTS Seat belt assemblies must never be disassembled or modified in any way.In addition, care should be exercised to ensure that the belt assemblies do not become damaged by being trapped inseat mechanisms, door shuts etc. SB090I-E Periodic Inspection It is recommended that all seat belts be inspected periodically for wear or dam- age of any kind. Parts of the systemthat are damaged should be replaced as soon as possible. Under no circum- stances must any part of the seat beltassemblies be dismantled or repaired. SB090J1-E Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can be cleaned using a mild soap solution and warm water. Bleach, dye, strong deter-gents or abrasives should not be used since the fabric may become damaged and weakened.
B170A01A-D

1CONTROLS AND EQUIPMENT
20
SB090P1-E SEAT BELTS (3-Point Type) To Fasten The Seat Belt The seat belts are fastened by pulling the belt buckle towards the seat belt stalk and inserting the metal tongue ofthe buckle into the stalk. The buckle should be firmly pressed into the stalk until locked which will be indicated byan audible "click". The length of the seat belt webbing will be automatically adjusted by the seatbelt mechanism to allow the wearer maximum freedom of movement whilst the belt is being worn. However, in theevent of rapid deceleration or impact, the belt mechanism will automatically lock. B180A01L-R
B200A01S-GAT Adjusting Your Seat Belt
B200A01A-D
The mechanism will also lock if the seat belt webbing is withdrawn too quicklywhen the belt is being fastened or if attempts are made to withdraw the webbing whilst the vehicle is not onlevel ground. Should the seat belt lock under these conditions, it will be pos- sible to release the mechanism by al-lowing a small amount of webbing to be retracted and the belt withdrawn again.
You should place the belt as low as possible on your hips, not on your waist. If the belt is located too high on your body, you could slide under it incase of accident or a sudden stop. This
!
You can adjust the height of the shoul- der belt anchor to one of the 4 positions.If the height of the adjusting seat belt is too near your neck, you will not be getting the most effective protection.The shoulder portion should be ad- justed so that it lies across your chest and midway over your shoulder nearestthe door and not your neck. To adjust the height of the seat belt anchor, lower or raise the height ad-juster into an appropriate position. To raise the height adjuster, pull it up. To lower it, push it down while pressing theheight adjuster button. Release the button to lock the anchor into position. Try sliding the height ad-juster to make sure that it has locked into the position. WARNING:
o The height adjuster must be in the locked position when the vehicle is moving.
o The misadjustment of height of
the shoulder belt could reduce theeffectiveness of the seat belt in a crash.

21
1
CONTROLS AND EQUIPMENT
could result of death, serious injury or property damage. Both arms should notbe under or over the belt. Rather, one should be over and the other under, as shown in the illustration.Never wear the seat belt under the arm nearest the door.
B210A01A-AAT To Release the Seat Belt
The seat belt is released by pressing the release button in the locking buckle. When it is released, the belt should automatically draw back into the retrac-tor. If this does not happen, check the belt to be sure it is not twisted, then try again. B210A01L-R
B220D01A-EAT SEAT BELTS - Rear Seat Centre's 3-Point System WithEmergency Locking Retractor
1. Pass the webbing through the web-
bing guide. (3/5 Door only)
2. Before fastening the rear seat centre belt, confirm the metal tab (a) and buckle (b) are latched together.
3. After confirming that (a) and (b) are latched, pull the seat belt out of theretractor and insert the metal tab (c)into the buckle (d). B220D01A
(a)
Webbing Guide
(c)
(d)
(b) B220A02Y
There will be an audible "click" when the tab locks in the buckle. The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manu- ally so that it fits snugly around your hips. If you lean forward in a slow, easymotion, the belt will extend and let you move around. If there is a sudden stop or impact, the belt will lock into position.It will also lock if you try to lean forward too quickly.

1CONTROLS AND EQUIPMENT
22CHILD RESTRAINT SYSTEM
B230A03A-EAT Children riding in the car should sit in the rear seat and must always be prop- erly restrained to minimize the risk of injury in an accident, sudden stop orsudden manoeuvre. According to acci- dent statistics, children are safer when properly restrained in the rear seatsthan in the front seat. Larger children should use one of the seat belts pro- vided.You are required by law to use safety restraints for children. If small children ride in your vehicle you must put themin a child restraint system (safety seat). Children could be injured or killed in a crash if their restraints are not properlysecured. For small children and babies, a child seat or infant seat must be used. Before buying a particular child restraintsystem, make sure it fits your car and seat belts, and fits your child. Follow all the instructions provided by the manu-facturer when installing the child re- straint system.
!
B220C01A-EAT To Release the Seat Belt
When you want to release the seat belt, press the button in the locking buckle. B220E01A
WARNING:
The centre belt latching mechanism is different from those for the rear seat shoulder belts. When fastening the rear seat shoulder belts or therear seat centre belt, make sure they are inserted into the correct buckles to obtain maximum protection fromthe seat belt system and assure proper operation.
!WARNING:
o When using the rear seat centre belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will in- crease the chance of injury in theevent of collision.
o Never unlock the metal tab (a) and
the buckle (b) with the followingexceptions.(1) In case of folding rear
seatbacks down.
(2) If transporting an object on the rear seat may cause damage tothe rear seat center belt.
o Lock the metal tab (a) and the buckle (b) immediately after fold-ing rear seatbacks up.

23
1
CONTROLS AND EQUIPMENT
!WARNING:
o A child restraint system must be placed in the rear seat. Never in- stall a child or infant seat on the front passenger's seat. Should an accident occur andcause the passenger side airbag to deploy, it could severely injure or kill an infant or child seated inan infant or child seat. Thus, only use a child restraint in the rear seat of your vehicle.
o Since a safety belt or child re-
straint system can become veryhot if it is left in a closed vehicle, be sure to check the seat cover and buckles before placing a childthere.
o When the child restraint system is
not in use, store it in the boot orfasten it with a safety belt so that it will not be thrown forward in the case of a sudden stop or an acci-dent.
o Children who are too large to be in
a child restraint should sit in therear seat and be restrained with the available lap/shoulder belts.
Never allow children to ride in the front passenger seat.
o Always make sure that the shoul-
der belt portion of the outboardlap/shoulder belt is positioned midway over the shoulder, never across the neck or behind theback. Moving the child closer to the centre of the vehicle may help provide a good shoulder belt fit.The lap belt portion of the lap/ shoulder belt or the centre seat lap belt must always be positioned aslow as possible on the child's hips and as snug as possible.
o If the seat belt will not properly fit the child, Hyundai recommendsthe use of an approved booster seat in the rear seat in order toraise the child's seating height so that the seat belt will properly fit the child.
o Never allow a child to stand up or kneel on the seat.o Never use an infant carrier or child
safety seat that "hooks" over a seatback; it may not provide ad- equate security in an accident.
o Never allow a child to be held in a person's arms while they are in amoving vehicle, as this could re-sult in serious injury to the child in the event of an accident or a sudden stop. Holding a child in amoving vehicle does not provide the child with any means of pro- tection during an accident, even ifthe person holding the child is wearing a seat belt.
o If the child restraint seat is not anchored properly, the risk of achild being seriously injured or killed in a collision greatly in-creases.

1CONTROLS AND EQUIPMENT
24
!
If you need to tighten the belt, pull more webbing toward the retractor. When youunbuckle the seat belt and allow it to retract, the retractor will automatically revert back to its normal seated pas-senger emergency locking usage con- dition. NOTE:
o Before installing the child restraint
system, read the instructions sup- plied by the child restraint system manufacturer.
o If the seat belt does not operate as described, have the systemchecked immediately by your au-thorized Hyundai dealer.
WARNING:
Do not install any child restraint sys-tem in the front passenger seat.Should an accident occur and cause the passenger side airbag to deploy, it could severely injure or kill aninfant or child seated in an infant or child seat. Therefore, only use a child restraint system in the rear seat ofyour vehicle.
To install a child restraint system in the outboard rear seats, extend the shoul- der/lap belt from its retractor. Install thechild restraint system, buckle the seat belt and allow the seat belt to take up any slack. Make sure that the lap por-tion of the belt is tight around the child restraint system and the shoulder por- tion of the belt is positioned so that itcannot interfere with the child's head or neck. After installation of the child re- straint system, try to move it in alldirections to be sure the child restraint system is securely installed.
B230G01A-GAT Installation on Outboard Rear Seats
B230G01A
B230F01A-EAT Installation on Rear Seat Centre Position Use the centre seat belt for the rear to secure the child restraint system as illustrated. After installation of the childrestraint system, rock the child seat back and forth, and side to side to ensure that it is properly secured by theseat belt. If the child seat moves, readjust the length of the seat belt. Then, if equipped,insert the child restraint tether strap hook into the child restraint hook holder and tighten to secure the seat. Alwaysrefer to the child restraint system manufacturer's recommendation before installing the child restraint system inyour vehicle.
B230F01A-E

25
1
CONTROLS AND EQUIPMENT
B230B02A-GAT Using a Child Restraint System With "Tether Anchorage" Sys-tem For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should be of appropriate size for the child andshould be installed in accordance with the manufacturer's instructions. It is further required that the seat be placedin the vehicle's rear seat since this can make an important contribution to safety. Your vehicle is provided withthree child restraint hook holders for installing the child seat or infant seat. Spacer (4Door : 6mm or 3/5Door : 10mm), Child Restraint Hook Holder
B230B01TB
Holder Bolt (5/16"-30 mm) Washer, Conical Spring Holder, Child Restraint Hook
Retainer Washer
B230C03A-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System (4 Door) Three child restraint hook holders are located on the rear seat package tray.
B230C01A
1. Open the tether anchor cover on the rear seat package tray.
Tether Anchor Cover Child RestraintHook Holder
B230C02A-E
Front of Vehicle
Tether Strap Hook Child Restraint Hook Holders
2. Route the child restraint seat strap
over of the seatback. For vehicles with adjustable headrestraints, route the tether strap un- der the head restraint and between the head restraint posts, otherwise
