2006 ACURA CSX navigation

ÎÎ
µ
µ µ
µ
From terminal To terminals
YES
NO Navigation
unit connector XM receiver
connector Wire color
YES
NO
23-247
XM RECEIVER CONNECTOR A (14P) NAVIGATION UNIT CONNECTOR E (14P)
XM RECEIVER CONNECTOR A (14P)

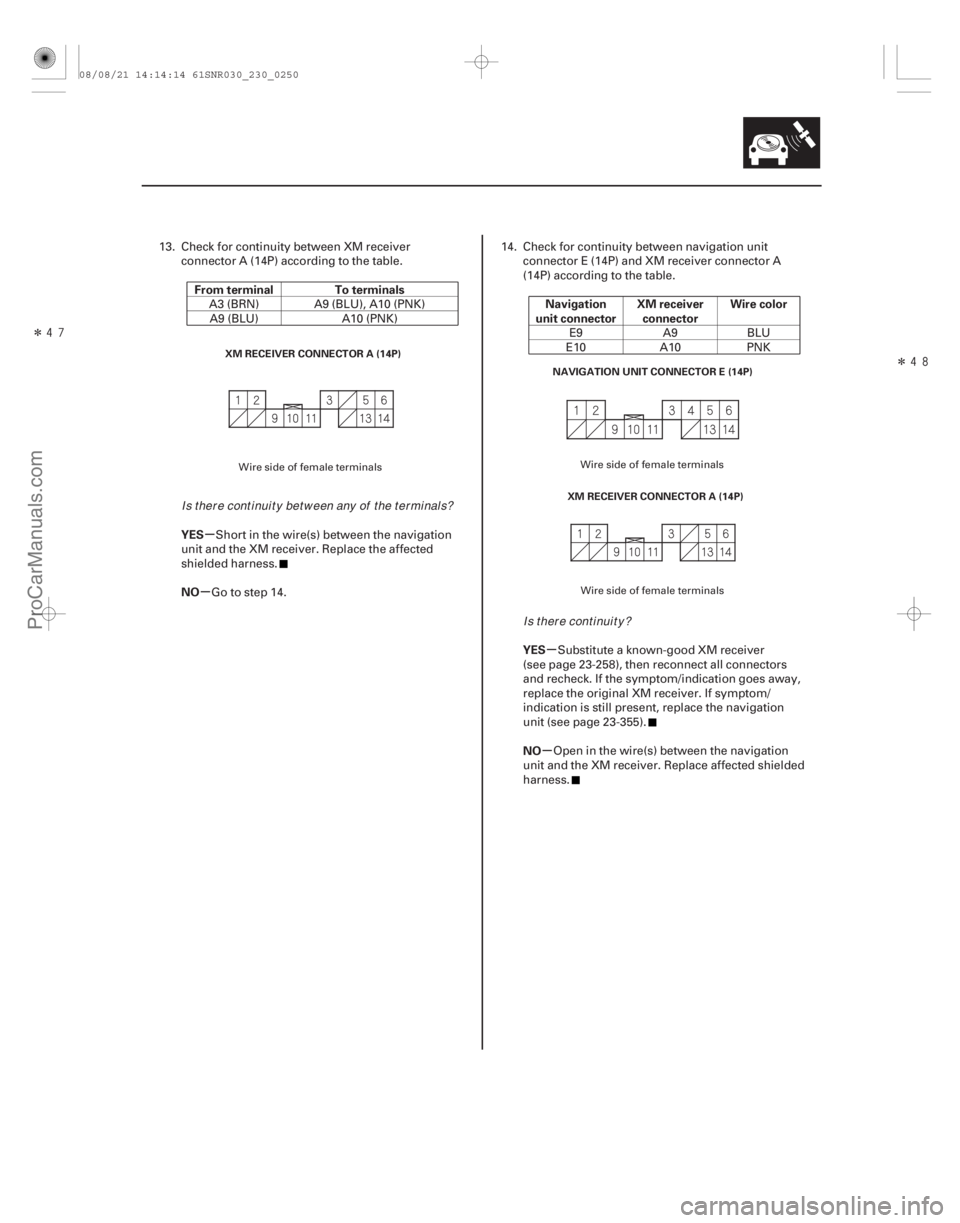

13. Check for continuity between XM receiver connector A (14P) according to the table.
A3 (BRN) A9 (BLU), A10 (PNK)A9 (BLU) A10 (PNK)
Short in the wire(s) between the navigation
unit and the XM receiver. Replace the affected
shielded harness.
Go to step 14. 14. Check for continuity between navigation unit
connector E (14P) and XM receiver connector A
(14P) according to the table.
E9 A9 BLU
E10 A10 PNK
Substitute a known-good XM receiver
(see page 23-258), then reconnect all connectors
and recheck. If the symptom/indication goes away,
replace the original XM receiver. If symptom/
indication is still present, replace the navigation
unit (see page 23-355).
Open in the wire(s) between the navigation
unit and the XM receiver. Replace affected shielded
harness.
Wire side of female terminals Wire side of female terminals
Wire side of female terminals
I s t her e cont i nui t y bet w een any of t he t er mi nal s? Is there continuity?
08/08/21 14:14:14 61SNR030_230_0250
ProCarManuals.com
DYNOMITE -2009-

Î
Î
(#'#
)
´
µ
µ
µ
µ µ
µ
µ
µ

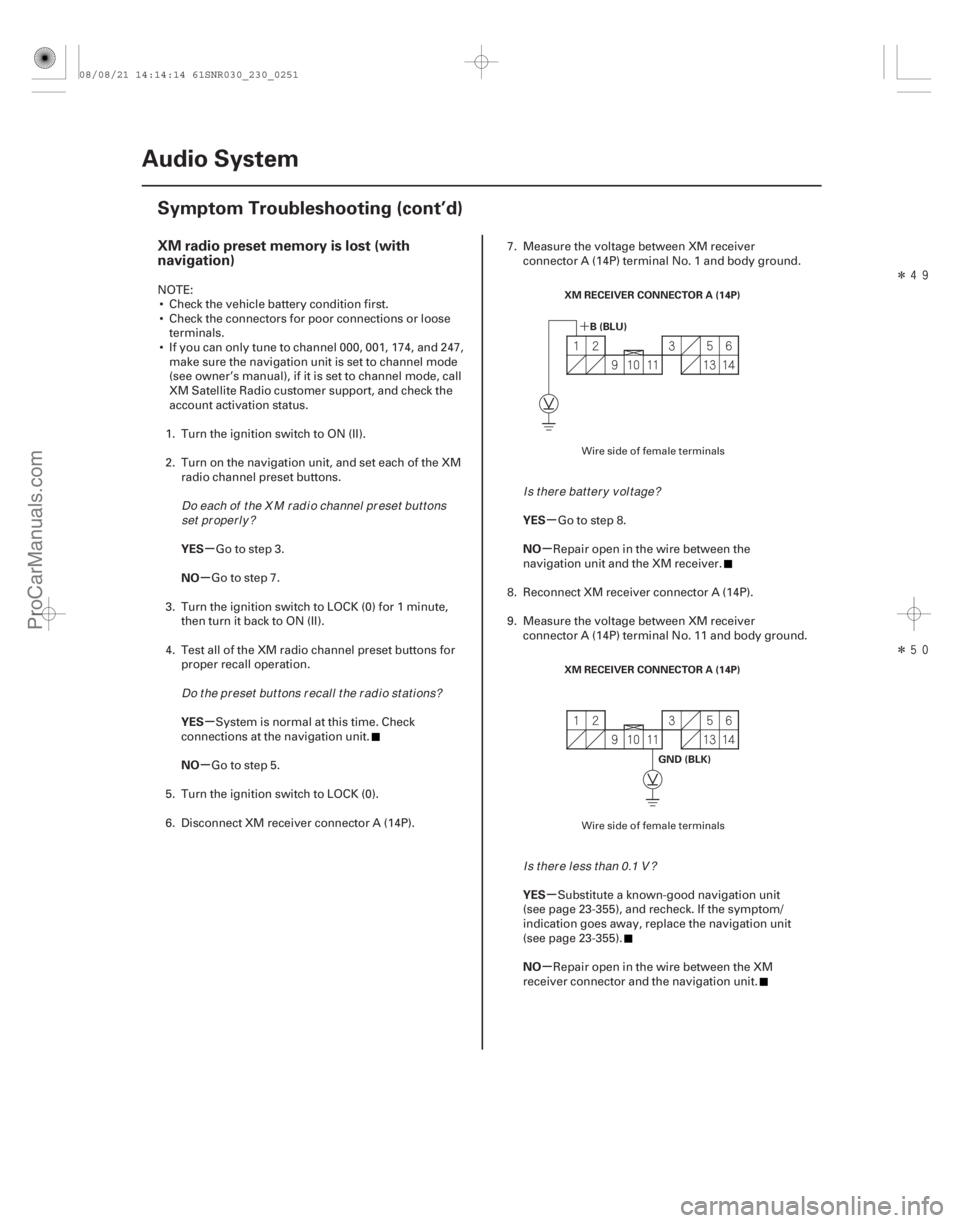

XM radio preset memory is lost (with
navigation)
YES
NO
YES
NO YES
NO
YES
NO
23-248Audio System
Symptom Troubleshooting (cont’d)
XM RECEIVER CONNECTOR A (14P)
B(BLU)
XM RECEIVER CONNECTOR A (14P) GND (BLK)NOTE: Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
 If you can only tune to channel 000, 001, 174, and 247, make sure the navigation unit is set to channel mode
(see owner’s manual), if it is set to channel mode, call
XM Satellite Radio customer support, and check the
account activation status.
1. Turn the ignition switch to ON (II).
2. Turn on the navigation unit, and set each of the XM radio channel preset buttons.
Go to step 3.
Go to step 7.
3. Turn the ignition switch to LOCK (0) for 1 minute, then turn it back to ON (II).
4. Test all of the XM radio channel preset buttons for proper recall operation.
System is normal at this time. Check
connections at the navigation unit.
Go to step 5.
5. Turn the ignition switch to LOCK (0).
6. Disconnect XM receiver connector A (14P). 7. Measure the voltage between XM receiver
connector A (14P) terminal No. 1 and body ground.
Go to step 8.
Repair open in the wire between the
navigation unit and the XM receiver.
8. Reconnect XM receiver connector A (14P).
9. Measure the voltage between XM receiver connector A (14P) terminal No. 11 and body ground.
Substitute a known-good navigation unit
(see page 23-355), and recheck. If the symptom/
indication goes away, replace the navigation unit
(see page 23-355).
Repair open in the wire between the XM
receiver connector and the navigation unit.
Wire side of female terminals
Wire side of female terminals
Do each of t he X M r ad i o channel pr eset but t ons set pr oper l y ?
Do t he pr eset but t ons r ecal l t he r ad i o st at i ons? Is there battery voltage?
Is t her e l ess t han 0.1 V ?
08/08/21 14:14:14 61SNR030_230_0251
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ µ
µ

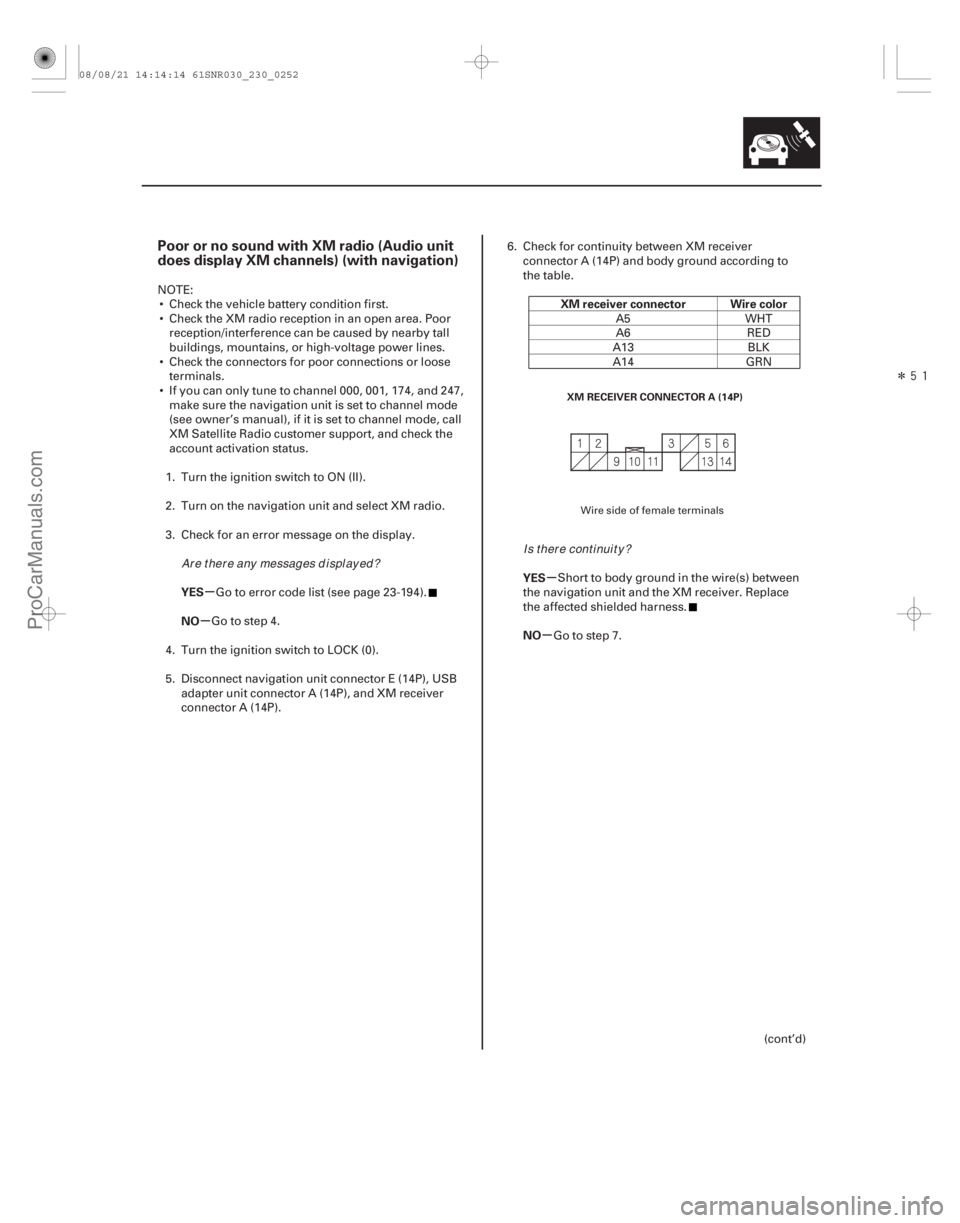

Poor or no sound with XM radio (Audio unit
does display XM channels) (with navigation)
YES
NO XM receiver connector Wire color
YES
NO
23-249
XM RECEIVER CONNECTOR A (14P)
NOTE:  Check the vehicle battery condition first.
 Check the XM radio reception in an open area. Poor reception/interference can be caused by nearby tall
buildings, mountains, or high-voltage power lines.
 Check the connectors for poor connections or loose terminals.
 If you can only tune to channel 000, 001, 174, and 247, make sure the navigation unit is set to channel mode
(see owner’s manual), if it is set to channel mode, call
XM Satellite Radio customer support, and check the
account activation status.
1. Turn the ignition switch to ON (II).
2. Turn on the navigation unit and select XM radio.
3. Check for an error message on the display.
Go to error code list (see page 23-194).
Go to step 4.
4. Turn the ignition switch to LOCK (0).
5. Disconnect navigation unit connector E (14P), USB adapter unit connector A (14P), and XM receiver
connector A (14P). 6. Check for continuity between XM receiver
connector A (14P) and body ground according to
the table.
A5 WHT
A6 RED
A13 BLK
A14 GRN
Short to body ground in the wire(s) between
the navigation unit and the XM receiver. Replace
the affected shielded harness.
Go to step 7.
(cont’d)
Wire side of female terminals
Ar e t her e any messages d i spl ay ed ? Is there continuity?
08/08/21 14:14:14 61SNR030_230_0252
ProCarManuals.com
DYNOMITE -2009-

ÎÎ
µ
µ µ
µ
From terminal To terminals
YES
NO Navigation
unit connector XM receiver
connector Wire color
YES
NO
23-250 Audio System
Symptom Troubleshooting (cont’d)
XM RECEIVER CONNECTOR A (14P)
NAVIGATION UNIT CONNECTOR E (14P)
XM RECEIVER CONNECTOR A (14P)

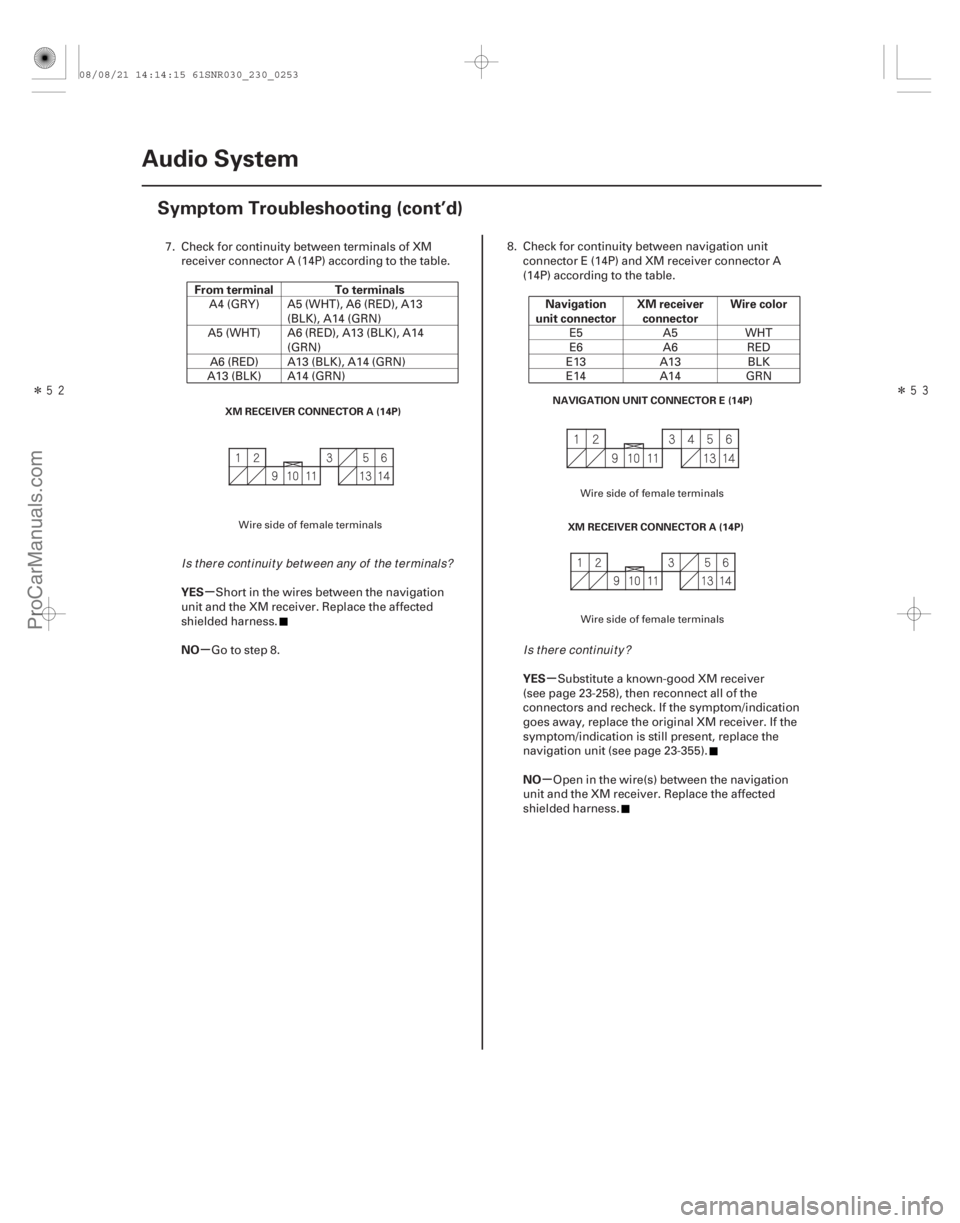

7. Check for continuity between terminals of XMreceiver connector A (14P) according to the table.
A4 (GRY) A5 (WHT), A6 (RED), A13 (BLK), A14 (GRN)
A5 (WHT) A6 (RED), A13 (BLK), A14 (GRN)
A6 (RED) A13 (BLK), A14 (GRN)
A13 (BLK) A14 (GRN)
Short in the wires between the navigation
unit and the XM receiver. Replace the affected
shielded harness.
Go to step 8. 8. Check for continuity between navigation unit
connector E (14P) and XM receiver connector A
(14P) according to the table.
E5 A5 WHT
E6 A6 RED
E13 A13 BLK
E14 A14 GRN
Substitute a known-good XM receiver
(see page 23-258), then reconnect all of the
connectors and recheck. If the symptom/indication
goes away, replace the original XM receiver. If the
symptom/indication is still present, replace the
navigation unit (see page 23-355).
Open in the wire(s) between the navigation
unit and the XM receiver. Replace the affected
shielded harness.
Wire side of female terminals Wire side of female terminals
Wire side of female terminals
I s t her e cont i nui t y bet w een any of t he t er mi nal s? Is there continuity?
08/08/21 14:14:15 61SNR030_230_0253
ProCarManuals.com
DYNOMITE -2009-

(#'
)
(#'
) Special Tools Required Special Tools Required
Left/Right Channel IDPhase Test
23-25123-251

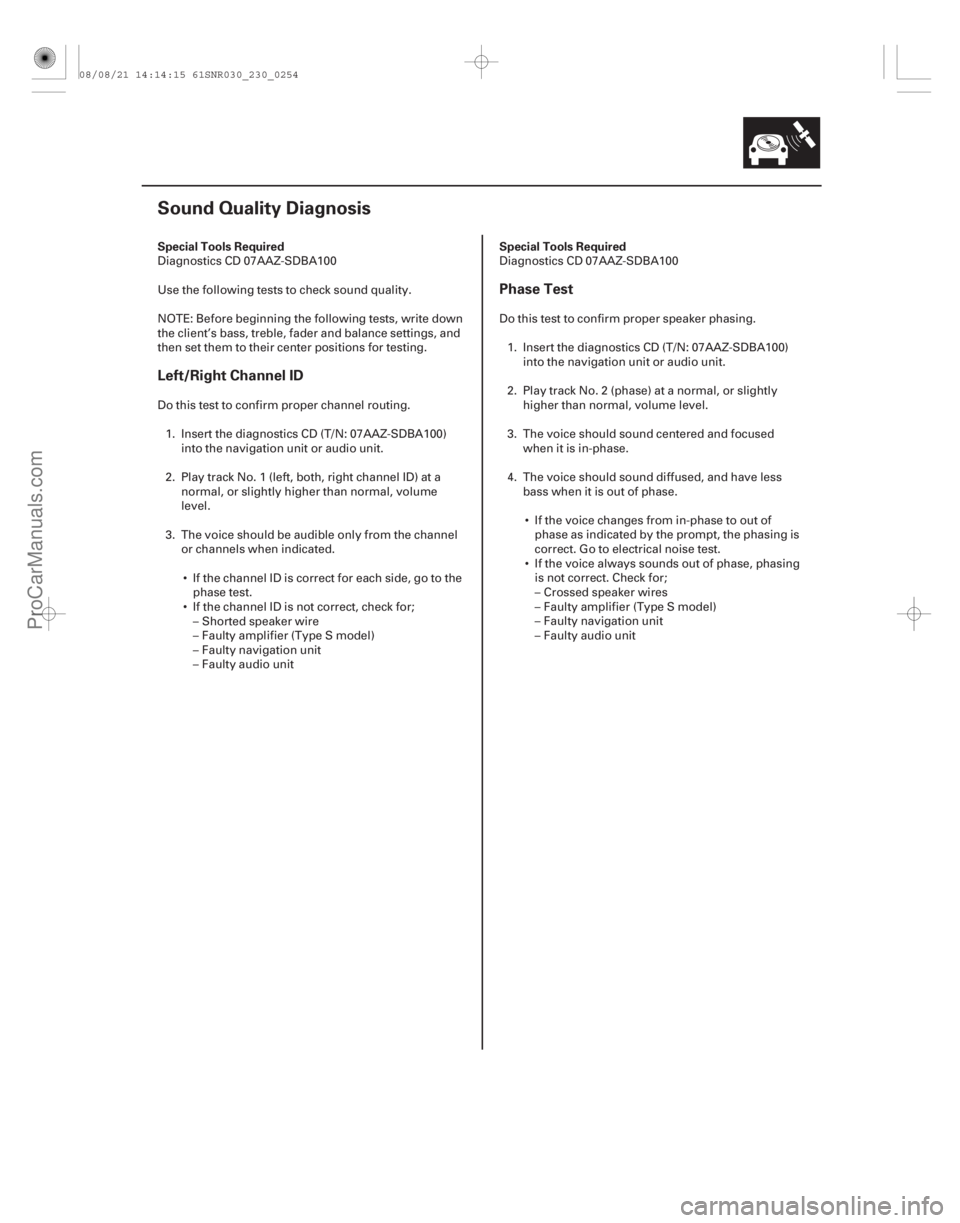

Sound Quality Diagnosis
Diagnostics CD 07AAZ-SDBA100
Use the following tests to check sound quality.
NOTE: Before beginning the following tests, write down
the client’s bass, treble, fader and balance settings, and
then set them to their center positions for testing.
Do this test to confirm proper channel routing.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Play track No. 1 (left, both, right channel ID) at a normal, or slightly higher than normal, volume
level.
3. The voice should be audible only from the channel or channels when indicated.
 If the channel ID is correct for each side, go to the phase test.
 If the channel ID is not correct, check for; – Shorted speaker wire
– Faulty amplifier (Type S model)
– Faulty navigation unit
– Faulty audio unit Diagnostics CD 07AAZ-SDBA100
Do this test to confirm proper speaker phasing.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Play track No. 2 (phase) at a normal, or slightly higher than normal, volume level.
3. The voice should sound centered and focused when it is in-phase.
4. The voice should sound diffused, and have less bass when it is out of phase.
 If the voice changes from in-phase to out of phase as indicated by the prompt, the phasing is
correct. Go to electrical noise test.
 If the voice always sounds out of phase, phasing is not correct. Check for;
– Crossed speaker wires
– Faulty amplifier (Type S model)
– Faulty navigation unit
– Faulty audio unit
08/08/21 14:14:15 61SNR030_230_0254
ProCarManuals.com
DYNOMITE -2009-

(#'
)
Special Tools Required
Electrical Noise Test
23-252
Audio System
Sound Quality Diagnosis (cont’d)
Diagnostics CD 07AAZ-SDBA100
Do this test to check for electrical noise being induced
into the audio system.
NOTE: Electrical noise may be caused by outside
sources that cannot be handled by the audio system.
Make sure you remove any cell phones and/or turn off
any aftermarket device before beginning this test.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Play track No. 4 (digital zero) at a normal, or slightly higher than normal, volume level.
3. Operate any electrical device that may create electrical noise in the audio system, including
starting the engine.
4. Play track No. 5 (near digital zero) at a normal, or slightly higher than normal, volume level.
5. Operate any electrical device that may create electrical noise in the audio system, including
starting the engine.
6. Play track No. 6 (SNR) at a normal, or slightly higher than normal, volume level. 7. Operate any electrical device that may create
electrical noise in the audio system, including
starting the engine.
 If no abnormal noise is heard, go to individual speaker test.
 If the noise is present only during the SNR track, replace the navigation unit or audio unit.
 If the noise is heard during the digital zero or near digital zero track, check for;
– Poor ground for the audio unit, amplifier, engine or battery cable
– Pinched or shorted speaker or amplifier wire
– Faulty amplifier (Type S model)
– Faulty navigation unit
– Faulty audio unit
– Other faulty components causing excessive electrical noise (ignition coils, alternator, door
lock actuators, etc.). Disconnect any suspect
components, and then replay the tracks that
were originally noisy. If the noise is gone,
check the component’s circuit and the
component.
08/08/21 14:14:15 61SNR030_230_0255
ProCarManuals.com
DYNOMITE -2009-

(#'
)

(#'
) Special Tools Required Special Tools Required

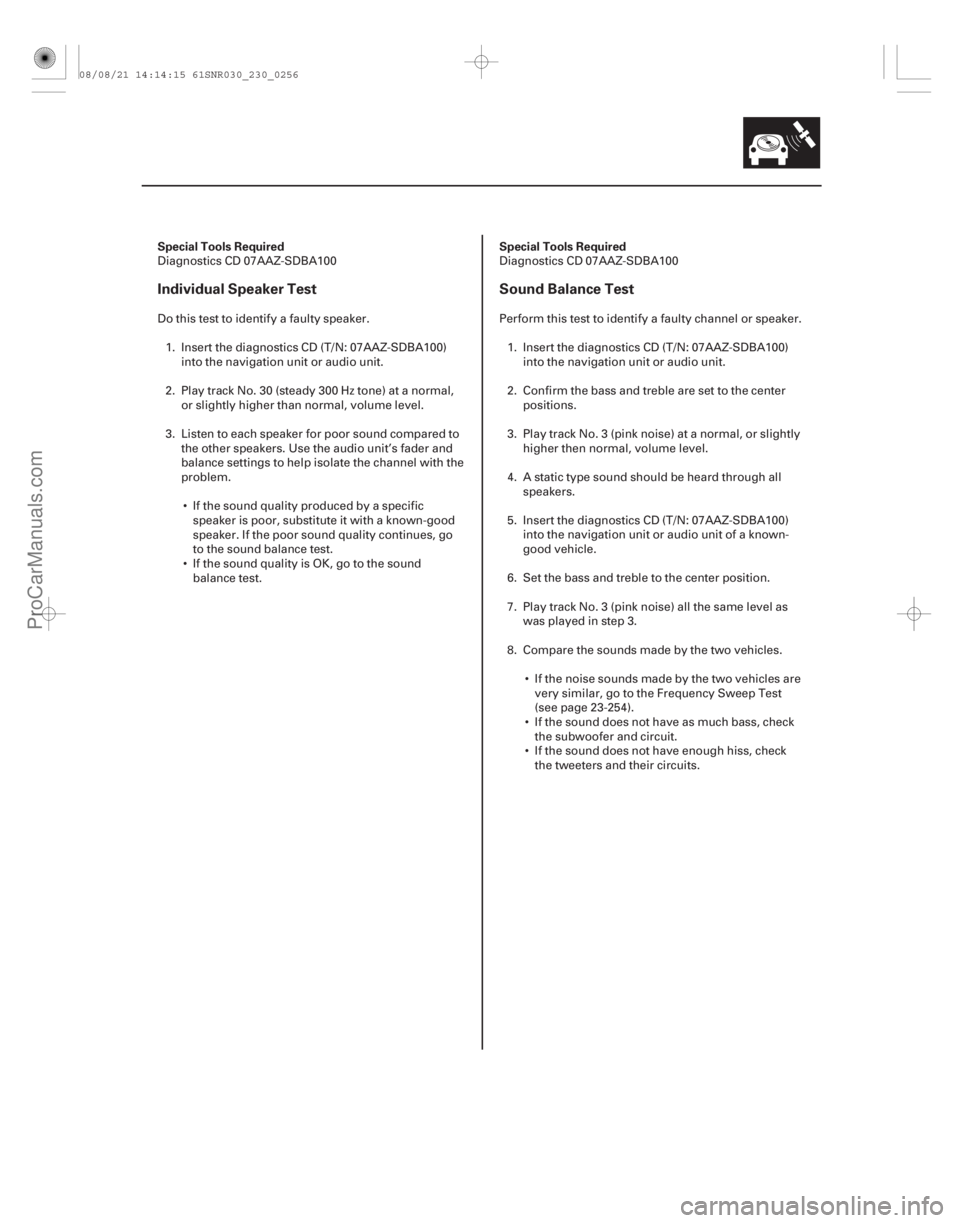

Individual Speaker TestSound Balance Test
23-25323-253
Diagnostics CD 07AAZ-SDBA100
Do this test to identify a faulty speaker.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Play track No. 30 (steady 300 Hz tone) at a normal, or slightly higher than normal, volume level.
3. Listen to each speaker for poor sound compared to the other speakers. Use the audio unit’s fader and
balance settings to help isolate the channel with the
problem.
 If the sound quality produced by a specific speaker is poor, substitute it with a known-good
speaker. If the poor sound quality continues, go
to the sound balance test.
 If the sound quality is OK, go to the sound balance test. Diagnostics CD 07AAZ-SDBA100
Perform this test to identify a faulty channel or speaker.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Confirm the bass and treble are set to the center positions.
3. Play track No. 3 (pink noise) at a normal, or slightly higher then normal, volume level.
4. A static type sound should be heard through all speakers.
5. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit of a known-
good vehicle.
6. Set the bass and treble to the center position.
7. Play track No. 3 (pink noise) all the same level as wasplayedinstep3.
8. Compare the sounds made by the two vehicles.  If the noise sounds made by the two vehicles arevery similar, go to the Frequency Sweep Test
(see page 23-254).
 If the sound does not have as much bass, check the subwoofer and circuit.
 If the sound does not have enough hiss, check the tweeters and their circuits.
08/08/21 14:14:15 61SNR030_230_0256
ProCarManuals.com
DYNOMITE -2009-

(#'
)
(#'
) Special Tools Required Special Tools Required
Frequency sweepSound judging
23-25423-254Audio System
Sound Quality Diagnosis (cont’d)
Diagnostics CD 07AAZ-SDBA100
Do this test to find rattles or reverberation that may
cause a perception of poor sound quality.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Play track No. 13 (sweep from 500 Hz to 35 Hz) at a normal, or slightly higher than normal, volume
level.
3. Listen to each speaker for poor sound quality or reverberations caused by specific frequencies. Use
the voice-over to estimate the frequency that
causes the vibration. Use the audio unit’s fader and
balance settings to help isolate the channel with the
problem.
 If vibrations or poor sound quality are heard, go to step 4.
 If no vibrations or poor sound quality are heard, go to sound judging.
4. Choose the appropriate track from No. 14 to 25 (small range frequency sweep) or 26 to 53 (single
frequencies) to recreate the frequency that caused
the poor sound quality or vibration located in step
3: this aids in diagnosis of the cause.
NOTE: When you get to the track that recreates the
problem, select the repeat function on the
navigation unit or audio unit, this will help you
isolate the cause.
5. Replace or insulate the source of the vibrations or, if the speaker is the source of the poor sound
quality, replace it. Diagnostics CD 07AAZ-SDBA100
 Do this test to compare overall sound quality, imaging, and dynamics between the client’s vehicle
and a known-good vehicle. Only use a vehicle of the
same model and trim level for this test.
 Make sure the vehicle is using only OEM speakers.
1. In the client’s vehicle, set the bass, treble, fader, and balance settings to the client’s normal settings
that were written down before beginning testing.
2. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
3. Play tracks No. 7 to 12 (sound quality, midland, dynamics, and imaging demonstration tracks) at a
normal, or slightly higher than normal, volume
level. Write down the volume setting being used.
4. Listen to areas of the track that stand out as being either very clear, or poorer than other areas of the
track.
5. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit of a known-
good vehicle.
6. Play the tracks at the same volume level and the same bass, treble, balance, and fader settings as
used in step 3 in the client’s vehicle.
7. Listen to the same area of the track that stood out as being either very clear or poorer than other
areas of the track.
08/08/21 14:14:15 61SNR030_230_0257
ProCarManuals.com
DYNOMITE -2009-
