2006 ACURA CSX navigation

Î
Î
(#'#
)
µ
µ
µ
µ
µ
µ µ
µ
µ
µ

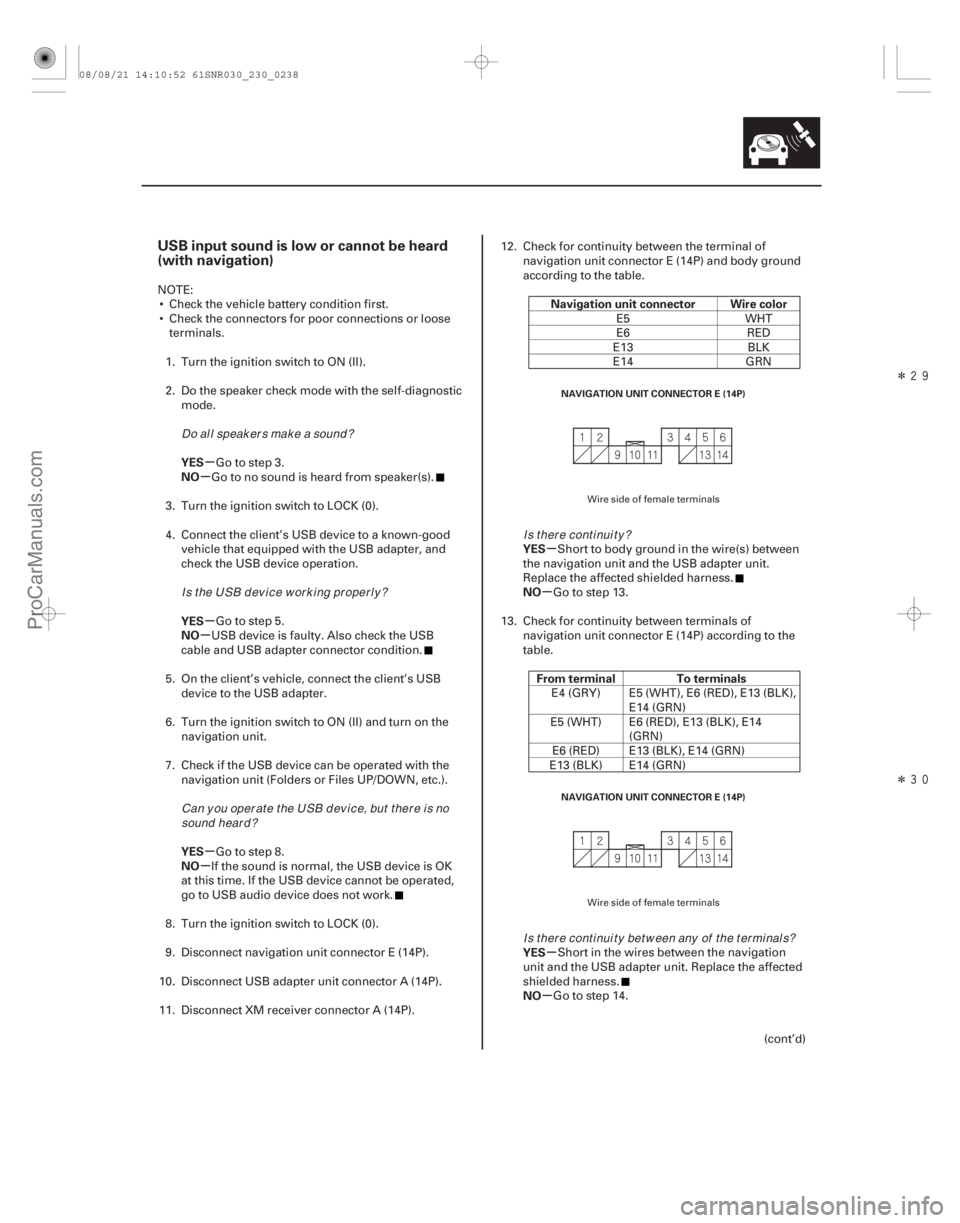

USB input sound is low or cannot be heard
(with navigation)
YES
NO
YES
NO
YES
NO Navigation unit connector Wire color
YES
NO From terminal To terminals
YES
NO
23-235
NAVIGATION UNIT CONNECTOR E (14P)
NAVIGATION UNIT CONNECTOR E (14P)
NOTE:  Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Do the speaker check mode with the self-diagnostic mode.
Go to step 3.
Go to no sound is heard from speaker(s).
3. Turn the ignition switch to LOCK (0).
4. Connect the client’s USB device to a known-good vehicle that equipped with the USB adapter, and
check the USB device operation.
Go to step 5.
USB device is faulty. Also check the USB
cable and USB adapter connector condition.
5. On the client’s vehicle, connect the client’s USB device to the USB adapter.
6. Turn the ignition switch to ON (II) and turn on the navigation unit.
7. Check if the USB device can be operated with the navigation unit (Folders or Files UP/DOWN, etc.).
Go to step 8.
If the sound is normal, the USB device is OK
at this time. If the USB device cannot be operated,
go to USB audio device does not work.
8. Turn the ignition switch to LOCK (0).
9. Disconnect navigation unit connector E (14P).
10. Disconnect USB adapter unit connector A (14P).
11. Disconnect XM receiver connector A (14P). 12. Check for continuity between the terminal of
navigation unit connector E (14P) and body ground
accordingtothetable.
E5 WHT
E6 RED
E13 BLK
E14 GRN
Short to body ground in the wire(s) between
the navigation unit and the USB adapter unit.
Replace the affected shielded harness. Go to step 13.
13. Check for continuity between terminals of navigation unit connector E (14P) according to the
table.
E4 (GRY) E5 (WHT), E6 (RED), E13 (BLK), E14 (GRN)
E5 (WHT) E6 (RED), E13 (BLK), E14 (GRN)
E6 (RED) E13 (BLK), E14 (GRN)
E13 (BLK) E14 (GRN)
Short in the wires between the navigation
unit and the USB adapter unit. Replace the affected
shielded harness. Go to step 14.
(cont’d)
Wire side of female terminals
Wire side of female terminals
Do al l speak er s mak e a sound ?
Is the USB device working properly?
Can y ou oper at e t he U SB d ev i ce, but t her e i s nosound hear d ? Is there continuity?
I s t her e cont i nui t y bet w een any of t he t er mi nal s?
08/08/21 14:10:52 61SNR030_230_0238
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ µ
µ
µ
µ
µ
µ
Navigation
unit connector USB adapter
unit connector Wire color
YES
NO YES
NO
YES
NO
YES
NO
USB input sound is low or cannot be heard
(without navigation)
23-23623-236Audio System
Symptom Troubleshooting (cont’d)
NAVIGATION UNIT CONNECTOR E (14P)
USB ADAPTER UNIT CONNECTOR A (14P)

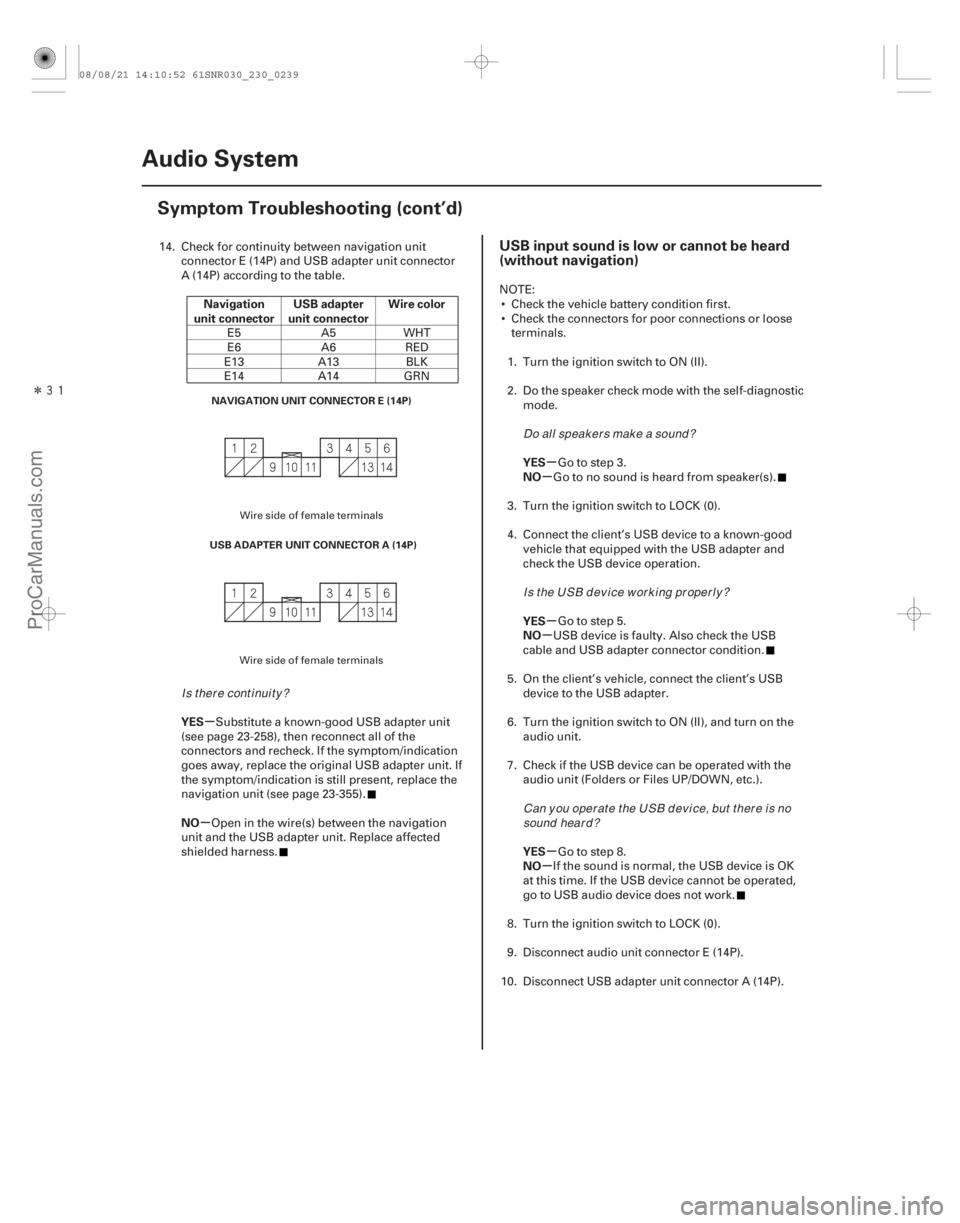

14. Check for continuity between navigation unit connector E (14P) and USB adapter unit connector
A (14P) according to the table.
E5 A5 WHT
E6 A6 RED
E13 A13 BLK
E14 A14 GRN
Substitute a known-good USB adapter unit
(see page 23-258), then reconnect all of the
connectors and recheck. If the symptom/indication
goes away, replace the original USB adapter unit. If
the symptom/indication is still present, replace the
navigation unit (see page 23-355).
Open in the wire(s) between the navigation
unit and the USB adapter unit. Replace affected
shielded harness. NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Do the speaker check mode with the self-diagnostic mode.
Go to step 3.
Go to no sound is heard from speaker(s).
3. Turn the ignition switch to LOCK (0).
4. Connect the client’s USB device to a known-good vehicle that equipped with the USB adapter and
check the USB device operation.
Go to step 5.
USB device is faulty. Also check the USB
cable and USB adapter connector condition.
5. On the client’s vehicle, connect the client’s USB device to the USB adapter.
6. Turn the ignition switch to ON (II), and turn on the audio unit.
7. Check if the USB device can be operated with the audio unit (Folders or Files UP/DOWN, etc.).
Go to step 8.
If the sound is normal, the USB device is OK
at this time. If the USB device cannot be operated,
go to USB audio device does not work.
8. Turn the ignition switch to LOCK (0).
9. Disconnect audio unit connector E (14P).
10. Disconnect USB adapter unit connector A (14P).
Wire side of female terminals
Wire side of female terminals
Is there continuity? Do al l speak er s mak e a sound ?
Is the USB device working properly?
Can y ou oper at e t he U SB d ev i ce, but t her e i s nosound hear d ?
08/08/21 14:10:52 61SNR030_230_0239
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ
µ
µ µ
µ
µ
µ
µ
µ

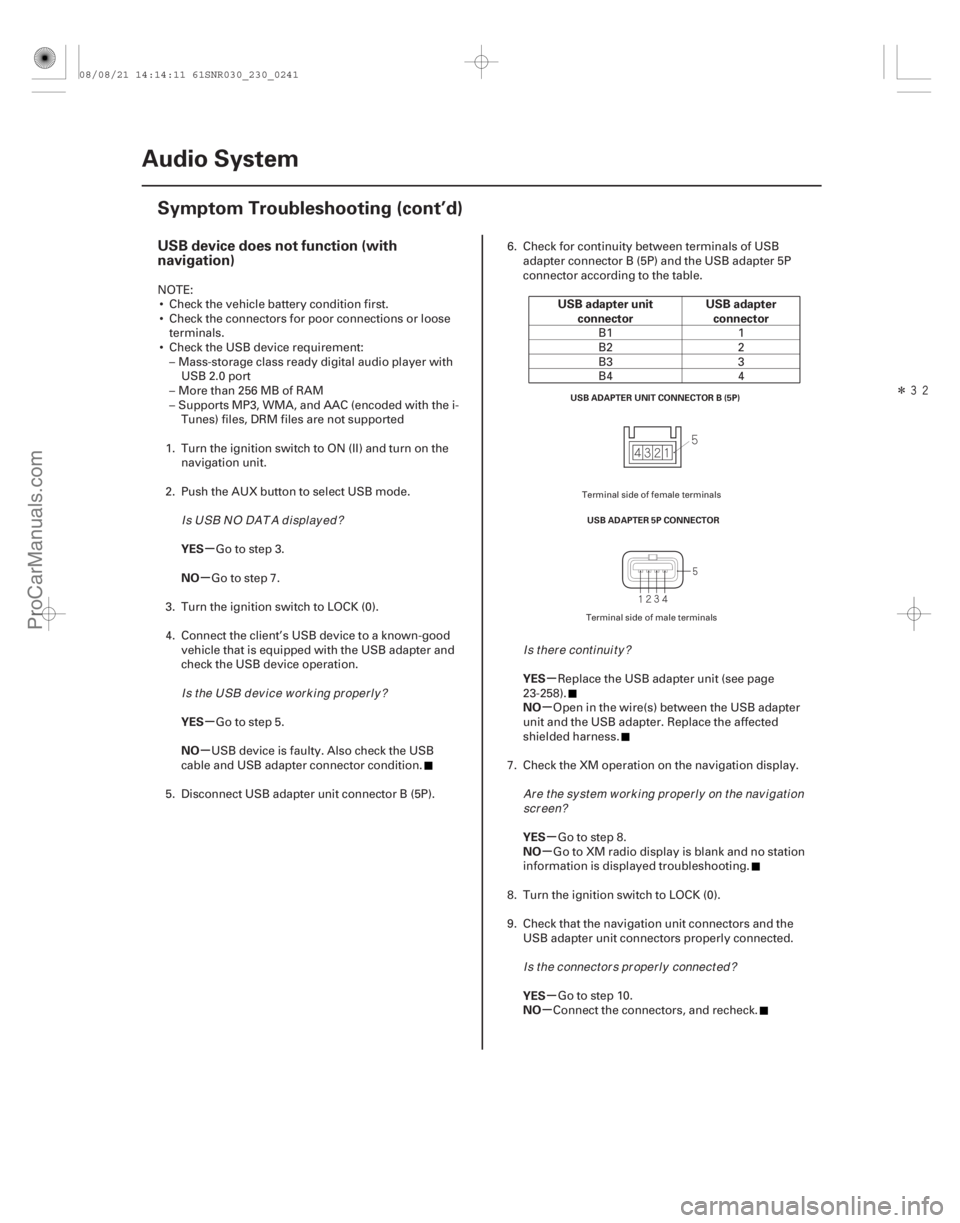

USB device does not function (with
navigation)
YES
NO
YES
NO USB adapter unit
connector USB adapter
connector
YES
NO
YES
NO
YES
NO
23-238 Audio System
Symptom Troubleshooting (cont’d)
USB ADAPTER UNIT CONNECTOR B (5P)
USB ADAPTER 5P CONNECTOR
NOTE: Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
 Check the USB device requirement: – Mass-storage class ready digital audio player with USB 2.0 port
– More than 256 MB of RAM
– Supports MP3, WMA, and AAC (encoded with the i- Tunes) files, DRM files are not supported
1. Turn the ignition switch to ON (II) and turn on the navigation unit.
2. Push the AUX button to select USB mode.
Go to step 3.
Go to step 7.
3. Turn the ignition switch to LOCK (0).
4. Connect the client’s USB device to a known-good vehicle that is equipped with the USB adapter and
check the USB device operation.
Go to step 5.
USB device is faulty. Also check the USB
cable and USB adapter connector condition.
5. Disconnect USB adapter unit connector B (5P). 6. Check for continuity between terminals of USB
adapter connector B (5P) and the USB adapter 5P
connector according to the table.
B1 1
B2 2
B3 3
B4 4
Replace the USB adapter unit (see page
23-258). Open in the wire(s) between the USB adapter
unit and the USB adapter. Replace the affected
shielded harness.
7. Check the XM operation on the navigation display.
Go to step 8.
Go to XM radio display is blank and no station
information is displayed troubleshooting.
8. Turn the ignition switch to LOCK (0).
9. Check that the navigation unit connectors and the USB adapter unit connectors properly connected.
Go to step 10.
Connect the connectors, and recheck.
Terminal side of female terminals
Terminal side of male terminals
Is USB NO DAT A displayed?
Is the USB device working properly? Is there continuity?
Ar e t he sy st em w or k i ng pr oper l y on t he nav i gat i onscr een?
I s t he connect or s pr oper l y connect ed ?
08/08/21 14:14:11 61SNR030_230_0241
ProCarManuals.com
DYNOMITE -2009-

Î
ÎÎ
Î
´
µ
µ
µ
µ µ
µ
µ
µ
YES
NO
YES
NO YES
NO
YES
NO
23-239
USB ADAPTER UNIT CONNECTOR A (14P)
B(BLU)
USB ADAPTER UNIT CONNECTOR A (14P) GND (BLK) USB ADAPTER UNIT CONNECTOR A (14P)
SYS ACC (LT BLU)
NAVIGATION UNIT CONNECTOR E (14P) SYS ACC (LT BLU)

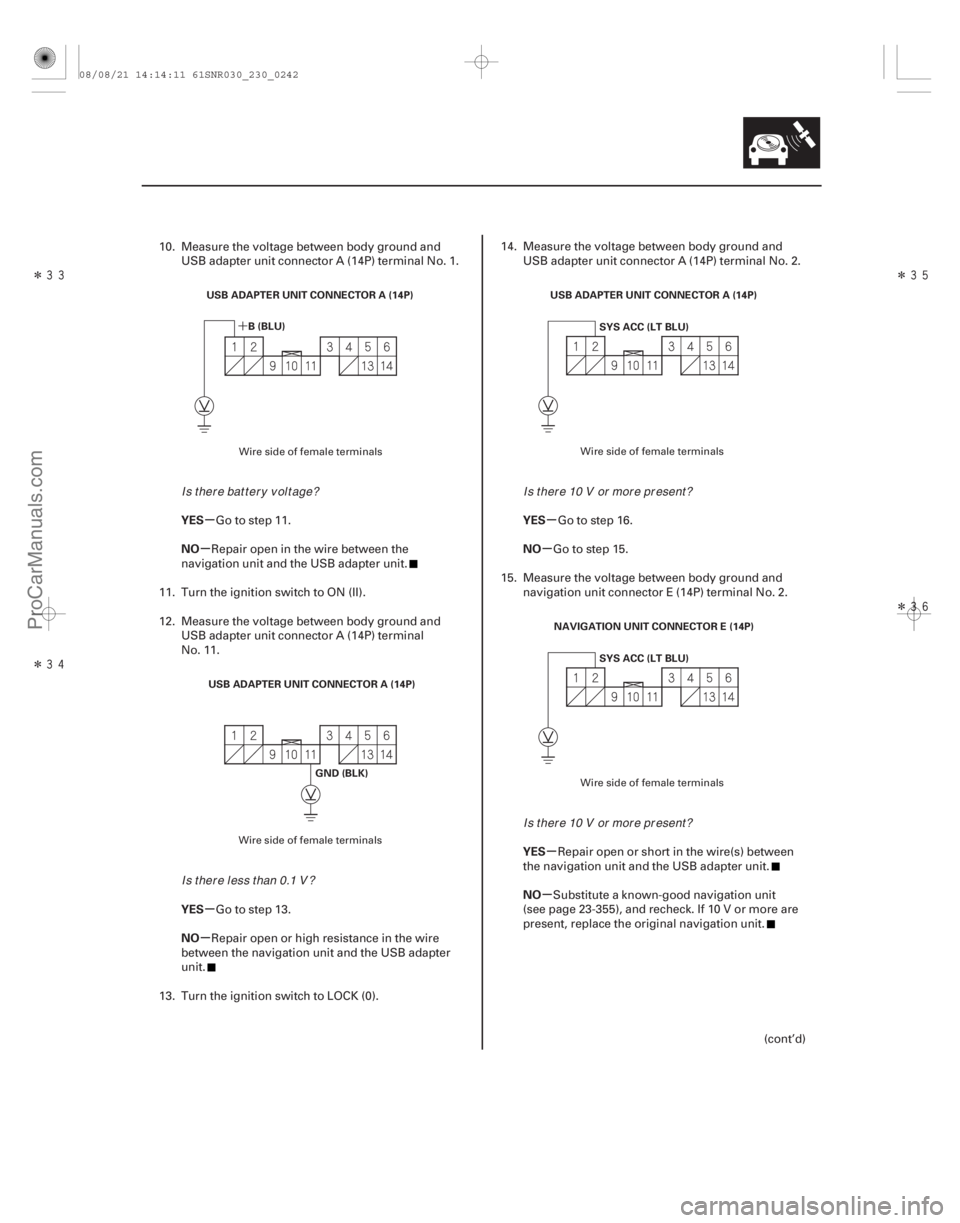

10. Measure the voltage between body ground andUSB adapter unit connector A (14P) terminal No. 1.
Go to step 11.
Repair open in the wire between the
navigation unit and the USB adapter unit.
11. Turn the ignition switch to ON (II).
12. Measure the voltage between body ground and USB adapter unit connector A (14P) terminal
No. 11.
Go to step 13.
Repair open or high resistance in the wire
between the navigation unit and the USB adapter
unit.
13. Turn the ignition switch to LOCK (0). 14. Measure the voltage between body ground and
USB adapter unit connector A (14P) terminal No. 2.
Go to step 16.
Go to step 15.
15. Measure the voltage between body ground and navigation unit connector E (14P) terminal No. 2.
Repair open or short in the wire(s) between
the navigation unit and the USB adapter unit.
Substitute a known-good navigation unit
(see page 23-355), and recheck. If 10 V or more are
present, replace the original navigation unit.
(cont’d)
Wire side of female terminals
Wire side of female terminals Wire side of female terminals
Wire side of female terminals
Is there battery voltage?
Is t her e l ess t han 0.1 V ? Is t her e 10 V or mor e pr esent ?
Is t her e 10 V or mor e pr esent ?
08/08/21 14:14:11 61SNR030_230_0242
ProCarManuals.com
DYNOMITE -2009-

ÎÎ
µ
µ µ
µ
YES
NO Navigation
unit connector USB adapter
unit connector Wire color
YES
NO
23-240 Audio System
Symptom Troubleshooting (cont’d)
NAVIGATION UNIT CONNECTOR E (14P)
SYS ACC (LT BLU) NAVIGATION UNIT CONNECTOR E (14P)
USB ADAPTER UNIT CONNECTOR A (14P)

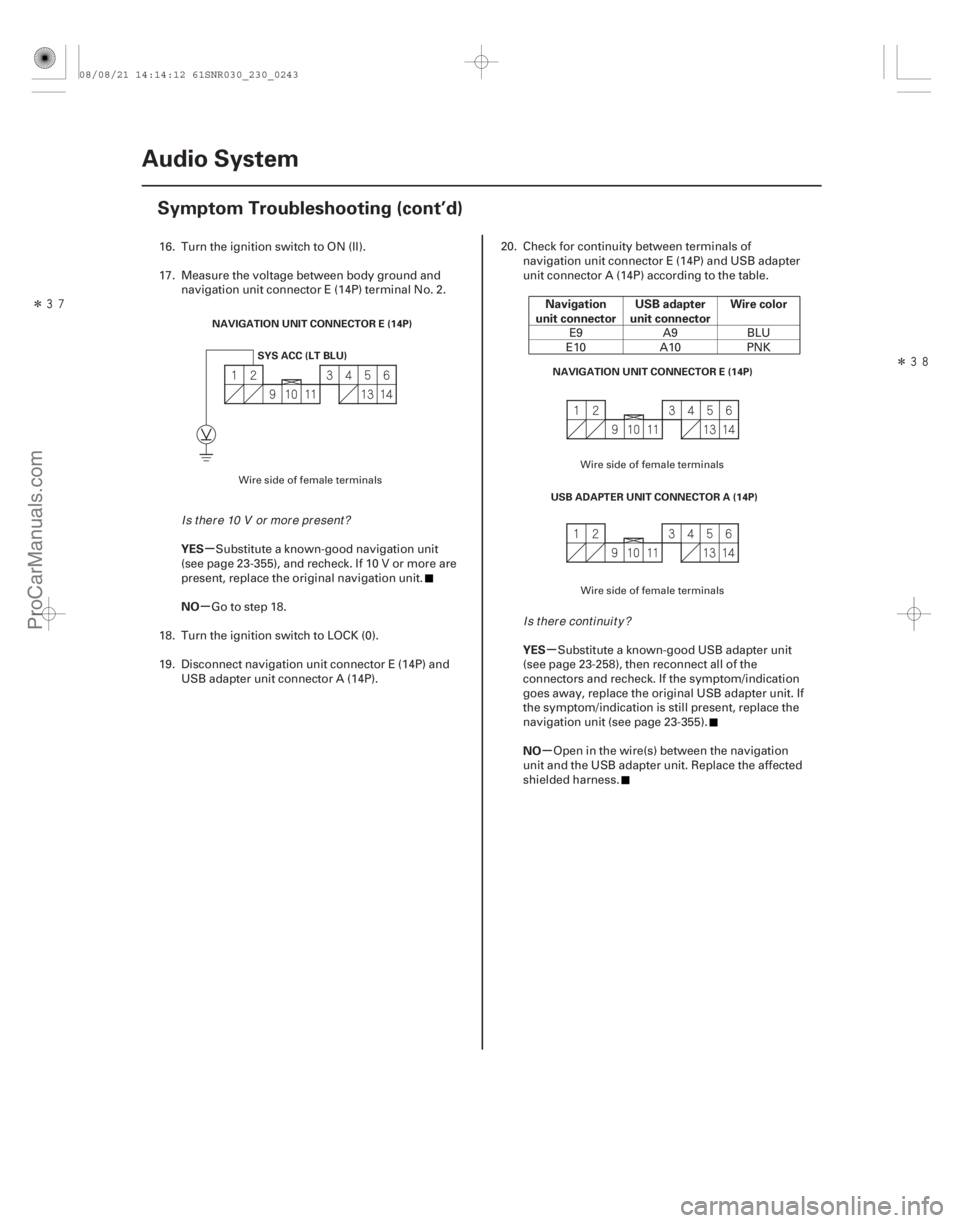

16. Turn the ignition switch to ON (II).
17. Measure the voltage between body ground and navigation unit connector E (14P) terminal No. 2.
Substitute a known-good navigation unit
(see page 23-355), and recheck. If 10 V or more are
present, replace the original navigation unit.
Go to step 18.
18. Turn the ignition switch to LOCK (0).
19. Disconnect navigation unit connector E (14P) and USB adapter unit connector A (14P). 20. Check for continuity between terminals of
navigation unit connector E (14P) and USB adapter
unit connector A (14P) according to the table.
E9 A9 BLU
E10 A10 PNK
Substitute a known-good USB adapter unit
(see page 23-258), then reconnect all of the
connectors and recheck. If the symptom/indication
goes away, replace the original USB adapter unit. If
the symptom/indication is still present, replace the
navigation unit (see page 23-355).
Open in the wire(s) between the navigation
unit and the USB adapter unit. Replace the affected
shielded harness.
Wire side of female terminals Wire side of female terminals
Wire side of female terminals
Is t her e 10 V or mor e pr esent ? Is there continuity?
08/08/21 14:14:12 61SNR030_230_0243
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ
µ
µ µ
µ
µ
µ

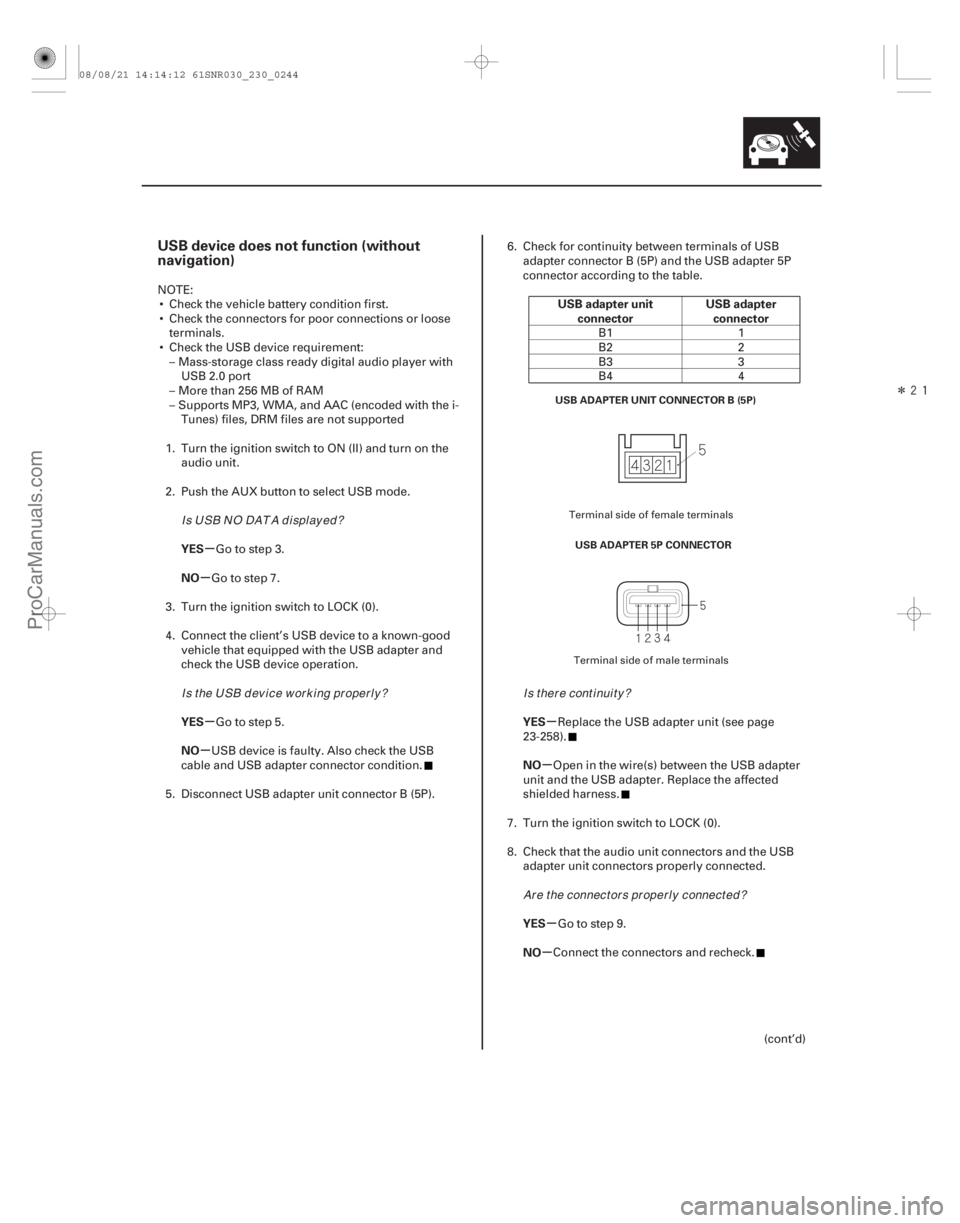

USB device does not function (without
navigation)
YES
NO
YES
NO USB adapter unit
connector USB adapter
connector
YES
NO
YES
NO
23-241
USB ADAPTER UNIT CONNECTOR B (5P) USB ADAPTER 5P CONNECTOR
NOTE: Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
 Check the USB device requirement: – Mass-storage class ready digital audio player with USB 2.0 port
– More than 256 MB of RAM
– Supports MP3, WMA, and AAC (encoded with the i- Tunes) files, DRM files are not supported
1. Turn the ignition switch to ON (II) and turn on the audio unit.
2. Push the AUX button to select USB mode.
Go to step 3.
Go to step 7.
3. Turn the ignition switch to LOCK (0).
4. Connect the client’s USB device to a known-good vehicle that equipped with the USB adapter and
check the USB device operation.
Go to step 5.
USB device is faulty. Also check the USB
cable and USB adapter connector condition.
5. Disconnect USB adapter unit connector B (5P). 6. Check for continuity between terminals of USB
adapter connector B (5P) and the USB adapter 5P
connector according to the table.
B1 1
B2 2
B3 3
B4 4
Replace the USB adapter unit (see page
23-258).
Open in the wire(s) between the USB adapter
unit and the USB adapter. Replace the affected
shielded harness.
7. Turn the ignition switch to LOCK (0).
8. Check that the audio unit connectors and the USB adapter unit connectors properly connected.
Go to step 9.
Connect the connectors and recheck.
(cont’d)
Terminal side of female terminals
Terminal side of male terminalsIs USB NO DAT A displayed?
Is the USB device working properly? Is there continuity?
Ar e t he connect or s pr oper l y connect ed ?
08/08/21 14:14:12 61SNR030_230_0244
ProCarManuals.com
DYNOMITE -2009-

(#'#
)
Î
(#'#
)
´µ
µ
µ
µ
µ
µ
µ
µ µ
µ

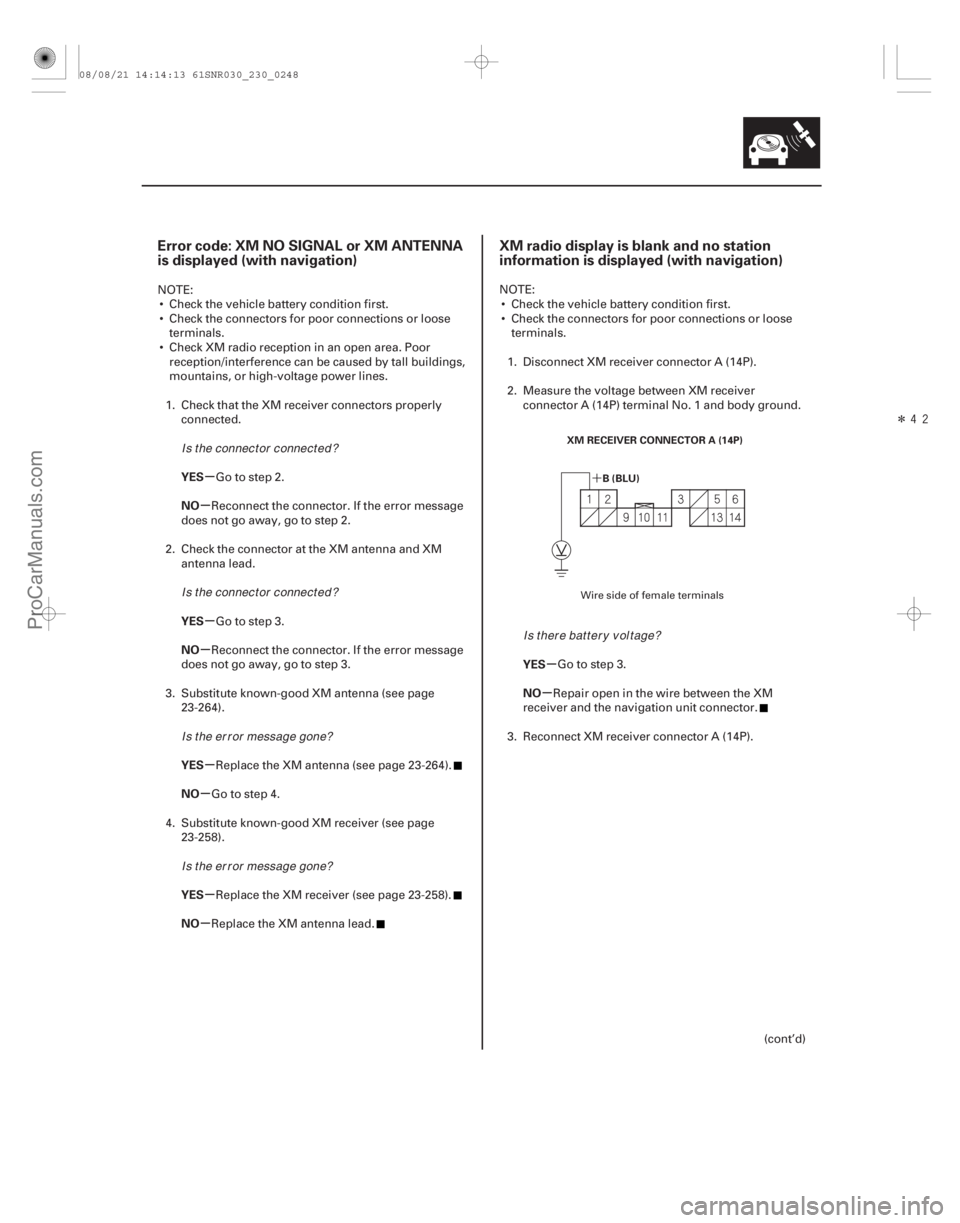

Error code: XM NO SIGNAL or XM ANTENNA
is displayed (with navigation) XM radio display is blank and no station
information is displayed (with navigation)
YES
NO
YES
NO
YES
NO
YES
NO YES
NO
23-24523-245
XM RECEIVER CONNECTOR A (14P)
B(BLU)
NOTE: Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
 Check XM radio reception in an open area. Poor reception/interference can be caused by tall buildings,
mountains, or high-voltage power lines.
1. Check that the XM receiver connectors properly connected.
Go to step 2.
Reconnect the connector. If the error message
does not go away, go to step 2.
2. Check the connector at the XM antenna and XM antenna lead.
Go to step 3.
Reconnect the connector. If the error message
does not go away, go to step 3.
3. Substitute known-good XM antenna (see page 23-264).
Replace the XM antenna (see page 23-264).
Go to step 4.
4. Substitute known-good XM receiver (see page 23-258).
Replace the XM receiver (see page 23-258).
Replace the XM antenna lead. NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
1. Disconnect XM receiver connector A (14P).
2. Measure the voltage between XM receiver connector A (14P) terminal No. 1 and body ground.
Go to step 3.
Repair open in the wire between the XM
receiver and the navigation unit connector.
3. Reconnect XM receiver connector A (14P).
(cont’d)
Wire side of female terminals
I s t he connect or connect ed ?I s t he connect or connect ed ?Is the error message gone?Is the error message gone? Is there battery voltage?
08/08/21 14:14:13 61SNR030_230_0248
ProCarManuals.com
DYNOMITE -2009-

Î
ÎÎ
Î
µ
´
µ
µ
µ
µ µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
YES
NO

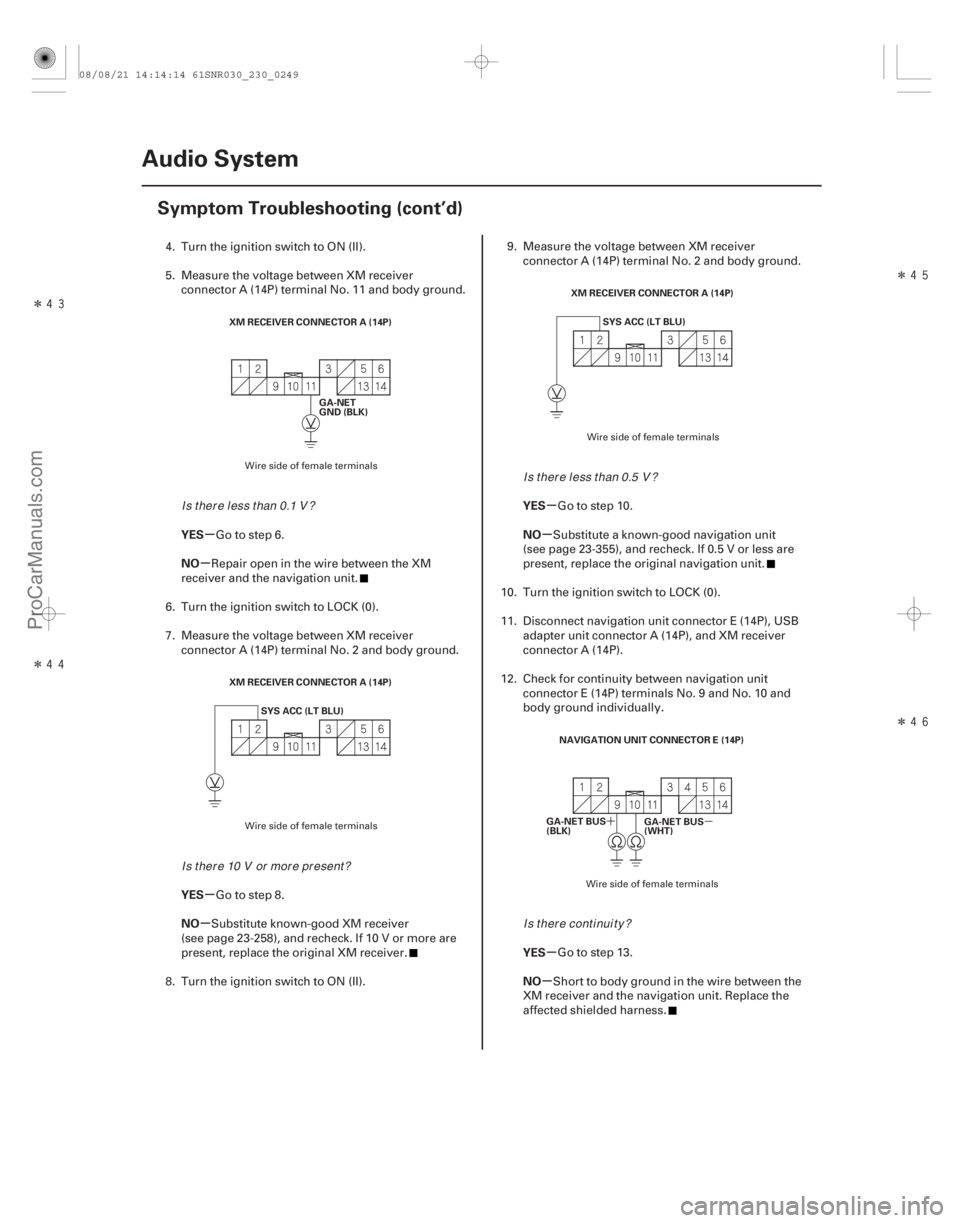

23-246Audio System
Symptom Troubleshooting (cont’d)
XM RECEIVER CONNECTOR A (14P)
GA-NET
GND (BLK)
XM RECEIVER CONNECTOR A (14P) SYS ACC (LT BLU) XM RECEIVER CONNECTOR A (14P)
SYS ACC (LT BLU)
NAVIGATION UNIT CONNECTOR E (14P) GA-NET BUS
(WHT)
GA-NET BUS
(BLK)
4. Turn the ignition switch to ON (II).
5. Measure the voltage between XM receiver
connector A (14P) terminal No. 11 and body ground.
Go to step 6.
Repair open in the wire between the XM
receiver and the navigation unit.
6. Turn the ignition switch to LOCK (0).
7. Measure the voltage between XM receiver connector A (14P) terminal No. 2 and body ground.
Go to step 8.
Substitute known-good XM receiver
(see page 23-258), and recheck. If 10 V or more are
present, replace the original XM receiver.
8. Turn the ignition switch to ON (II). 9. Measure the voltage between XM receiver
connector A (14P) terminal No. 2 and body ground.
Go to step 10.
Substitute a known-good navigation unit
(see page 23-355), and recheck. If 0.5 V or less are
present, replace the original navigation unit.
10. Turn the ignition switch to LOCK (0).
11. Disconnect navigation unit connector E (14P), USB adapter unit connector A (14P), and XM receiver
connector A (14P).
12. Check for continuity between navigation unit connector E (14P) terminals No. 9 and No. 10 and
body ground individually.
Go to step 13.
Short to body ground in the wire between the
XM receiver and the navigation unit. Replace the
affected shielded harness.
Wire side of female terminals
Wire side of female terminals Wire side of female terminals
Wire side of female terminals
Is t her e l ess t han 0.1 V ? Is t her e 10 V or mor e pr esent ? Is t her e l ess t han 0.5 V ?
Is there continuity?
08/08/21 14:14:14 61SNR030_230_0249
ProCarManuals.com
DYNOMITE -2009-
