2006 ACURA CSX navigation

´
´
´
´
(#'
)
Seek Stop Test
23-25523-255
8. Compare the client’s vehicle’s sound quality results to the known-good vehicle’s results.
 If the sound quality in the client’s vehicle is comparable to the sound quality in the known-
good vehicle, then the client’s vehicle is
operating as designed.
 If the sound quality is not comparable, check these items in order.
– Loose or improperly installed speakers or other hardware that may become excited by
the vibrations generated by the speakers
– Poor power or ground to the stereo amplifier (Type S model)
– Damaged speaker(s)
– Faulty amplifier
– Faulty navigation unit
– Faulty audio unit Do this test to check the performance of the audio unit’s
AM and FM reception. Refer to symptom
troubleshooting: audio sound weak or distorted, or no
sound is heard from speakers (display is normal)
(see page 23-206) before continuing with this test.
NOTE:
 Window tint, aftermarket theft-recovery devices and other aftermarket accessories may reduce radio
reception.
 Changes in cloud cover and other atmosphere conditions will affect the ab ility of the navigation unit
or audio unit to receive radio signals.
1. Park the client’s vehicle in an open area away from buildings or other obstructions.
2. Park a known-good vehicle (same year, model, and trim level) next to the client’s vehicle, facing the
same direction.
3. Start the engine in the client’s vehicle, and turn on the radio.
4. Set the FM receiver to 87.7 MHz.
5. Press the Seek button and record the first station that the navigation unit or audio unit locks onto.
6. Press the Seek button repeatedly, and write down each station that the navigation unit or audio
unit locks onto until the station recorded in step 5 is
reached again.
7. Set the AM receiver to 530 kHz.
8. Press the Seek button, and record the first station that the navigation unit or audio unit locks
on to.
9. Press the Seek button repeatedly, and write down each station that the navigation unit or audio
unit locks onto until the station recorded in step 8 is
reached again.
(cont’d)
08/08/21 14:14:15 61SNR030_230_0258
ProCarManuals.com
DYNOMITE -2009-

(#'#






 )
Without navigation
23-25623-256Audio System
Sound Quality Diagnosis (cont’d) Audio Unit Removal/Installation
10. Turn the ignition switch to LOCK (0).
11. Start the engine in the known-good vehicle, and
then do steps 4 thru 10 on the known-good vehicle.
12. Compare the number of stations received in steps 6 and 9 in the client’s vehicle with the number of
stations received in the known-good vehicle.
 If the number of stations received is the same, or within 10 %, the audio unit’s tuner performance
is OK. The problem may be atmospheric
conditions, multi path interference, or other
obstructions to the radio signal.
 If the customer’s vehicle receives fewer stations by at least 10 %, go to step 2 of poor AM or FM
radio reception of interference, with navigation
(see page 23-196), wit hout navigation (see page
23-199). SRS components are located in this area. Review the
SRS component location (see page 24-11).
Also review the precautions and procedures (see page
24-13) in the SRS section before doing repairs or
service.
NOTE:
 Put on gloves to protect your hands.
 Take care not to scratch the dashboard and related parts.
 Lay a workshop towel under the parts when working on them to protect the face panel from scratches or
other damage.
 Do not work in a dusty or dirty place.
 Discharge static electricity from your body before and during the work.
 Do not touch the circuit board(s) with your bare hands.
 Do not work with dirty hands.
 Be careful not to fold the flat plate cable.
 Do not touch the terminal connector of the flat plate cable with your bare hands (If you have touched it,
wipe it off thoroughly.).
 Eject all the discs before removing the audio unit to prevent damaging the CD/DVD player’s load
mechanism.
 If you are replacing the audio unit, write down the audio presets (if possible), and enter them into the
new audio unit.
08/08/21 14:14:16 61SNR030_230_0259
ProCarManuals.com
DYNOMITE -2009-

(#'#






 )
Without navigation
23-25623-256Audio System
Sound Quality Diagnosis (cont’d) Audio Unit Removal/Installation
10. Turn the ignition switch to LOCK (0).
11. Start the engine in the known-good vehicle, and
then do steps 4 thru 10 on the known-good vehicle.
12. Compare the number of stations received in steps 6 and 9 in the client’s vehicle with the number of
stations received in the known-good vehicle.
 If the number of stations received is the same, or within 10 %, the audio unit’s tuner performance
is OK. The problem may be atmospheric
conditions, multi path interference, or other
obstructions to the radio signal.
 If the customer’s vehicle receives fewer stations by at least 10 %, go to step 2 of poor AM or FM
radio reception of interference, with navigation
(see page 23-196), wit hout navigation (see page
23-199). SRS components are located in this area. Review the
SRS component location (see page 24-11).
Also review the precautions and procedures (see page
24-13) in the SRS section before doing repairs or
service.
NOTE:
 Put on gloves to protect your hands.
 Take care not to scratch the dashboard and related parts.
 Lay a workshop towel under the parts when working on them to protect the face panel from scratches or
other damage.
 Do not work in a dusty or dirty place.
 Discharge static electricity from your body before and during the work.
 Do not touch the circuit board(s) with your bare hands.
 Do not work with dirty hands.
 Be careful not to fold the flat plate cable.
 Do not touch the terminal connector of the flat plate cable with your bare hands (If you have touched it,
wipe it off thoroughly.).
 Eject all the discs before removing the audio unit to prevent damaging the CD/DVD player’s load
mechanism.
 If you are replacing the audio unit, write down the audio presets (if possible), and enter them into the
new audio unit.
08/08/21 14:14:16 61SNR030_230_0259
ProCarManuals.com
DYNOMITE -2009-


Î
(#'


 )
Subwoofer (Type S model)
23-26123-261
Auxiliary Jack Assembly
Replacement
A
B A
B

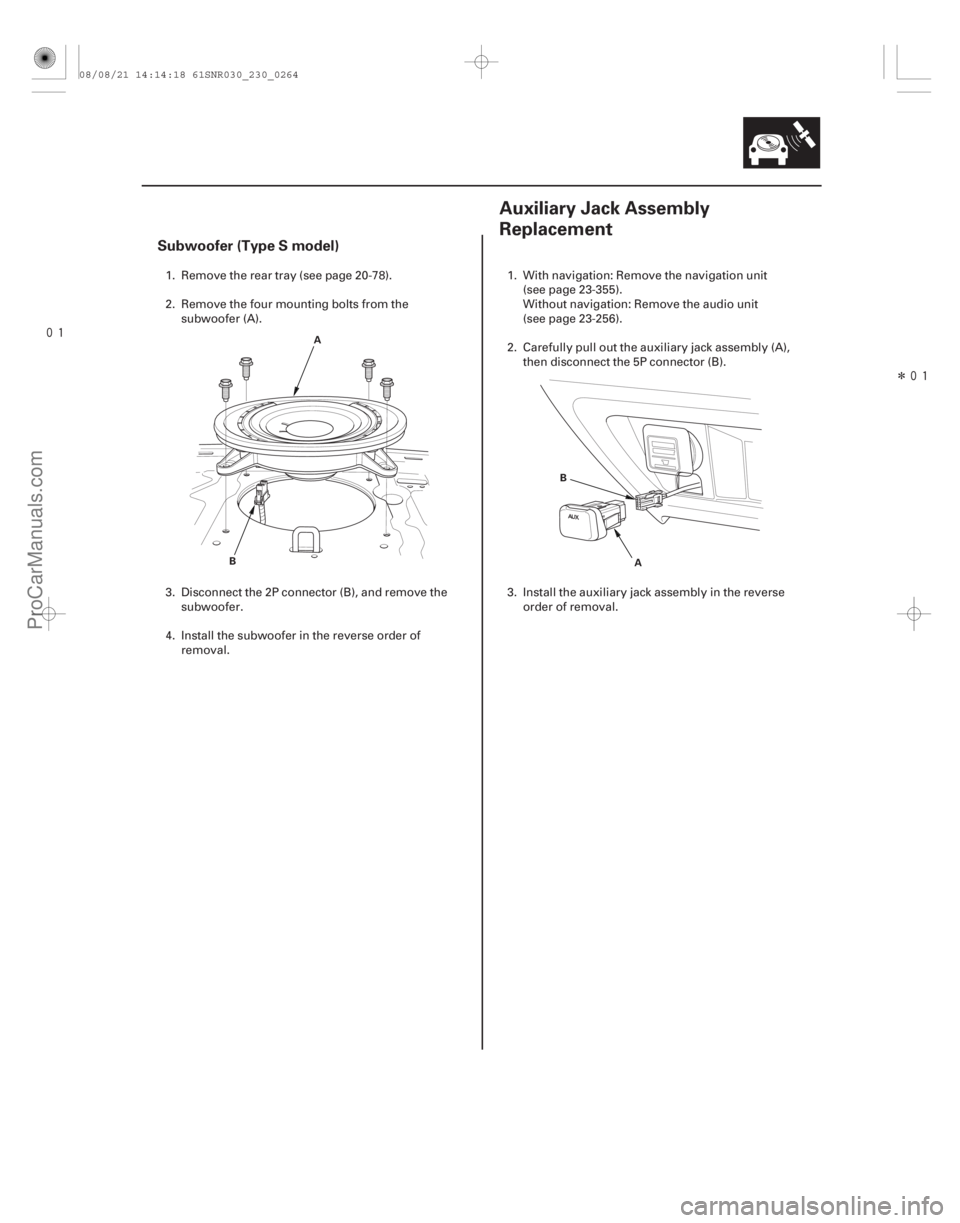

1. Remove the rear tray (see page 20-78).
2. Remove the four mounting bolts from the
subwoofer (A).
3. Disconnect the 2P connector (B), and remove the subwoofer.
4. Install the subwoofer in the reverse order of removal. 1. With navigation: Remove the navigation unit
(see page 23-355).
Without navigation: Remove the audio unit
(see page 23-256).
2. Carefully pull out the auxiliary jack assembly (A), then disconnect the 5P connector (B).
3. Install the auxiliary jack assembly in the reverse order of removal.
08/08/21 14:14:18 61SNR030_230_0264
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
23-265
Navigation System

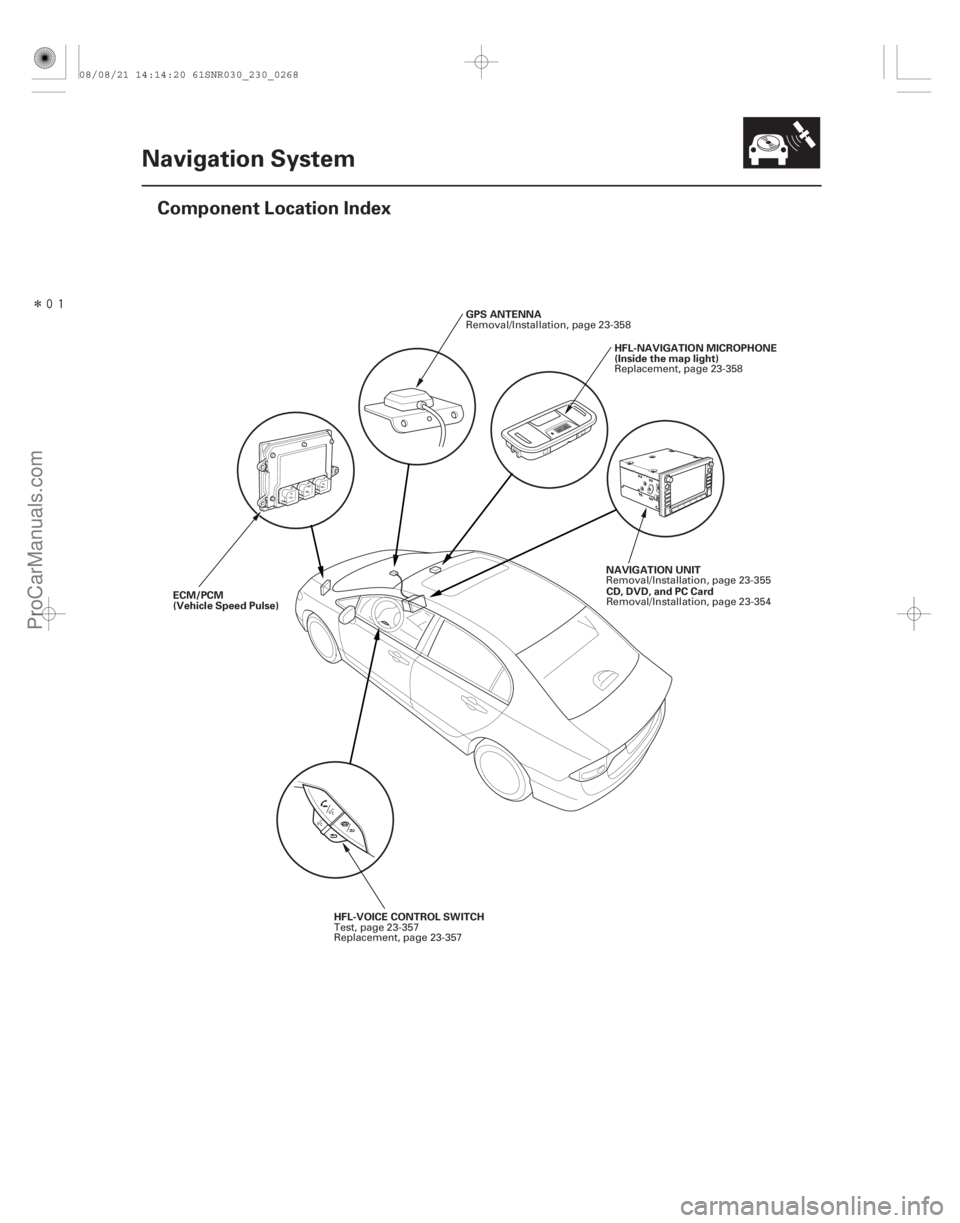

Component Location Index
ECM/PCM
(Vehicle Speed Pulse)
GPS ANTENNA
HFL-NAVIGATION MICROPHONE
(Inside the map light)
NAVIGATION UNIT
HFL-VOICE CONTROL SWITCH CD, DVD, and PC Card
Removal/Installation, page 23-358
Replacement, page 23-358
Removal/Installation, page 23-355
Test, page 23-357
Replacement, page 23-357 Removal/Installation, page 23-354
08/08/21 14:14:20 61SNR030_230_0268
ProCarManuals.com
DYNOMITE -2009-

(#'#
)
General Operation
Anti-theft Feature
Symptom Diagnosis
Self-Inertial Navigation LimitationsGlobal Positioning System (GPS) Limitations
23-266Navigation System
General Troubleshooting Information
Refer to the navigation system manual for the
navigation system operating procedures.
The navigation system and audio unit have a coded
theft protection circuit. Make sure you have the anti-
theft security code before:
 Disconnecting the battery.
 Disconnecting the navigation unit connector A (24P) and C (8P).
 Removing the No. 23 (10 A) fuse from the under-hood fuse/relay box.
After service, reconnect power to the navigation unit,
and turn the ignition switch to ON (II). Enter the 4-digit
anti-theft security code, then select Done.
If the code cannot be found, use the interactive Network
(iN) to look it up. You can view the serial number in one
of the ECU Info diagnostic screens (see page 23-305).
Alternatively, you can find the serial number on the
underside label which is located on the navigation unit
in the trunk.
When replacing the navigation unit, be sure to give the
customer the new anti-theft security code.
Certain circumstances and system limitations will result
in occasional vehicle positioning errors. Some client’s
may think this indicates a problem with the navigation
system when, in fact, the system is normal. Keep the
following items in mind when interviewing client’s
about symptoms of the navigation system.
The limitations of the self-inertial portion of the
navigation system (the yaw rate sensor and the vehicle
speed signal) can cause discrepancies between the
vehicle’s actual position and the indicated vehicle’s
position (GPS vehicle position). The following circumstances may cause vehicle
positioning errors:
 Moving the vehicle with the engine stopped and the vehicle stopped, such as by ferry or tow truck, or if
the vehicle is spun on a turn table.
 Tire slippage, changes in tire rolling diameters, and some driving situations may cause discrepancies in
travel distances. Examples of this include:
– Continuous tire slippage on a slippery surface
– Driving with snow chains mounted
– Abnormal tire pressure
– Incorrect tire size
– Frequent lane changes across a wide highway
– Continuous driving on a straight or gently curving highway
– Very bumpy roads
 Tolerances in the system and map inaccuracies sometimes limit how precisely the vehicle’s position
is indicated. Examples of this include:
– Driving on roads not shown on the map (map matching is not possible)
– Driving on a road that winds in one direction, such as a loop bridge, an interchange, or a spiral parking
garage
– Driving on a road with a series of sharp hair-pin turns
– Driving near a gradual highway exit or transition
– Driving on one of two close parallel roads
– Making many 90 degree turns
The GPS cannot detect the vehicle’s position or
elevation during the following instances:  For the first 5 to 10 minutes after reconnecting the battery (this process can take as long as 45 minutes).
 When the satellite signals are blocked by tall buildings, mountains, tunnels, large trees, inside
parking structures or large trucks.
 When the GPS antenna is blocked by metallic window tinting or by an object placed above it in the
vehicle. The GPS antenna requires a clear
unobstructed view of the sky.
 When there is no satellite signal output (signal output is sometimes stopped for sate llite servicing).
 When the satellite signals are blocked by the operation of some electronic aftermarket accessories
including, but not limited to non-OEM in-dash
entertainment units (radio, CD players/changers,
radar detectors and theft recovery systems) and cell
phones placed near the navigation system.
08/08/21 14:14:21 61SNR030_230_0269
ProCarManuals.com
DYNOMITE -2009-

Muting Logic
LCD Unit LimitationsSymptom Duplication
23-267
The accuracy of the GPS is reduced during these
instances:
 Metallic window tinting above the GPS antenna.
 When only three or less satellite signals are received (Four satellite signals are required for accurate
positioning).
 When driving near high tension power lines.
 When the satellite control centers are experiencing problems.
Whenever the navigation system is giving guidance,
the front speakers are muted. When the voice control
system is being used, all of the speakers are muted. If
the HandsFreeLink is in use, the voice control system is
unavailable and a message appears onscreen.
NOTE: The screen is not touch sensitive. Use the
interface dial and buttons to select items on the screen.  In cold temperatures, the display may stay dark for the first 2 or 3 minutes until it warms up.
 When the display is too hot because of direct summer sunlight, it will remain dark until the temperature
drops (you may see an error message displayed
stating this fact).
 When the humidity is high and the interior temperature is low, the display may appear cloudy.
The display will clear up after some use.
 Fingerprints on the screen may be noticeable. Clean the screen with a soft, damp cloth. You may use a
mild cleaner intended for eye glasses or computer
screens. To avoid scratching the panel, do not rub too
hard or use abrasive cleaners or shop towels.  When the symptom can be duplicated, verify that it is
not a characteristic of the system. Review the
navigation system manual and compare it to a
known-good vehicle (with the same software and
database), under the same conditions. If the
symptom is not the same as the known-good vehicle,
follow the self-diagnostic procedures and the
appropriate troubleshooting procedures.
 When the symptom does not reappear or only reappears intermittently, ask the client about the
conditions when the symptom occurred.
– Always ask the client to demonstrate the problem.
– Trytoestablishpossibleusererrorora misunderstanding of the system.
– Try to establish if outside interference may have been the cause.
– Try to duplicate the symptom under the same conditions the client experienced.
– Vibration, temperature extremes, and moisture (dew, humidity) are factors that are difficult to
duplicate.
– Inspect the vehicle for after-market electronic devices (vehicle locators, amps, radar detectors,
etc.) that may be hidden.
When troubleshooting navigation system problems,
ensure that the known-good vehicle is the same
software version year and model as the vehicle being
serviced. Mixing incompatible navigation DVDs or
other system components can delay the
troubleshooting process by creating symptoms or
issues causing effects unrelated to the original problem.
(cont’d)
08/08/21 14:14:21 61SNR030_230_0270
ProCarManuals.com
DYNOMITE -2009-

Î

Service Precautions
System InitializationEntering the Security Code
GPS Initialization
23-268Navigation System
General Troubleshooting Information (cont’d)
The navigation system lost power and is acquiring its
location from the GPS satellites. This usually takes
less than 10 minutes.
* Start the engine.
*Parkthevehicleinanopenareaawayfromtrees,
* Remove loose articles, cell phones, or electrical
* If this screen is displayed repeatedly when starting power lines, and tall buildings.
accessories located near the GPS antenna.
the vehicle, see your dealer.
 If you need to replace the navigation unit, you can
back-up the navigation data and transfer it to a new
navigation unit. See Save users memory (see page
23-310).
 When the battery is disconnected, the internal GPS clock resets to 0:00. The clock resets to the correct
time after the system finishes GPS initialization.
 Before disconnecting the battery, make sure you have the anti-theft codes for the audio system and the
navigation system, and write down the audio presets.
Also obtain any PGM-FI or transmission DTCs and
freeze frame date (which are lost when the ECM/PCM
loses power).
 After reconnecting the battery, you have to wait to get the initial signal from the satellite. It will take from 10
to 45 minutes.
 Adjust the setup clock settings (time zone and daylight savings) in the navigation system.
 Before returning the vehicle to the client, enter the anti-theft codes for the audio system and the
navigation system.
If the navigation system loses power (like the battery
was disconnected), the navigation system requires
initialization. Once completed, your system is ready to
use.
This initialization requires the following:  Entering the 4-digit anti-theft security code to unlock the system
 GPS initialization (may not be needed depending of the length of time the system was without power)
 Map matching to align the GPS to a location on the map Any time the navigation system loses power, you need
to enter the 4-digit anti-theft code on the navigation
system display. This 4-digit code is located on a small
code card that was given to the customer. Enter the 4-
digit code, then select Done.
If the navigation system anti-theft code is missing, use
the interactive Network (iN) to look it up. You need the
serial number for the navigation unit to do this.
You can view the serial number by entering the
diagnostic mode. Select Unit Check from the main
menu, then the ECU info diagnostic screen. This allows
you to get the serial number without removing the
navigation unit.
The iN may display more than one code for a given
serial number. This is because serial numbers are not
unique. You may have to try more than one 4-digit code.
If no code is shown, or if the code(s) given do not work
in the navigation unit, contact the Automobile Warranty
department. If the code 0000 works, replace the
navigation unit.
When replacing the navigation unit or audio unit, make
sure you give the client the new anti-theft security code.
NOTE: You must park the vehicle outside with a clear
view of the southern sky.
Depending on the length of time the battery was
disconnected, your system may require GPS
initialization. If it does, the following screen appears:
08/08/21 14:15:38 61SNR030_230_0271
ProCarManuals.com
DYNOMITE -2009-
