2005 YAMAHA XMAX 250 Owners Manual

1C0-F81\b\b-E1
YP250R
OW\fER’S MA\fUAL
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 1

1C0-F8199-E0.qxd 13/04/2005 16:58 Página 2

EAU10110

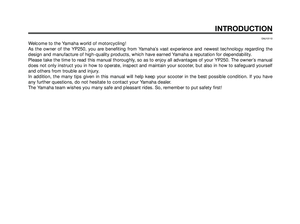

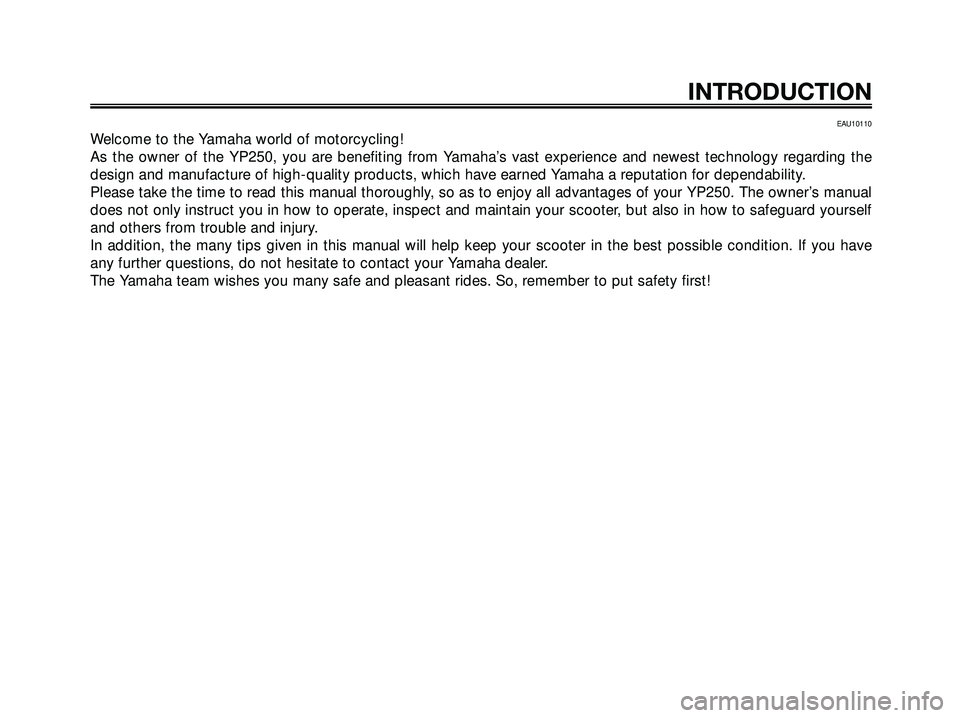

Welcome to the Yamaha world of motorcycling!
As the owner of the YP250, you are benefiting from Yamaha’s vast experience and newest technology regarding the
design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your YP250. The owner’s manual
does not only instruct you in how to operate, inspect and maintain your scooter, but also in how to safeguard yourself
and others from trouble and injury.
In addition, the many tips given in this manual will help keep your scooter in the best possible condition. If you have
any further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
INTRODUCTION
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 1

EAU34110
Particularly important information is distinguished in this manual by the following notations:
IMPORTANT MANUAL INFORMATION
CAUTION A CAUTION indicates special precautions that must be taken to avoid damage to
the scooter.
NOTE:A NOTE provides key information to make procedures easier or clearer.
NOTE:
This manual should be considered a permanent part of this scooter and should remain with it even if the scooter is
subsequently sold.
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the
most current product information available at the time of printing, there may be minor discrepancies between your
scooter and this manual. If you have any questions concerning this manual, please consult your Yamaha dealer.
EWA12410
s s
WARNING
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS SCOOTER.
s s
WARNINGFailure to follow WARNING instructions could result in severe injury or death to the
scooter operator, a bystander, or a person inspecting or repairing the scooter.
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!t
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 2

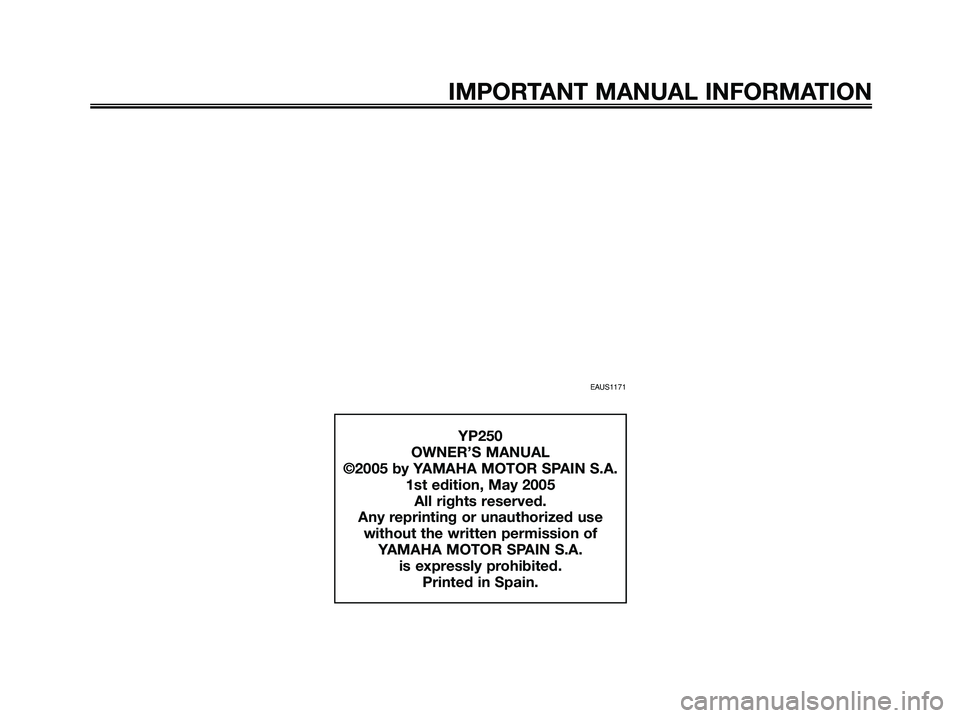

EAUS1171

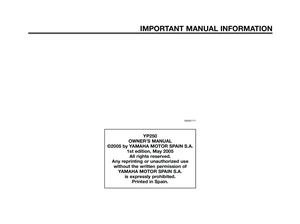

IMPORTANT MANUAL INFORMATION
YP250
OWNER’S MANUAL
©2005 by YAMAHA MOTOR SPAIN S.A.
1st edition, May 2005
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
YAMAHA MOTOR SPAIN S.A.
is expressly prohibited.
Printed in Spain.
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3

SAFETY INFORMATION.....................1-1
DESCRIPTION.....................................2-1

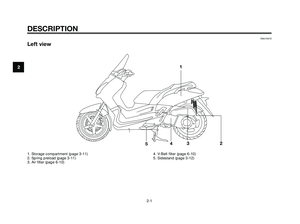

Left view ...........................................2-1

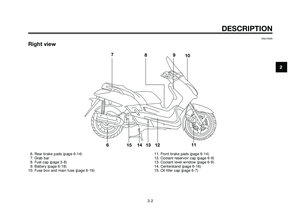

Right view .........................................2-2

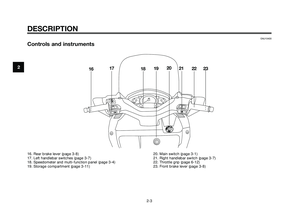

Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1

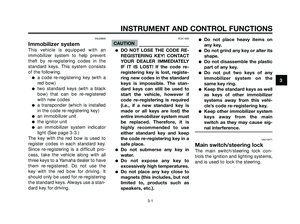

Immobilizer system ...........................3-1

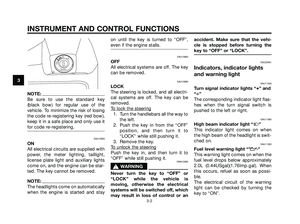

Main switch/steering lock .................3-1
Indicators, indicator lights and
warning light .....................................3-2

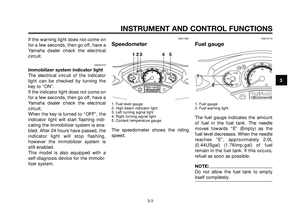

Speedometer ....................................3-3
Fuel gauge ........................................3-3

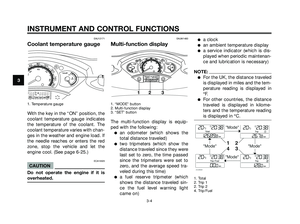

Coolant temperature gauge..............3-4

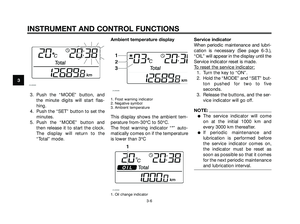

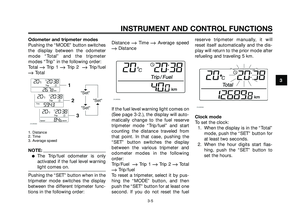

Multi-function display .......................3-4
Anti-theft alarm (optional) .................3-7
Handlebar switches ..........................3-7

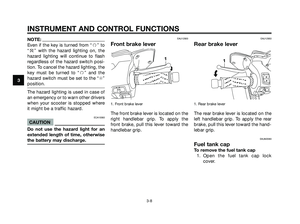

Front brake lever...............................3-8
Rear brake lever................................3-8

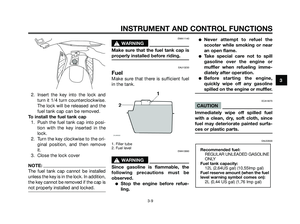

Fuel tank cap ....................................3-8
Fuel ...................................................3-9

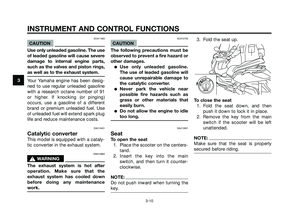

Catalytic converter..........................3-10
Seat.................................................3-10
Front storage compartment............3-11

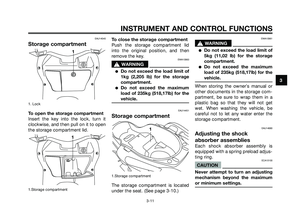

Storage compartment.....................3-11
Adjusting the shock absorber
assemblies ......................................3-11

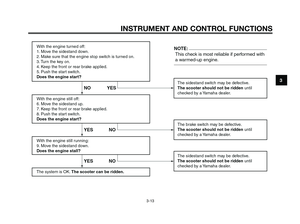

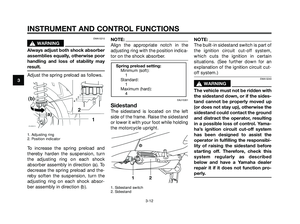

Sidestand ........................................3-12

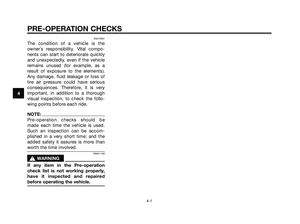

PRE-OPERATION CHECKS..............4-1

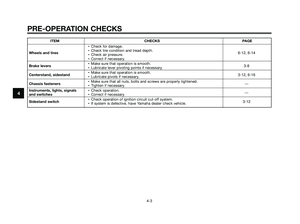

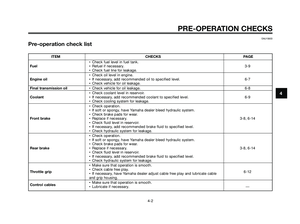

Pre-operation check list....................4-2OPERATION AND IMPORTANT RIDING
POINTS................................................5-1

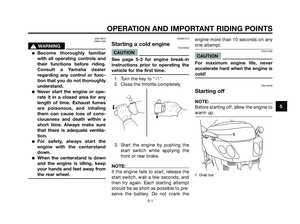

Starting a cold engine ......................5-1
Starting off ........................................5-1
Acceleration and deceleration ..........5-2
Braking..............................................5-2
Tips for reducing fuel consumption..5-2

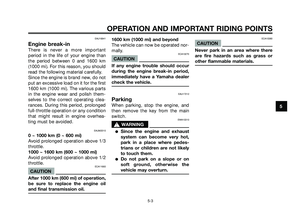

Engine break-in.................................5-3
Parking ..............................................5-3
PERIODIC MAINTENANCE AND
MINOR REPAIR...................................6-1

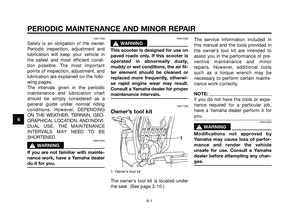

Owner’s tool kit .................................6-1

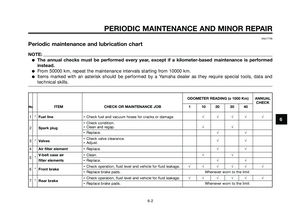

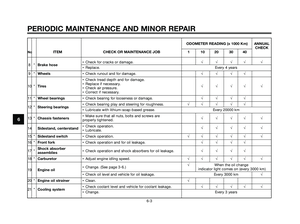

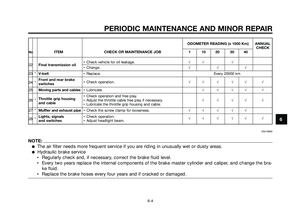

Periodic maintenance and lubrication
chart ..................................................6-2

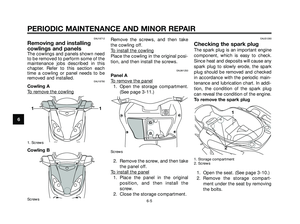

Removing and installing cowlings and
panels ...............................................6-5

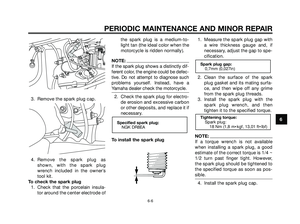

Checking the spark plug ..................6-5

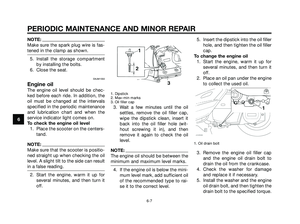

Engine oil ..........................................6-7

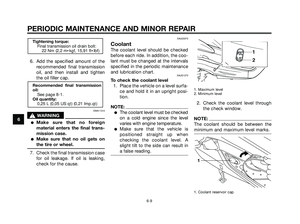

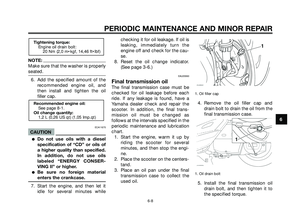

Final transmission oil ........................6-8

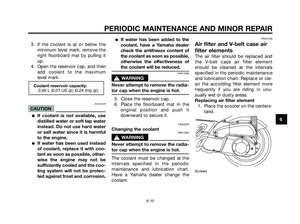

Coolant .............................................6-9

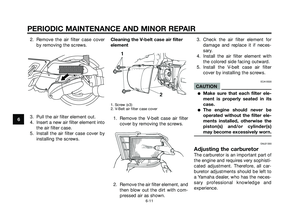

Air filter V-Belt case air filter
elements .........................................6-10
Adjusting the carburetor .................6-11

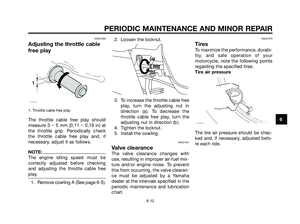

Adjusting the throttle cable free play ..6-12
Valve clearance ...............................6-12

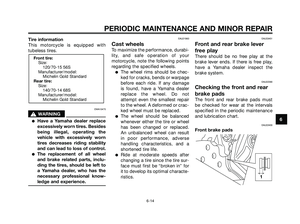

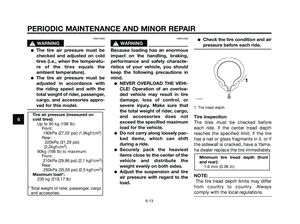

Tires ................................................6-12
Cast wheels ....................................6-14
Front and rear brake lever free play....6-14
Checking the front and rear brake ........
pads ................................................6-14

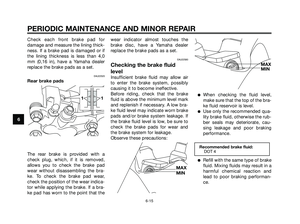

Checking the brake fluid level ........6-15Changing the brake fluid ................6-16

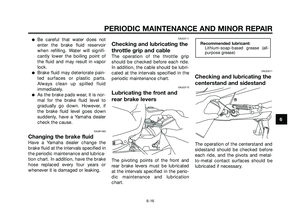

Checking and lubricating the throttle
grip cable ........................................6-16
Lubricating the front and rear brake
levers ..............................................6-16
Checking and lubricating the
centerstand and sidestand .............6-16

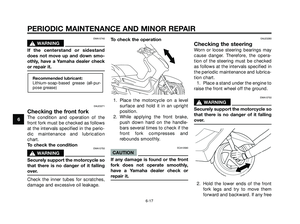

Checking the front fork ...................6-17
Cheking the steering.......................6-17
Checking the wheel bearings .........6-18

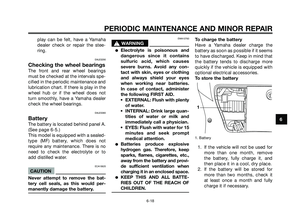

Battery ............................................6-18

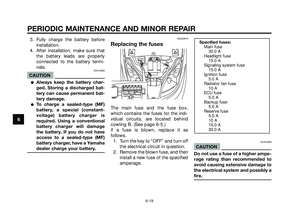

Replacing the fuses ........................6-19

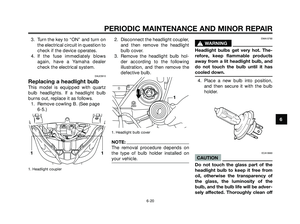

Replacing a headlight bulb .............6-20

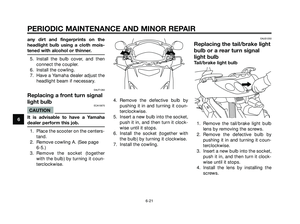

Replacing a front turn signal light .........
bulb .................................................6-21

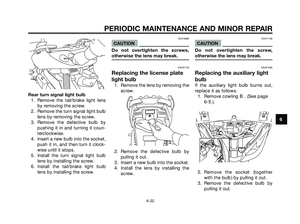

Replacing the tail/brake light bulb or a
rear turn signal light bulb ................6-21
Replacing the license plate light bulb ...6-22
Replacing the auxiliary light bulb ...6-22

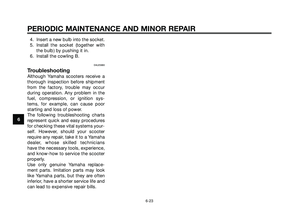

Troubleshooting ..............................6-23
Troubleshooting charts ...................6-24

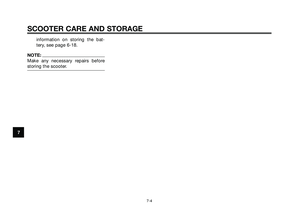

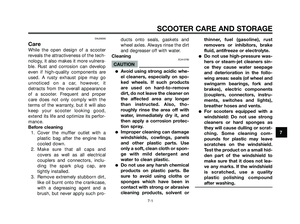

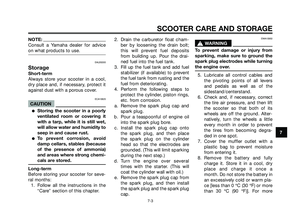

SCOOTER CARE AND STORAGE.....7-1

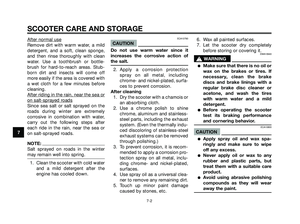

Care ..................................................7-1
Storage compartment.......................7-3

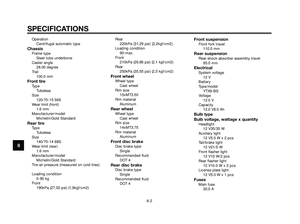

SPECIFICATIONS...............................8-1
CONSUMER INFORMATION.............9-1

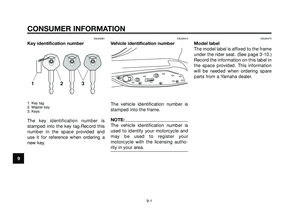

Key identification number .................9-1
Vehicle identification number............9-1
Model label .......................................9-1

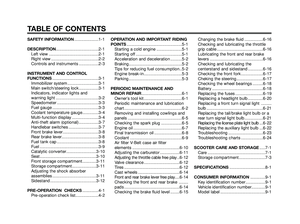

TABLE OF CONTENTS
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 4

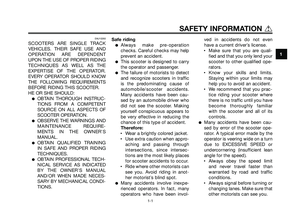

EAU10260
SCOOTERS ARE SINGLE TRACK
VEHICLES. THEIR SAFE USE AND
OPERATION ARE DEPENDENT
UPON THE USE OF PROPER RIDING
TECHNIQUES AS WELL AS THE
EXPERTISE OF THE OPERATOR.
EVERY OPERATOR SHOULD KNOW
THE FOLLOWING REQUIREMENTS
BEFORE RIDING THIS SCOOTER.
HE OR SHE SHOULD:
OBTAIN THOROUGH INSTRUC-
TIONS FROM A COMPETENT
SOURCE ON ALL ASPECTS OF
SCOOTER OPERATION.
OBSERVE THE WARNINGS AND
MAINTENANCE REQUIRE-
MENTS IN THE OWNER’S
MANUAL.
OBTAIN QUALIFIED TRAINING
IN SAFE AND PROPER RIDING
TECHNIQUES.
OBTAIN PROFESSIONAL TECH-
NICAL SERVICE AS INDICATED
BY THE OWNER’S MANUAL
AND/OR WHEN MADE NECES-
SARY BY MECHANICAL CONDI-
TIONS.Safe riding
Always make pre-operation
checks. Careful checks may help
prevent an accident.
This scooter is designed to carry
the operator and passenger.
The failure of motorists to detect
and recognize scooters in traffic
is the predominating cause of
automobile/scooter accidents.
Many accidents have been cau-
sed by an automobile driver who
did not see the scooter. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when appro-
aching and passing through
intersections, since intersec-
tions are the most likely places
for scooter accidents to occur.
• Ride where other motorists can
see you. Avoid riding in anot-
her motorist’s blind spot.
Many accidents involve inexpe-
rienced operators. In fact, many
operators who have been invol-ved in accidents do not even
have a current driver’s license.
• Make sure that you are quali-
fied and that you only lend your
scooter to other qualified ope-
rators.
• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
• We recommend that you prac-
tice riding your scooter where
there is no traffic until you have
become thoroughly familiar
with the scooter and all of its
controls.
Many accidents have been cau-
sed by error of the scooter ope-
rator. A typical error made by the
operator is veering wide on a turn
due to EXCESSIVE SPEED or
undercornering (insufficient lean
angle for the speed).
• Always obey the speed limit
and never travel faster than
warranted by road and traffic
conditions.
• Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
SAFETY INFORMATION t
1-1
1
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 7

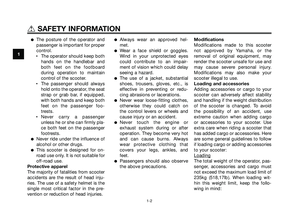

The posture of the operator and
passenger is important for proper
control.
• The operator should keep both
hands on the handlebar and
both feet on the footboard
during operation to maintain
control of the scooter.
• The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger foo-
trests.
• Never carry a passenger
unless he or she can firmly pla-
ce both feet on the passenger
footrests.
Never ride under the influence of
alcohol or other drugs.
This scooter is designed for on-
road use only. It is not suitable for
off-road use.
Protective apparel
The majority of fatalities from scooter
accidents are the result of head inju-
ries. The use of a safety helmet is the
single most critical factor in the pre-
vention or reduction of head injuries.
Always wear an approved hel-
met.
Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impair-
ment of vision which could delay
seeing a hazard.
The use of a jacket, substantial
shoes, trousers, gloves, etc., is
effective in preventing or redu-
cing abrasions or lacerations.
Never wear loose-fitting clothes,
otherwise they could catch on
the control levers or wheels and
cause injury or an accident.
Never touch the engine or
exhaust system during or after
operation. They become very hot
and can cause burns. Always
wear protective clothing that
covers your legs, ankles, and
feet.
Passengers should also observe
the above precautions.Modifications
Modifications made to this scooter
not approved by Yamaha, or the
removal of original equipment, may
render the scooter unsafe for use and
may cause severe personal injury.
Modifications may also make your
scooter illegal to use.

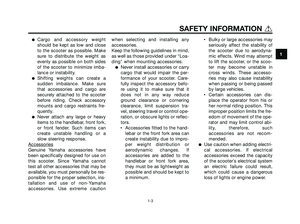

Loading and accessories
Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution
of the scooter is changed. To avoid
the possibility of an accident, use
extreme caution when adding cargo
or accessories to your scooter. Use
extra care when riding a scooter that
has added cargo or accessories. Here
are some general guidelines to follow
if loading cargo or adding accessories
to your scooter:
LoadingThe total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit of
235kg (518,17lb). When loading wit-
hin this weight limit, keep the follo-
wing in mind:
1
tSAFETY INFORMATION
1-2
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 8
