Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1600 km
(1000 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts
in the engine wear and polish them-
selves to the correct operating clea-
rances. During this period, prolonged
full-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAUM2010
0 ~ 1000 km (0 ~ 600 mi)
Avoid prolonged operation above 1/3
throttle.
1000 ~ 1600 km (600 ~ 1000 mi)
Avoid prolonged operation above 1/2
throttle.
ECA11660
CAUTION
After 1000 km (600 mi) of operation,
be sure to replace the engine oil
and final transmission oil.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.
ECA10270
CAUTION
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
EAU17212
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10310
s s
WARNING
Since the engine and exhaust
system can become very hot,
park in a place where pedes-
trians or children are not likely
to touch them.
Do not park on a slope or on
soft ground, otherwise the
vehicle may overturn.
ECA10380
CAUTION
Never park in an area where there
are fire hazards such as grass or
other flammable materials.
5
OPERATION AND IMPORTANT RIDING POINTS
5-3
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 5-3

EAU17280
Safety is an obligation of the owner.
Periodic inspection, adjustment and
lubrication will keep your vehicle in
the safest and most efficient condi-
tion possible. The most important
points of inspection, adjustment, and
lubrication are explained on the follo-
wing pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, DEPENDING
ON THE WEATHER, TERRAIN, GEO-
GRAPHICAL LOCATION, AND INDIVI-
DUAL USE, THE MAINTENANCE
INTERVALS MAY NEED TO BE
SHORTENED.
EWA10320
s s
WARNING
If you are not familiar with mainte-
nance work, have a Yamaha dealer
do it for you.
EWA10330
s s
WARNING
This scooter is designed for use on
paved roads only. If this scooter is
operated in abnormally dusty,
muddy or wet conditions, the air fil-
ter element should be cleaned or
replaced more frequently, otherwi-
se rapid engine wear may result.
Consult a Yamaha dealer for proper
maintenance intervals.
EAU17380
Owner’s tool kit
1. Owner’s tool kit
The owner’s tool kit is located under
the seat. (See page 3-10.)The service information included in
this manual and the tools provided in
the owner’s tool kit are intended to
assist you in the performance of pre-
ventive maintenance and minor
repairs. However, additional tools
such as a torque wrench may be
necessary to perform certain mainte-
nance work correctly.
NOTE:
If you do not have the tools or expe-
rience required for a particular job,
have a Yamaha dealer perform it for
you.
EWA10350
s s
WARNING
Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle
unsafe for use. Consult a Yamaha
dealer before attempting any chan-
ges.
1
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-1
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 34

EAU17705
Periodic maintenance and lubrication chart
NOTE:
The annual checks must be performed every year, except if a kilometer-based maintenance is performed
instead.
From 50000 km, repeat the maintenance intervals starting from 10000 km.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
ODOMETER READING (x 1000 Km) ANNUAL
CHECK
NoITEM CHECK OR MAINTENANCE JOB 1 10 20 30 40
1*Fuel line• Check fuel and vacuum hoses for cracks or damage.√√√√ √
• Check condition.
2Spark plug• Clean and regap.√√• Replace.√√
3*Valves• Check valve clearance.
• Adjust.√√
4Air filter element• Replace.√√
5*V-belt case air • Clean.√√filter elements• Replace.√√
6*Front brake• Check operation, fluid level and vehicle for fluid leakage.√√ √ √√ √• Replace brake pads. Whenever worn to the limit
7*Rear brake• Check operation, fluid level and vehicle for fluid leakage.√√ √ √√ √
• Replace brake pads. Whenever worn to the limit
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 35

ODOMETER READING (x 1000 Km) ANNUAL
CHECK
NoITEM CHECK OR MAINTENANCE JOB 1 10 20 30 40
8*Brake hose• Check for cracks or damage.√√√√ √• Replace. Every 4 years
9*Wheels• Check runout and for damage.√√√√
• Check tread depth and for damage.
10 *Tires• Replace if necessary.
√√√√ √
• Check air pressure.
• Correct if necessary.
11 *Wheel bearings• Check bearing for looseness or damage.√√√√
12 *Steering bearings• Check bearing play and steering for roughness.√√ √ √√• Lubricate with lithium-soap-based grease. Every 20000 km
13 *Chassis fasteners• Make sure that all nuts, bolts and screws are
√√√√ √
properly tightened.
14Sidestand, centerstand• Check operation.
• Lubricate.√√√√ √
15 *Sidestand switch• Check operation.√√ √ √√ √
16 *Front fork• Check operation and for oil leakage.√√√√
17 *Shock absorber
• Check operation and shock absorbers for oil leakage.√√√√
assemblies
18 *Carburetor• Adjust engine idling speed.√√ √ √√ √
• Change. (See page 3-6.)√When the oil change
19Engine oilindicator light comes on (every 3000 km)• Check oil level and vehicle for oil leakage. Every 3000 km√
20 *Engine oil strainer• Clean.√
21 *Cooling system• Check coolant level and vehicle for coolant leakage.√√√√ √
• Change. Every 3 years
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 36

ODOMETER READING (x 1000 Km) ANNUAL
CHECK
NoITEM CHECK OR MAINTENANCE JOB 1 10 20 30 40
22Final transmission oil• Check vehicle for oil leakage.√√ √• Change.√√√
23 *V-belt• Replace. Every 20000 km
24 *Front and rear brake
• Check operation.√√ √ √√ √
switches
25Moving parts and cables• Lubricate.√√√√ √
Throttle grip housing• Check operation and free play.
26 *
and cable• Adjust the throttle cable free play if necessary.√√√√ √
• Lubricate the throttle grip housing and cable.
27 *Muffler and exhaust pipe• Check the screw clamp for looseness.√√ √ √√
28 *Lights, signals • Check operation.
and switches• Adjust headlight beam.√√ √ √√ √
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
EAU18660
NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinder and caliper, and change the bra-
ke fluid.
• Replace the brake hoses every four years and if cracked or damaged.
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 37

EAU18712

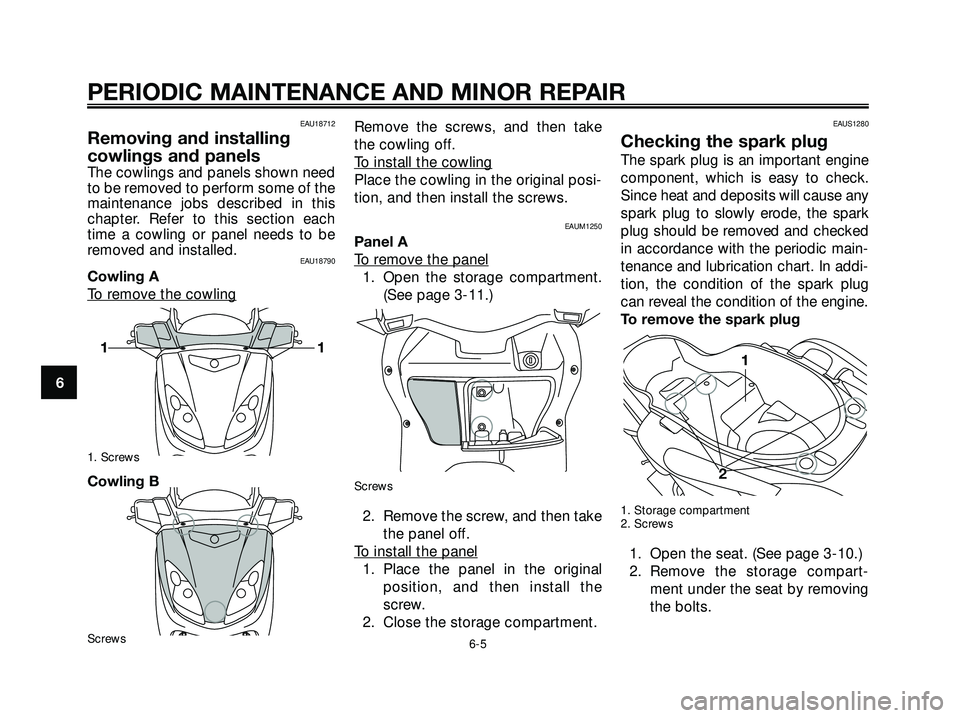

Removing and installing
cowlings and panels
The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each
time a cowling or panel needs to be
removed and installed.
EAU18790
Cowling A
T
o remove the cowling
1. Screws
Cowling B
Screws
Remove the screws, and then take
the cowling off.
T
o install the cowling
Place the cowling in the original posi-
tion, and then install the screws.
EAUM1250
Panel A
T
o remove the panel
1. Open the storage compartment.
(See page 3-11.)
Screws
2. Remove the screw, and then take
the panel off.
T
o install the panel
1. Place the panel in the original
position, and then install the
screw.
2. Close the storage compartment.
EAUS1280
Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic main-
tenance and lubrication chart. In addi-
tion, the condition of the spark plug
can reveal the condition of the engine.
To remove the spark plug
1. Storage compartment
2. Screws
1. Open the seat. (See page 3-10.)
2. Remove the storage compart-
ment under the seat by removing
the bolts.
1
2
11
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 38

3. Remove the spark plug cap.
4. Remove the spark plug asshown, with the spark plug
wrench included in the owner’s
tool kit.
To check the spark plug 1. Check that the porcelain insula- tor around the center electrode of the spark plug is a medium-to-
light tan (the ideal color when the
motorcycle is ridden normally).
NOTE:
If the spark plug shows a distinctly dif-
ferent color, the engine could be defec-
tive. Do not attempt to diagnose such
problems yourself. Instead, have a
Yamaha dealer check the motorcycle.
2. Check the spark plug for electro-
de erosion and excessive carbon
or other deposits, and replace it if
necessary.
To install the spark plug 1. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to spe-
cification.
2. Clean the surface of the spark plug gasket and its mating surfa-
ce, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the spark plug wrench, and then
tighten it to the specified torque.
NOTE:
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4 ~
1/2 turn past finger tight. However,
the spark plug should be tightened to
the specified torque as soon as pos-
sible.
4. Install the spark plug cap.
Tightening torque:Spark plug:18 Nm (1,8 m•kgf, 13,01 ft•lbf)
Spark plug gap:0,7mm (0,027in)
Specified spark plug:NGK DR8EA6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 39

NOTE:
Make sure the spark plug wire is fas-
tened in the clamp as shown.
5. Install the storage compartment
by installing the bolts.
6. Close the seat.
EAUM1550
Engine oil
The engine oil level should be chec-
ked before each ride. In addition, the
oil must be changed at the intervals
specified in the periodic maintenance
and lubrication chart and when the
service indicator light comes on.
To check the engine oil level
1. Place the scooter on the centers-
tand.
NOTE:
Make sure that the scooter is positio-
ned straight up when checking the oil
level. A slight tilt to the side can result
in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
1. Dipstick
2. Max-min marks
3. Oil filler cap
3. Wait a few minutes until the oil
settles, remove the oil filler cap,
wipe the dipstick clean, insert it
back into the oil filler hole (wit-
hout screwing it in), and then
remove it again to check the oil
level.
NOTE:
The engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to rai-
se it to the correct level.5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
To change the engine oil
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
1. Oil drain bolt
3. Remove the engine oil filler cap
and the engine oil drain bolt to
drain the oil from the crankcase.
4. Check the washer for damage
and replace it if necessary.
5. Install the washer and the engine
oil drain bolt, and then tighten the
drain bolt to the specified torque.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 40
