EAU12171
Coolant temperature gauge
1. Temperature gauge
With the key in the “ON” position, the
coolant temperature gauge indicates
the temperature of the coolant. The
coolant temperature varies with chan-
ges in the weather and engine load. If
the needle reaches or enters the red
zone, stop the vehicle and let the
engine cool. (See page 6-25.)
ECA10020
CAUTION
Do not operate the engine if it is
overheated.
EAUM1480
Multi-function display
1. “MODE” button
2. Multi-function display
3. “SET” button
The multi-function display is equip-
ped with the following:
an odometer (which shows the
total distance traveled)
two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to
zero, and the average speed tra-
veled during this time)
a fuel reserve tripmeter (which
shows the distance traveled sin-
ce the fuel level warning light
came on)
a clock
an ambient temperature display
a service indicator (which is dis-
played when periodic maintenan-
ce and lubrication is necessary)
NOTE:
For the UK, the distance traveled
is displayed in miles and the tem-
perature reading is displayed in
°F.
For other countries, the distance
traveled is displayed in kilome-
ters and the temperature reading
is displayed in °C.
1. Total
2. Trip 1
2. Trip 2
4. Trip/Fuel
123
13
INSTRUMENT AND CONTROL FUNCTIONS
3-4
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-4

Odometer and tripmeter modes
Pushing the “MODE” button switches
the display between the odometer
mode “Total” and the tripmeter
modes “Trip” in the following order:
Total
Trip 1 Trip 2 Trip/fuel
Total
1. Distance
2. Time
3. Average speed
NOTE:
The Trip/fuel odometer is only
activated if the fuel level warning
light comes on.
Pushing the “SET” button when in the
tripmeter mode switches the display
between the different tripmeter func-
tions in the following order:Distance
Time Average speed
Distance
If the fuel level warning light comes on
(See page 3-2.), the display will auto-
matically change to the fuel reserve
tripmeter mode “Trip/fuel” and start
counting the distance traveled from
that point. In that case, pushing the
“SET” button switches the display
between the various tripmeter and
odometer modes in the following
order:
Trip/Fuel
Trip 1 Trip 2 Total
Trip/fuel
To reset a tripmeter, select it by pus-
hing the “MODE” button, and then
push the “SET” button for at least one
second. If you do not reset the fuelreserve tripmeter manually, it will
reset itself automatically and the dis-
play will return to the prior mode after
refueling and traveling 5 km.
Clock mode
To set the clock:
1. When the display is in the “Total”
mode, push the “SET” button for
at least two seconds.
2. When the hour digits start flas-
hing, push the “SET” button to
set the hours.
3
INSTRUMENT AND CONTROL FUNCTIONS
3-5
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-5

EAU17705

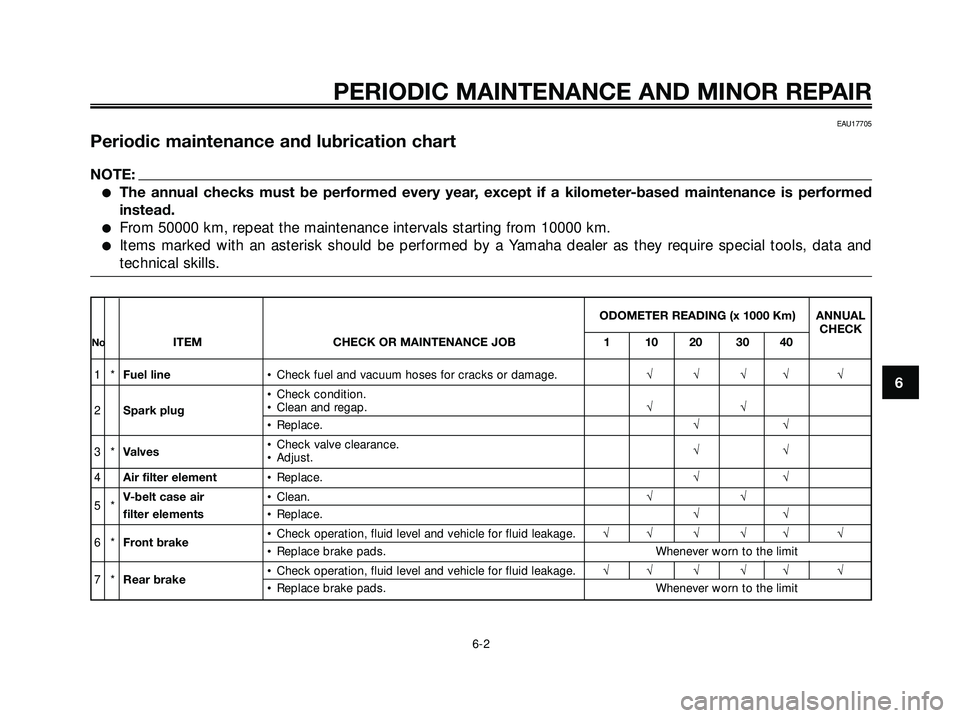

Periodic maintenance and lubrication chart
NOTE:
The annual checks must be performed every year, except if a kilometer-based maintenance is performed
instead.
From 50000 km, repeat the maintenance intervals starting from 10000 km.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
ODOMETER READING (x 1000 Km) ANNUAL
CHECK
NoITEM CHECK OR MAINTENANCE JOB 1 10 20 30 40
1*Fuel line• Check fuel and vacuum hoses for cracks or damage.√√√√ √
• Check condition.
2Spark plug• Clean and regap.√√• Replace.√√
3*Valves• Check valve clearance.
• Adjust.√√
4Air filter element• Replace.√√
5*V-belt case air • Clean.√√filter elements• Replace.√√
6*Front brake• Check operation, fluid level and vehicle for fluid leakage.√√ √ √√ √• Replace brake pads. Whenever worn to the limit
7*Rear brake• Check operation, fluid level and vehicle for fluid leakage.√√ √ √√ √
• Replace brake pads. Whenever worn to the limit
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 35

ODOMETER READING (x 1000 Km) ANNUAL
CHECK
NoITEM CHECK OR MAINTENANCE JOB 1 10 20 30 40
8*Brake hose• Check for cracks or damage.√√√√ √• Replace. Every 4 years
9*Wheels• Check runout and for damage.√√√√
• Check tread depth and for damage.
10 *Tires• Replace if necessary.
√√√√ √
• Check air pressure.
• Correct if necessary.
11 *Wheel bearings• Check bearing for looseness or damage.√√√√
12 *Steering bearings• Check bearing play and steering for roughness.√√ √ √√• Lubricate with lithium-soap-based grease. Every 20000 km
13 *Chassis fasteners• Make sure that all nuts, bolts and screws are
√√√√ √
properly tightened.
14Sidestand, centerstand• Check operation.
• Lubricate.√√√√ √
15 *Sidestand switch• Check operation.√√ √ √√ √
16 *Front fork• Check operation and for oil leakage.√√√√
17 *Shock absorber
• Check operation and shock absorbers for oil leakage.√√√√
assemblies
18 *Carburetor• Adjust engine idling speed.√√ √ √√ √
• Change. (See page 3-6.)√When the oil change
19Engine oilindicator light comes on (every 3000 km)• Check oil level and vehicle for oil leakage. Every 3000 km√
20 *Engine oil strainer• Clean.√
21 *Cooling system• Check coolant level and vehicle for coolant leakage.√√√√ √
• Change. Every 3 years
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 36

ODOMETER READING (x 1000 Km) ANNUAL
CHECK
NoITEM CHECK OR MAINTENANCE JOB 1 10 20 30 40
22Final transmission oil• Check vehicle for oil leakage.√√ √• Change.√√√
23 *V-belt• Replace. Every 20000 km
24 *Front and rear brake
• Check operation.√√ √ √√ √
switches
25Moving parts and cables• Lubricate.√√√√ √
Throttle grip housing• Check operation and free play.
26 *
and cable• Adjust the throttle cable free play if necessary.√√√√ √
• Lubricate the throttle grip housing and cable.
27 *Muffler and exhaust pipe• Check the screw clamp for looseness.√√ √ √√
28 *Lights, signals • Check operation.
and switches• Adjust headlight beam.√√ √ √√ √
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
EAU18660
NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinder and caliper, and change the bra-
ke fluid.
• Replace the brake hoses every four years and if cracked or damaged.
