Cargo and accessory weight
should be kept as low and close
to the scooter as possible. Make
sure to distribute the weight as
evenly as possible on both sides
of the scooter to minimize imba-
lance or instability.
Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the scooter
before riding. Check accessory
mounts and cargo restraints fre-
quently.
Never attach any large or heavy
items to the handlebar, front fork,
or front fender. Such items can
create unstable handling or a
slow steering response.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this scooter. Since Yamaha cannot
test all other accessories that may be
available, you must personally be res-
ponsible for the proper selection, ins-
tallation and use of non-Yamaha
accessories. Use extreme cautionwhen selecting and installing any
accessories.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
Never install accessories or carry
cargo that would impair the per-
formance of your scooter. Care-
fully inspect the accessory befo-
re using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.
• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.• Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodyna-
mic effects. Wind may attempt
to lift the scooter, or the scoo-
ter may become unstable in
cross winds. These accesso-
ries may also cause instability
when passing or being passed
by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the fre-
edom of movement of the ope-
rator and may limit control abi-
lity, therefore, such
accessories are not recom-
mended.
Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the scooter’s electrical system
an electric failure could result,
which could cause a dangerous
loss of lights or engine power.
1
SAFETY INFORMATION t
1-3
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 9

EAU26890
Immobilizer system
This vehicle is equipped with an
immobilizer system to help prevent
theft by re-registering codes in the
standard keys. This system consists
of the following.
a code re-registering key (with a
red bow)
two standard keys (with a black
bow) that can be re-registered
with new codes
a transponder (which is installed
in the code re-registering key)
an immobilizer unit
the ignitor unit
an immobilizer system indicator
light (See page 3-3.)
The key with the red bow is used to
register codes in each standard key.
Since re-registering is a difficult pro-
cess, take the vehicle along with all
three keys to a Yamaha dealer to have
them re-registered. Do not use the
key with the red bow for driving. It
should only be used for re-registering
the standard keys. Always use a stan-
dard key for driving.
ECA11820
CAUTION
DO NOT LOSE THE CODE RE-
REGISTERING KEY! CONTACT
YOUR DEALER IMMEDIATELY
IF IT IS LOST! If the code re-
registering key is lost, registe-
ring new codes in the standard
keys is impossible. The stan-
dard keys can still be used to
start the vehicle, however if
code re-registering is required
(i.e., if a new standard key is
made or all keys are lost) the
entire immobilizer system must
be replaced. Therefore, it is
highly recommended to use
either standard key and keep
the code re-registering key in a
safe place.
Do not submerse any key in
water.
Do not expose any key to
excessively high temperatures.
Do not place any key close to
magnets (this includes, but not
limited to, products such as
speakers, etc.).
Do not place heavy items on
any key.
Do not grind any key or alter its
shape.
Do not disassemble the plastic
part of any key.
Do not put two keys of any
immobilizer system on the
same key ring.
Keep the standard keys as well
as keys of other immobilizer
systems away from this vehi-
cle’s code re-registering key.
Keep other immobilizer system
keys away from the main
switch as they may cause sig-
nal interference.
EAU10471
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering.
3
INSTRUMENT AND CONTROL FUNCTIONS
3-1
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-1

NOTE:
Be sure to use the standard key
(black bow) for regular use of the
vehicle. To minimize the risk of losing
the code re-registering key (red bow),
keep it in a safe place and only use it
for code re-registering.
EAU10550
ON
All electrical circuits are supplied with
power, the meter lighting, taillight,
license plate light and auxiliary lights
come on, and the engine can be star-
ted. The key cannot be removed.
NOTE:
The headlights come on automatically
when the engine is started and stayon until the key is turned to “OFF”,
even if the engine stalls.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
T
o lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF”
position, and then turn it to
“LOCK” while still pushing it.
3. Remove the key.
T
o unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
EWA10060
s s
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or anaccident. Make sure that the vehi-
cle is stopped before turning the
key to “OFF” or “LOCK”.
EAU33461
Indicators, indicator lights
and warning light
EAU11030
Turn signal indicator lights “c” and
“
d”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “j”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAU11350
Fuel level warning light “z”
This warning light comes on when the
fuel level drops below approximately
2.0L (0.44USgal)(1.76Imp.gal). When
this occurs, refuel as soon as possi-
ble.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”.
IGNITION
LOCK
OFFONOPENPUSH
3
INSTRUMENT AND CONTROL FUNCTIONS
3-2
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-2

ODOMETER READING (x 1000 Km) ANNUAL
CHECK
NoITEM CHECK OR MAINTENANCE JOB 1 10 20 30 40
8*Brake hose• Check for cracks or damage.√√√√ √• Replace. Every 4 years
9*Wheels• Check runout and for damage.√√√√
• Check tread depth and for damage.
10 *Tires• Replace if necessary.
√√√√ √
• Check air pressure.
• Correct if necessary.
11 *Wheel bearings• Check bearing for looseness or damage.√√√√
12 *Steering bearings• Check bearing play and steering for roughness.√√ √ √√• Lubricate with lithium-soap-based grease. Every 20000 km
13 *Chassis fasteners• Make sure that all nuts, bolts and screws are
√√√√ √
properly tightened.
14Sidestand, centerstand• Check operation.
• Lubricate.√√√√ √
15 *Sidestand switch• Check operation.√√ √ √√ √
16 *Front fork• Check operation and for oil leakage.√√√√
17 *Shock absorber
• Check operation and shock absorbers for oil leakage.√√√√
assemblies
18 *Carburetor• Adjust engine idling speed.√√ √ √√ √
• Change. (See page 3-6.)√When the oil change
19Engine oilindicator light comes on (every 3000 km)• Check oil level and vehicle for oil leakage. Every 3000 km√
20 *Engine oil strainer• Clean.√
21 *Cooling system• Check coolant level and vehicle for coolant leakage.√√√√ √
• Change. Every 3 years
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 36

EWA10740
s s
WARNING
If the centerstand or sidestand
does not move up and down smo-
othly, have a Yamaha dealer check
or repair it.
EAU23271

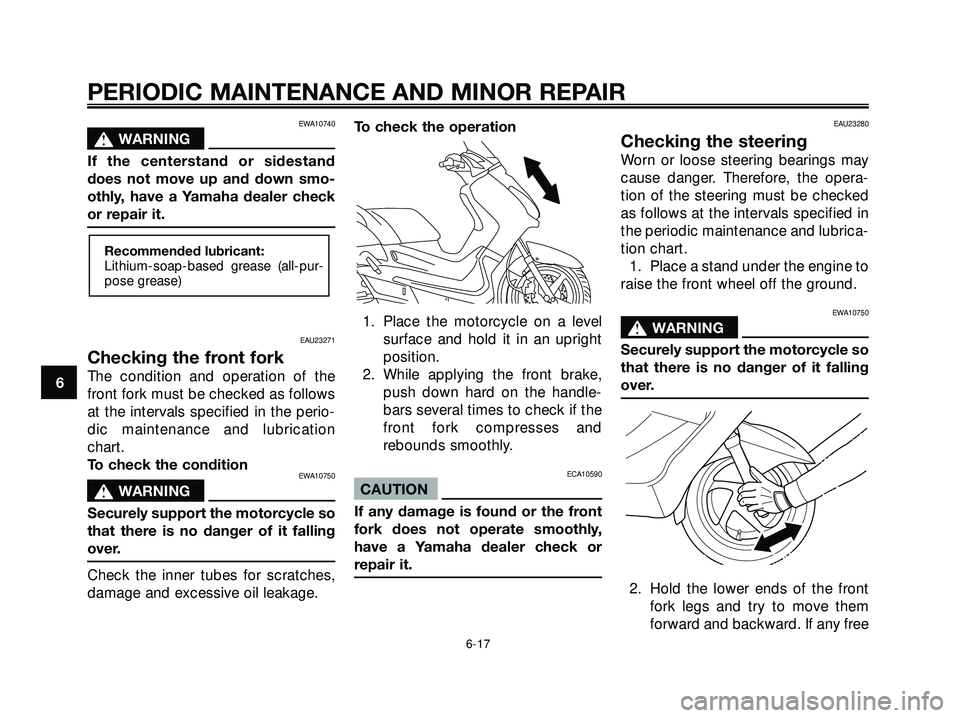

Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the perio-
dic maintenance and lubrication
chart.
To check the condition
EWA10750
s s
WARNING
Securely support the motorcycle so
that there is no danger of it falling
over.
Check the inner tubes for scratches,
damage and excessive oil leakage.To check the operation
1. Place the motorcycle on a level
surface and hold it in an upright
position.
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and
rebounds smoothly.
ECA10590
CAUTION
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or
repair it.
EAU23280
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
1. Place a stand under the engine to
raise the front wheel off the ground.
EWA10750
s s
WARNING
Securely support the motorcycle so
that there is no danger of it falling
over.
2. Hold the lower ends of the front
fork legs and try to move them
forward and backward. If any free
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 50

AAcceleration and deceleration ...................5-2
Adjusting the carburetor ..........................6-11
Adjusting the shock absorber
assemblies .............................................3-11
Adjusting the throttle cable free play .......6-12
Air filter V-Belt case air filter elements.....6-10
Anti-theft alarm (optional) ..........................3-7
BBattery......................................................6-18
Braking .......................................................5-2
CCare............................................................7-1
Cast wheels .............................................6-14
Catalytic converter ...................................3-10
Changing the brake fluid..........................6-16
Checking and lubricating the
centerstand and sidestand ....................6-16
Checking and lubricating the
throttle grip cable ..................................6-16
Checking the brake fluid level .................6-15
Checking the front and rear brake pads.....6-14
Checking the front fork ............................6-17
Checking the spark plug ............................6-5
Checking the wheel bearings ..................6-18
Cheking the steering ................................6-17
Controls and instruments ..........................2-3
Coolant.......................................................6-9
Coolant temperature gauge .......................3-4
EEngine break-in ..........................................5-3
Engine oil ...................................................6-7
FFinal transmission oil .................................6-8Front and rear brake lever free play.........6-14
Front brake lever ........................................3-8
Front storage compartment .....................3-11
Fuel ............................................................3-9
Fuel gauge .................................................3-3
Fuel tank cap .............................................3-8
HHandlebar switches ...................................3-7
IImmobilizer system ....................................3-1
Indicators, indicator lights and warning
light ..........................................................3-2
KKey identification number ..........................9-1
LLeft view .....................................................2-1
Lubricating the front and rear brake
levers .....................................................6-16
MMain switch/steering lock ..........................3-1
Model label ................................................9-1
Multi-function display ................................3-4
OOwner’s tool kit ..........................................6-1
PParking .......................................................5-3
Periodic maintenance and lubrication
chart .........................................................6-2
Pre-operation check list .............................4-2
RRear brake lever .........................................3-8
Removing and installing cowlings and
panels ......................................................6-5
Replacing a front turn signal light bulb....6-21Replacing a headlight bulb ......................6-20
Replacing the auxiliary light bulb .............6-22
Replacing the fuses .................................6-19
Replacing the license plate light bulb......6-22
Replacing the tail/brake light bulb or a
rear turn signal light bulb.......................6-21
Right view ..................................................2-2
SSeat ..........................................................3-10
Sidestand .................................................3-12
Speedometer .............................................3-3
Starting a cold engine ................................5-1
Starting off .................................................5-1
Storage compartment ..............................3-11
Storage compartment ................................7-3
TTips for reducing fuel consumption ...........5-2
Tires .........................................................6-12
Troubleshooting .......................................6-22
Troubleshooting charts ............................6-24
VValve clearance ........................................6-12
Vehicle identification number .....................9-1
INDEX
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 67
