2005 TOYOTA CAMRY Owners Manual

’05Camry_U (L/O 0409)
41
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Front passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats equipped
with side airbags. Such change may
prevent the side airbag system from
activating correctly, disable the sys-
tem or cause the side airbag sys-
tem to inflate accidentally, resulting
in death or serious injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Seat adjustment precautions

’05Camry_U (L/O 0409)
42
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and

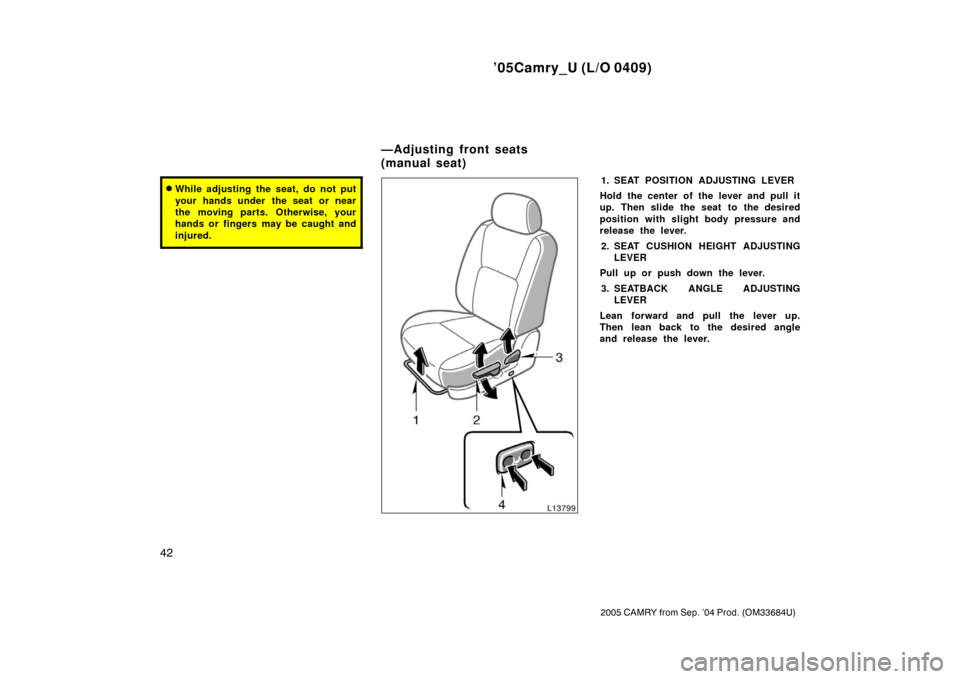

injured.1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION HEIGHT ADJUSTING LEVER
Pull up or push down the lever.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting front seats
(manual seat)

’05Camry_U (L/O 0409)
43
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
4. SEAT LUMBAR SUPPORTADJUSTING SWITCH
Push the control switch in the desired
direction.
The amount of lumber support will change
while the switch is pushed.

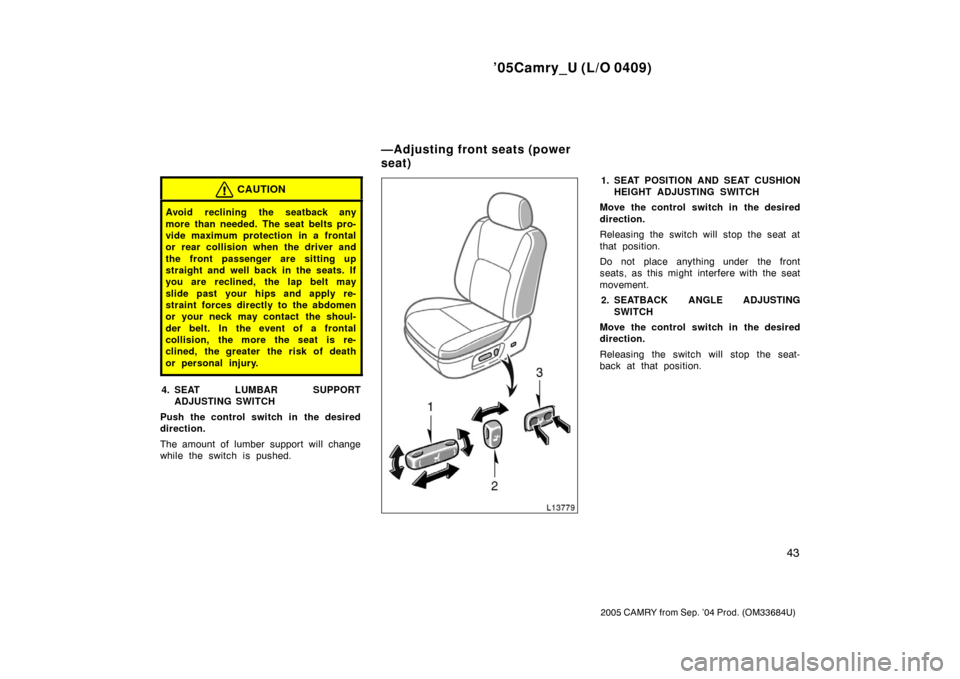

1. SEAT POSITION AND SEAT CUSHION HEIGHT ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front seats (power
seat)

’05Camry_U (L/O 0409)
44
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
3. SEAT LUMBAR SUPPORTADJUSTING SWITCH
Push the control switch in the desired
direction.
The amount of lumber support will change
while the switch is pushed.
1. Pull up the seatback security lock lever 1 to the unlock position.
2. Pull up the lock release button 2.
3. Fold down the seatback.
Each seatback can be folded separately.This will enlarge the trunk as far as the
seatbacks. See “—Stowage precautions”
on page 238 in Section 2 for precautions
when loading luggage.
NOTICE
Make sure the luggage loaded in the
enlarged trunk will not damage the
webbing of the rear center seat belt
when the left seatback is folded
down.
Folddown rear seat

’05Camry_U (L/O 0409)
45
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback
and that the red mark at the button
on the top of the seatback cannot
be seen. Failure to do so will pre-
vent the seat belt from operating
properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in the proper
position and are ready to use.
To turn on the seat heater, push the
switch. At this time, the indicator light
will illuminate to indicate the seat heat-
er is operating.
To turn off the seat heater, push the
switch once again.
The key must be in the “ON” position to
operate seat heaters.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have delicate skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
Seat heaters

’05Camry_U (L/O 0409)
46
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
NOTICE
Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
Front
Rear
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Rear center head restraint—When an oc-
cupant sits on the rear center seat, al-
ways pull up the rear center head re-
straint to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Head restraints

’05Camry_U (L/O 0409)
47
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

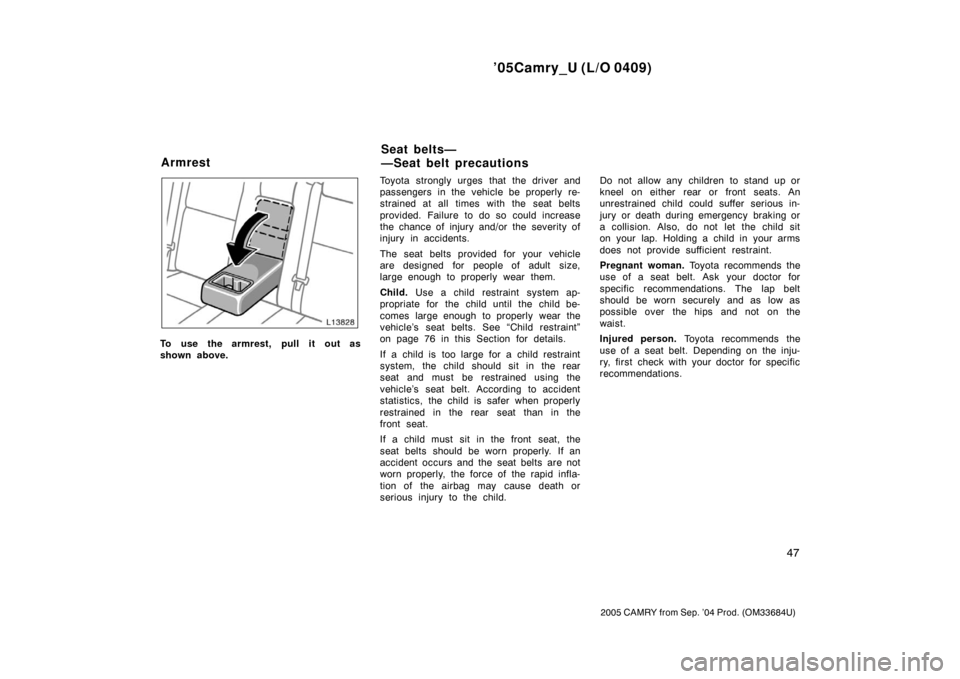

To use the armrest, pull it out as
shown above.Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child.
Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 76 in this Section for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child. Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.
Armrest Seat belts—
—Seat belt precautions

’05Camry_U (L/O 0409)
48
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal collision, the
more the seat is reclined, the great-
er the risk of death or personal in-
jury.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belt—they may se-
verely weaken the belts. (See
“Cleaning the interior” on page 285
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Ta b
Buckle
Adjust the seat as needed (front seats
only) and sit up straight and well back
in the seat. To fasten your belt, pull it
out of the retractor and insert the tab
into the buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
—Fastening front and rear
seat belts
