2005 TOYOTA CAMRY Owners Manual

’05Camry_U (L/O 0409)
9
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti −lock brake system warning light∗
1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
or
Front passenger ’s seat belt reminder light∗1Vehicle stability control system and traction
control system warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
“AIRBAG ON” indicator light
or
“AIRBAG OFF” indicator light
Headlight low beam indicator light
Tail light indicator light
Indicator symbols on the instrument panel

’05Camry_U (L/O 0409)
10
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Slip indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 117 in Section 1− 6.
∗
2: If this light flashes, see “Cruise control” on page 138 in Sec-
tion 1 −7.
Cruise control indicator light∗
2
Overdrive −off indicator light
Automatic transmission indicator lights
Traction control system off indicator light
Headlight high beam indicator light
Turn signal indicator lights

’05Camry_U (L/O 0409)
11
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Hood 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

’05Camry_U (L/O 0409)
12
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

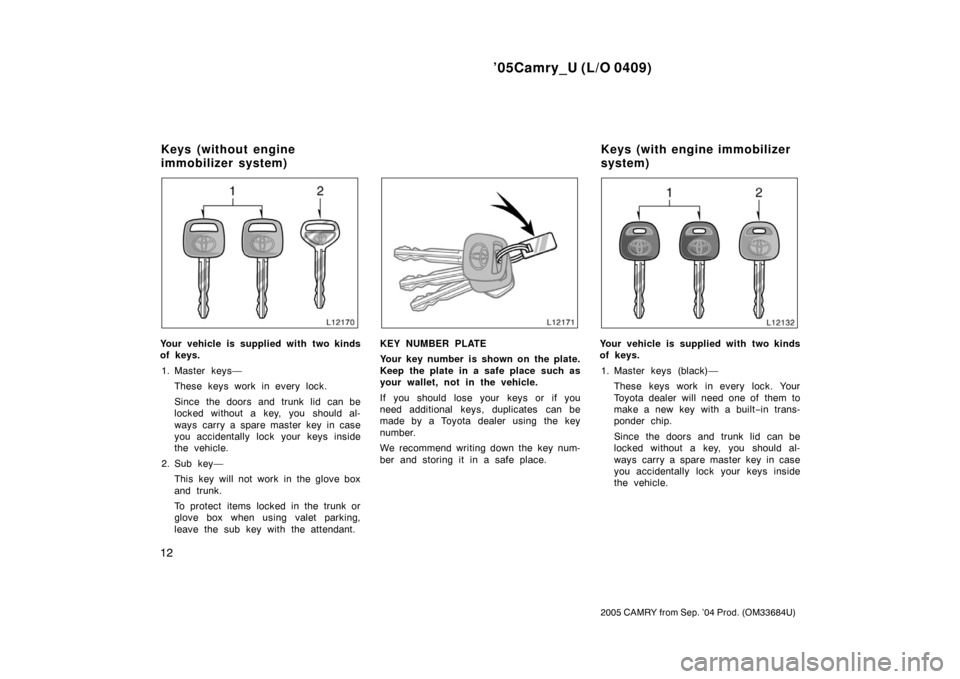

Your vehicle is supplied with two kinds
of keys.1. Master keys— These keys work in every lock.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
2. Sub key— This key will not work in the glove box
and trunk.
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)— These keys work in every lock. Your
Toyota dealer will need one of them to
make a new key with a built −in trans-
ponder chip.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)

’05Camry_U (L/O 0409)
13
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
2. Sub key (gray)—This key will not work in the glove box
and trunk.
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’05Camry_U (L/O 0409)
14
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

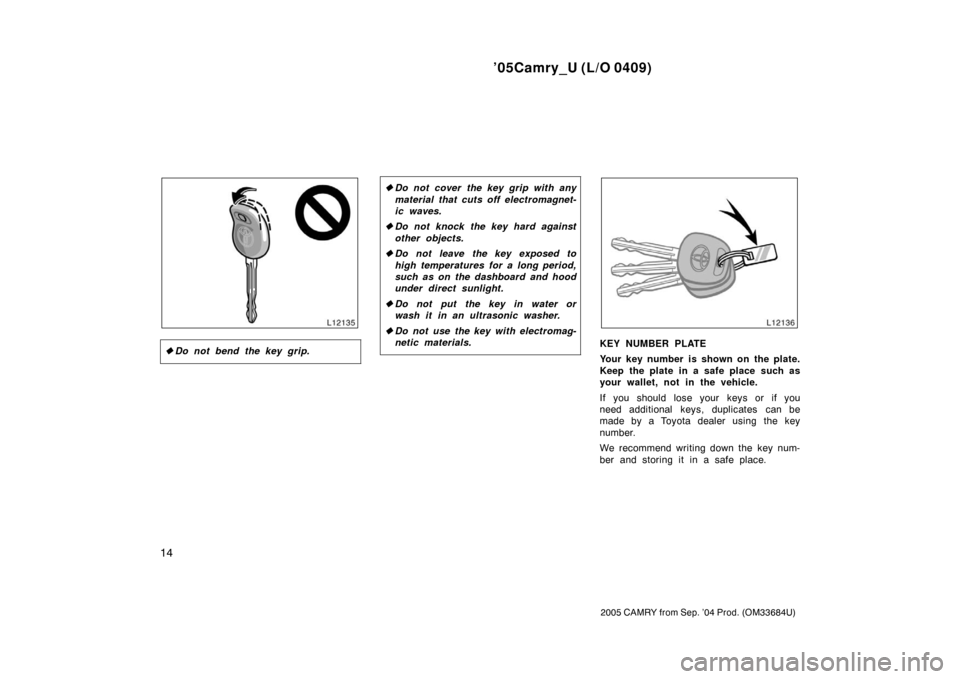

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

’05Camry_U (L/O 0409)
15
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.With manual air conditioning controls
With automatic air conditioning controls
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 31 in this Section.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes inconsistent-
ly.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built −in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
Engine immobilizer system

’05Camry_U (L/O 0409)
16
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
For vehicles sold in U.S.A.
FCC ID: MOZRI20BTY
MADE IN JAPAN
FCC ID: MOZRI21BTY
MADE IN U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
