2005 TOYOTA CAMRY Owners Manual

’05Camry_U (L/O 0409)
145
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
YOUR COMPACT DISC PLAYER (type 1
and 2)
When you insert a disc, gently push it in
with the label side up. The compact disc
player will play from track 1 through to
the end of the disc. Then it will play from
track 1 again.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
YOUR COMPACT DISC PLAYER WITH
CHANGER (type 3)
When you insert a disc, push the “LOAD”
button and gently push the disc in with
the label side up. The compact disc player
will play from track 1 through to the end
of the disc. Then it will play from track
1 of the next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc player. Insert only
one compact disc into slot at a
time.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.

’05Camry_U (L/O 0409)
146
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Details of specific buttons, controls and
features are described in the alphabetical
list that follows.

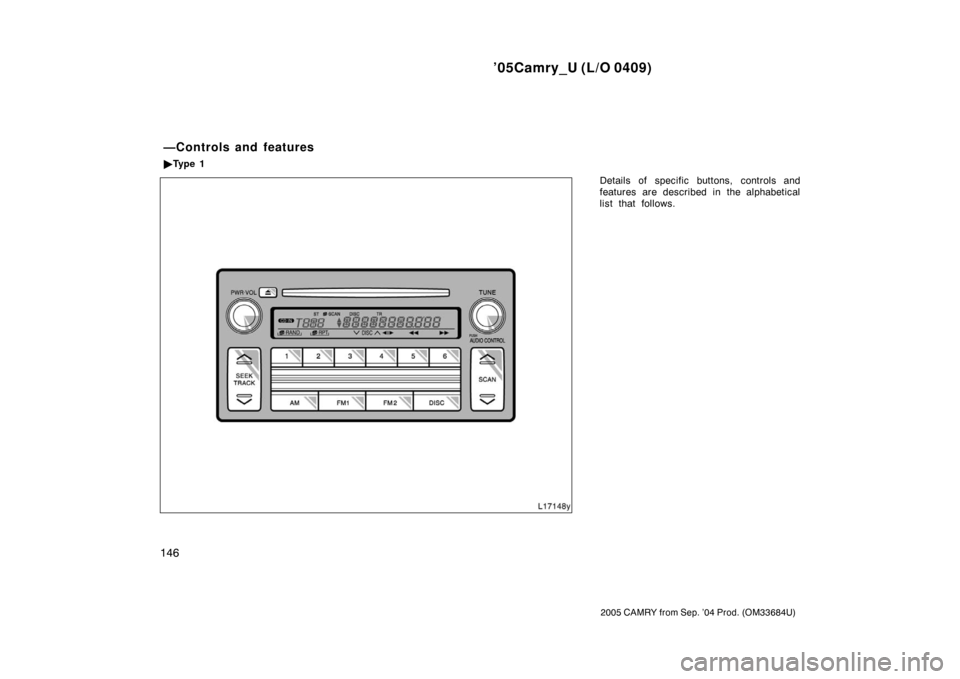

—Controls and features
Ty p e 1

’05Camry_U (L/O 0409)
147
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” or
“SEEK/TRACK”.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The preset but-
ton number will appear on the display.
To recall a preset station: Push the button
for the station you want. The preset but-
ton number and station frequency will ap-
pear on the display.
This radio can store one AM and two FM
stations for each button. (The display will
show “AM”, “FM1” or “FM2” when you
push “AM”, “FM1” or “FM2” button.)
(Eject button)
Push the compact disc eject button to
eject a compact disc.
While the ignition is in “LOCK”, you can
eject a disc but you cannot reinsert it.
(Reverse/Fastforward button)
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast −forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display.
AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the “AUDIO
CONTROL” knob, the mode changes. To
adjust the tone and balance, turn the
knob.
BASS: Adjusts low −pitched tones. The dis-
play ranges from −5 to 5.
TREBLE: Adjusts high− pitched tones. The
display ranges from −5 to 5.
BALANCE: Adjusts the sound balance be-
tween the right and left speakers. The
display ranges from L7 to R7.
FADER: Adjusts the sound balance be-
tween the front and rear speakers. The
display ranges from F7 to R7. DISC (Compact disc)
Push the “DISC” button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played.
Error messages
If the player malfunctions, your audio sys-
tem will display one of the following error
messages.
“WAIT”:
The compact disc player unit
may be too hot. Allow the player to cool
down.
“Err 1”: The disc may be dirty, damaged
or inserted incorrectly (up −side down).
Clean the disc and re −insert it.
“Err 3”: There is a problem inside the
system. Eject the disc or m agazine. Set
the disc or magazine again.
“Err 4”: Over−current. Ask your Toyota
dealer to inspect.
“CD OPEN”: The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.
If the malfunction still exists, take your
vehicle to your Toyota dealer.

’05Camry_U (L/O 0409)
148
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
 DISC
With compact disc changer only—
Use these buttons to select a disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display.
FM1 FM2
Push the “FM1” or “FM2” button to turn on
the radio and select the FM band. “FM1”
or “FM2” will appear on the display. This
system allows you to set twelve FM sta-
tions, two for each of the preset button.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume. RAND (Random)
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
With compact disc changer only—
To play all the tracks in the magazine in
random order:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will ap-
pear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again. RPT (Repeat)
There are two repeat features—you can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again.
With compact disc changer only—
Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.

’05Camry_U (L/O 0409)
149
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan all the frequencies:
Quickly push and release “” or “ ” side
of the “SCAN” button. The radio will find
the next station up the station band, stay
there for 5 seconds, and then scan again
to the next station. To stop scanning,
push “ ” or “ ” side of this button again.
To scan the preset stations:
Push and hold “ ” or “” side of the
“SCAN” button until you hear a beep. The
radio will tune in the next preset station
up or down the band, stay there for 5
seconds, and then move to the next pre-
set station. To stop scanning, push “ ” or
“  ” side of this button again. Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release “
” or “ ” side
of the “SCAN” button. “SCAN” will appear
on the display and the player will scan all
the tracks on the disc you are listening to.
To stop scanning, push “ ” or “ ” side
of this button again. If the player scanned
all the tracks on the disc, it will stop
scanning.
With compact disc changer only—
Scanning the first tracks of all the discs
in the magazine:
Push and hold “ ” or “ ” side of the
“SCAN” button until you hear a beep.
“
·SCAN” will appear on the display and
the player will scan the first track on the
next disc. To stop scanning, push “ ” or
“  ” side of this button again. If the player
has scanned all the discs, it will stop
scanning. SEEK/TRACK (Seeking/Tracking up or
down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “
” or “ ” side of the “SEEK/
TRACK” button. Do this again to find the
station after that.
Compact disc player
Use this button to skip up or down to a
different track.
Push “ ” or “ ” side of the “SEEK/
TRACK” button until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, quickly push the
down side of the button one time.

’05Camry_U (L/O 0409)
150
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TUNE (Tuning)
Turn the “TUNE” knob clockwise to step
up the frequency. Turn the knob counter-
clockwise to step down the frequency.

’05Camry_U (L/O 0409)
151
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Details of specific buttons, controls and
features are described in the alphabetical
list that follows.

Ty p e 2

’05Camry_U (L/O 0409)
152
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” or
“SEEK/TRACK” button.) Push and hold
down the button until you hear a
beep—this will set the station to the but-
ton. The button number will appear on the
display.
To recall a preset station: Push the button
for the station you want. The preset but-
ton number and station frequency will ap-
pear on the display.
This radio can store one AM and two FM
stations for each button. (The display will
show “AM”, “FM1” or “FM2” when you
push “AM” or “FM1·2” button.)
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
While the ignition is in “LOCK”, you can
eject a cassette or disc but you cannot
reinsert it.
(Program)
Push “
” (preset button 5) to select
the other side of a cassette tape. The
display indicates which side is currently
selected (“
” indicates top side, “”
indicates bottom side).
Auto −reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fastforward but-
tons)
Cassette player
Push “
” (preset button 2) to fast −for-
ward a cassette tape. “FF” will appear on
the display. Push “
” (preset button 1)
to rewind a tape. “REW” will appear on
the display.
To stop the tape while it is fast −forward-
ing, push “
” or “TAPE” button. To stop
the tape while it is rewinding, push “
”
or “TAPE” button. If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast
−forwards completely,
the cassette will play the other side of the
tape using the auto −reverse feature.
Compact disc player
Push and hold “
” (preset button 2) or
“
” (preset button 1) to fast −forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM
Push “AM” button to turn on the radio and
select the AM band. “AM” will appear on
the display.
CD (Compact disc)
Push the “CD” button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played.
