2005 TOYOTA CAMRY Owners Manual

’05Camry_U (L/O 0409)
137
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

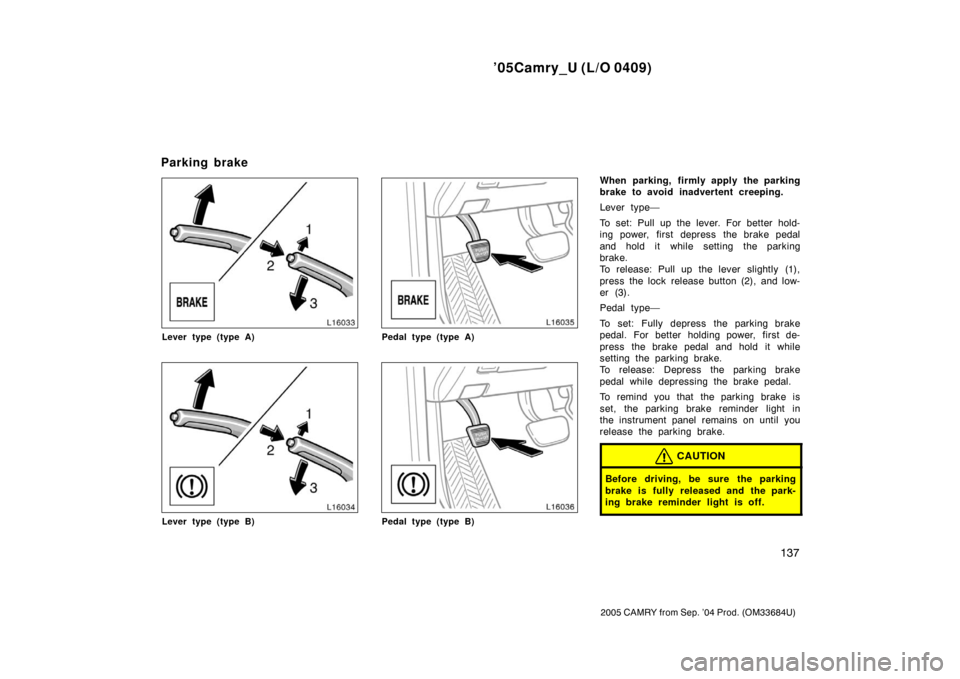

Lever type (type A)
Lever type (type B)
Pedal type (type A)
Pedal type (type B)
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
Lever type—
To set: Pull up the lever. For better hold-
ing power, first depress the brake pedal
and hold it while setting the parking
brake.
To release: Pull up the lever slightly (1),
press the lock release button (2), and low-
er (3).
Pedal type—
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal while depressing the brake pedal.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
Parking brake

’05Camry_U (L/O 0409)
138
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off
the accelerator pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
TURNING THE SYSTEM ON
To operate the cruise control, press the
“ON−OFF” button. This turns the system
on. The indicator light in the instrument
panel shows that you can now set the
vehicle at a desired cruising speed. Anoth-
er press will turn the system completely
off.
CAUTION
To avoid accidental cruise control en-
gagement, keep the “ONOFF” button
off when not using the cruise control.
SETTING AT A DESIRED SPEED
On vehicles with automatic transmission,
the transmission must be in “D” before
you set the cruise control speed.
Bring your vehicle to the desired speed,
push the lever down in the “ − SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.
Cruise control

’05Camry_U (L/O 0409)
139
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CAUTION
For manual transmission:
While driving with the cruise control
on, do not shift to neutral without
depressing the clutch pedal, as this
may cause engine racing or overrev-
ving.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:a. Pulling the lever in the “CANCEL” di- rection and releasing it.
b. Depressing the brake pedal.
c. Depressing the clutch pedal (manual transmission).
d. Pushing the “ON −OFF” button.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto-
matically cancel out.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will also automatically cancel out.
If the preset speed automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity. RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
On vehicles with automatic transmission,
even if you turn off the overdrive switch,
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.

’05Camry_U (L/O 0409)
140
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever or by depressing the
brake pedal or clutch pedal, pushing the
lever up in the “+ RES” direction will re-
store the speed set prior to cancellation.
CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light in the
instrument cluster flashes when using the
cruise control, press the “ON−OFF” button
to turn the system off and then press it
again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

’05Camry_U (L/O 0409)
141
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Audio system operating hints 168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “Navigation System Owner’s Manual”.
SECTION 1 8

’05Camry_U (L/O 0409)
142
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)Type 2: AM·FM radio/cassette player/com-
pact disc player (with compact disc
changer controller)Type 3: AM·FM radio/cassette player/com-
pact disc player with changer (with XM
satellite radio
∗ controller)
∗: Use of satellite radio requires XM tunerand service. Contact your Toyota deal-
er for details.
Reference

’05Camry_U (L/O 0409)
143
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “FM1”, “FM2”, “FM1·2”, “FM”,
“SAT”
∗, “TAPE”, “CD” or “DISC” to turn on
that function without pushing “PWR·VOL”.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
∗: Use of satellite radio r equires XM tuner
and service. Contact your Toyota deal-
er for details. SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM1”, “FM2”, “FM1·2”, “FM”,
“SAT”
∗, “TAPE”, “CD” or “DISC” if the sys-
tem is already on but you want to switch
from one function to another.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details.
LISTENING TO THE XM SATELLITE
RADIO BROADCAST
∗ (type 3)
To listen to a satellite radio broadcast in
your vehicle, an additional genuine Toyota
satellite receiver and antenna (or equiva-
lents) must be purchased and installed. A
subscription to the XM satellite radio ser-
vice is also necessary.
How to subscribe to an XM satellite
radio
An XM satellite radio is a tuner designed
exclusively to receive broadcasts provided
under a separate subscription. Availability
is limited to the 48 contiguous states. How to subscribe:
You must enter into a separate service
agreement with the XM radio in order to
receive satellite broadcast programming in
the vehicle. Additional activation and ser-
vice subscription fees apply that are not
included in the purchase price of the ve-
hicle and optional digital satellite tuner.
For complete information on subscription
rates and terms, or to subscribe to the
XM radio, visit XM on the web at
www.xmradio.com
or call an XM’s Listener
Care at (800) 852 −9696. The XM radio is
solely responsible for the quality, availabil-
ity and content of the satellite radio ser-
vices provided, which are subject to the
terms and conditions of the XM radio cus-
tomer service agreement.
Customers should have their radio ID
ready; the radio ID can be found by tun-
ing to “channel 000” on the radio. For
details, see “Displaying the radio ID” be-
low.
All fees and programming are the respon-
sibility of the XM satellite radio and are
subject to change.
Using your audio system—
—Some basics

’05Camry_U (L/O 0409)
144
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Satellite tuner technology notice:
Toyota’s satellite radio t uners are awarded
Type Approval Certificates from XM Satel-
lite Radio Inc. on “March 10, 2003” and
“April 15, 2003” as proof of compatibility
with the services offered by the XM satel-
lite radio.
Displaying the radio ID
Each XM tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM service or when reporting a
problem.
If you select the “CH 000” using the
“TUNE” knob, the ID code of 8 alphanu-
meric characters appears. If you select
another channel, display of the ID code is
canceled. The channel (000) alternates the
display between the radio ID and the spe-
cific radio ID code.
∗: Use of satellite radio r equires XM tuner
and service. Contact your Toyota deal-
er for details. TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange (type 2 and 3), and
bass levels. In fact, different kinds of mu-
sic and vocal programs usually sound bet-
ter with different mixes of treble, mi-
drange, and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
YOUR RADIO ANTENNA
Your vehicle has an antenna printed on
the inside of the rear window.
NOTICE
Attaching the film (especially conduc-
tive or metallic type) on the rear
glass will noticeably reduce the sensi-
tivity of the radio.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
