2005 TOYOTA CAMRY Owners Manual

’05Camry_U (L/O 0409)
89
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. To remove the child restraint system,press the buckle release button and
allow the belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
— U sin g a to p st rap

’05Camry_U (L/O 0409)
90
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Symbol
Anchor brackets
Use the anchor bracket on the package
tray behind the rear seat to attach the top
strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the location of the
anchor brackets.TO USE THE ANCHOR BRACKET:1. Remove the head restraint.2. Open the lid of the anchor bracket.

’05Camry_U (L/O 0409)
91
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

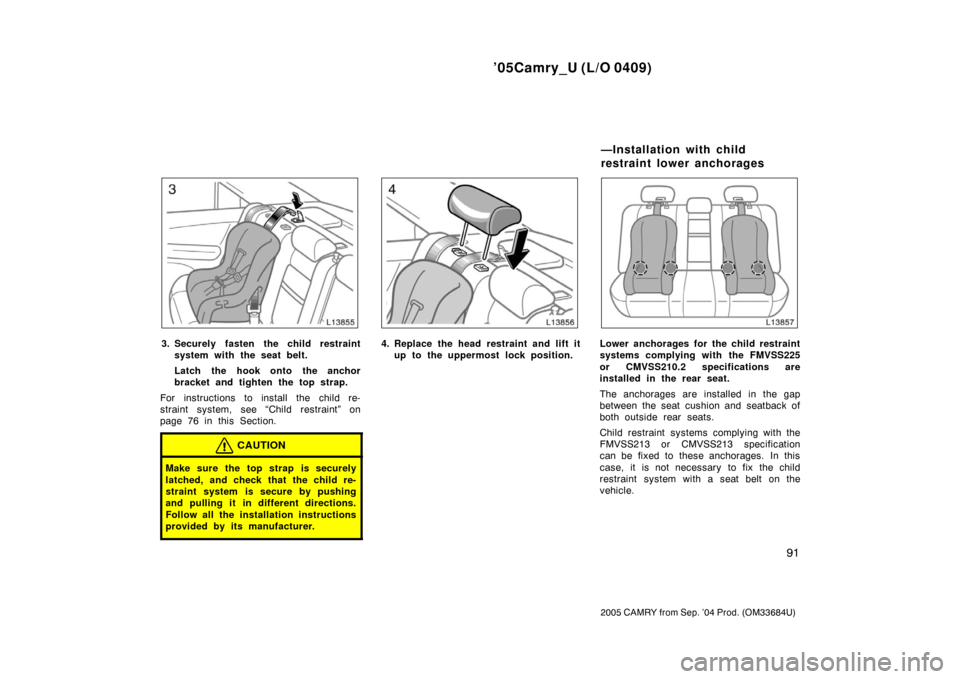

3. Securely fasten the child restraintsystem with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 76 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
4. Replace the head restraint and lift it up to the uppermost lock position.Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages

’05Camry_U (L/O 0409)
92
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Canada only
Ty p e ACanada only
Ty p e B

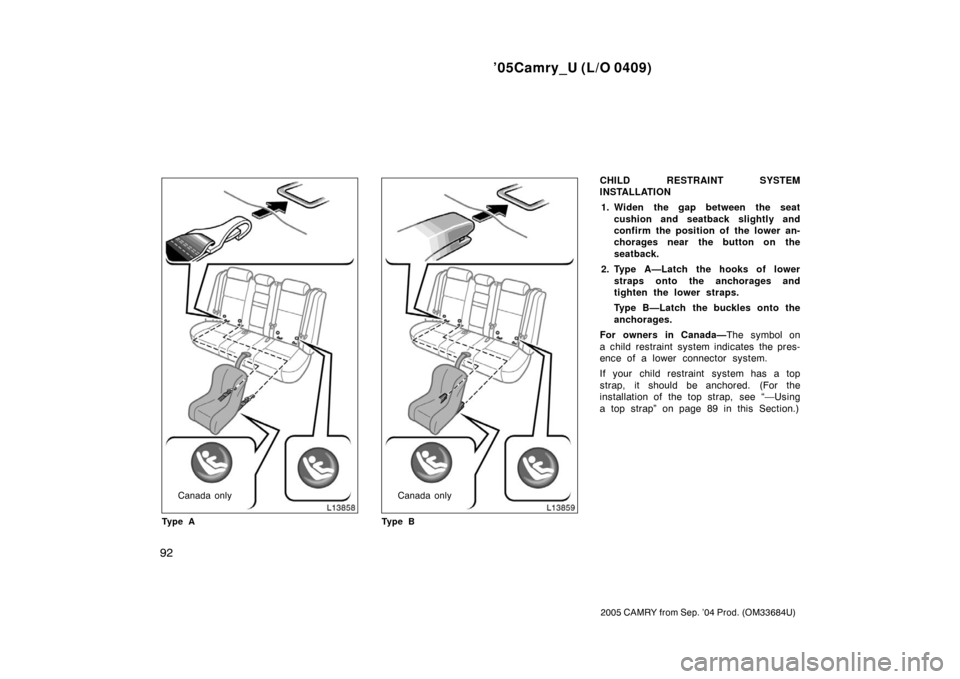

CHILD RESTRAINT SYSTEM
INSTALLATION 1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 89 in this Section.)

’05Camry_U (L/O 0409)
93
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
For installation details, refer to the instruc-
tion manual equipped with each product.

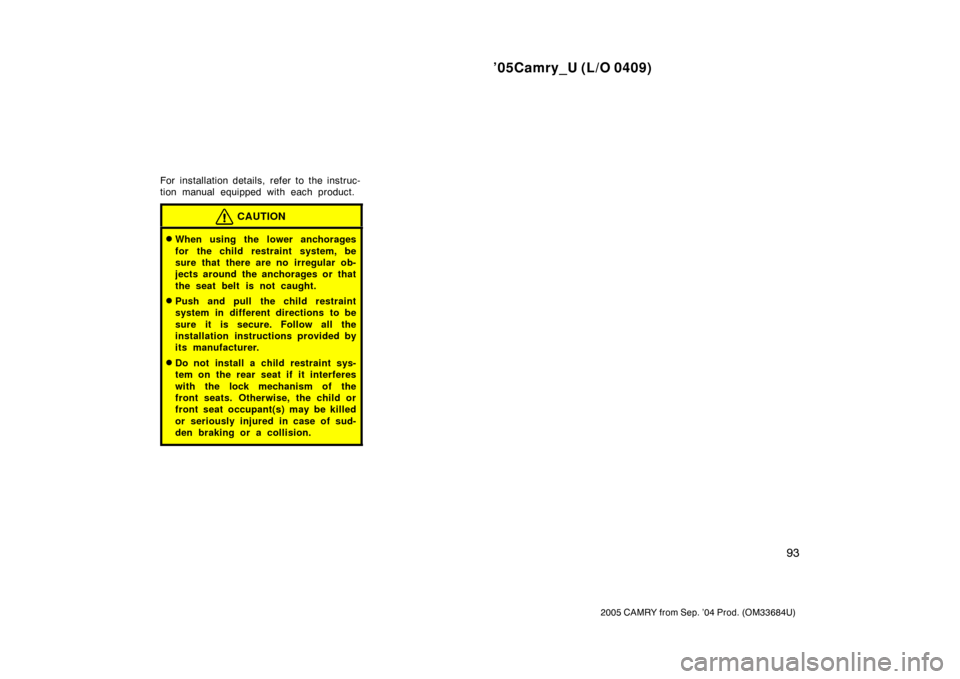

CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

’05Camry_U (L/O 0409)
94
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

’05Camry_U (L/O 0409)
95
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Power adjustable pedals 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Outside rear view mirrors 97
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti −glare inside rear view mirror 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 99
. . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 4

’05Camry_U (L/O 0409)
96
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
To adjust the position of the accelerator
and brake pedals, push the switch.
The ignition key must be in the “ON” posi-
tion with the automatic transmission selec-
tor lever in the “P” position.
To move the pedals toward the front of
the vehicle: Push the “” side of the
switch.
To move the pedals back toward you:
Push the “ ” side of the switch.
The accelerator and brake pedals will
move simultaneously as long as you hold
the switch.
Tilt steering wheel Power adjustable pedals
(some models with an
automatic transmission)
