2005 TOYOTA CAMRY Owners Manual

’05Camry_U (L/O 0409)
129
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Shift into the “3” position. The trans-
mission will downshift to third gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be en-
abled.2AZ− FE engine
137 km/h (85 mph)
. . . . . . . . . . . . . . .
1MZ −FE engine
136 km/h (85 mph)
. . . . . . . . . . . . . . .
3MZ −FE engine
127 km/h (79 mph)
. . . . . . . . . . . . . . .
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be en-
abled.
2AZ− FE engine
87 km/h (54 mph)
. . . . . . . . . . . . . . . .
1MZ −FE engine
88 km/h (55 mph)
. . . . . . . . . . . . . . . .
3MZ −FE engine
82 km/h (51 mph)
. . . . . . . . . . . . . . . .
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be en-
abled.
2AZ− FE engine
45 km/h (28 mph)
. . . . . . . . . . . . . . . .
1MZ −FE engine
38 km/h (24 mph)
. . . . . . . . . . . . . . . .
3MZ −FE engine
38 km/h (24 mph)
. . . . . . . . . . . . . . . .
Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled. For ways to decrease the vehicle speed,
see “Cruise control” on page 138 in this
Section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to skid or
spin.
(e) Using “3”, “2” and “L” positions
The “3”, “2” and “L” positions are used for
strong engine braking as described pre-
viously.
With the selector lever in “3”, “2” or “L”,
you can start the vehicle in motion as
with the lever in “D”.
With the selector lever in “3” or “2”, the
vehicle will start in first gear and automat-
ically shift to third gear or second gear.
With the selector lever in “L”, the trans-
mission is engaged in first gear.

’05Camry_U (L/O 0409)
130
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
NOTICE
Be careful not to overrev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
2AZFE engine—
“3” 142 km/h (88 mph) . . . . . . . . . . .
“2” 91 km/h (57 mph)
. . . . . . . . . . . .
“L” 50 km/h (31 mph)
. . . . . . . . . . . .
1MZFE engine— “3” 140 km/h (87 mph)
. . . . . . . . . . .
“2” 89 km/h (55 mph)
. . . . . . . . . . . .
“L” 49 km/h (30 mph)
. . . . . . . . . . . .
3MZFE engine— “3” 133 km/h (82 mph)
. . . . . . . . . . .
“2” 85 km/h (53 mph)
. . . . . . . . . . . .
“L” 47 km/h (29 mph)
. . . . . . . . . . . .
 Do not continue hill climbing or
hard towing for a long time in the
“3”, “2” or “L” position. This may
cause severe automatic transmis-
sion damage from overheating. To
prevent such damage, “D” position
should be used in hill climbing or
hard towing.
(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. Pull the parking brake lever up fully to securely apply the parking brake.
3. With the brake pedal pressed down, shift the selector lever to the “P” posi-
tion.
CAUTION
Never attempt to move the selector
lever into “P” position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
If the automatic unlocking operation linked
with the shift position is set, all doors are
automatically unlocked when the selector
lever is moved to the “P” position with the
ignition switch is in the “ON” position. For
details, see “—Automatic door locking and
unlocking functions” on page 24 in Section
1−2.

’05Camry_U (L/O 0409)
131
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
(h) Good driving practice
If the transmission repeatedly shifts up
and down between fourth gear and ov-
erdrive when climbing a gentle slope,
the overdrive should be turned off. Be
sure to turn the switch on immediately
afterward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Always use the brake pedal or the
parking brake to hold the vehicle on
an upgrade. Do not attempt to hold
the vehicle using the accelerator ped-
al, as this can cause the transmission
to overheat.
(i) If you cannot shift the selector le-ver out of “P” position
If you cannot shift the selector lever from
“P” position even though the brake pedal
is depressed, use the shift lock override
button. For instructions, see “If you cannot
shift automatic transmission selector lever”
on page 279 in Section 4.
The shift pattern is conventional as
shown above.
Press the clutch pedal down fully while
shifting, and then release it slowly. Do not
rest your foot on the pedal while driving,
because it will cause clutch trouble. Do
not use the clutch to hold the vehicle
when stopped on an uphill grade—use the
parking brake.
Manual transmission

’05Camry_U (L/O 0409)
132
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Recommended shifting speeds
The transmission is fully synchronized and
upshifting or downshifting is easy.
For the best compromise between fuel
economy and vehicle performance, you
should upshift or downshift at the following
speeds:gear km/h (mph)
1 to 2 or 2 to 1 24 (15)
2 to 3 or 3 to 2 40 (25)
3 to 4 or 4 to 3 64 (40)
4 to 5 or 5 to 4 72 (45)
Downshift to the appropriate gear if accel-
eration is needed when you are cruising
below the above downshifting speeds.
Upshifting too soon or downshifting too
late will cause lugging, and possibly ping-
ing. Regularly revving the engine to maxi-
mum speed in each gear will cause ex-
cessive engine wear and high fuel
consumption. Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speeds in each
gear:
gear km/h (mph)1 52 (32)
2 89 (55)
3 137 (85)
4 189 (117)
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower gear.
Good driving practice
If it is difficult to shift into reverse, put
the transmission in neutral, release the
clutch pedal momentarily, and then try
again.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use fifth gear.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to skid or
spin.
NOTICE
Make sure the vehicle is completely
stopped before shifting into reverse.

’05Camry_U (L/O 0409)
133
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
The traction control system automatical-
ly helps prevent the spinning of front
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”,
the system automatically turns on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against front wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the trac-
tion control system is in the self−check
mode, but does not indicate a malfunction. When the traction control system is oper-
ating, the following conditions occur:

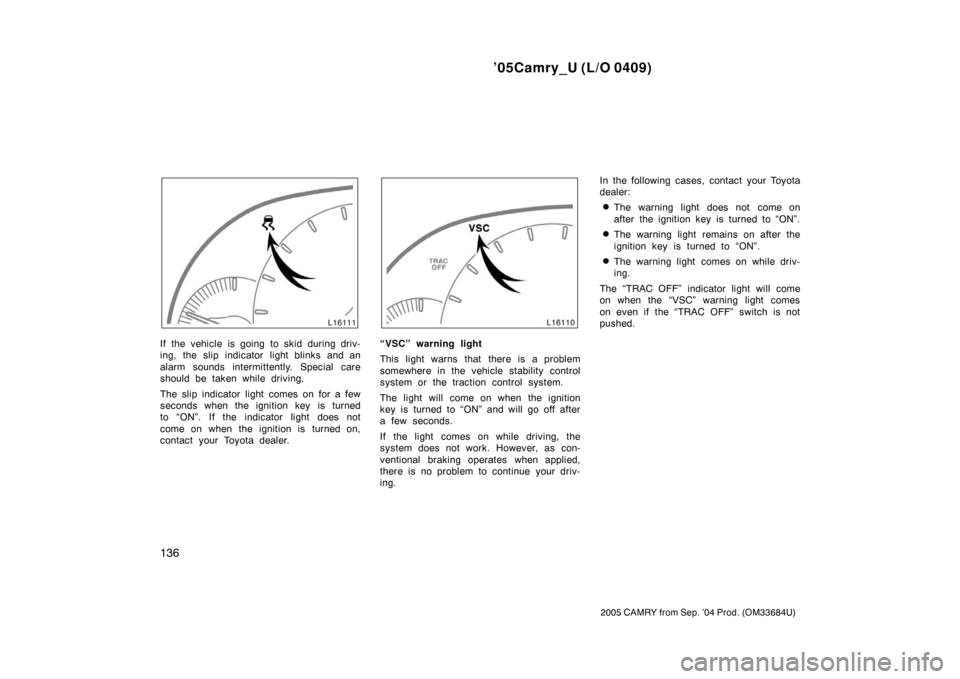

The system controls the spinning of the
front wheels. At this time, the slip indi-
cator light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
Traction control system

’05Camry_U (L/O 0409)
134
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
TRACTION CONTROL OFF MODE
When getting the vehicle out of mud or
newly fallen snow, etc., turn off the
traction control system. This system
that controls engine performance inter-
feres with the process of freeing front
wheels.

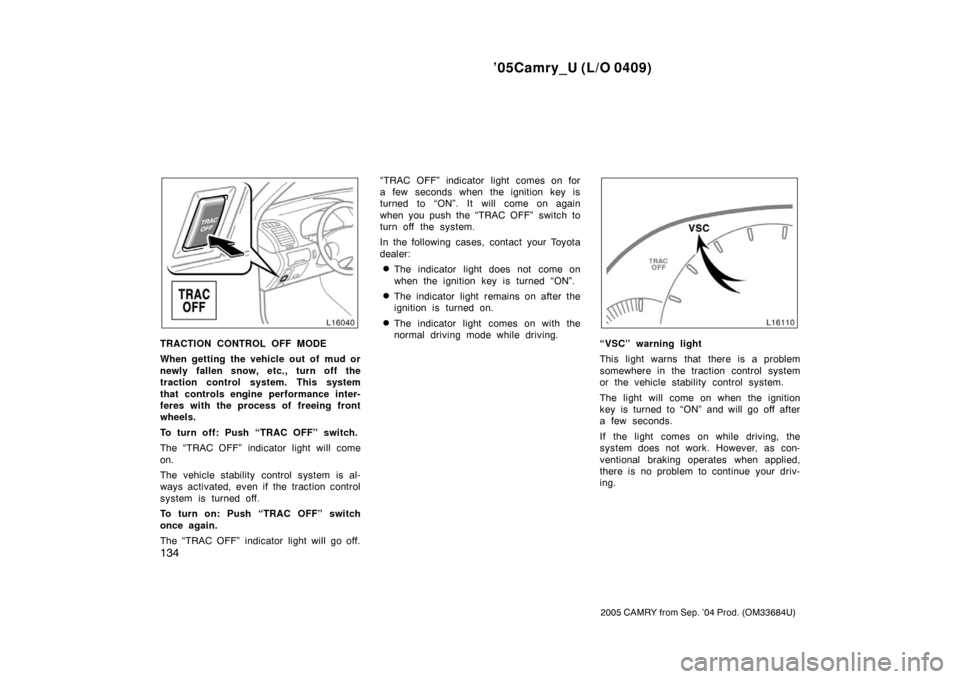

To turn off: Push “TRAC OFF” switch.
The “TRAC OFF” indicator light will come
on.
The vehicle stability control system is al-
ways activated, even if the traction control
system is turned off.
To turn on: Push “TRAC OFF” switch
once again.
The “TRAC OFF” indicator light will go off.“TRAC OFF” indicator light comes on for
a few seconds when the ignition key is
turned to “ON”. It will come on again
when you push the “TRAC OFF” switch to
turn off the system.
In the following cases, contact your Toyota
dealer:
The indicator light does not come on
when the ignition key is turned “ON”.
The indicator light remains on after the
ignition is turned on.
The indicator light comes on with the
normal driving mode while driving.
“VSC” warning light
This light warns that there is a problem
somewhere in the traction control system
or the vehicle stability control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.

’05Camry_U (L/O 0409)
135
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The “TRAC OFF” indicator light will come
on when the “VSC” warning light comes
on even if the “TRAC OFF” switch is not
pushed. The vehicle stability control system
helps provide integrated control of the
systems such as antilock brake sys-
tem, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
This system will activate when your ve-
hicle speed reaches or exceeds 15 km/h
(9 mph), and will deactivate when the ve-
hicle speed reduces to below 15 km/h (9
mph).
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self
−check mode, but does
not indicate a malfunction.
CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
flashes, an alarm sounds, and spe-
cial care should be taken while
driving.
Only use tires of specified size. The
size, manufacture, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 312 in Section 72.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
Vehicle stability control
system

’05Camry_U (L/O 0409)
136
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.“VSC” warning light
This light warns that there is a problem
somewhere in the vehicle stability control
system or the traction control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The “TRAC OFF” indicator light will come
on when the “VSC” warning light comes
on even if the “TRAC OFF” switch is not
pushed.
